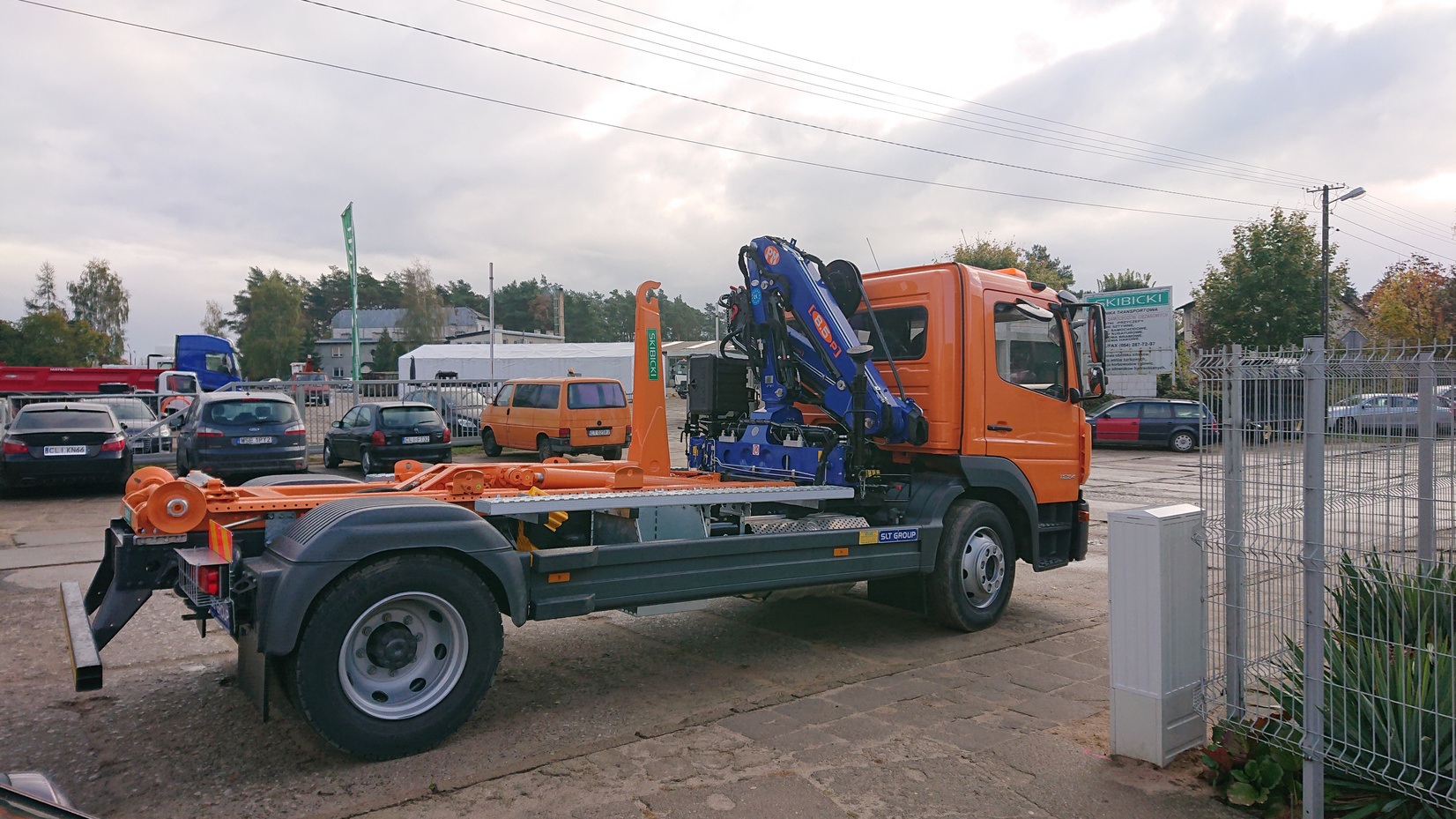

PM 8524 P
The PM 8524 P stands out as a lightweight, high-performance articulating crane that extends reach and flexibility for operators handling complex lifting tasks where space and payload efficiency are essential.
Compare products
Product Specs
- Fuel Tank Capacity 64 l
- Hydraulic Horizontal Outreach 10.65 m
- Hydraulic Vertical Outreach 13.50 m
- Max. Lifting Moment 6.0 TM
- Max. Pressure 28 MPa
- Recommended oil flow 30 l/min
- Slewing angle 400°
- Slewing torque 10.0 kNm
- Stabilizer control Radio Wireless Manual
- Stabilizer Spread available 3.2 – 4.2 m
- Standard Crane Weight with empty tank 1060 kg
Product description
Extended Reach, Lightweight Power
Engineered as part of the advanced PM 8.5 P series, the PM 8524 P delivers exceptional lifting capabilities with an outstanding horizontal outreach of 10.65 meters and a vertical reach of 13.50 meters. Despite its powerful performance, the crane keeps its own weight to just 1,060 kg (with an empty tank), providing more payload capacity for the carrier vehicle. With a maximum lifting moment of 6.0 tonne-meters and the series’ renowned Plus system, the PM 8524 P ensures smooth, responsive movements and optimal precision on every lift. The crane’s 400° slewing angle and 10.0 kNm slewing torque allow for easy maneuvering and positioning in tight job sites, while the manual stabilizer control and adjustable spread between 3.2 and 4.2 meters offer safe and secure setup for any operation. Efficient and economical, the PM 8524 P operates at a recommended oil flow of just 30 liters per minute and a maximum system pressure of 28 MPa—balancing energy savings with the strength to get the job done. When versatility, reach, and lightweight efficiency are a priority, the PM 8524 P is the clear choice for demanding lifting challenges.
