PM 18025 SP

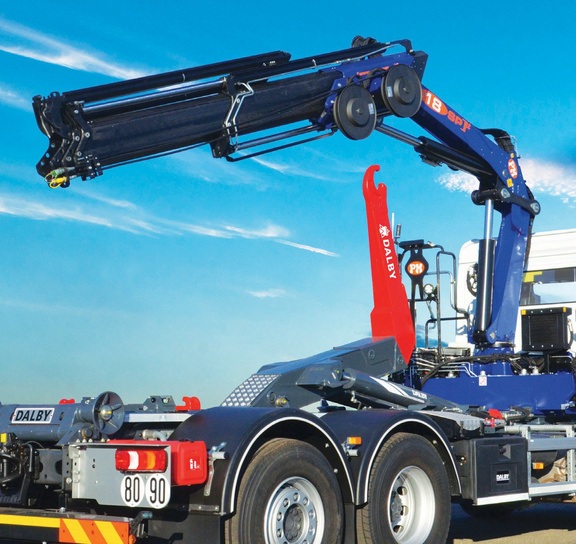

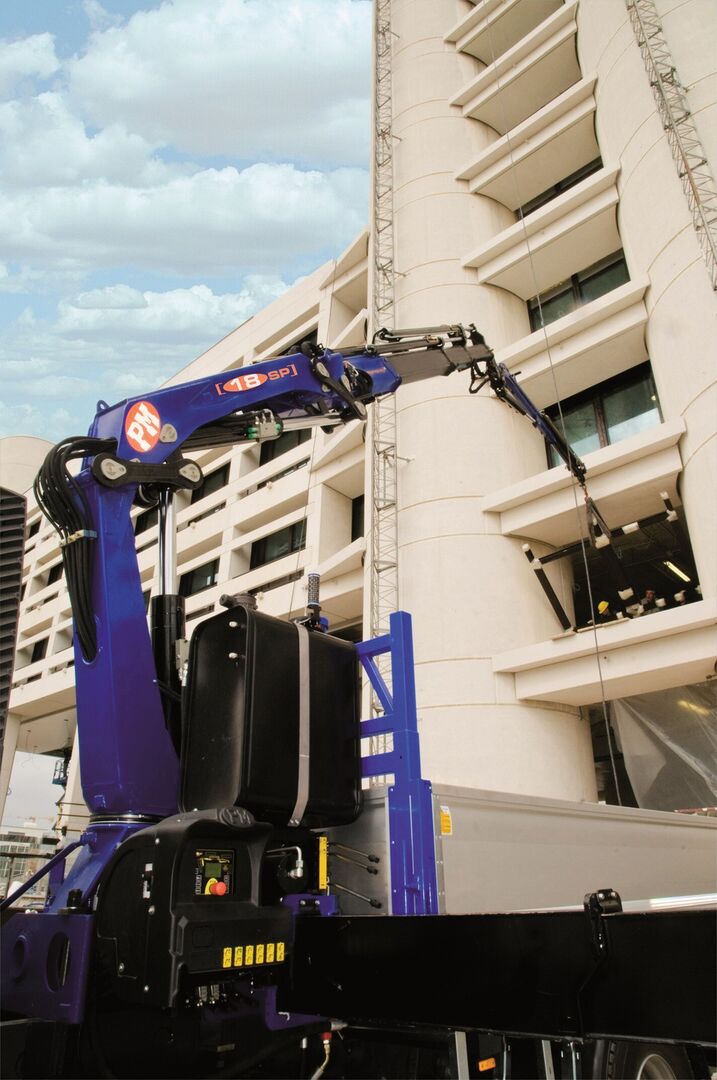

The PM 18025 SP is a top-of-the-range articulating crane in the medium capacity segment—built with modern engineering, advanced control features, and exceptional reach for high-performance lifting and long-term value.
Compare products
Product Specs
- Fuel Tank Capacity 150 l
- Hydraulic Horizontal Outreach 14.50 m
- Hydraulic Vertical Outreach 18.45 m
- Max. Lifting Moment 15.0 TM
- Max. Pressure 30.5 MPa
- Recommended oil flow 80 l/min
- Slewing angle 400°
- Slewing torque 19.7 kNm
- Stabilizer control Radio Wireless Radio Wireless
- Stabilizer Spread available 5.1 – 6.6 m
- Standard Crane Weight with empty tank 2320 kg
Product description
Modern Design, Heavy-Duty Reach
Positioned at the top of the PM 18 SP series, the PM 18025 SP combines robust lifting power with state-of-the-art design and intuitive handling. Delivering a maximum lifting moment of 15.0 tonne-meters, it provides an outstanding horizontal outreach of 14.50 meters and a vertical reach up to 18.45 meters—making it ideal for complex tasks where both reach and precision are vital. The crane’s powerful cast iron rotation unit with a 400° slewing angle and a robust 19.7 kNm slewing torque ensures smooth and reliable performance in demanding conditions. With flexible stabilizer spreads from 5.1 to 6.6 meters and wireless radio stabilizer controls, the PM 18025 SP offers operators maximum control and safety, even in tight or uneven job sites. Designed for intensive cycles, the crane comes super-equipped as standard: advanced regenerative valve for faster boom extension, the Plus system for precise load dynamics, Power Tronic control with a large, user-friendly LCD display, and a host of safety features such as low-pressure control safety valves for vibration-free movements. The LC telescopic system and PM’s exclusive double linkage ensure consistent lifting performance across all working positions. Corrosion resistance is enhanced through PM’s multi-phase PQS painting process, guaranteeing up to five years of durability in harsh environments. Operating with a recommended oil flow of 80 liters per minute and a maximum pressure of 30.5 MPa, the PM 18025 SP achieves optimal hydraulic efficiency. Weighing just 2,320 kg (empty tank), it maximizes payload capacity without sacrificing strength or stability. With its modern engineering, full-featured configuration, and proven reliability, the PM 18025 SP delivers an immediate return on investment for any lifting fleet.
