Snake 2413 Plus on Isuzu

The Snake 2413 Plus on Isuzu delivers powerful reach with compact transport dimensions, combining a pantograph boom design with the reliability of the Isuzu M21 chassis.

Get in touch

Product description

Compact mobility. Professional reach.

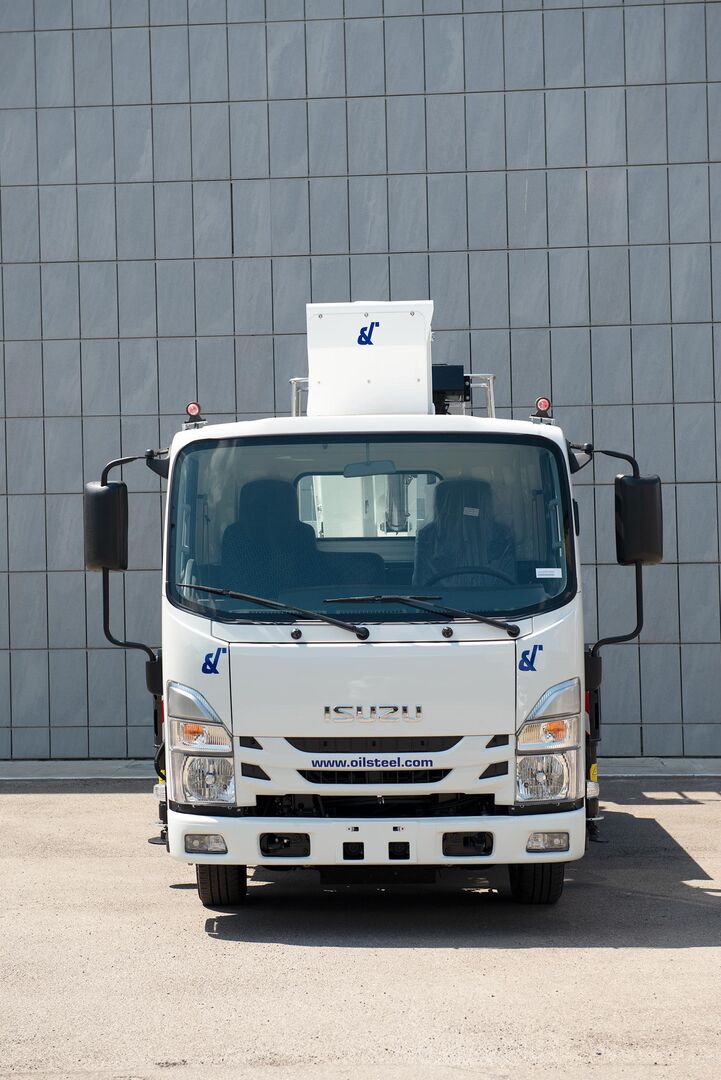

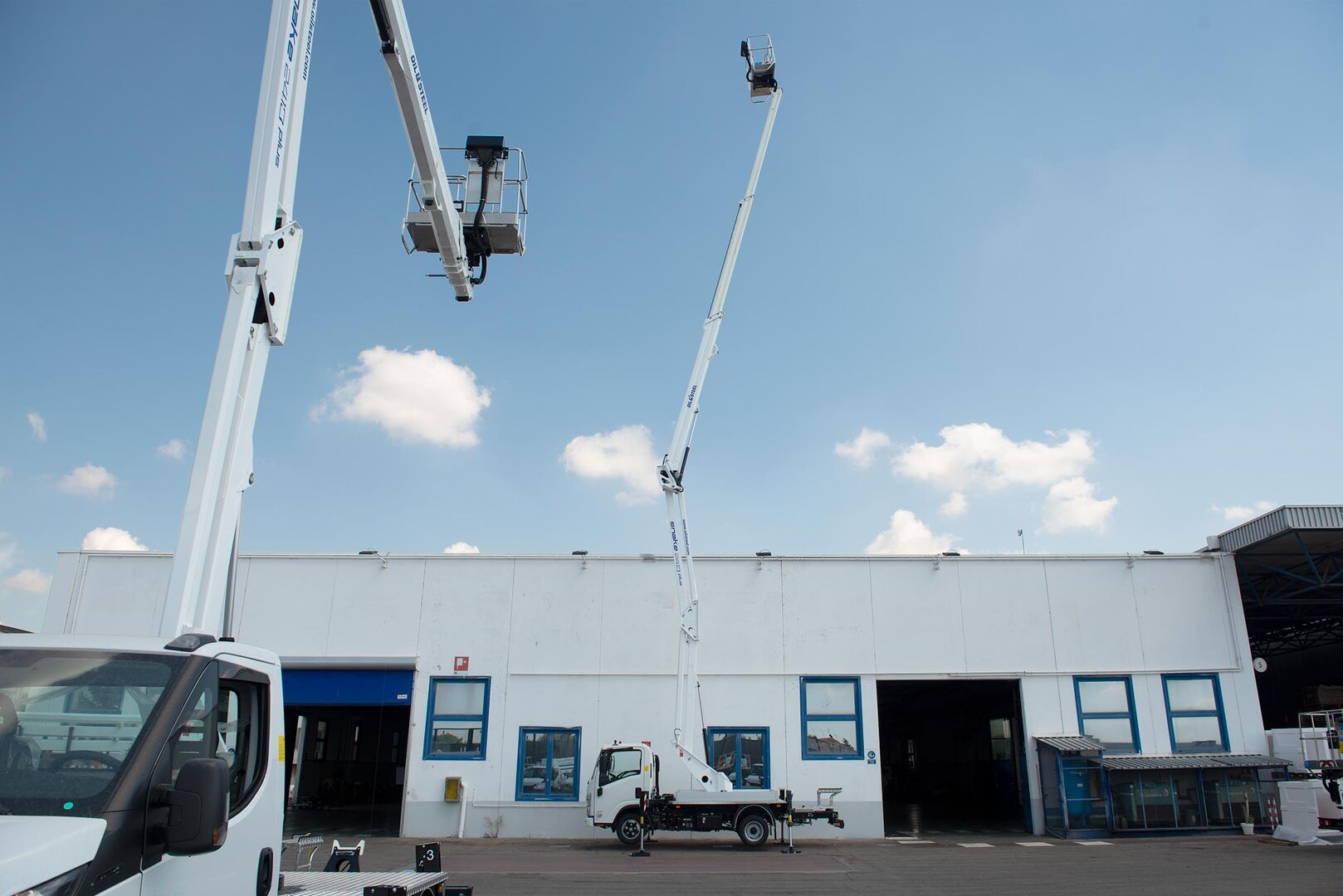

Mounted on the Isuzu M21 Ground Blue H (Euro 6d, 123 HP, wheelbase 2760 mm), the Oil&Steel Snake 2413 Plus provides a 23.5 m maximum working height, 12.6 m outreach, and a 250 kg basket capacity for two operators plus tools.

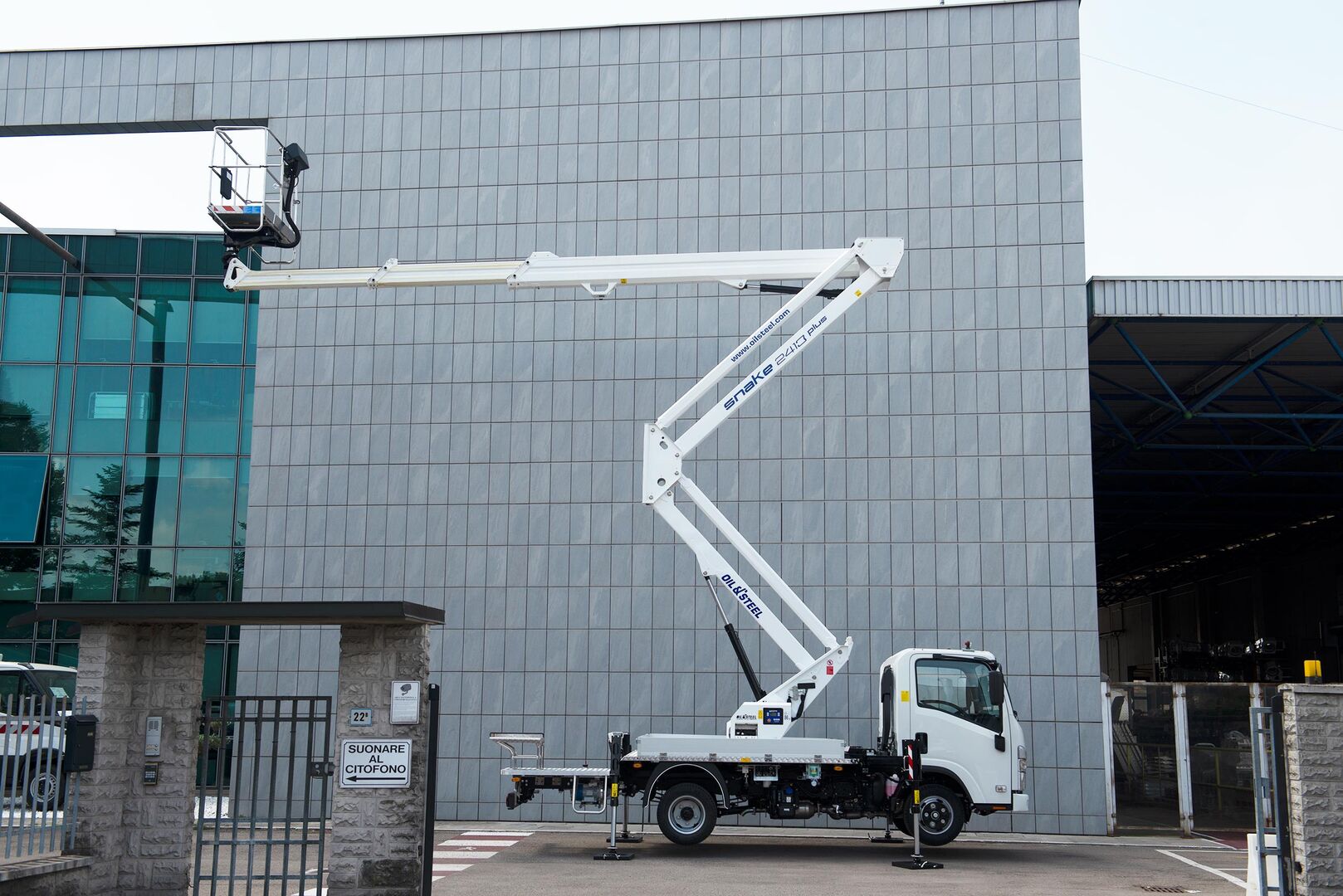

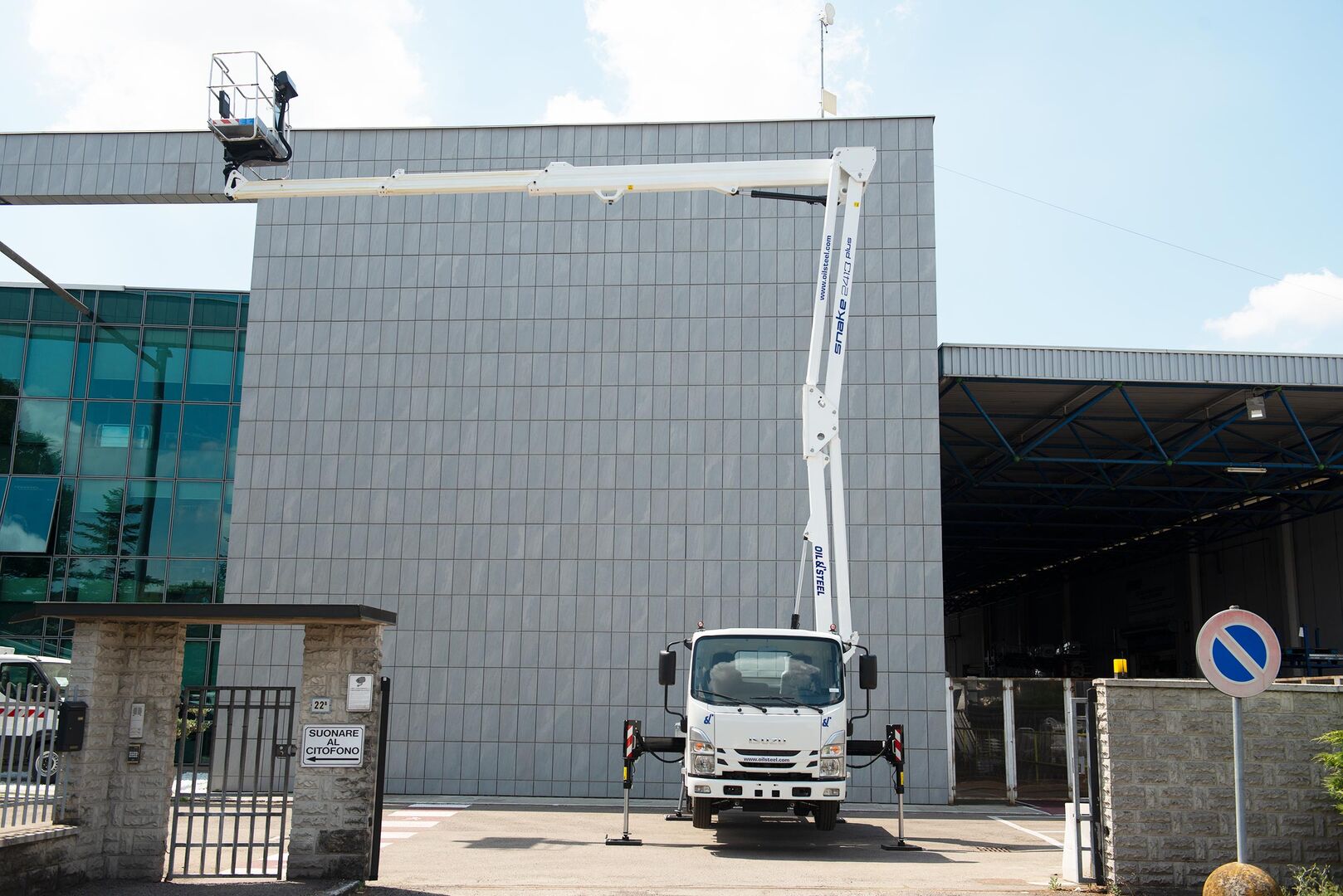

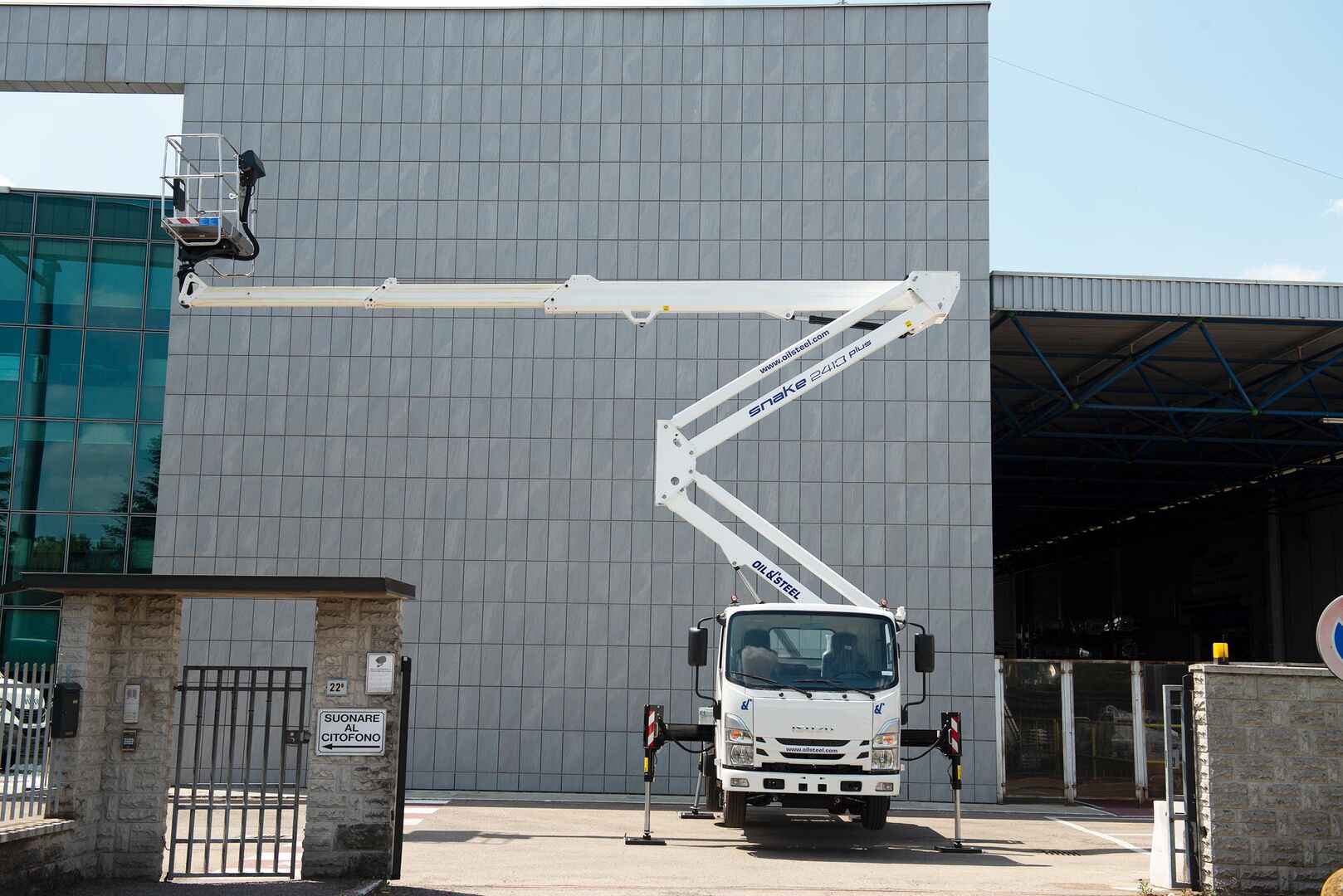

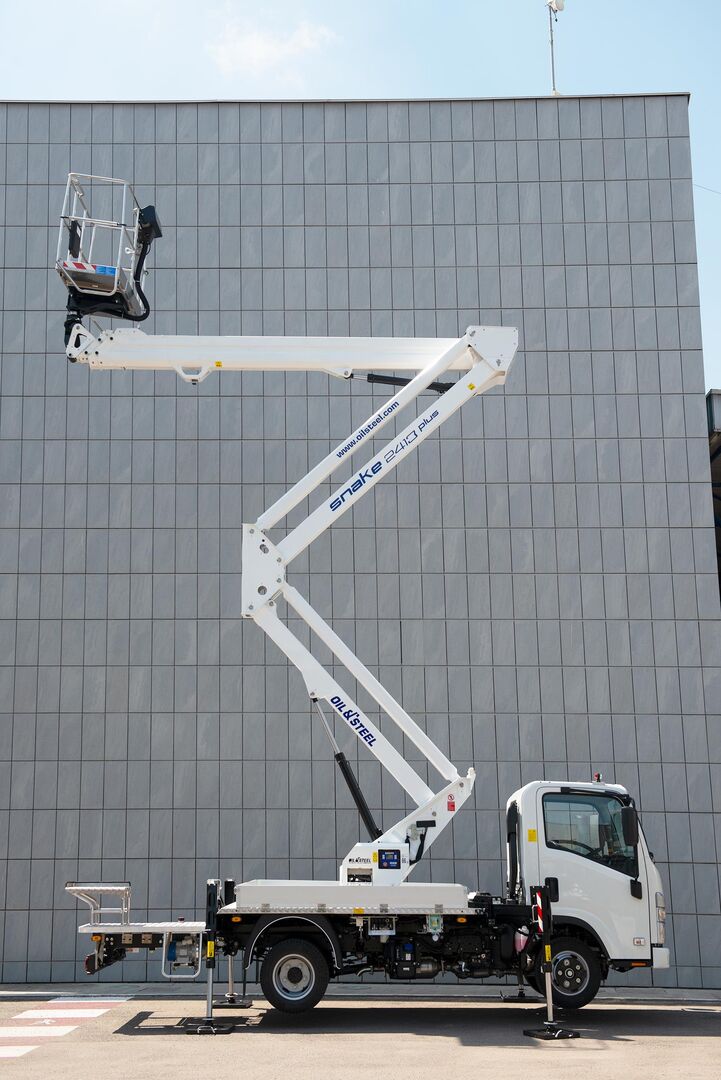

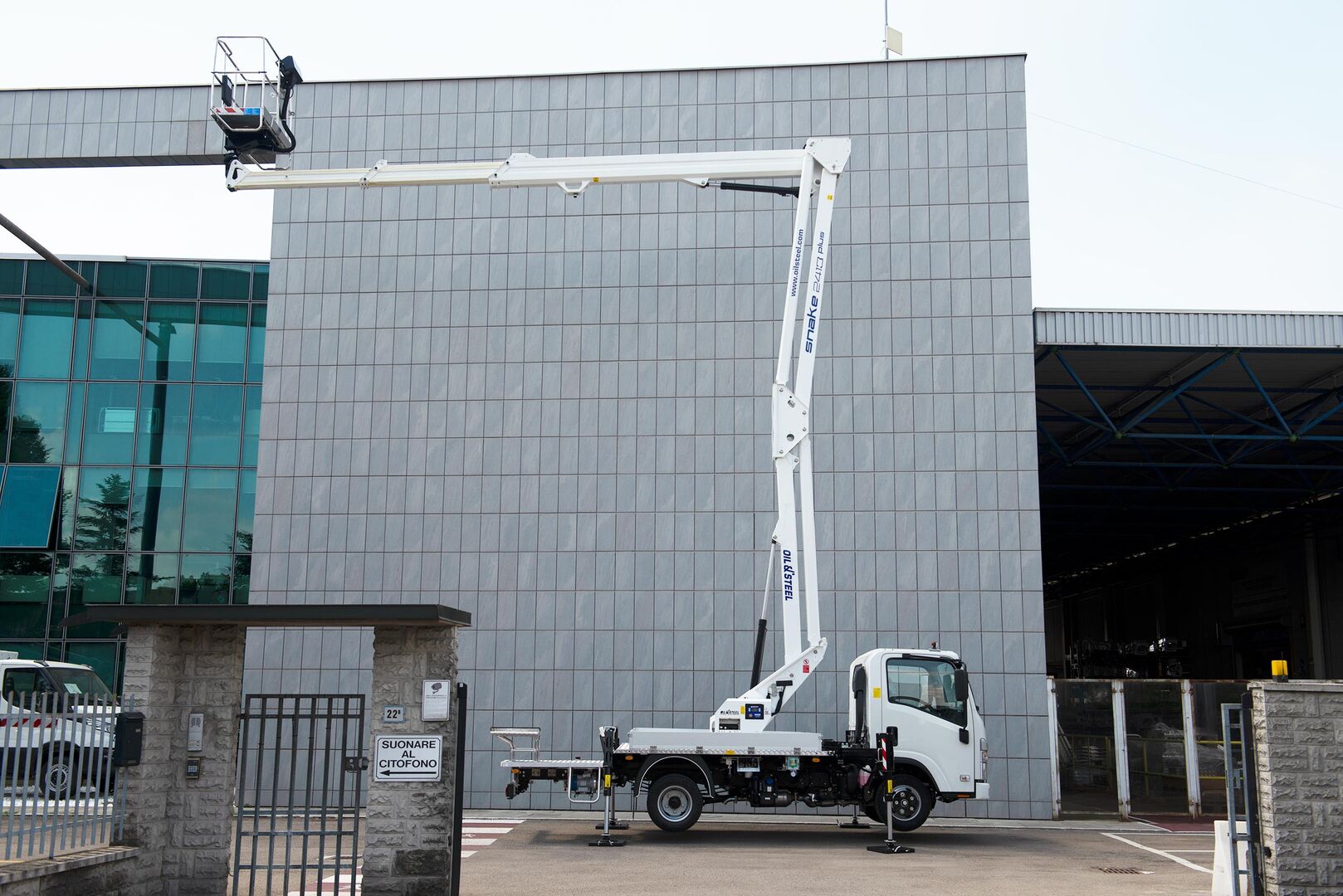

The articulated boom with pantograph allows vertical movement and obstacle-clearing outreach, while the 400° turret rotation and ±90° basket rotation ensure precise positioning. The 1.4 x 0.7 x 1.1 m aluminum basket comes as standard, with fiberglass and insulated versions available.

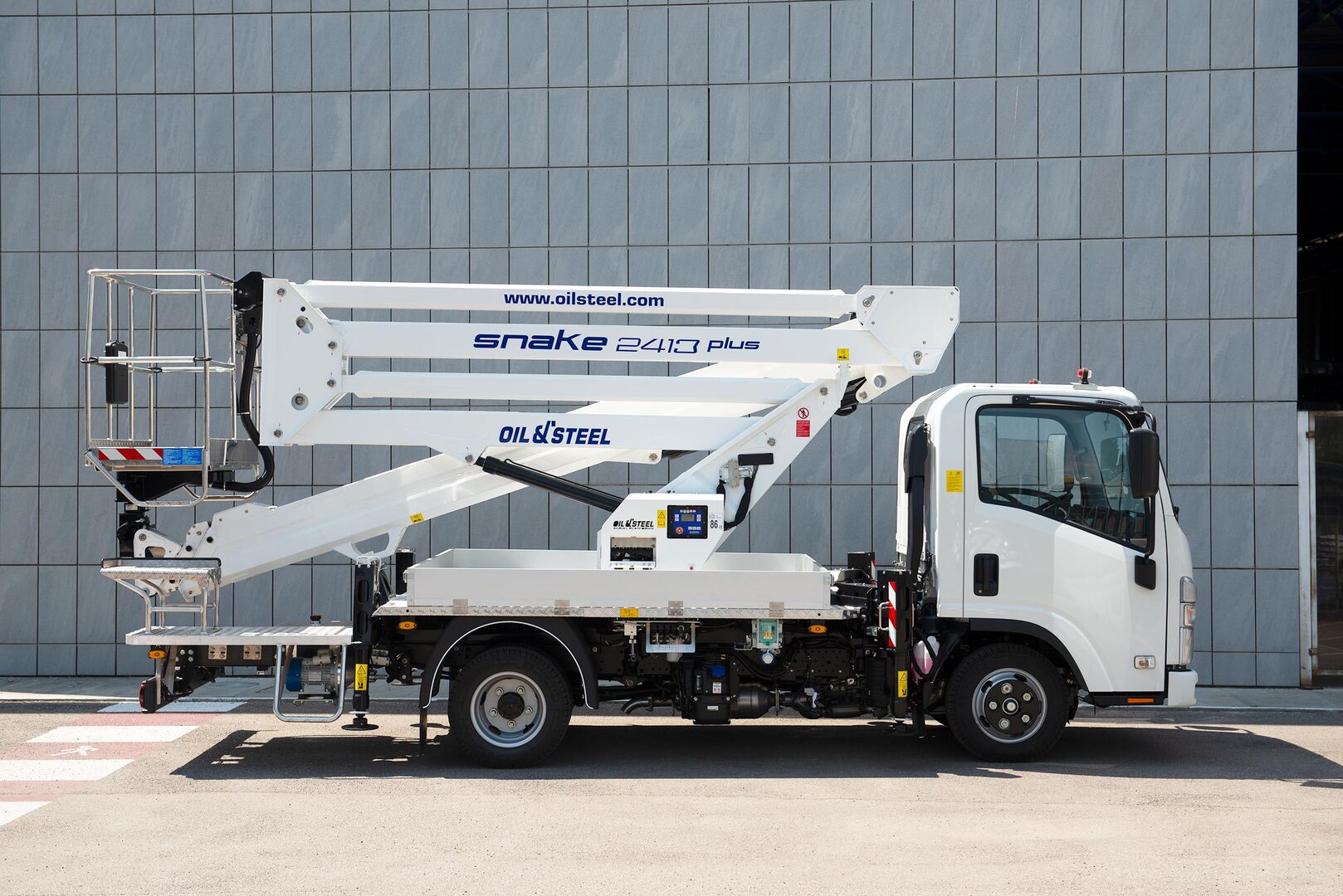

Transport dimensions—6.30 m length, 2.09 m width, 2.83 m height—make the Snake 2413 Plus especially compact for its performance class, enabling access even in restricted spaces.

Key features:

• Electro-hydraulic aerial controls, hydraulic outrigger controls (electro-hydraulic optional)
• PTO with automatic release and dashboard hour counter
• Moment detection and limiting system with geometric limiter
• Engine start/stop from basket and column
• Homing function (automatic aerial shut-down)
• Hydraulic or electro-hydraulic crosspiece extension
• Thermal protections, anti-slip decking, stainless fasteners, corrosion-resistant paint
• Emergency stop and manual descent pump

Optional extras include automatic stabilization from basket/ground, fiberglass insulated baskets, tilt sensor, auxiliary electric pumps, LED stabilizer lights, toolboxes, debris protection kits, reflective decals, A/C, and extended warranty.

Compact and powerful, the Snake 2413 Plus on Isuzu is designed for safe, versatile aerial access in demanding urban and industrial environments.
