Snake 24 FB

The Snake 24 FB is a double pantograph articulated platform designed for operators who need high vertical access, obstacle-clearing reach, and compact transport dimensions—mounted on the Isuzu M21 chassis.

Get in touch

Product description

High Reach. Flexible Positioning.

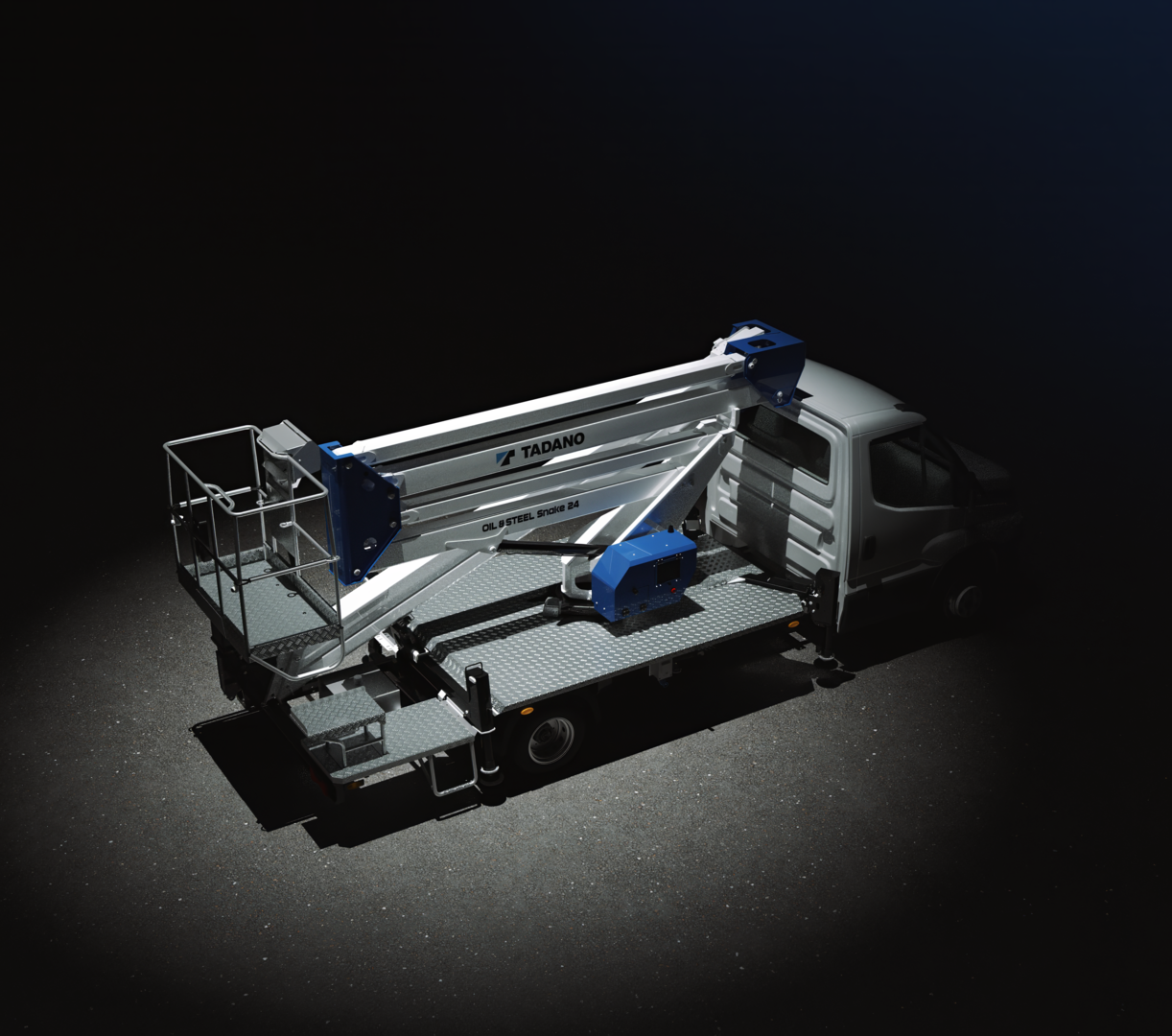

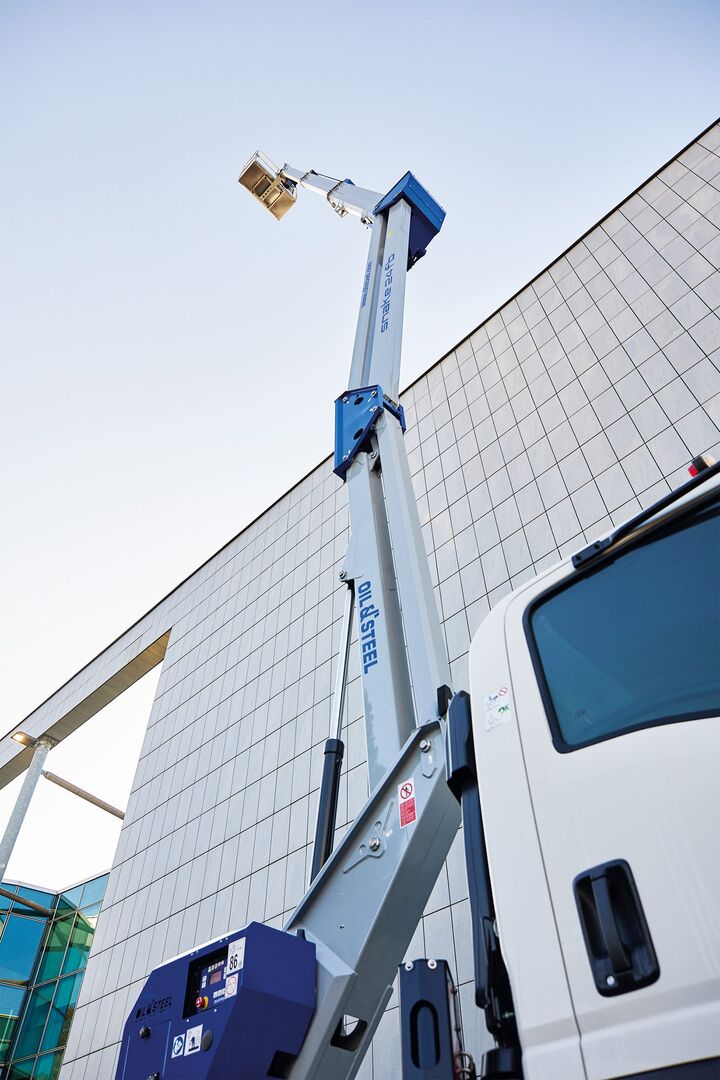

Mounted on the Isuzu M21T chassis (Euro 6d, 120 HP), the Oil&Steel Snake 24 FB delivers impressive performance with a maximum working height of 23.5 meters, a horizontal outreach of 13 meters, and a 250 kg basket capacity—enough to accommodate two operators and their tools. Its articulated boom and double pantograph design enable a straight vertical elevation followed by horizontal extension, allowing operators to easily reach over obstacles. This makes the Snake 24 FB particularly well-suited for urban and industrial applications. The platform features a 1.4 x 1.1 x 0.7-meter aluminum basket with ±90° hydraulic rotation, supported by H-type outriggers that ensure stability on various terrains. A 400° turret rotation further enhances flexibility when positioning the machine for work.

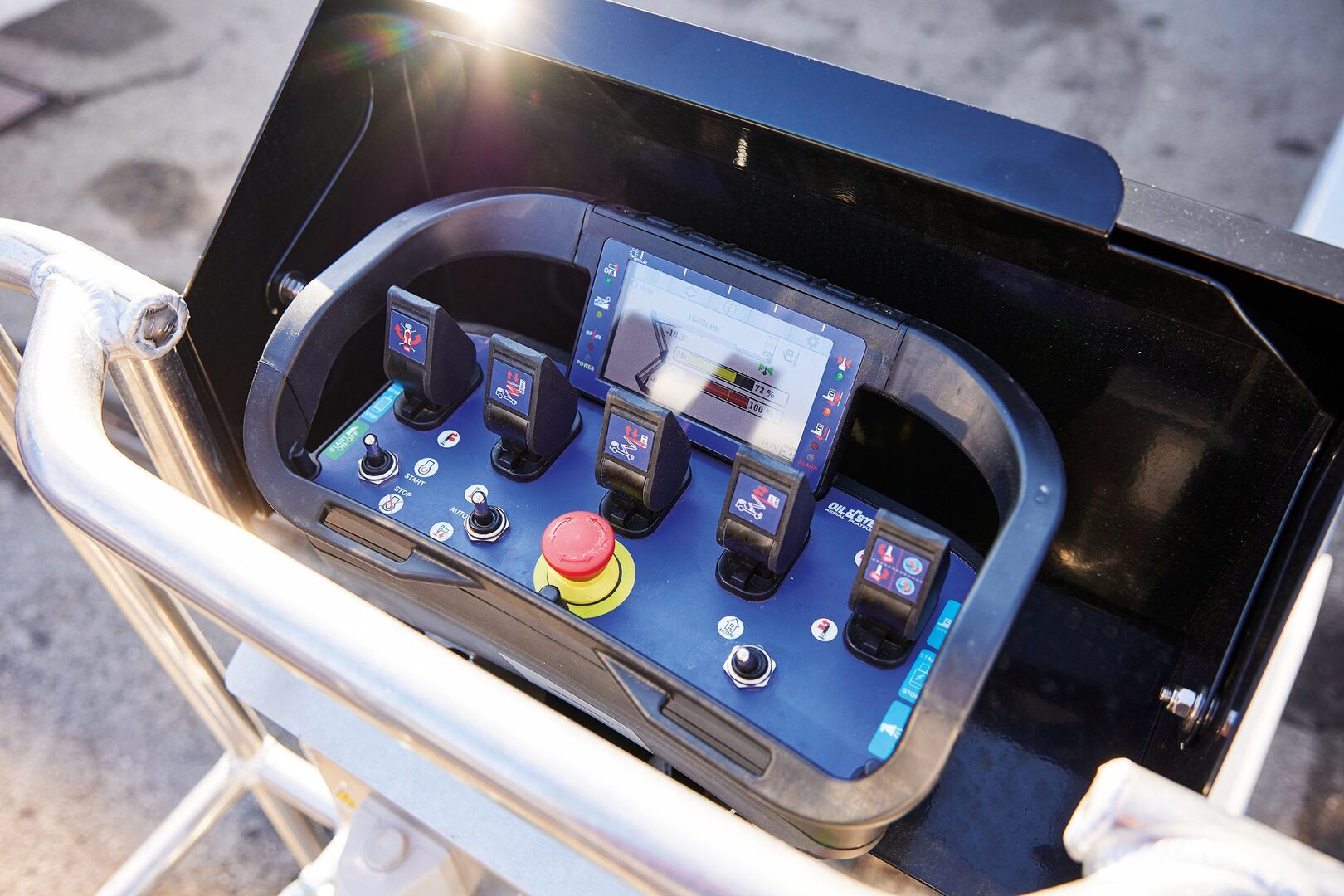

Despite its strong performance, the Snake 24 FB maintains compact transport dimensions—7.05 meters in length, 2.15 meters in width, and 2.91 meters in height—making it agile enough for maneuvering through tight city streets or operating in confined spaces. The model integrates a range of safety and productivity systems, including electro-hydraulic aerial controls with a 4-inch display in the basket, a torque detection and limiting system, and automatic stabilization that can be activated from either the basket or the ground with optional electro-hydraulic outrigger controls. Additional functionalities such as homing and memory systems, manual and electric emergency stop and descent mechanisms, and an anti-collision system for the cab and chassis enhance operator safety. The internal routing of hoses and cables, corrosion-resistant paint, stainless steel screws, and anti-slip decking further improve durability and reliability.

The Snake 24 FB comes standard with an electric PTO featuring automatic release, warning systems for PTO, handbrake, and outriggers, as well as thermal protection, protective casings for control boxes, and a two-person basket with front entry and a gravity bar. A variety of optional configurations are also available, including fiberglass insulated baskets (up to 1 kV), a 7-inch touchscreen display on the column, working height limitation kits for rental applications, tilt sensors, toolboxes, debris protection kits, LED stabilizer lighting, custom paint options, reflective decals, air conditioning, infotainment systems, and extended warranties. Fully certified to CE standards, the Oil&Steel Snake 24 FB combines reach, flexibility, and compact design with advanced safety and comfort features, making it a top choice for professionals who demand reliable performance in complex access applications.
