Snake 2010 H Plus on Iveco

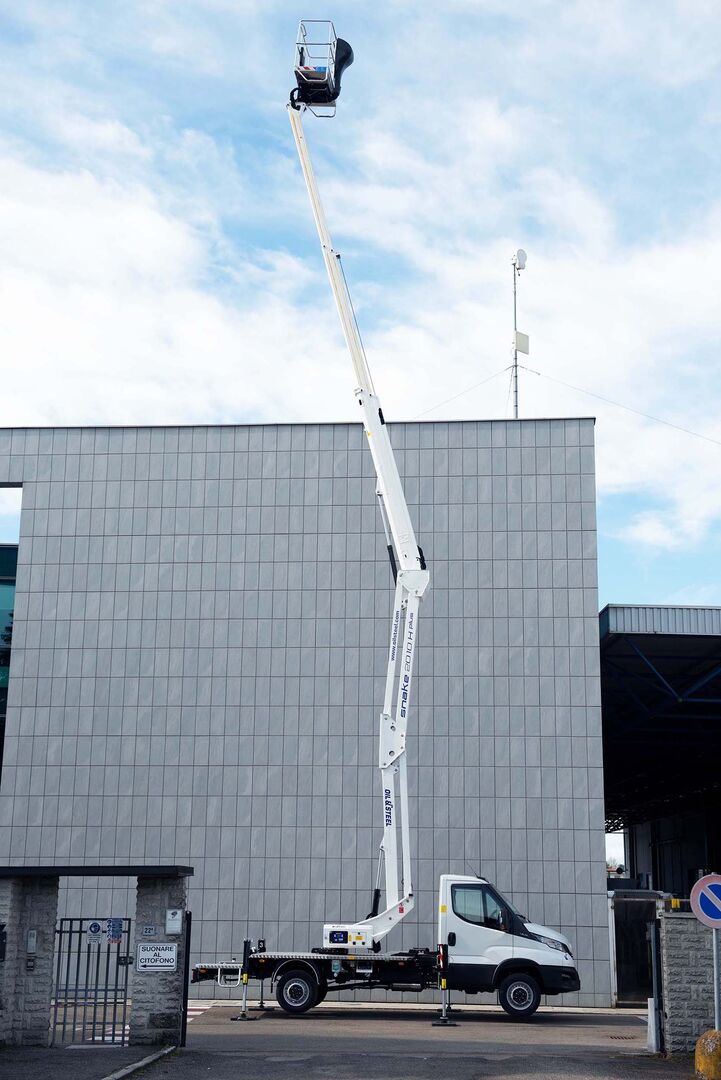

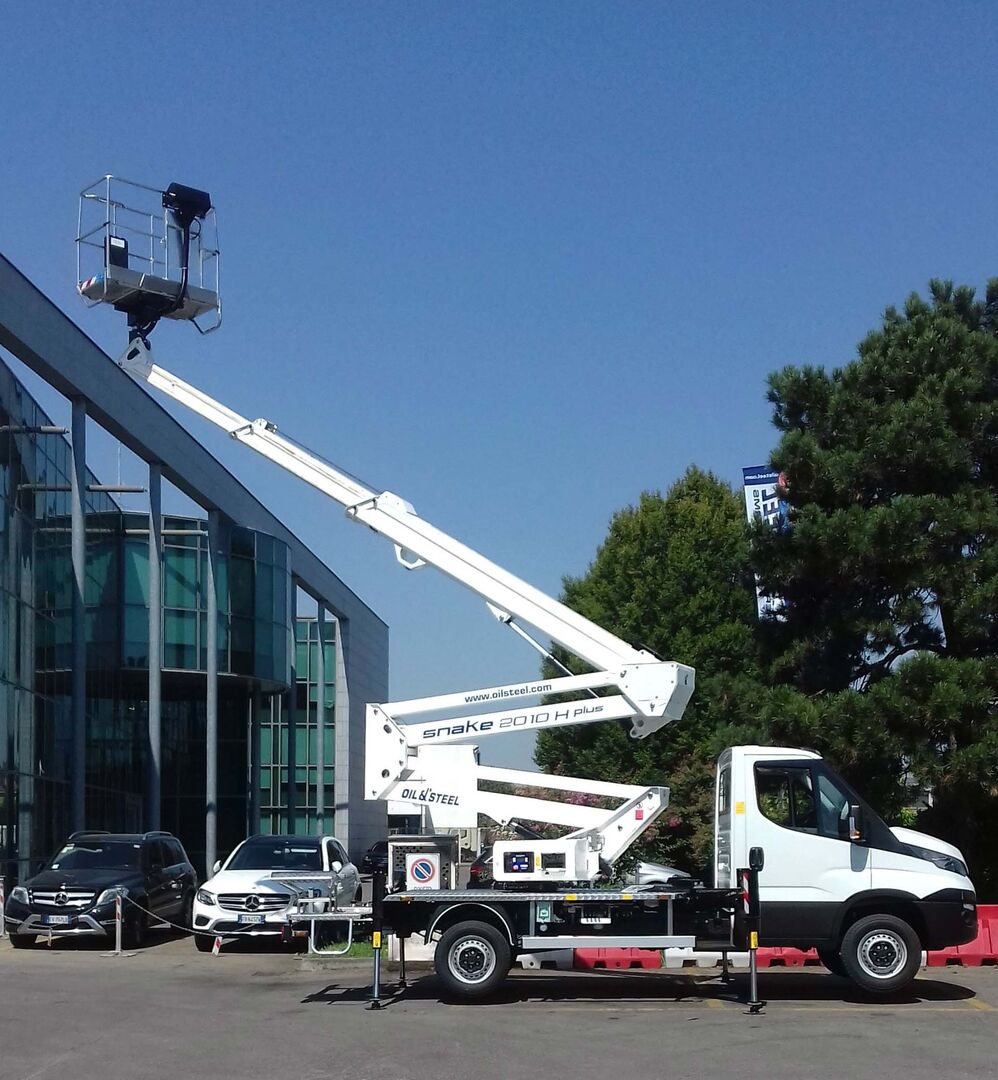

The Snake 2010 H Plus on Iveco combines the proven strength of the Iveco Daily chassis with Oil&Steel’s pantograph platform design, delivering up to 20 meters of working height and reliable performance.

Get in touch

Product description

Strong Chassis. Superior Access.

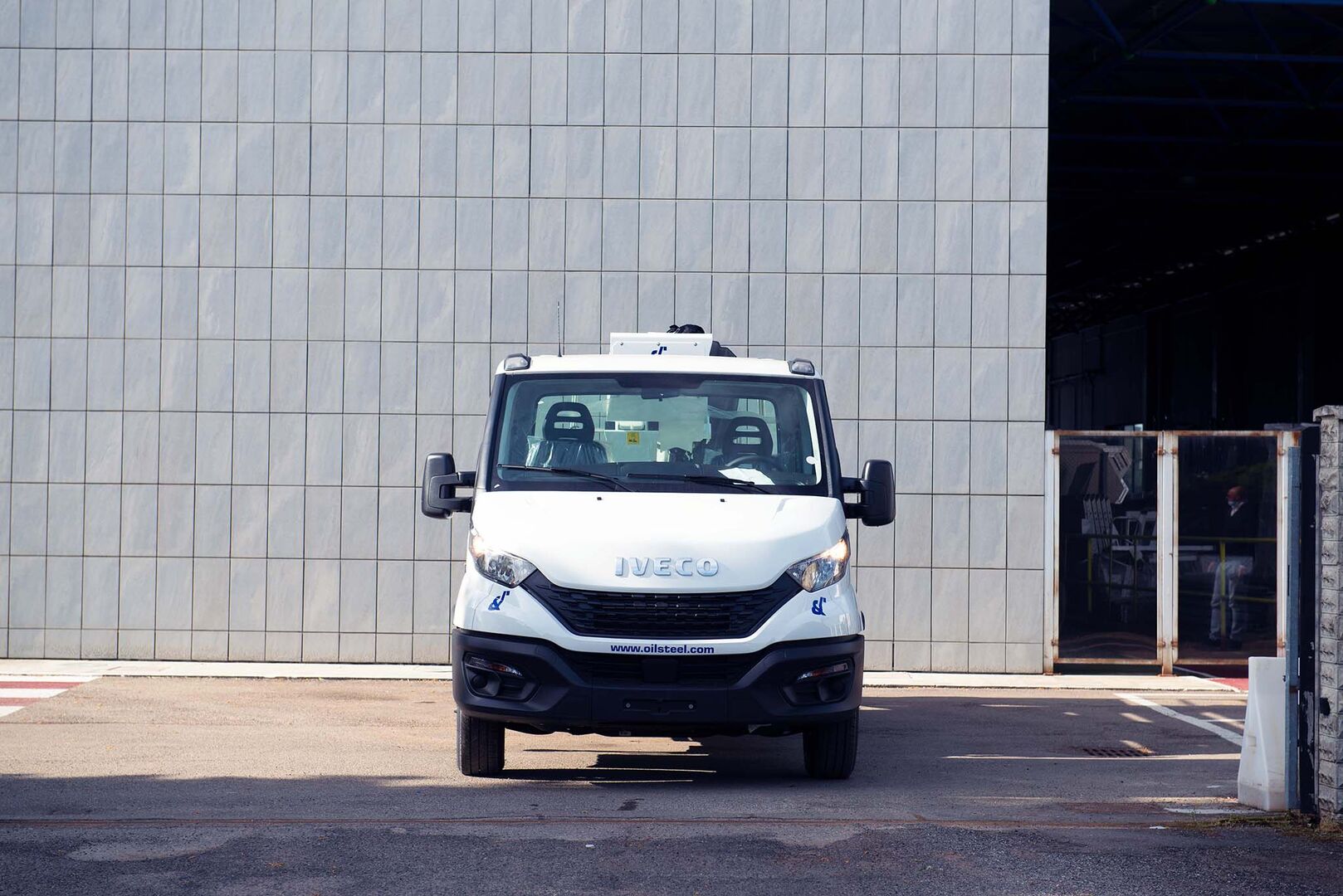

Mounted on the Iveco Daily 35S14H (136 HP, Euro VI), the Oil&Steel Snake 2010 H Plus provides a 20 m working height, a 10.2 m outreach, and a 250 kg basket capacity for two operators.

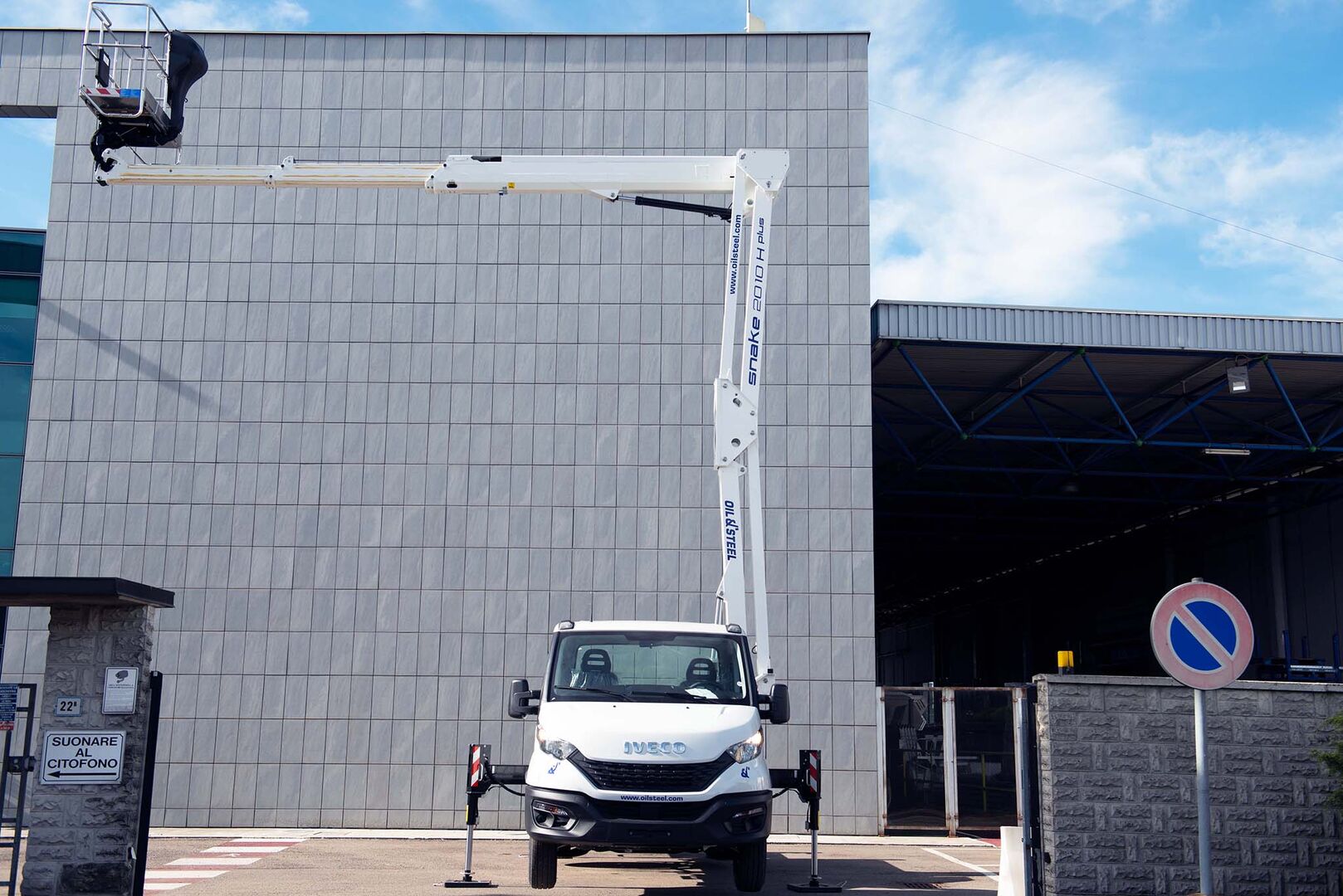

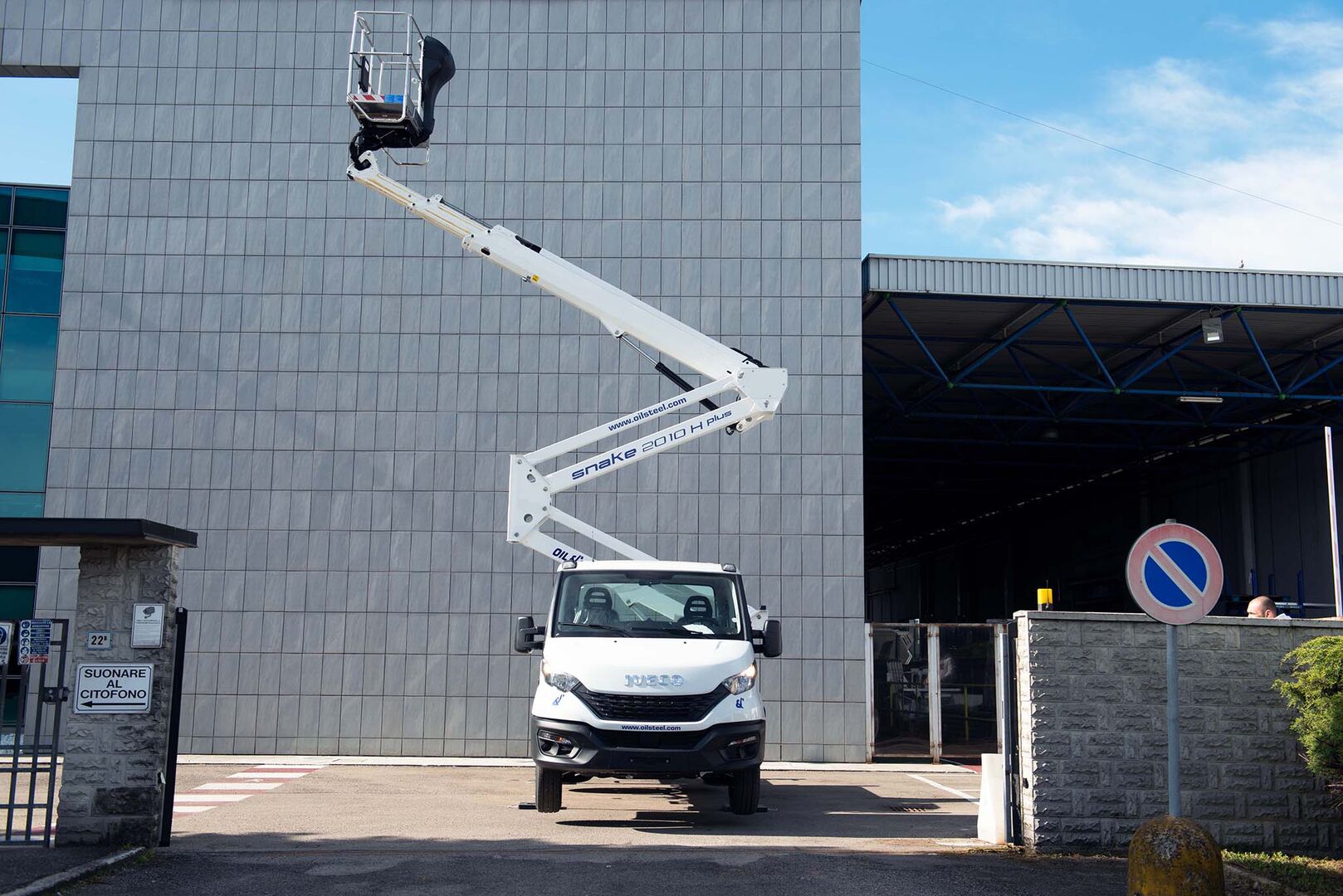

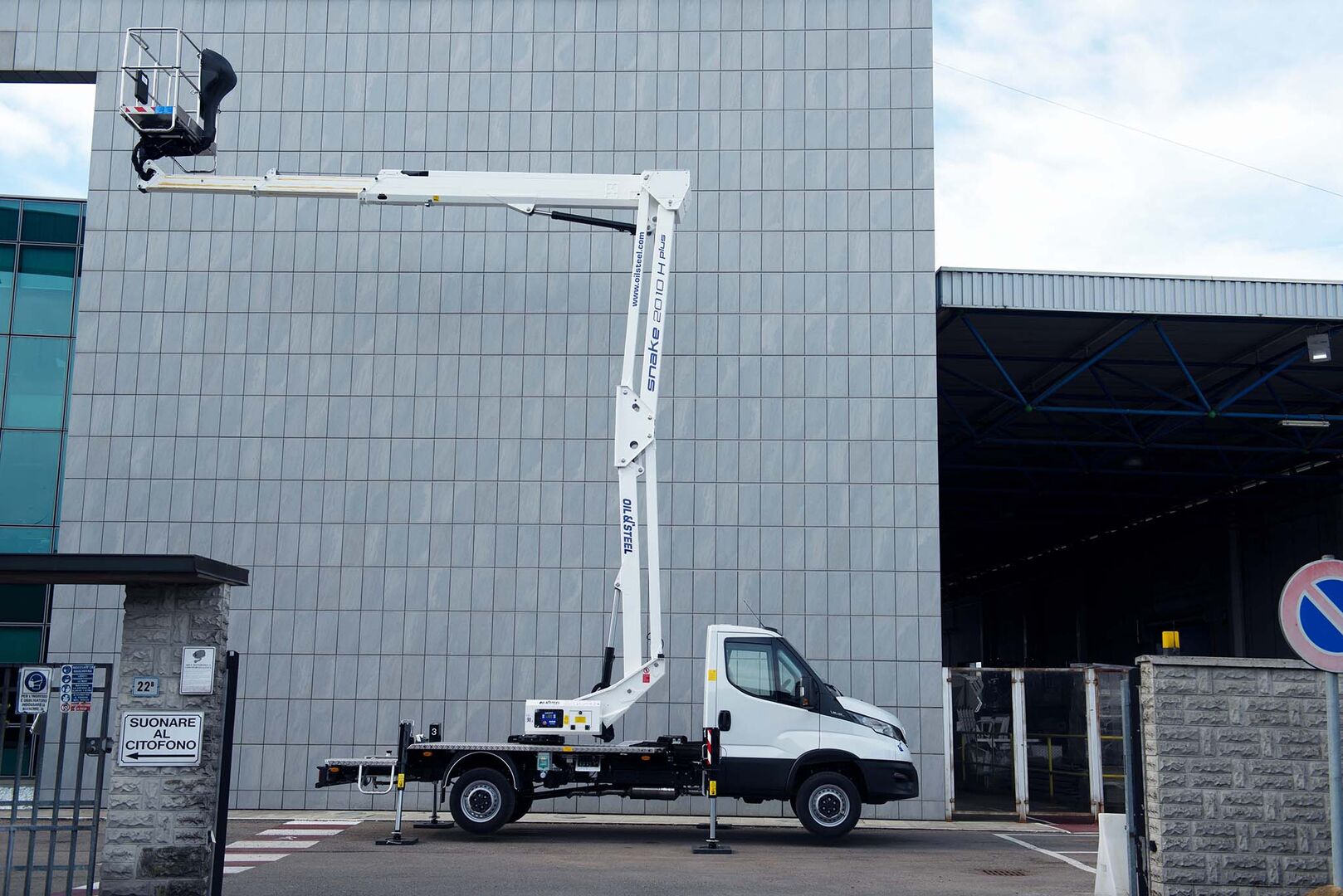

The pantograph boom design allows the platform to rise vertically and then extend horizontally over obstacles, making it ideal for complex access jobs. The 1.4 x 0.7 x 1.1 m aluminum basket rotates ±90°, while the 400° turret rotation and H-type outriggers allow flexible stabilization with multiple configurations.

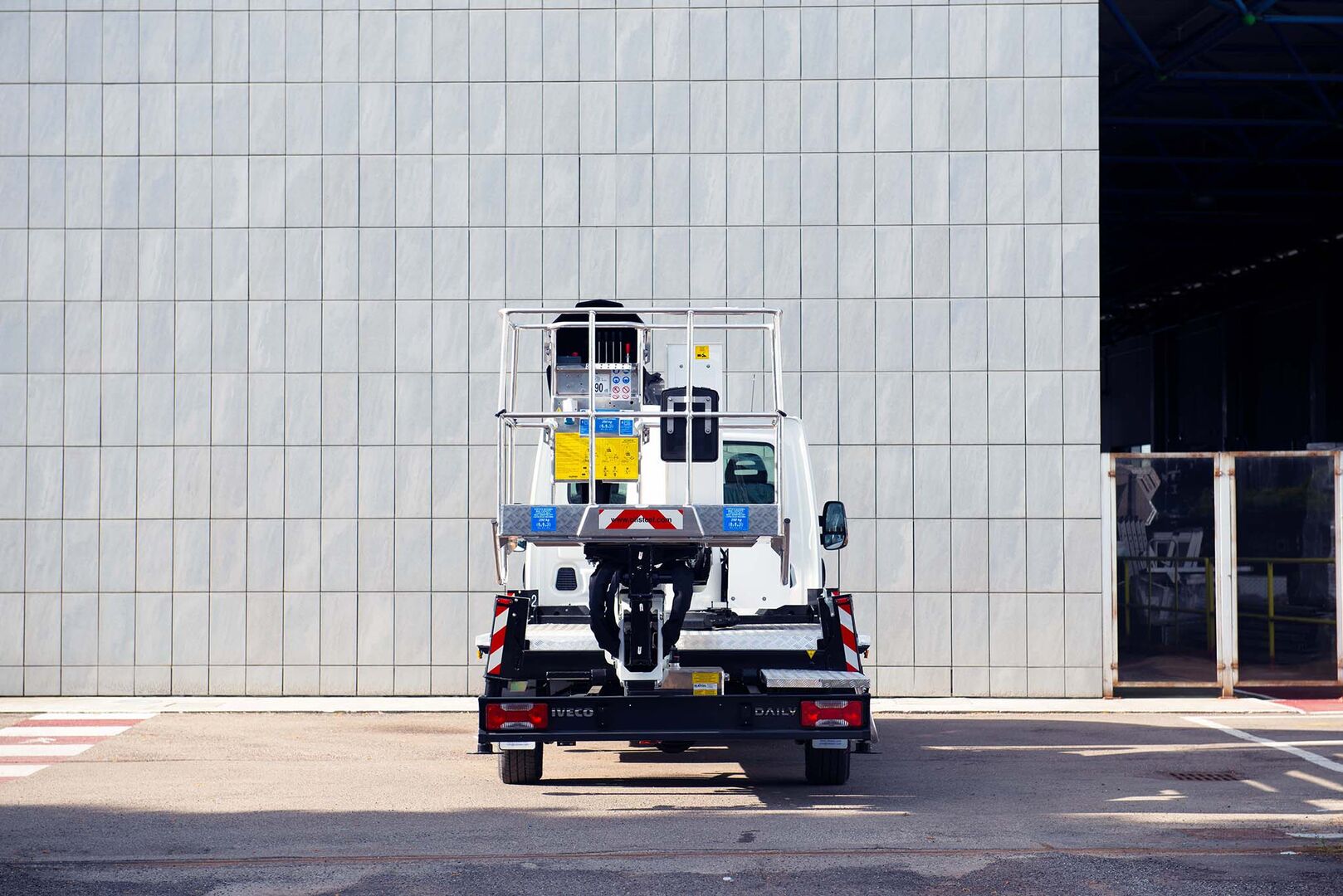

Larger transport dimensions—6.96 m length, 2.11 m width, and 2.67 m height—give the Iveco-mounted version a stronger presence and additional robustness for demanding work environments.

Safety and operator features include:

• Proportional hydraulic or optional electro-hydraulic controls
• Moment detection and limiting system
• Engine emergency stop from basket and column

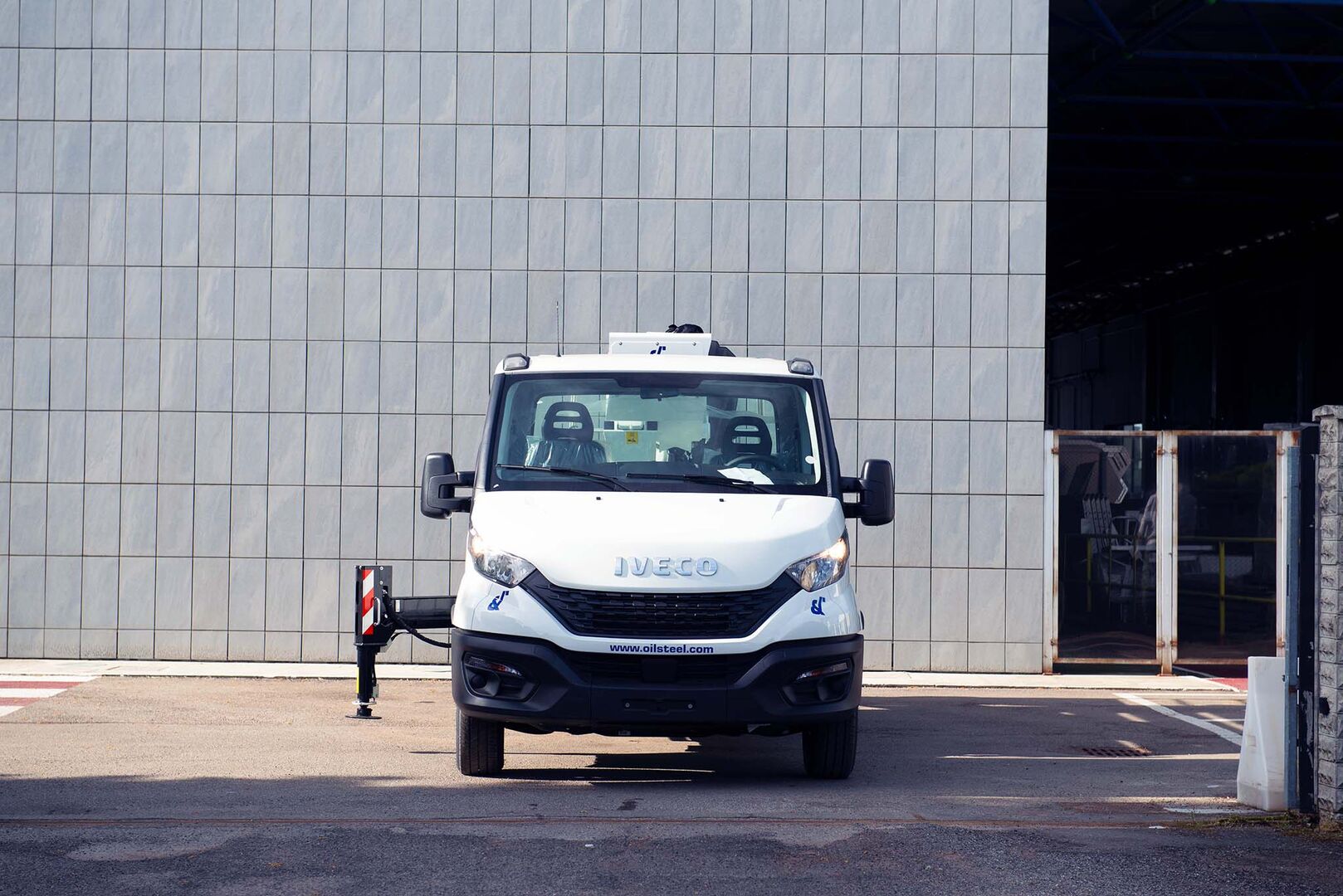

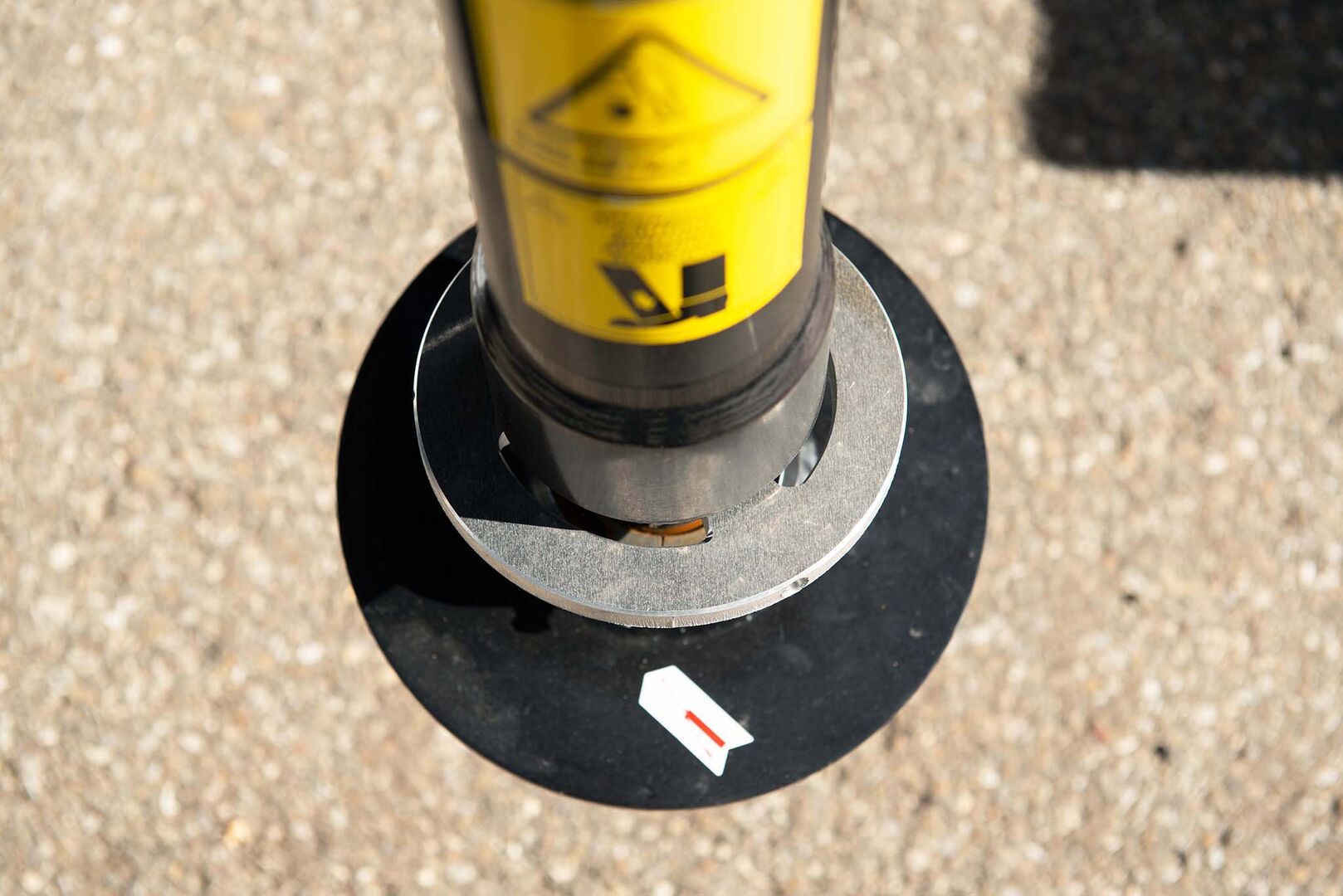

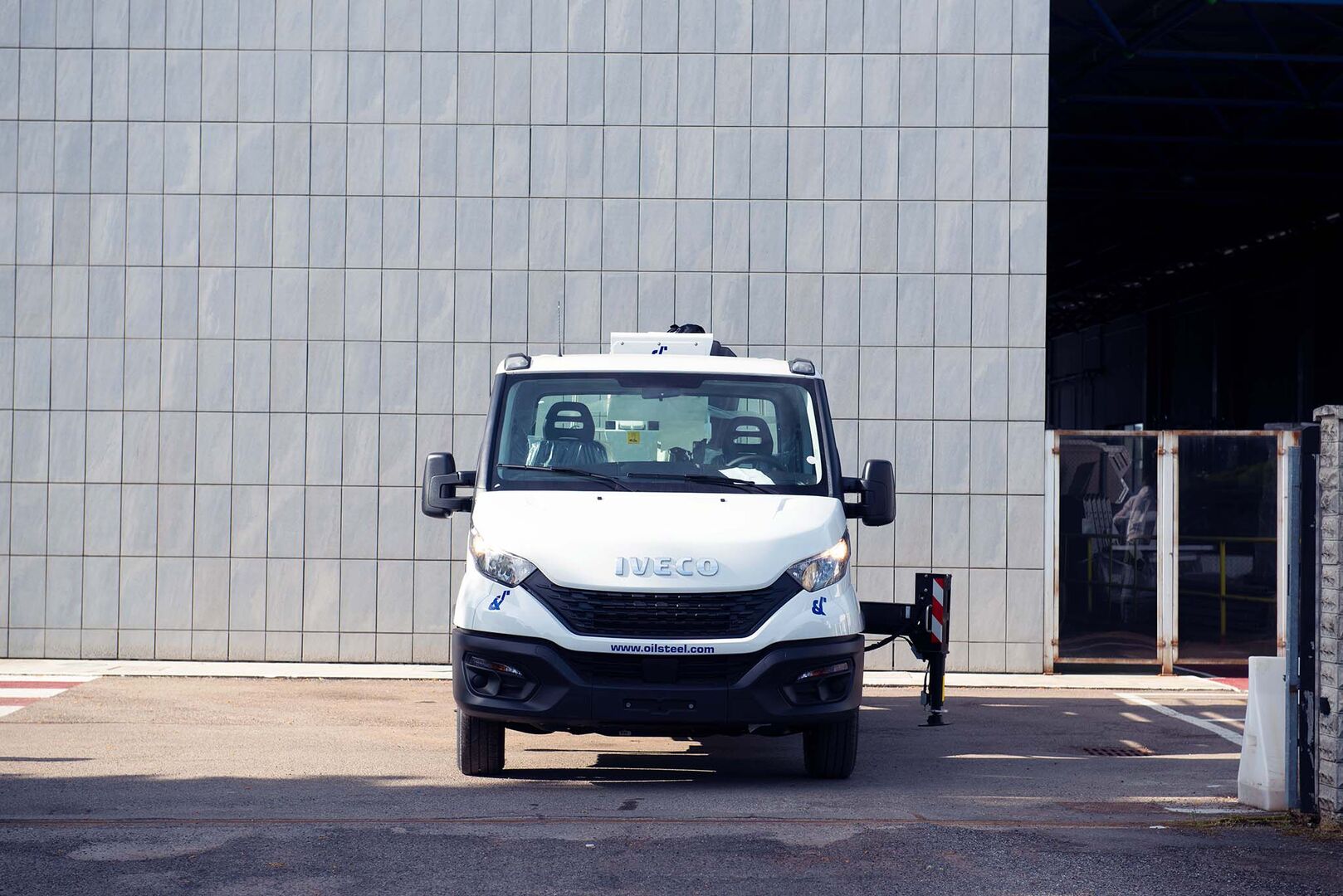

• Hydraulic or electro-hydraulic outrigger extension
• Manual pump for emergency descent
• Truck cabin anti-collision system
• Enclosed hoses and cables, anti-slip decking, stainless-steel fasteners

Standard truck features (Iveco Daily) include mechanical 6-speed gearbox, Euro VI F1A engine, power windows, central locking, driver safety systems, and a comfort-adjustable seat.
Optional extras include fiberglass insulated baskets, tilt sensor, auxiliary electric pumps, LED stabilizer lighting, toolboxes, flatbeds, reflective decals, A/C, custom paintwork, and extended warranties.

The Snake 2010 H Plus on Iveco offers robust strength and advanced safety features, making it the trusted solution for professional aerial work requiring reach, stability, and durability.
