Snake 2010 H Plus on Isuzu

The Snake 2010 H Plus on Isuzu is a compact, articulated truck-mounted platform designed to deliver 20 meters of working height with the agility and efficiency of the Isuzu M21 chassis.

Get in touch

Product description

Compact Truck. Confident Reach.

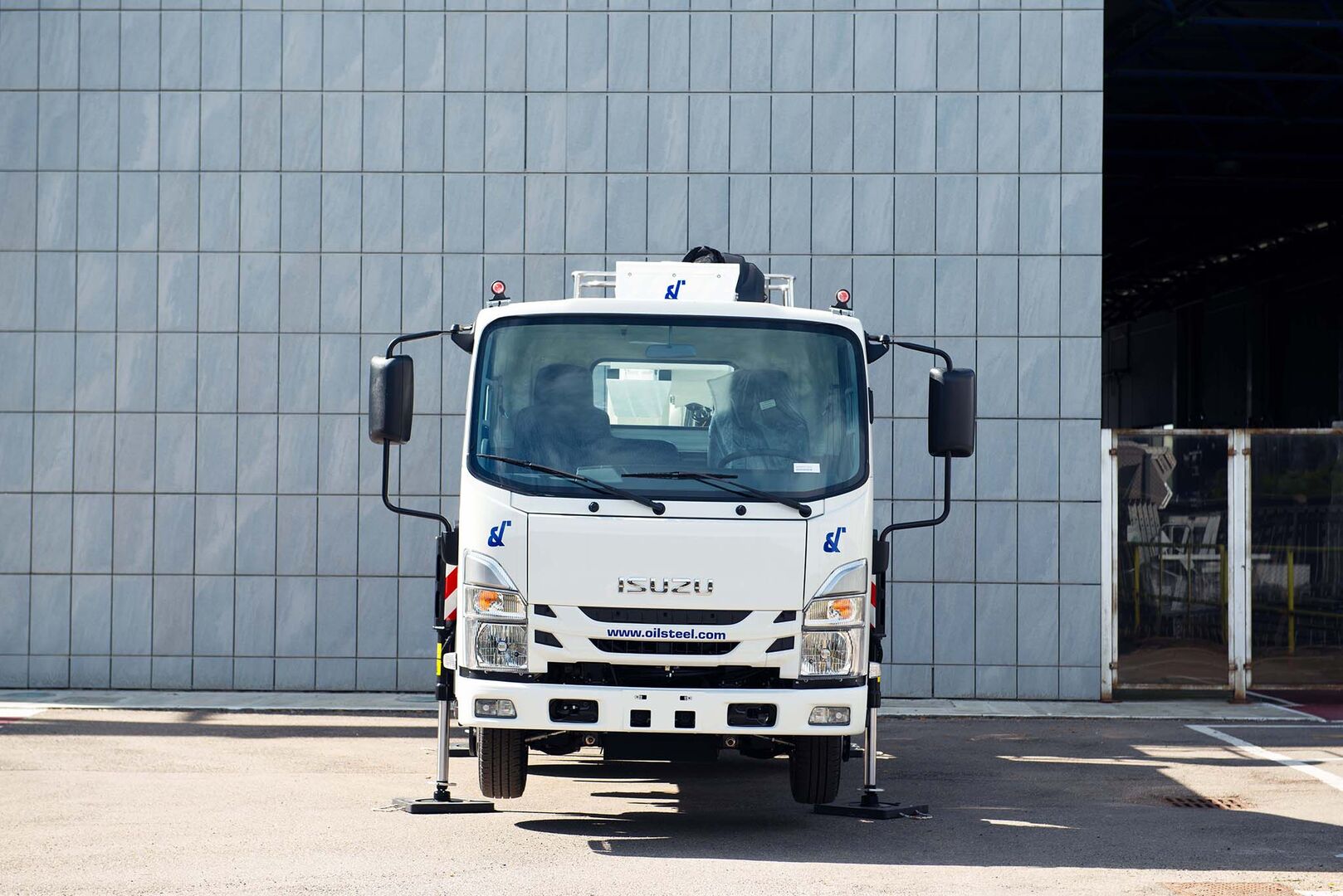

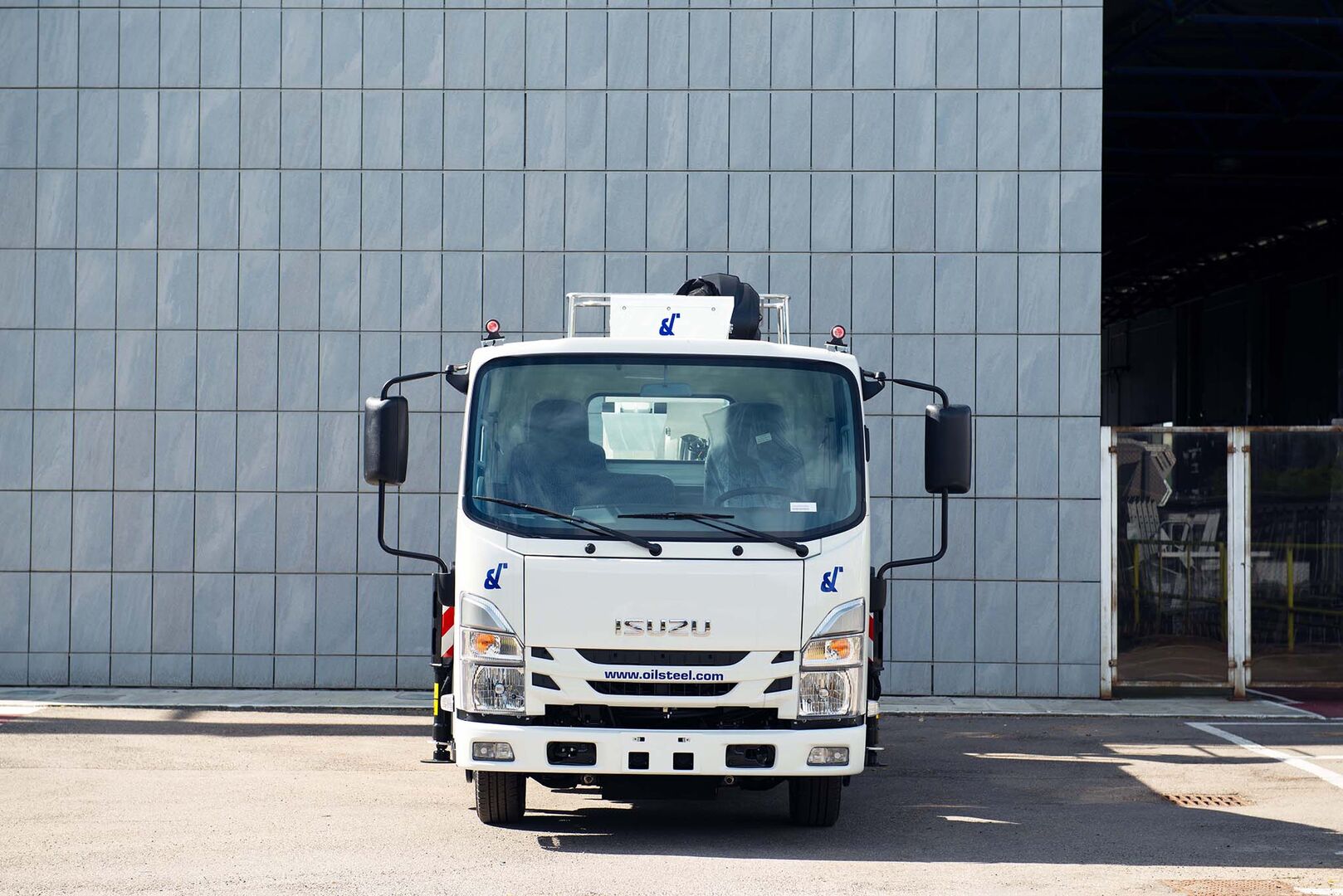

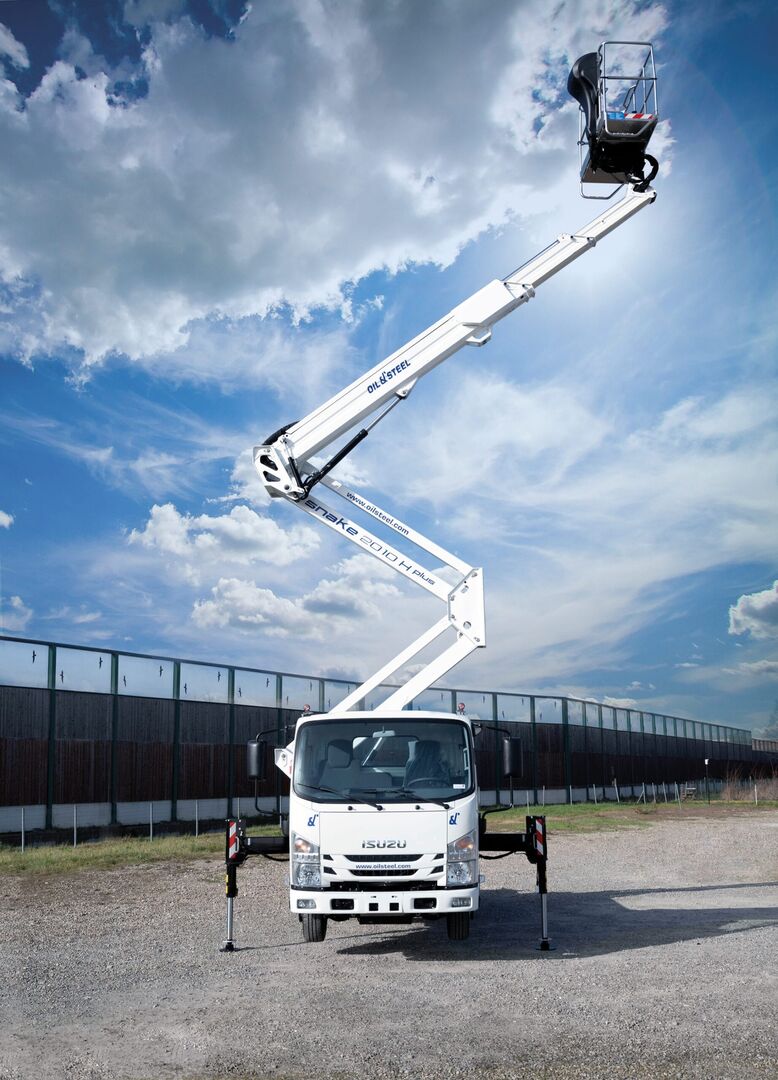

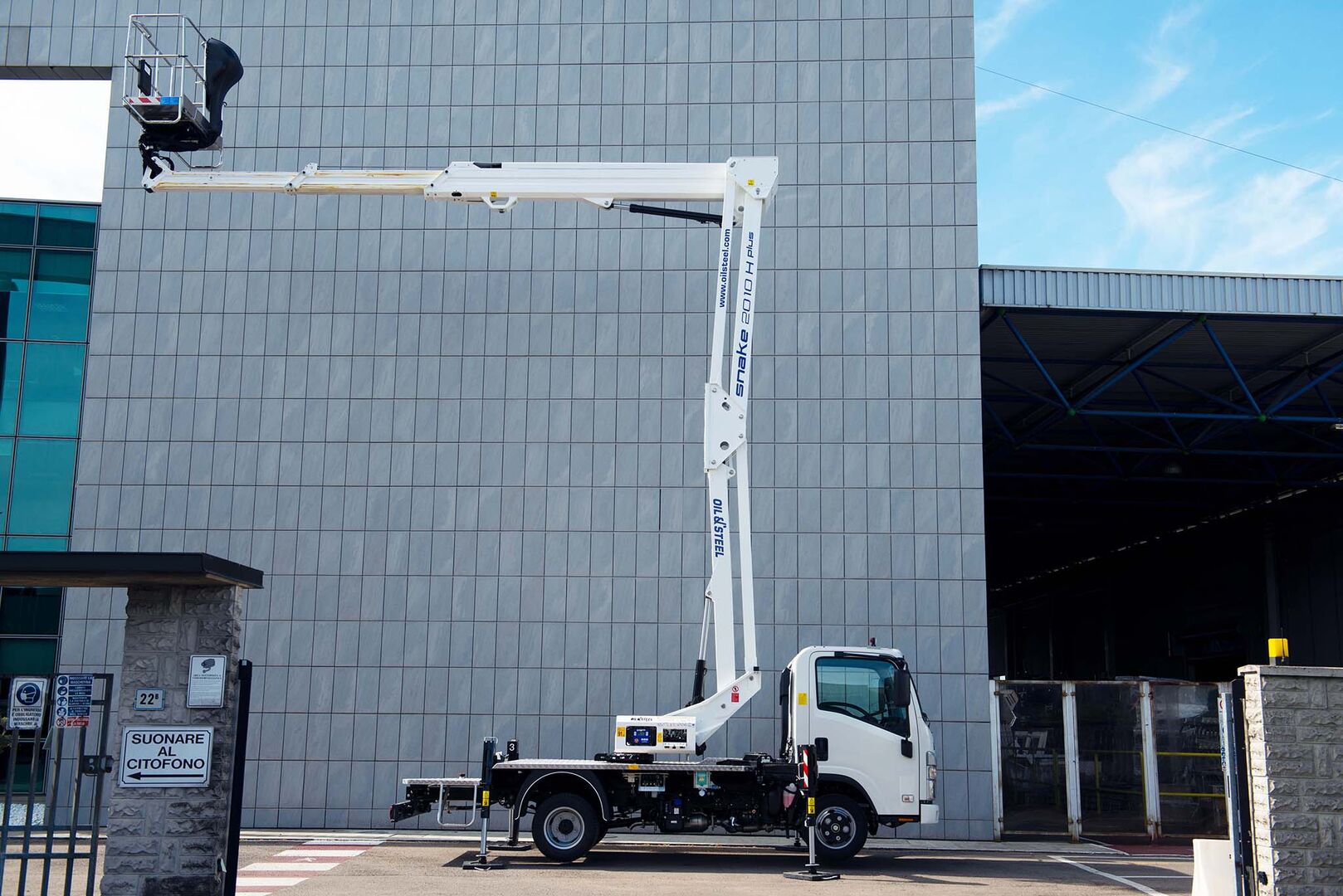

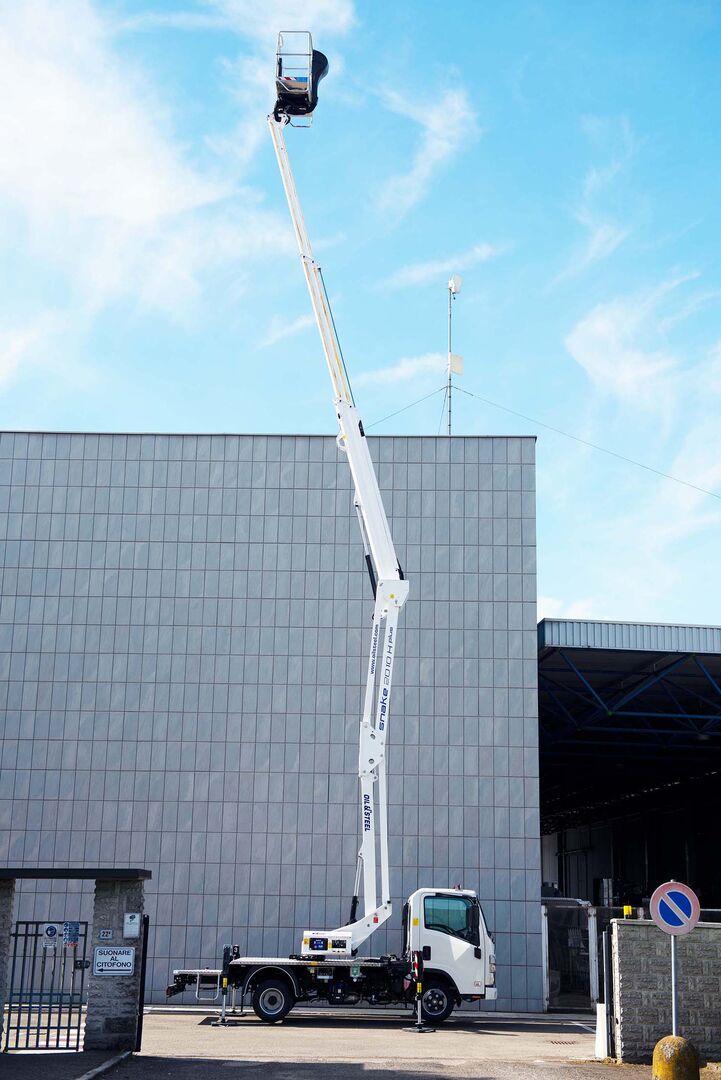

Mounted on the Isuzu M21 Ground Blue H (123 HP, Euro 6d), the Oil&Steel Snake 2010 H Plus delivers a 20 m maximum working height, a 10.2 m outreach, and a 250 kg basket capacity for two operators plus tools.

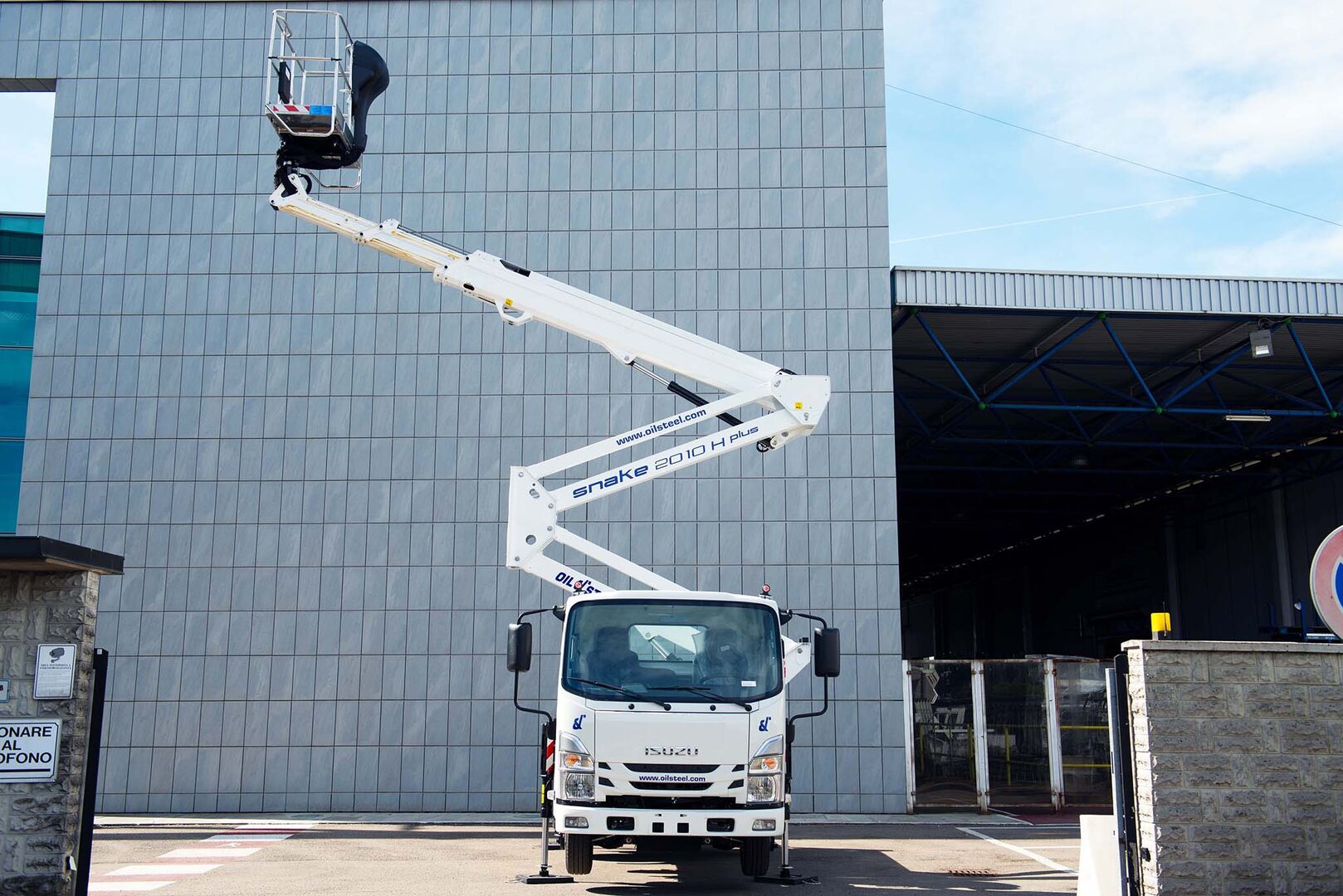

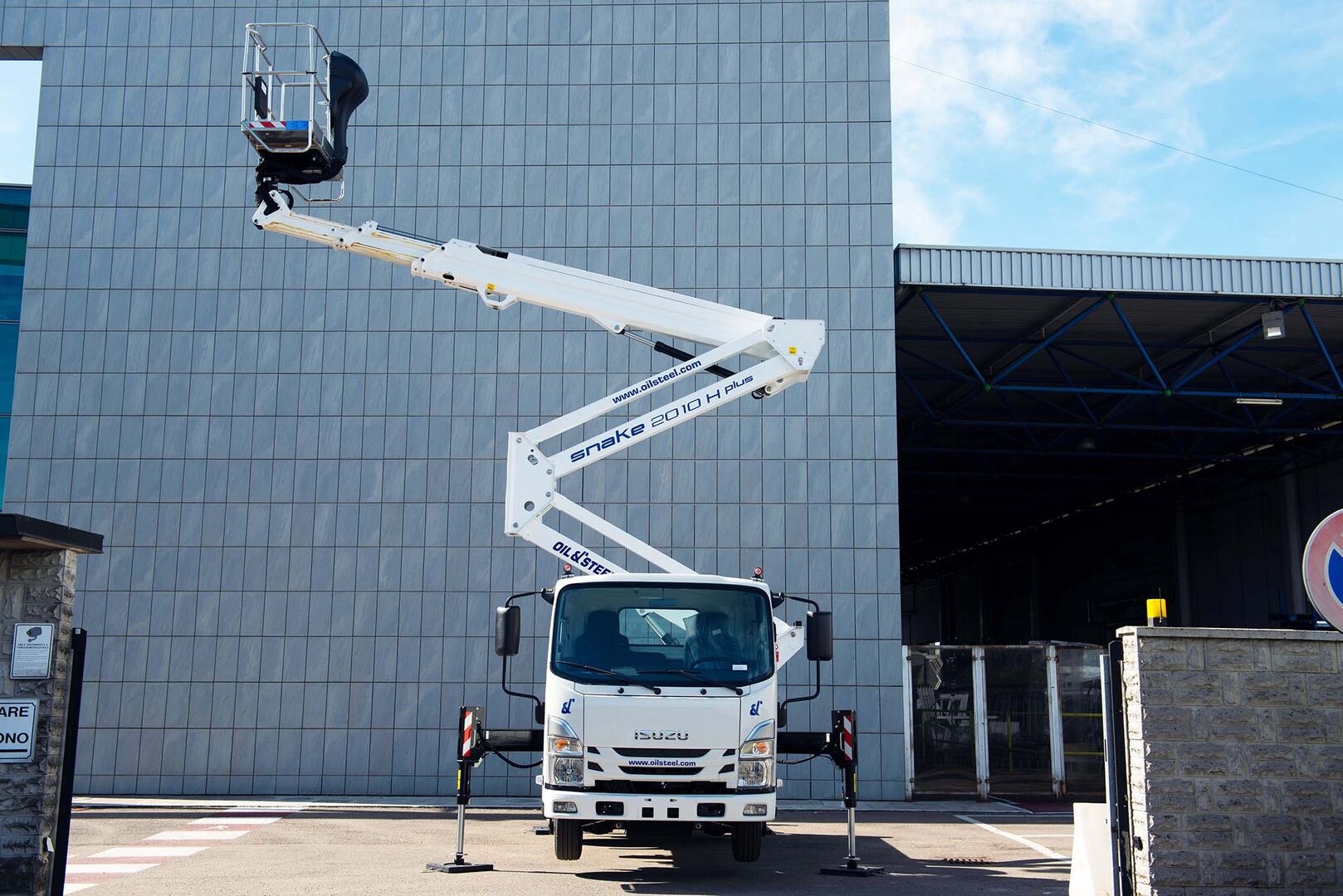

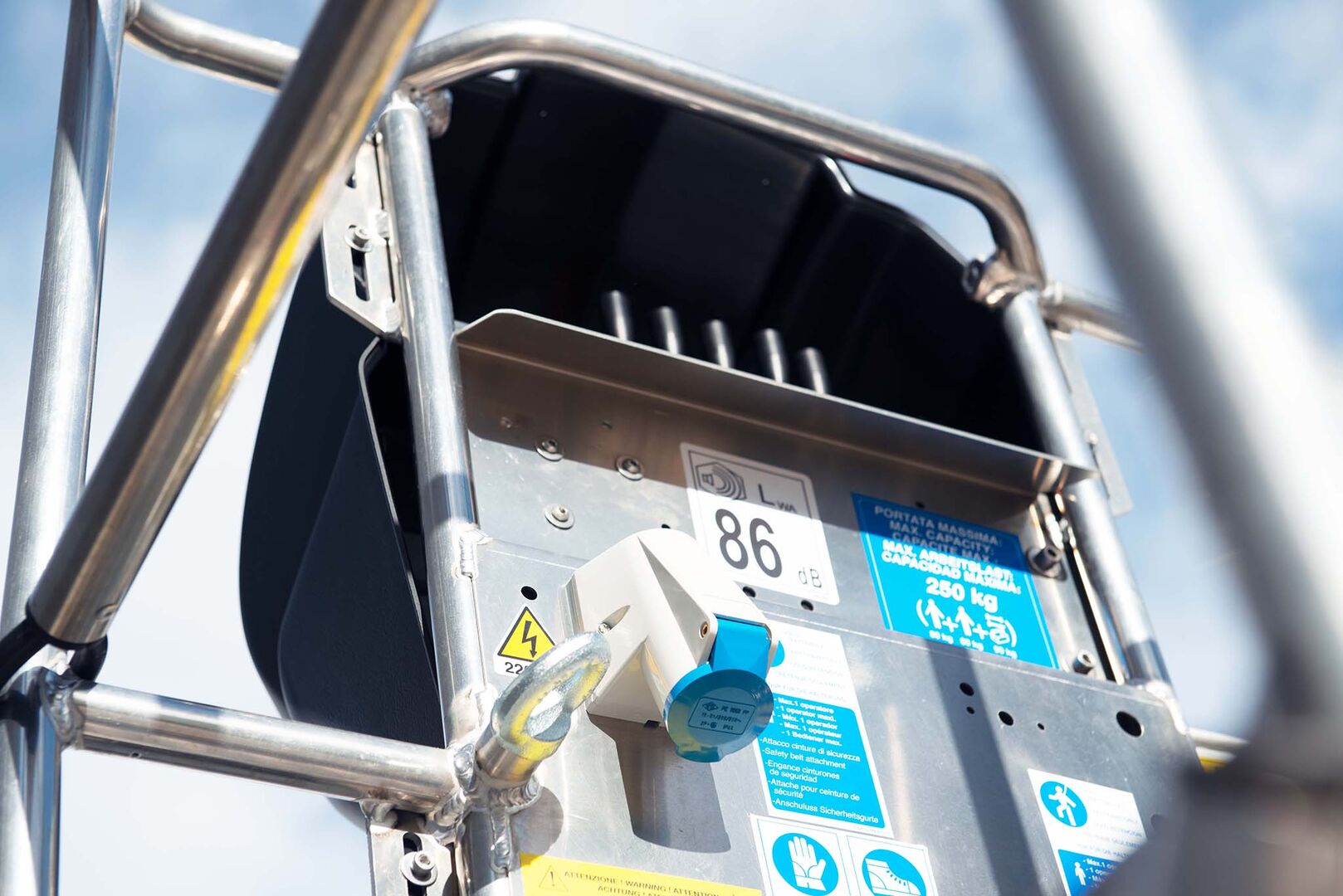

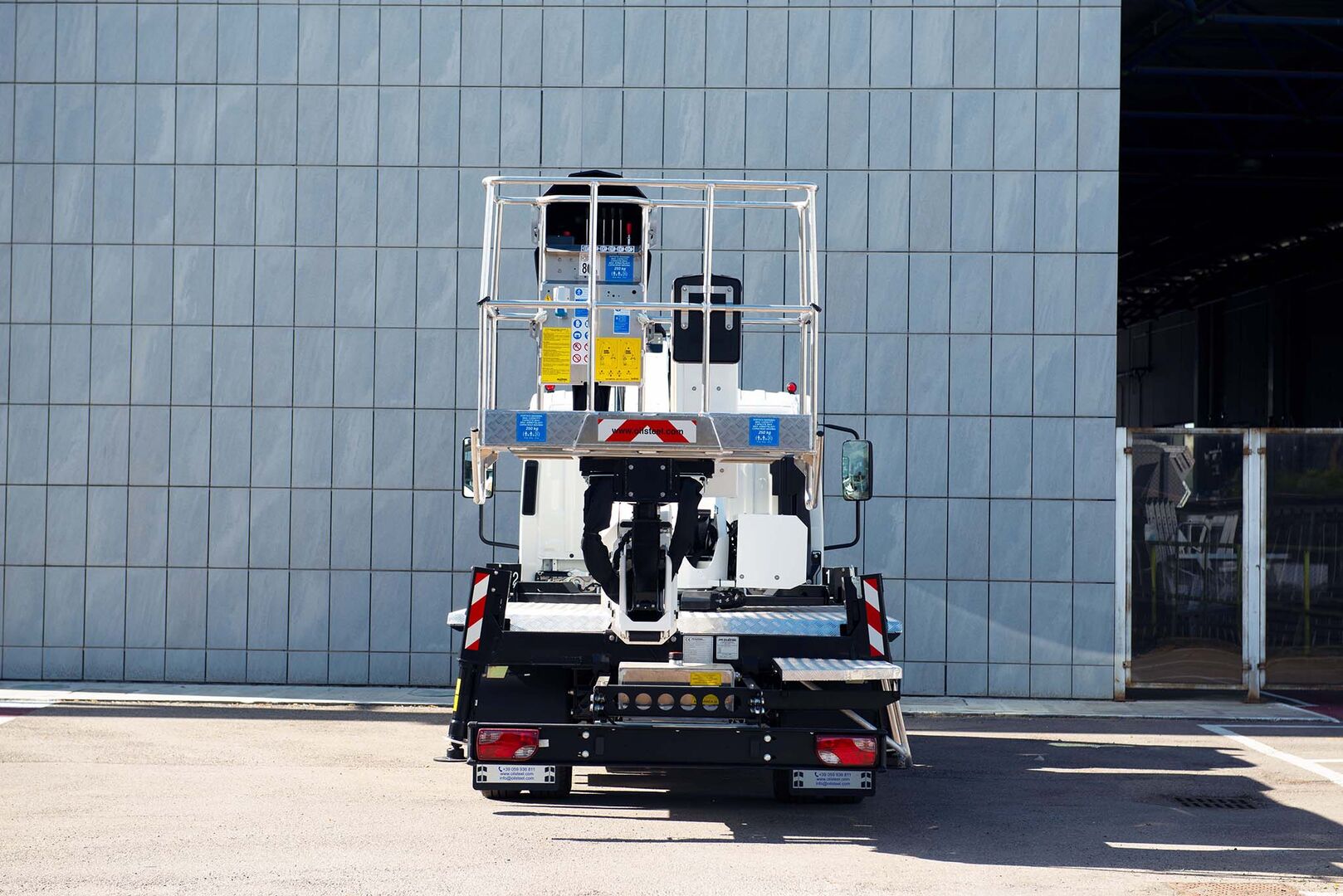

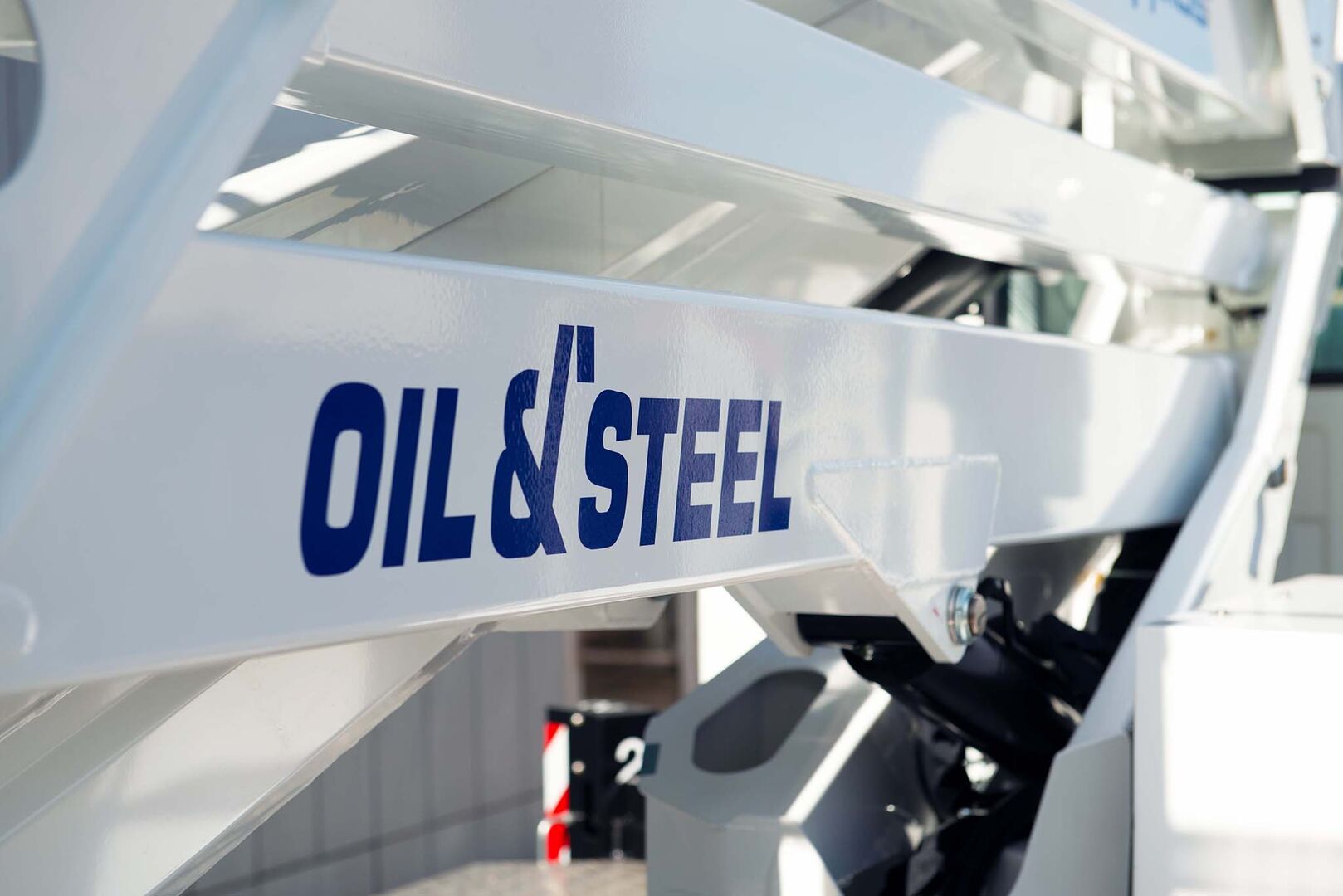

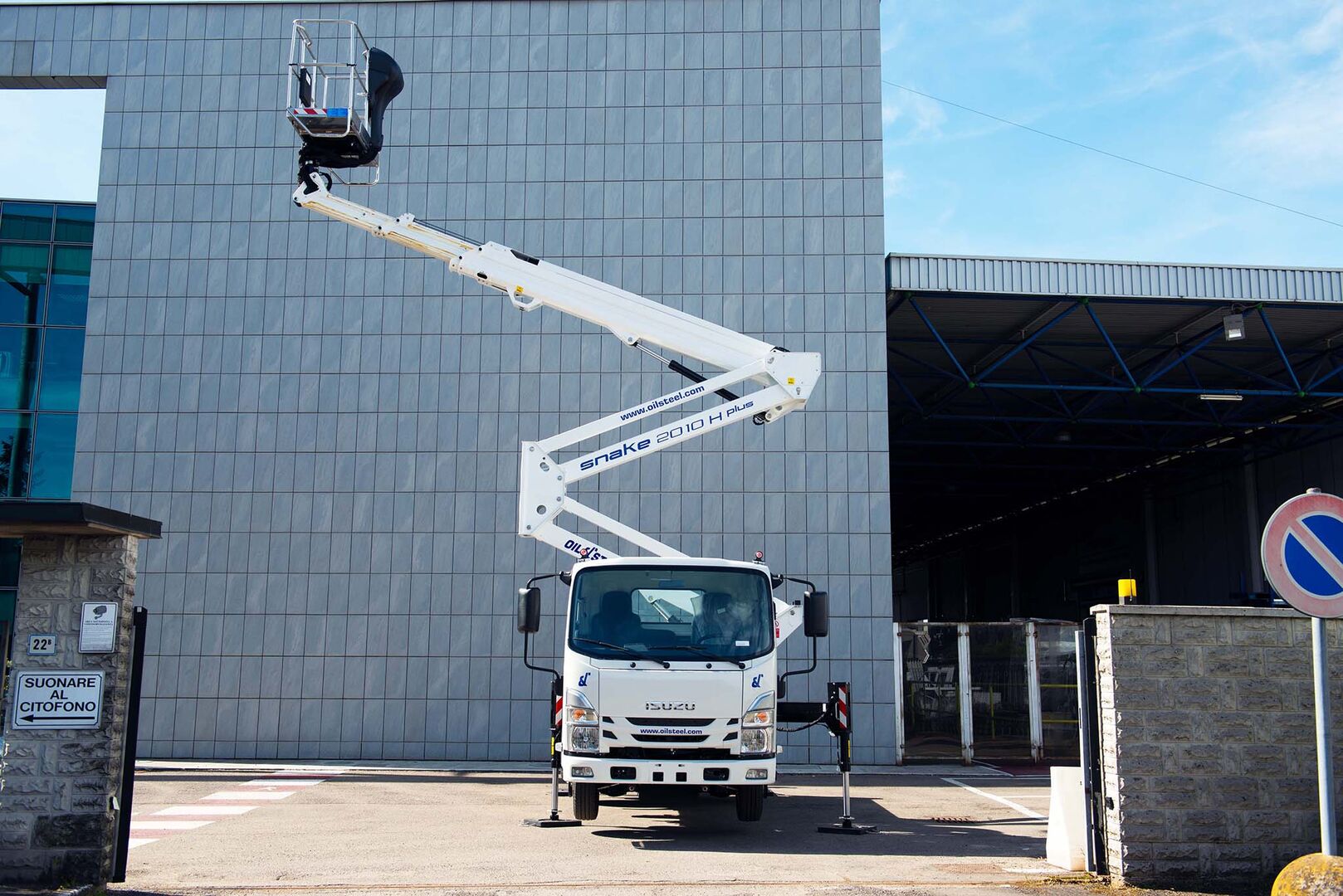

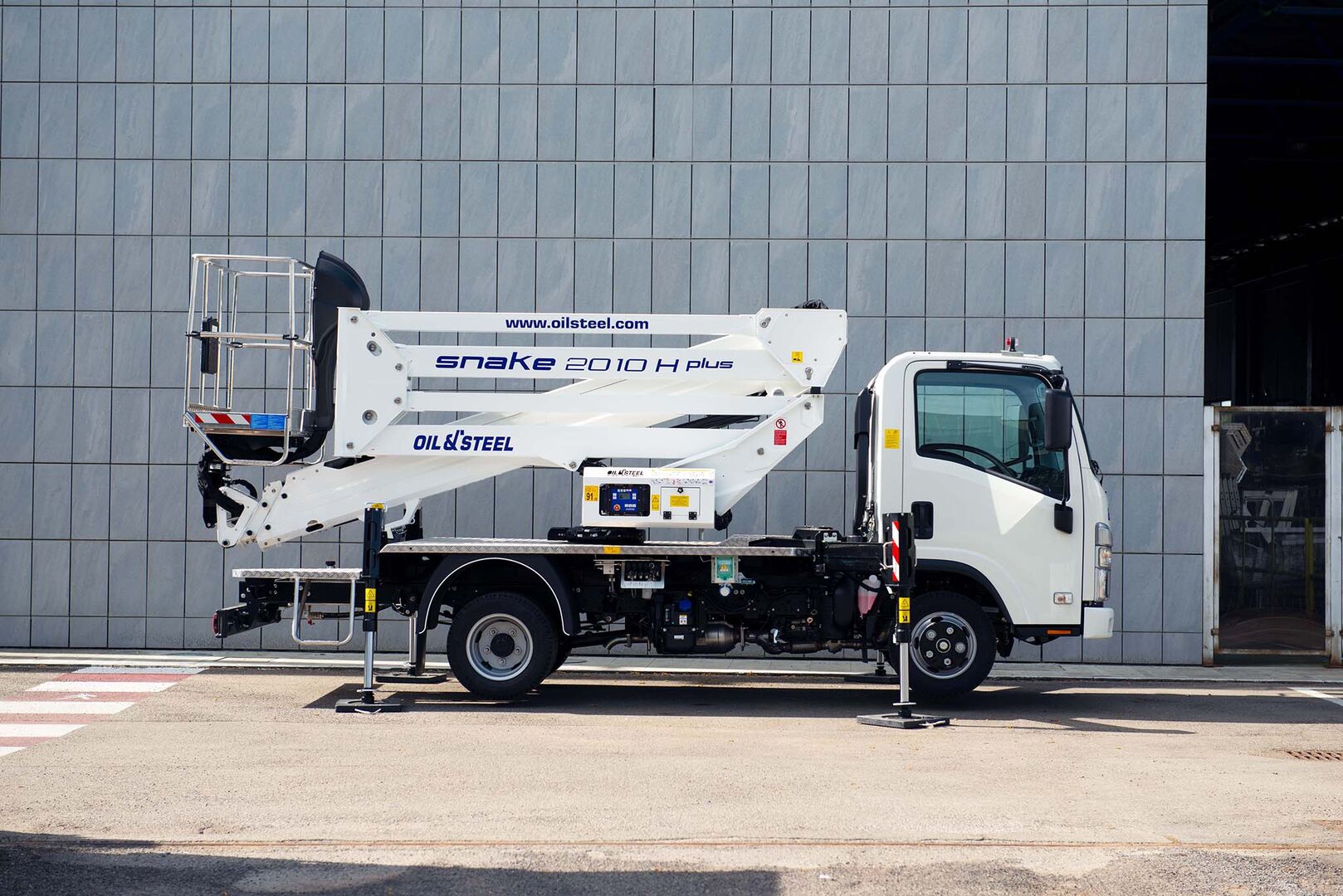

With its pantograph boom, the Snake 2010 H Plus can elevate vertically and extend over obstacles, making it ideal for utilities, maintenance, and rental applications in urban or industrial settings. The 1.4 x 0.7 x 1.1 m aluminum basket (fiberglass optional) features ±90° hydraulic rotation, while the 400° turret rotation and H-type outriggers enable versatile positioning—even with asymmetrical setups.

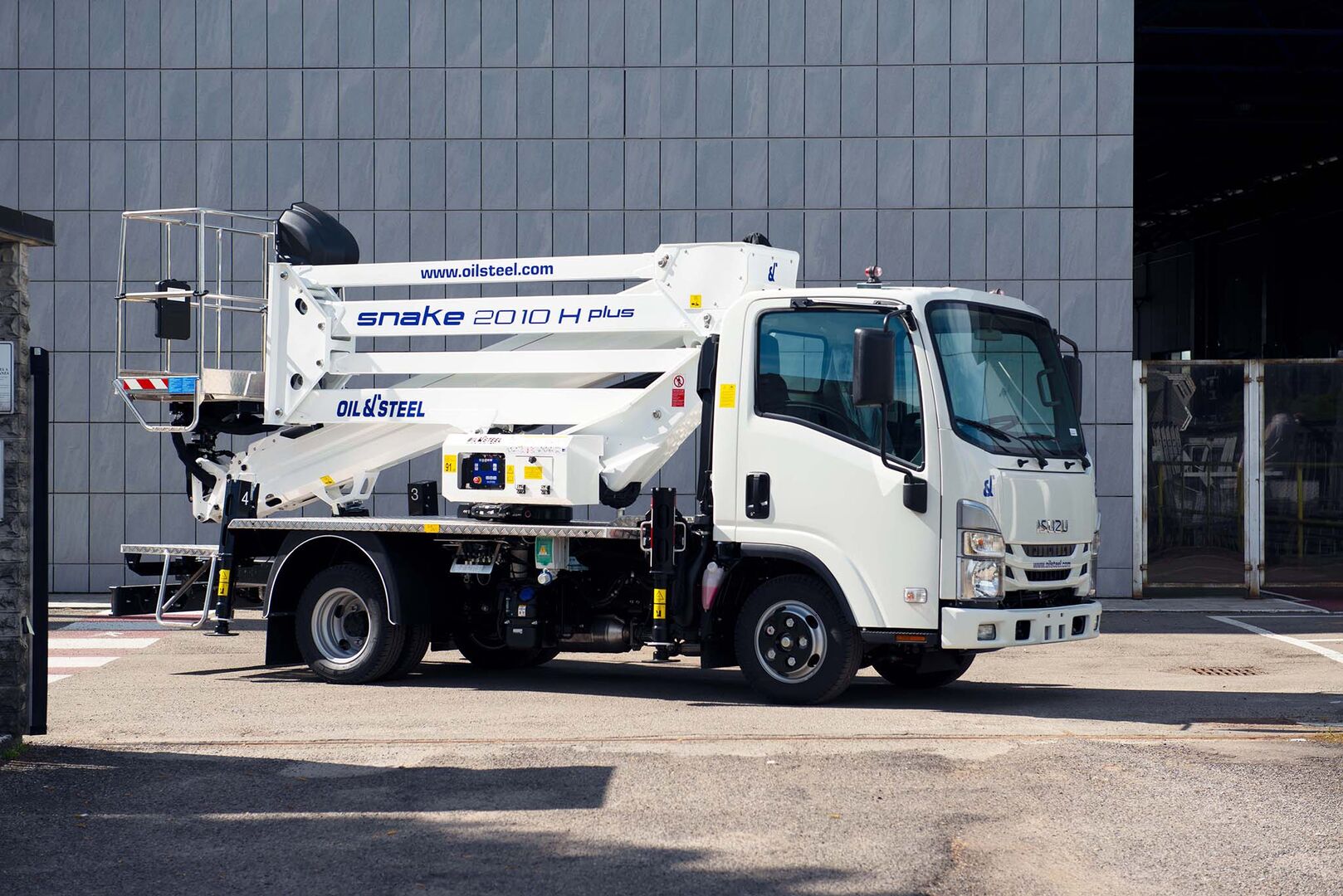

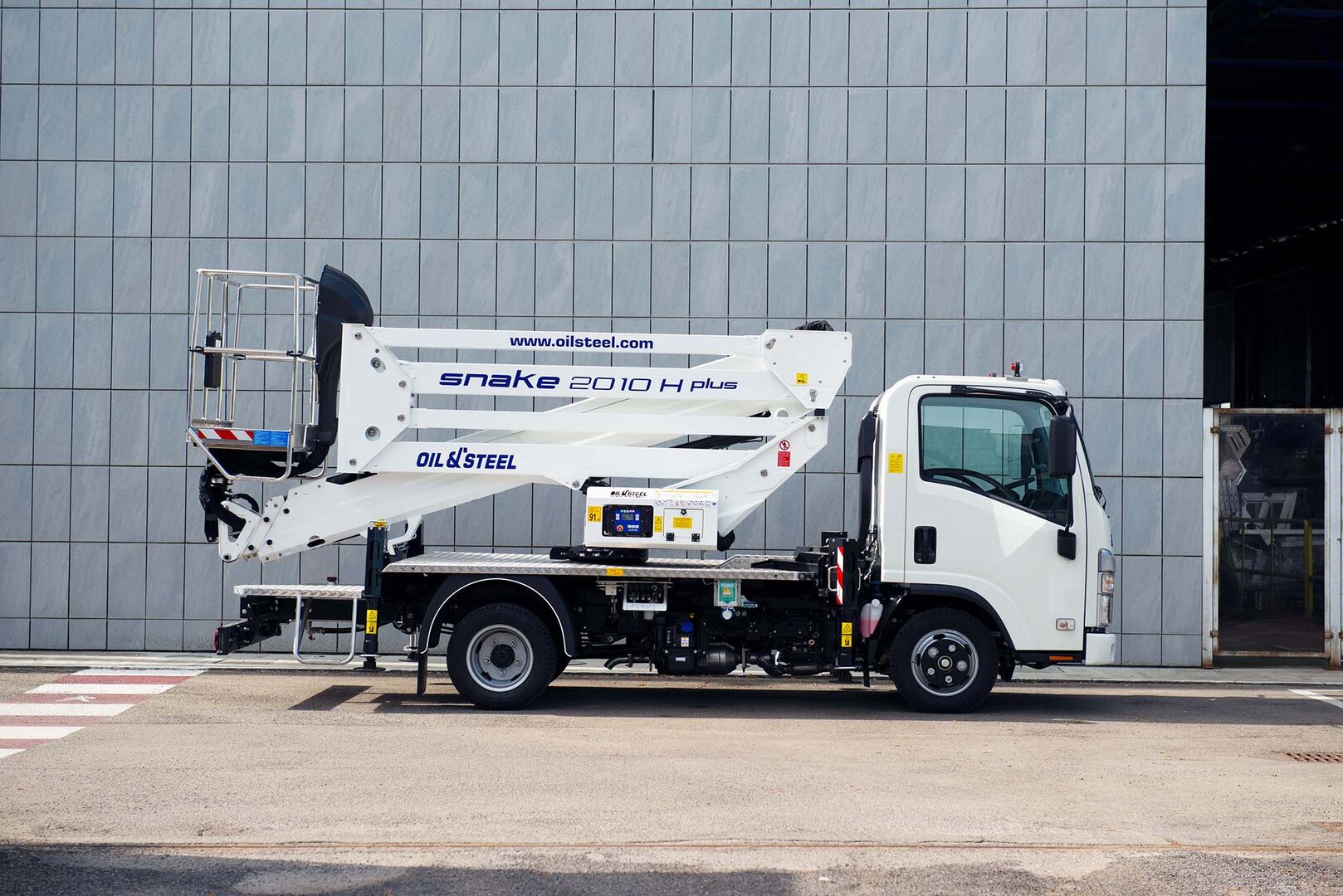

Transport dimensions of 5.97 m length, 2.09 m width, and 2.79 m height keep the platform compact and maneuverable.

Safety and operator features include:

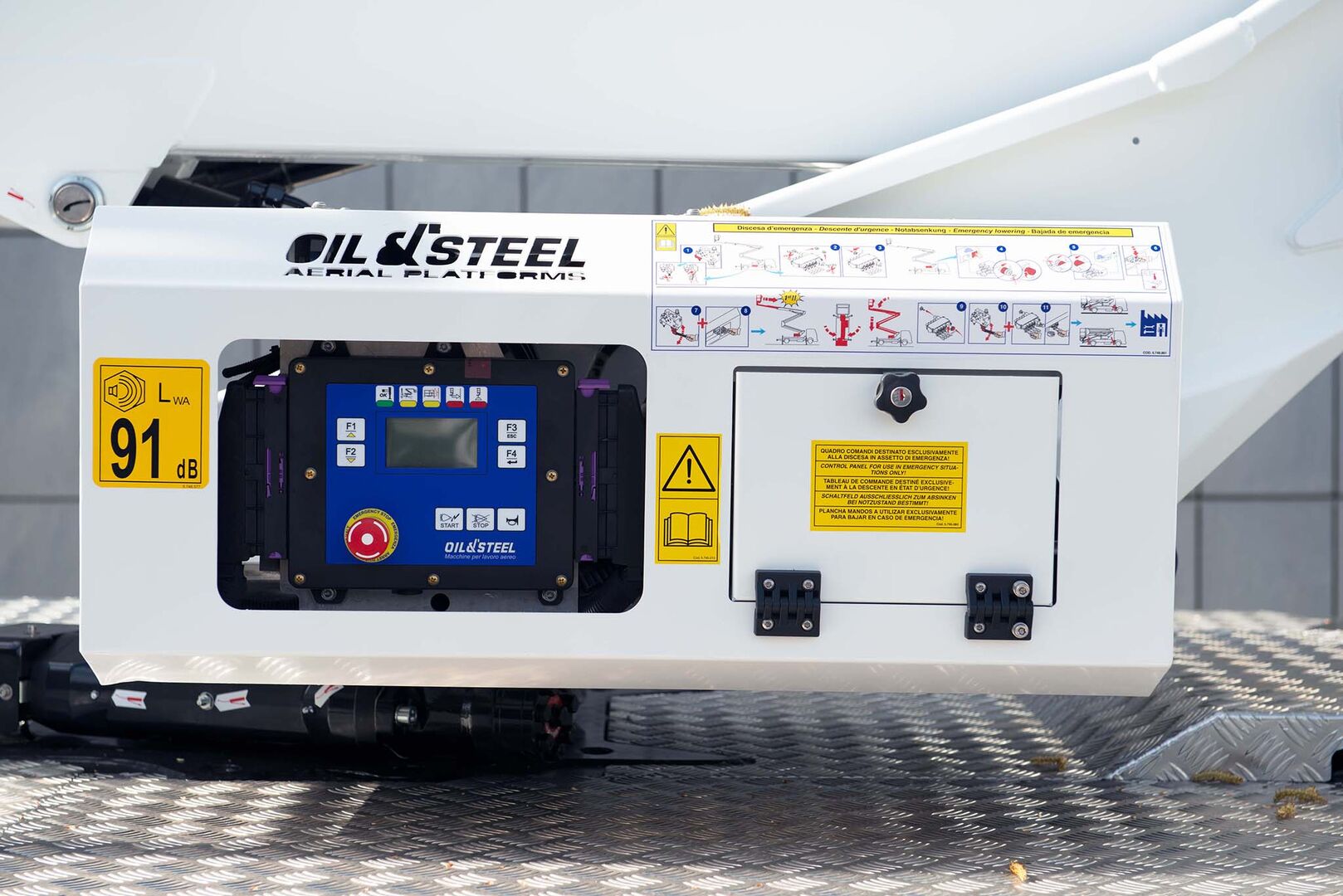

• Proportional hydraulic or electro-hydraulic controls
• Moment detection and limiting system
• Engine start/stop from basket and column
• Hydraulic crosspiece extensions (manual or hydraulic)
• Emergency stop and manual descent pump
• Anti-collision system between cab and platform
• Stainless steel fasteners, anti-slip decking, corrosion-resistant treatment

Standard truck features (Isuzu M21) include adjustable steering wheel, power windows, LED lighting, central locking, reverse warning beeper, fog lamps, and driver comfort seat.
Optional extras include fiberglass insulated baskets (up to 1 kV), tilt sensor, working height limiter, auxiliary electric pumps, debris protection kits, LED stabilizer lights, reflective decals, A/C, toolboxes, and custom painting.

Compact, safe, and versatile, the Snake 2010 H Plus on Isuzu delivers professional-grade reach in a maneuverable platform.
