Snake 20 FB

The Snake 20 FB combines compact dimensions with outstanding versatility, making it a highly reliable aerial platform for urban and industrial work.

Get in touch

Product description

Compact reach, professional performance.

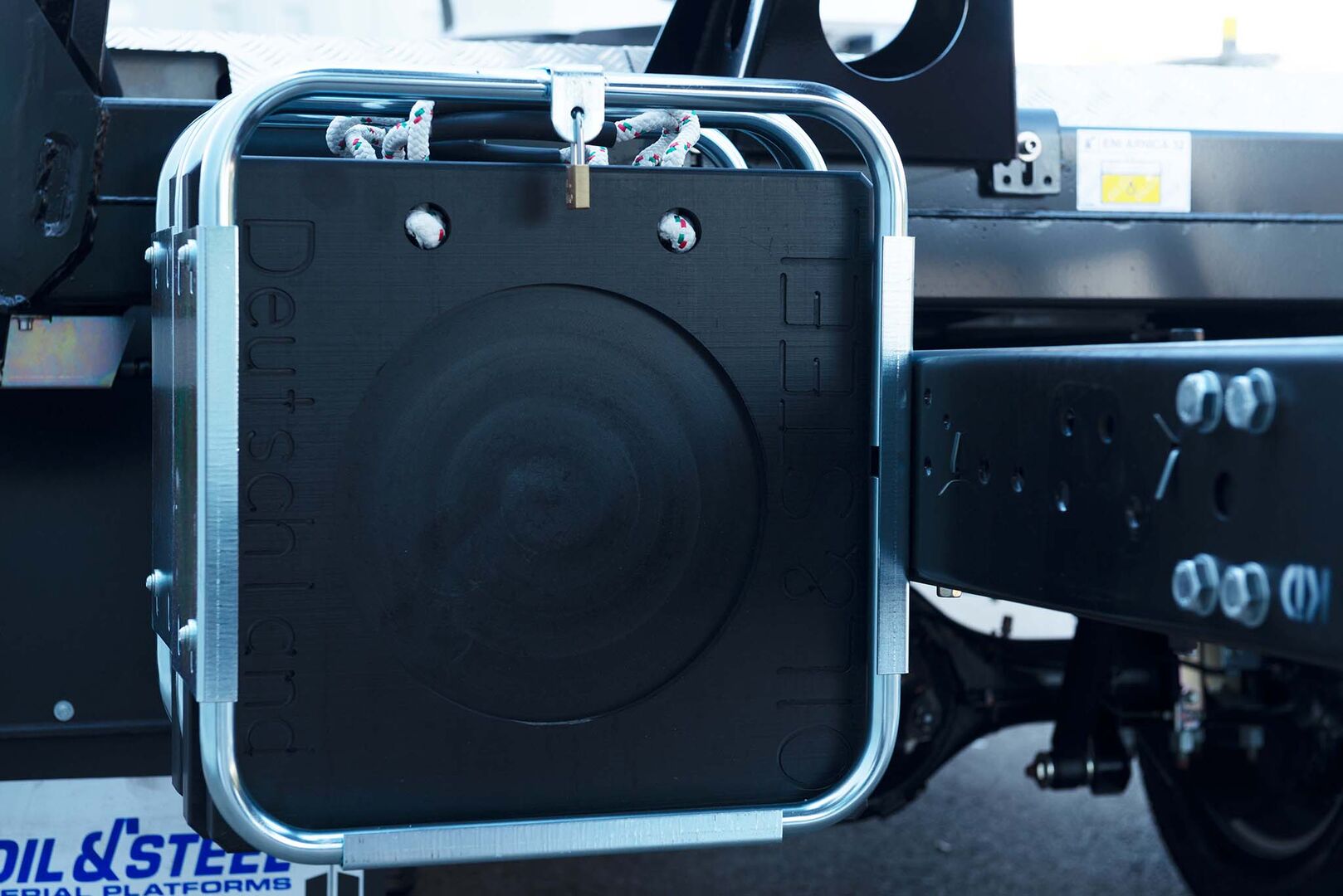

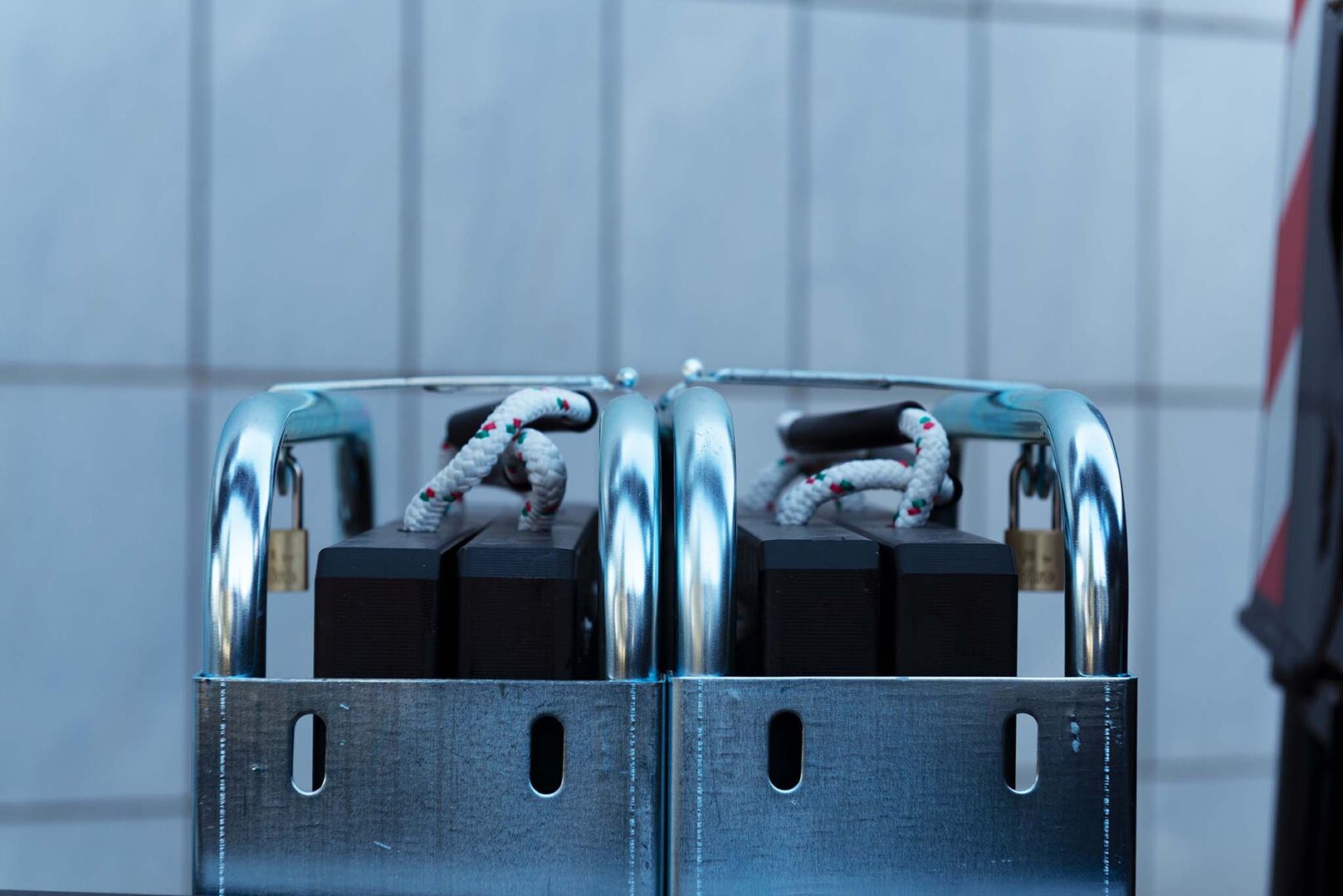

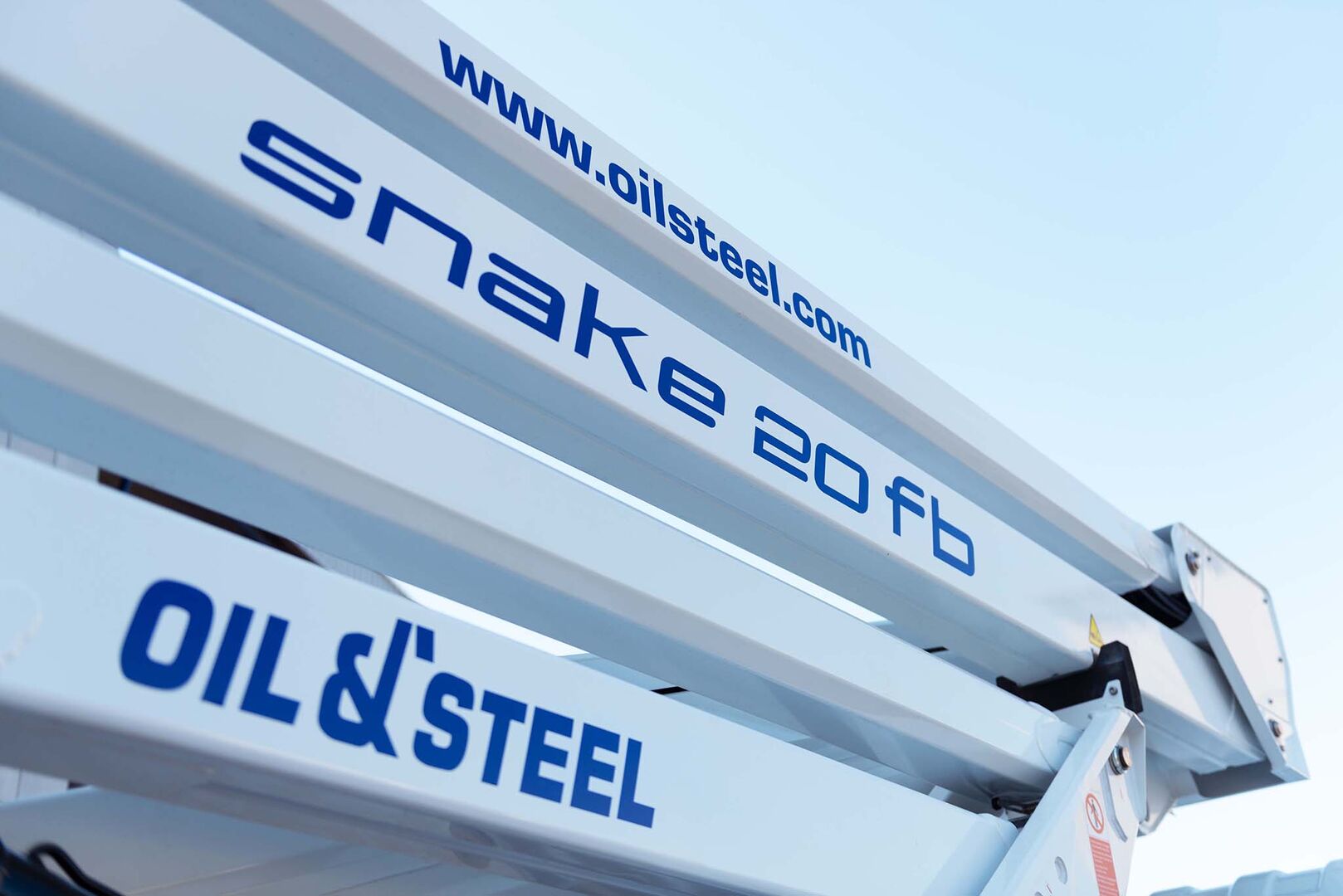

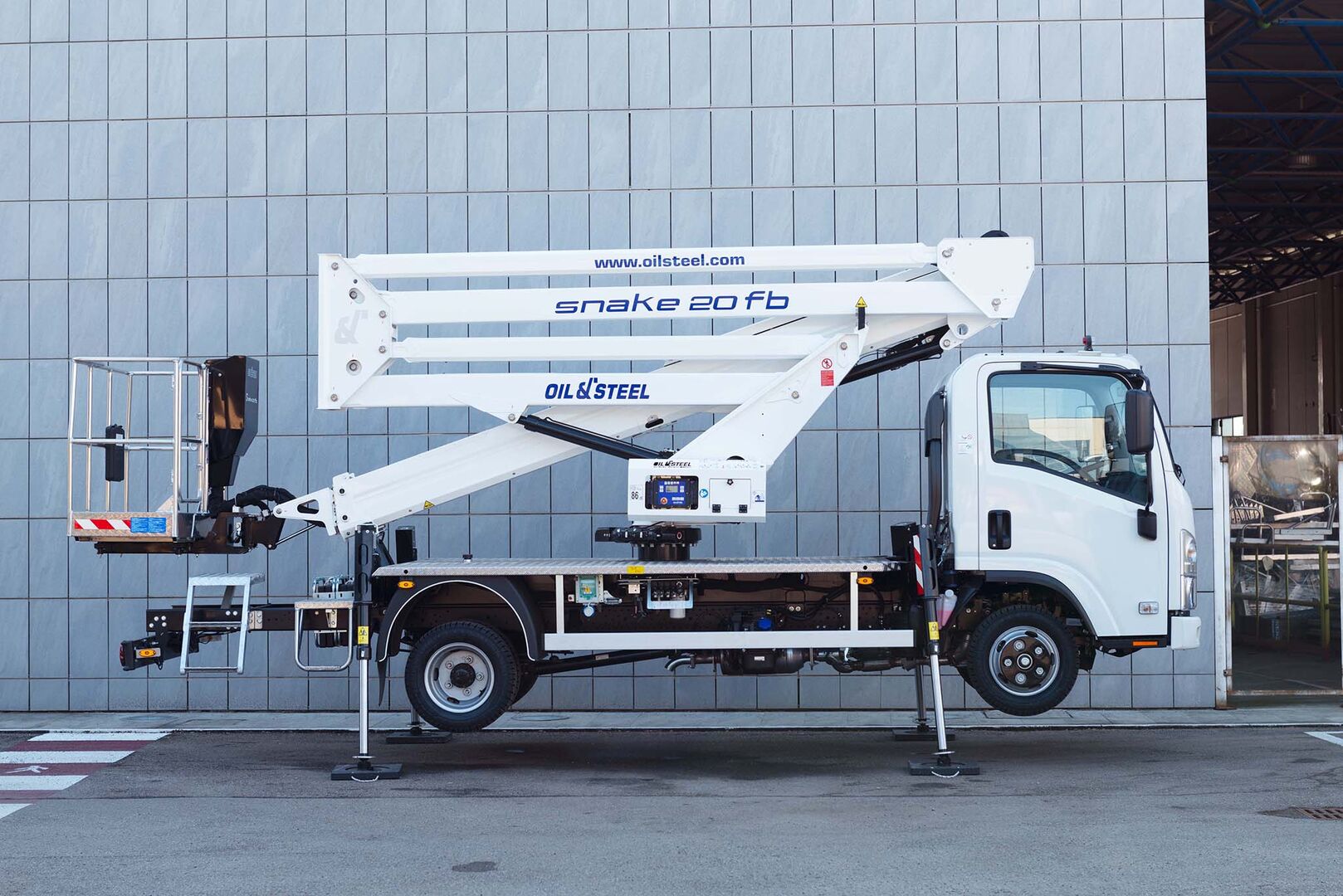

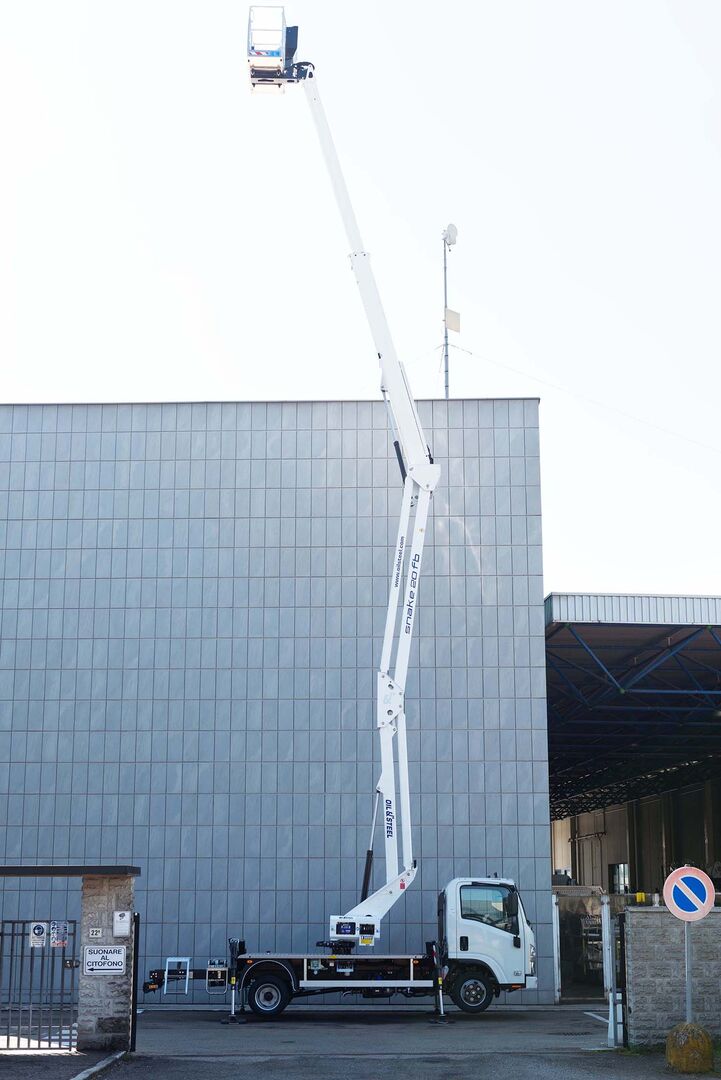

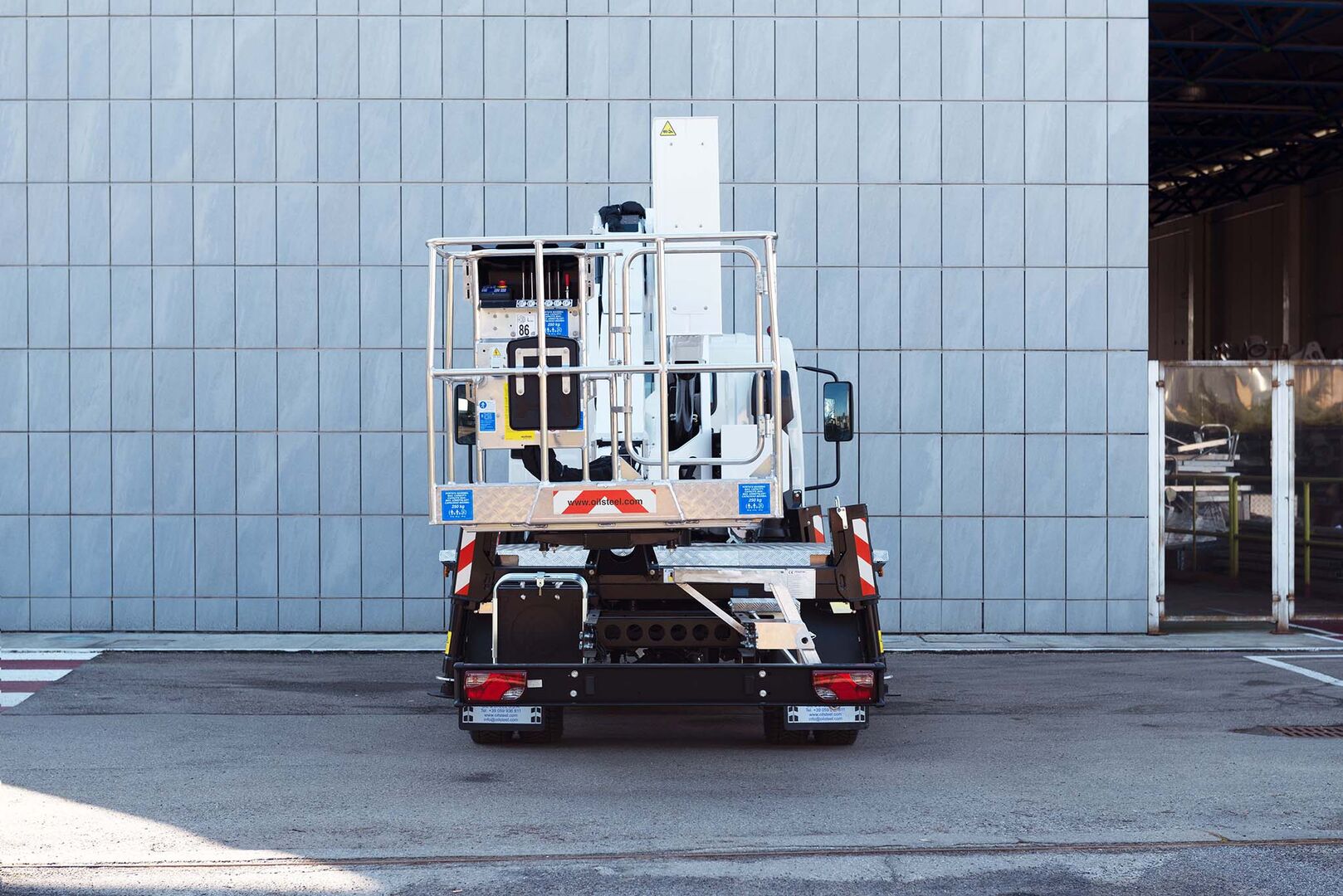

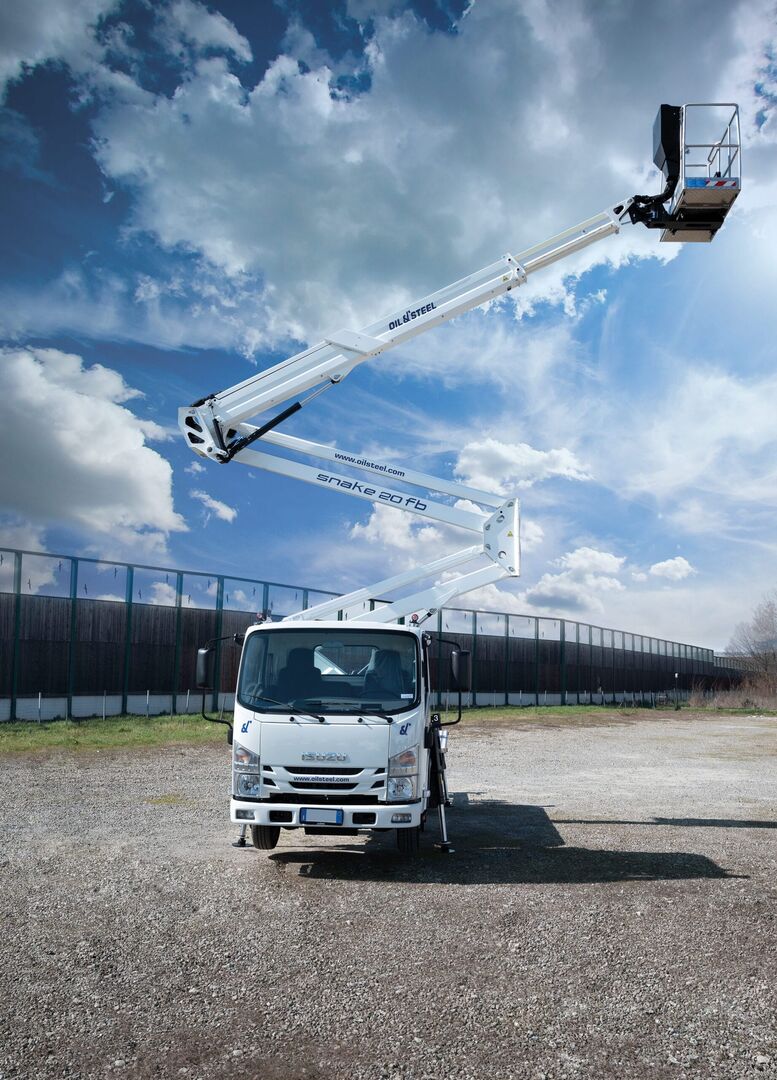

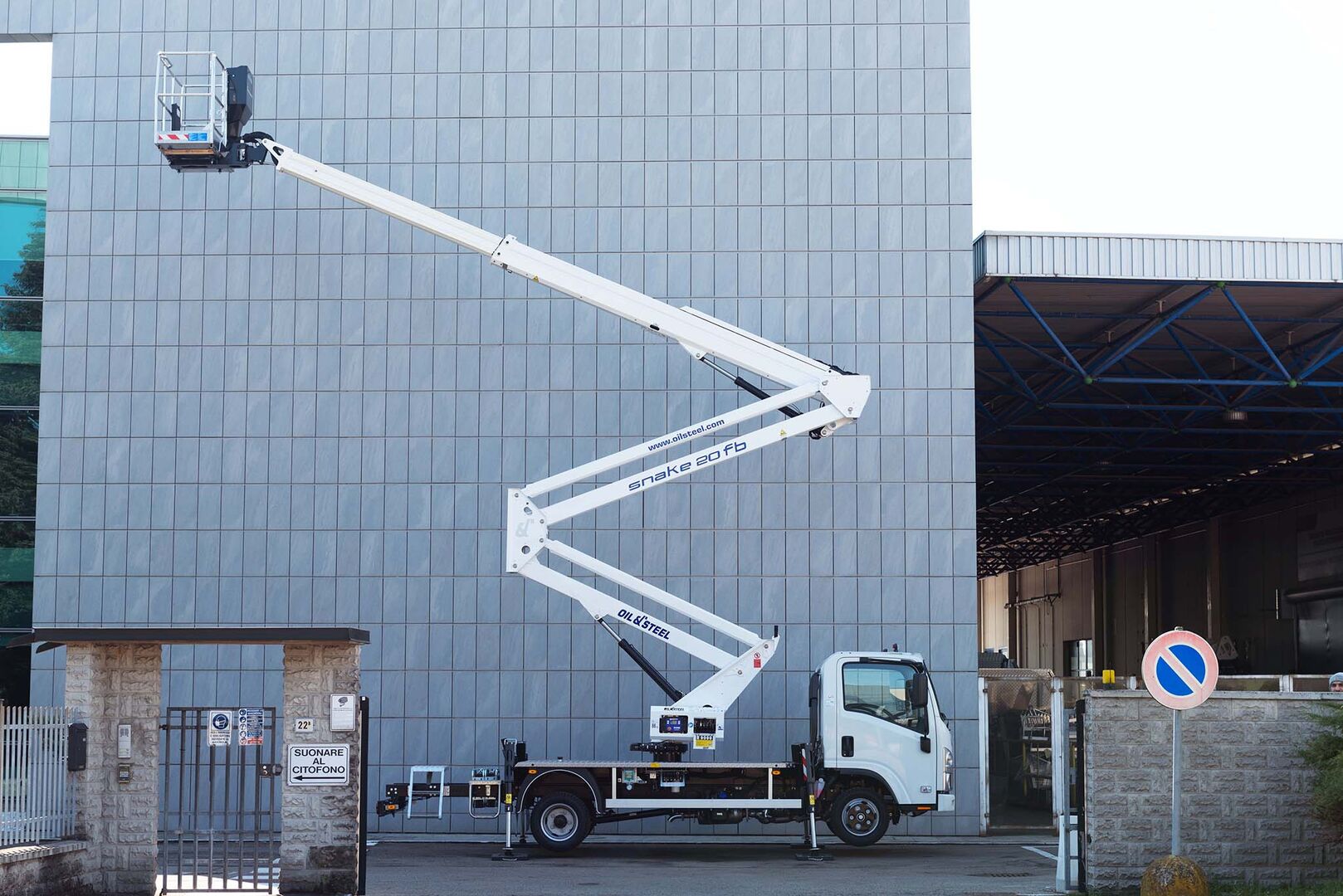

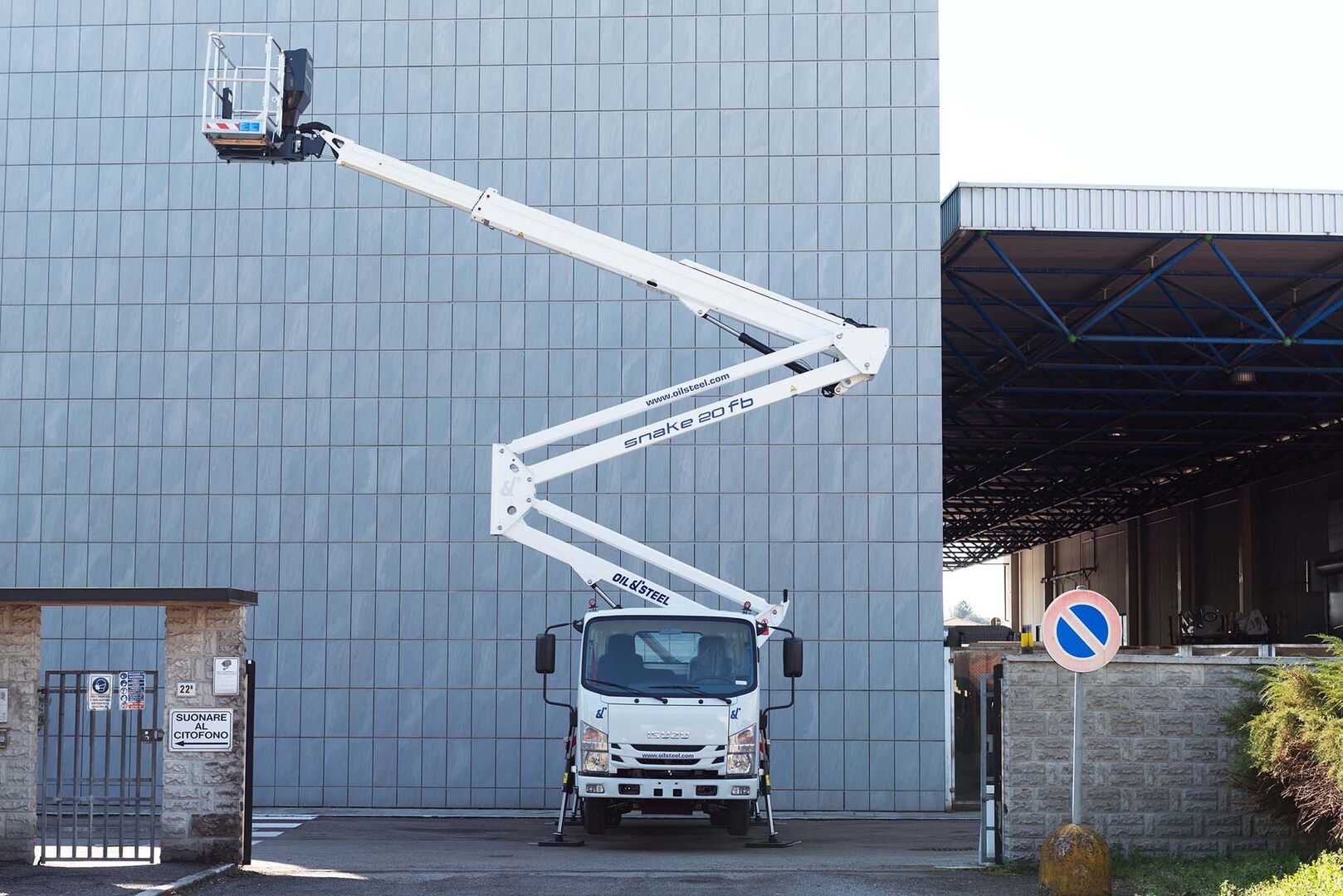

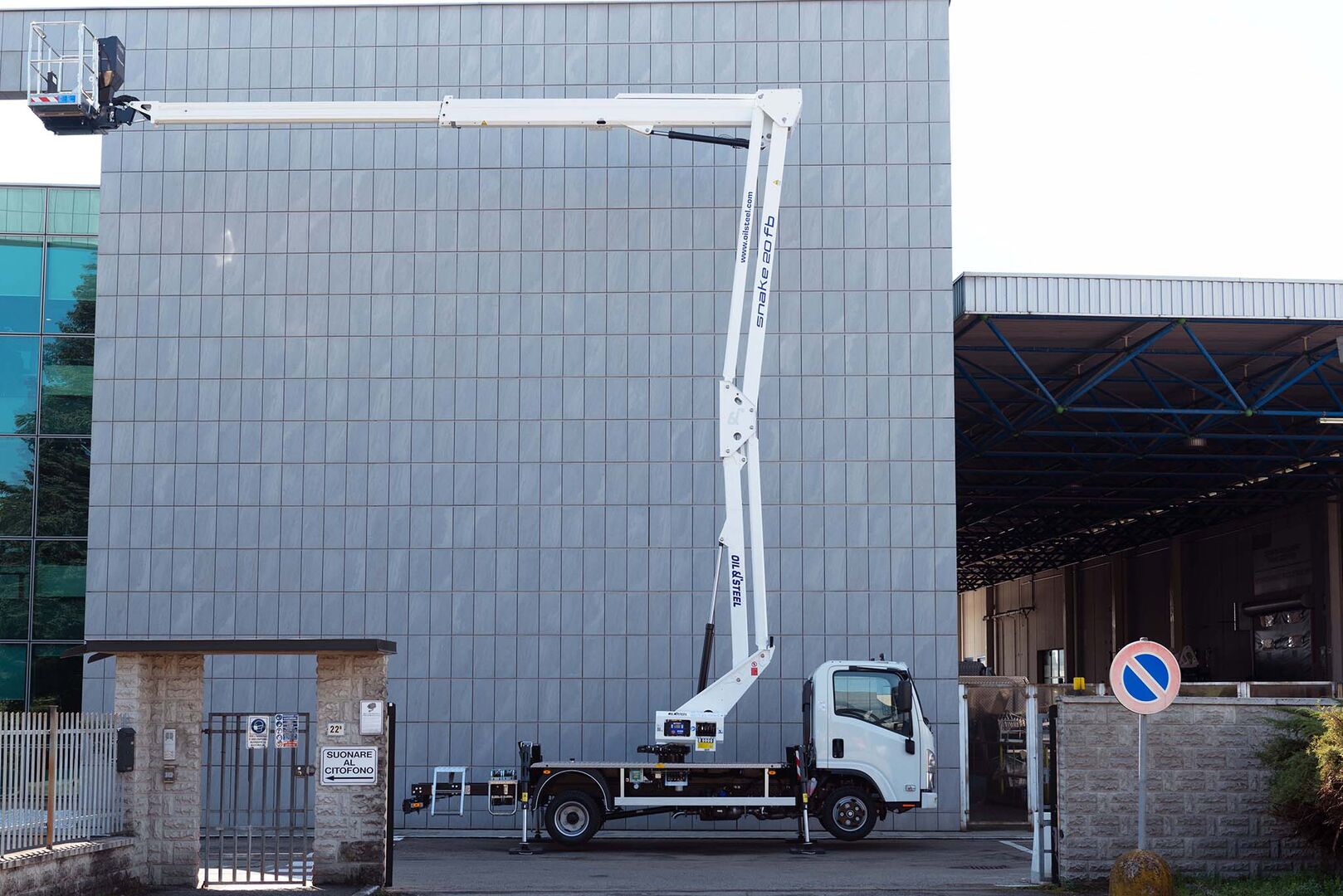

The Snake 20 FB offers a maximum working height of 19.85 meters, a horizontal outreach of 9.4 meters, and a basket load capacity of 250 kilograms, making it suitable for two operators with tools. Its articulated boom, combined with a pantograph mechanism, enables vertical movement followed by horizontal extension, allowing precise reach over obstacles. The H-type outriggers ensure a stable setup, while the 400° turret rotation and ±90° hydraulic basket rotation provide excellent flexibility in positioning for a wide range of work applications.

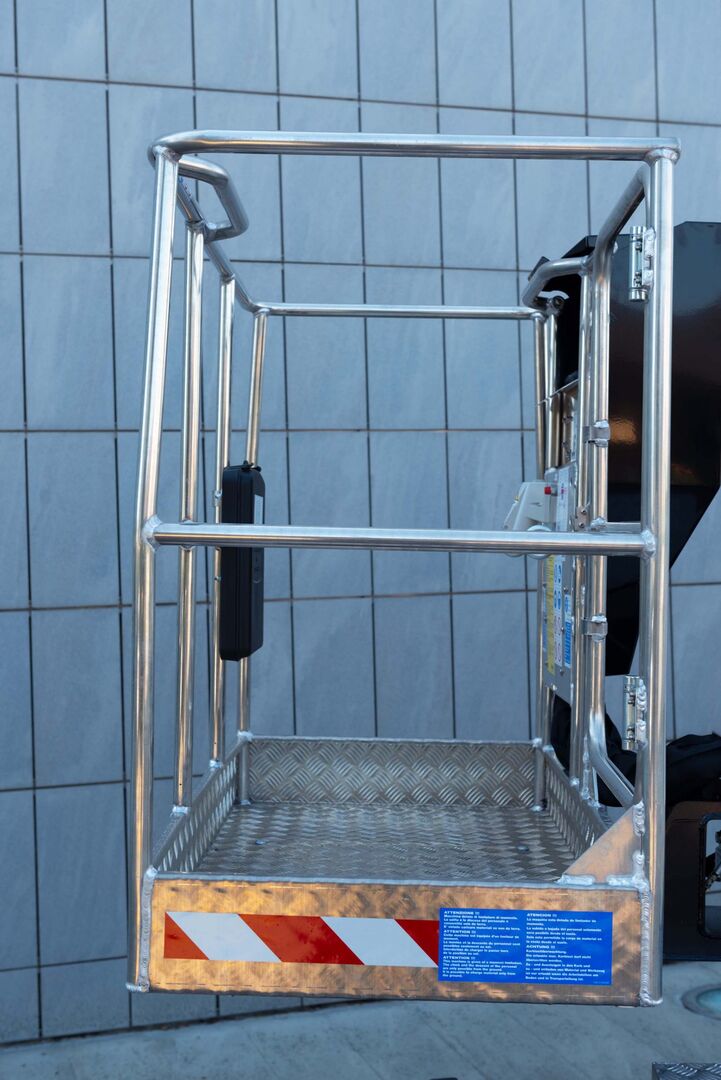

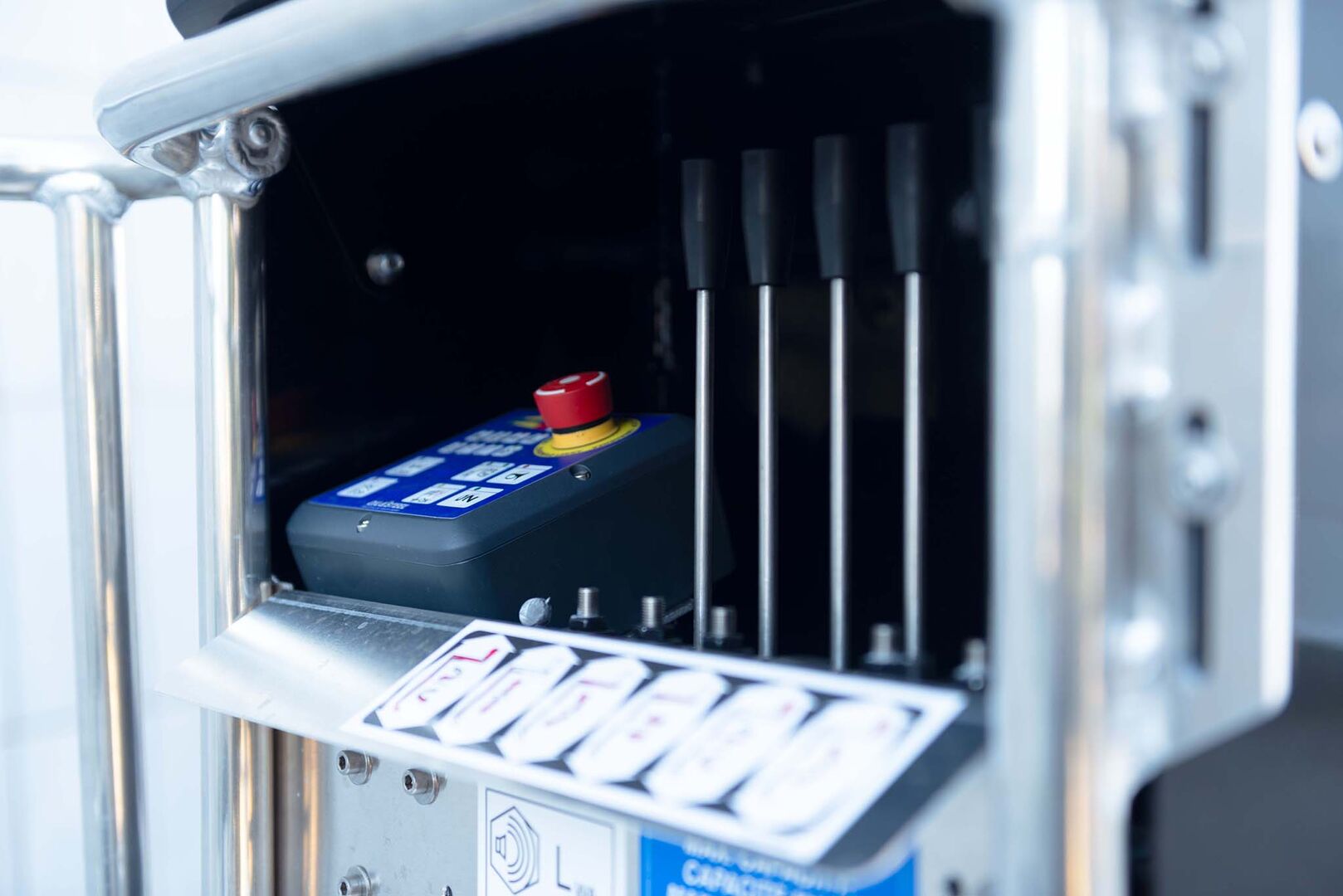

The platform comes equipped with a standard aluminum basket measuring 1.4 by 0.7 by 1.1 meters, with an optional fiberglass version available for electrical insulation up to 1 kV. Operators benefit from proportional hydraulic controls, which allow smooth and accurate maneuvering. The Snake 20 FB also integrates advanced features such as electro-hydraulic aerial and outrigger controls, an automatic PTO system with safety interlocks and dashboard indicators, and a moment detection and limiting system for added protection. Engine start and stop can be operated from both the basket and the column, and a manual emergency descent is possible through a hand pump. Additional safety elements include an anti-collision system between the cab and platform structure, stainless-steel fasteners, anti-slip aluminum decking, and a corrosion-resistant paint finish.

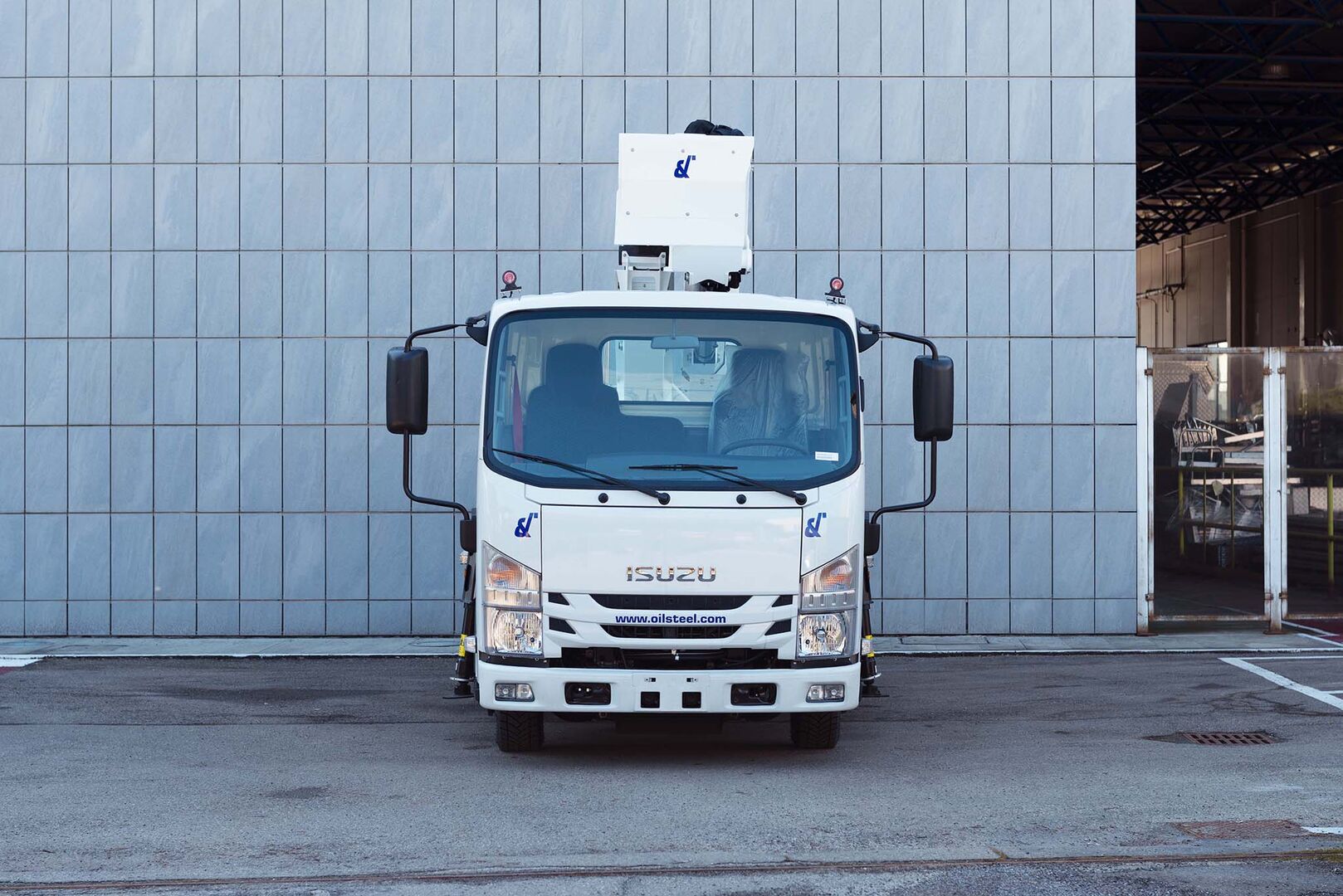

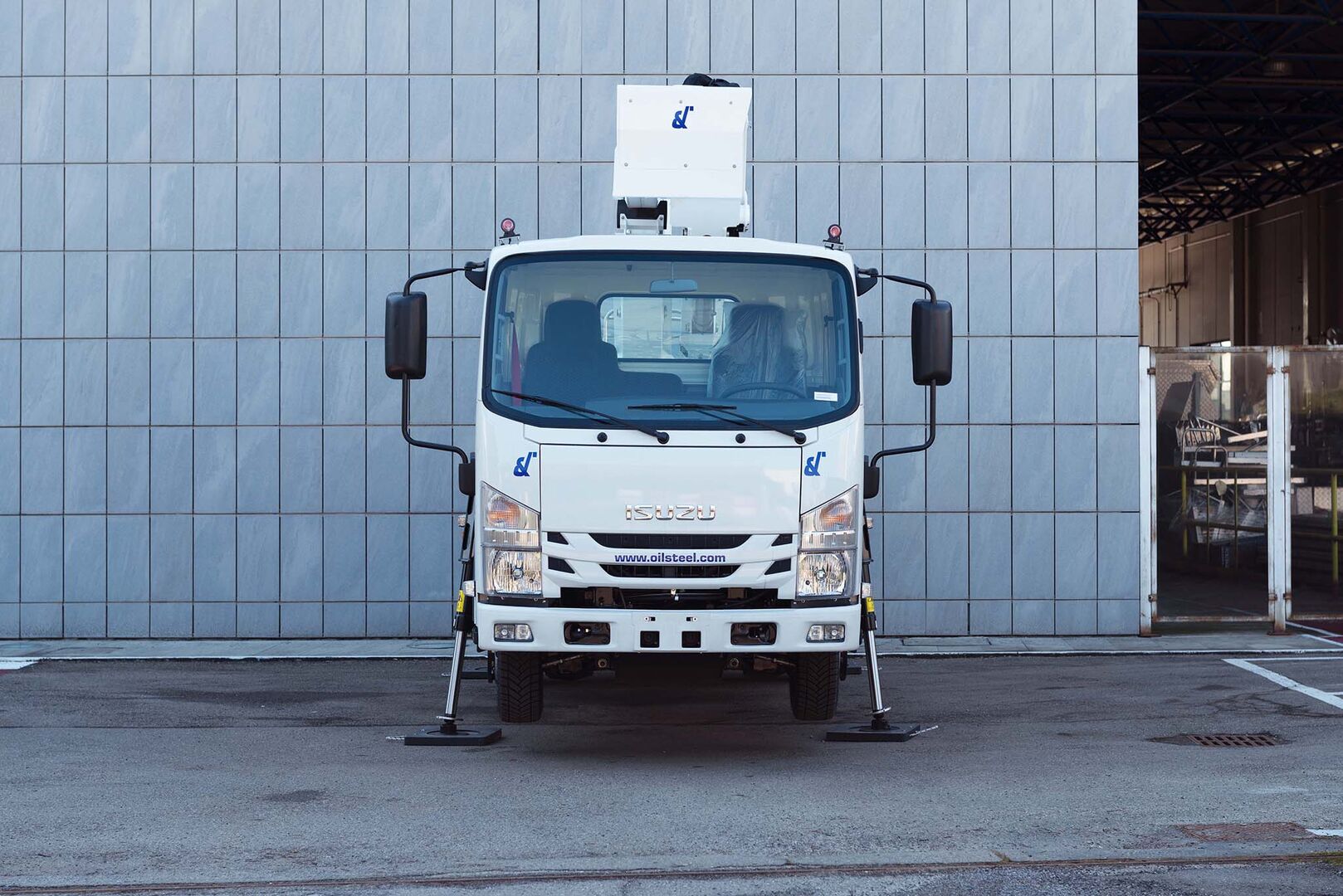

Mounted on the Isuzu M21 Ground Blue H chassis, the truck features power windows, a tilt-adjustable steering wheel, LED lighting, automatic headlight activation, central locking, and essential safety aids such as a reverse warning beeper and a seat belt buzzer. Optional equipment enhances the unit’s versatility, including fiberglass insulated baskets, debris protection kits, tilt sensors, auxiliary electric pumps, height limitation systems, toolboxes, reflective decals, air-water lines to the basket, custom paintwork, remote connectivity kits, and all-season tires.

Certified to CE standards, the Snake 20 FB is a compact yet robust solution for professionals requiring dependable access at height, especially in confined or challenging environments.
