Snake 16

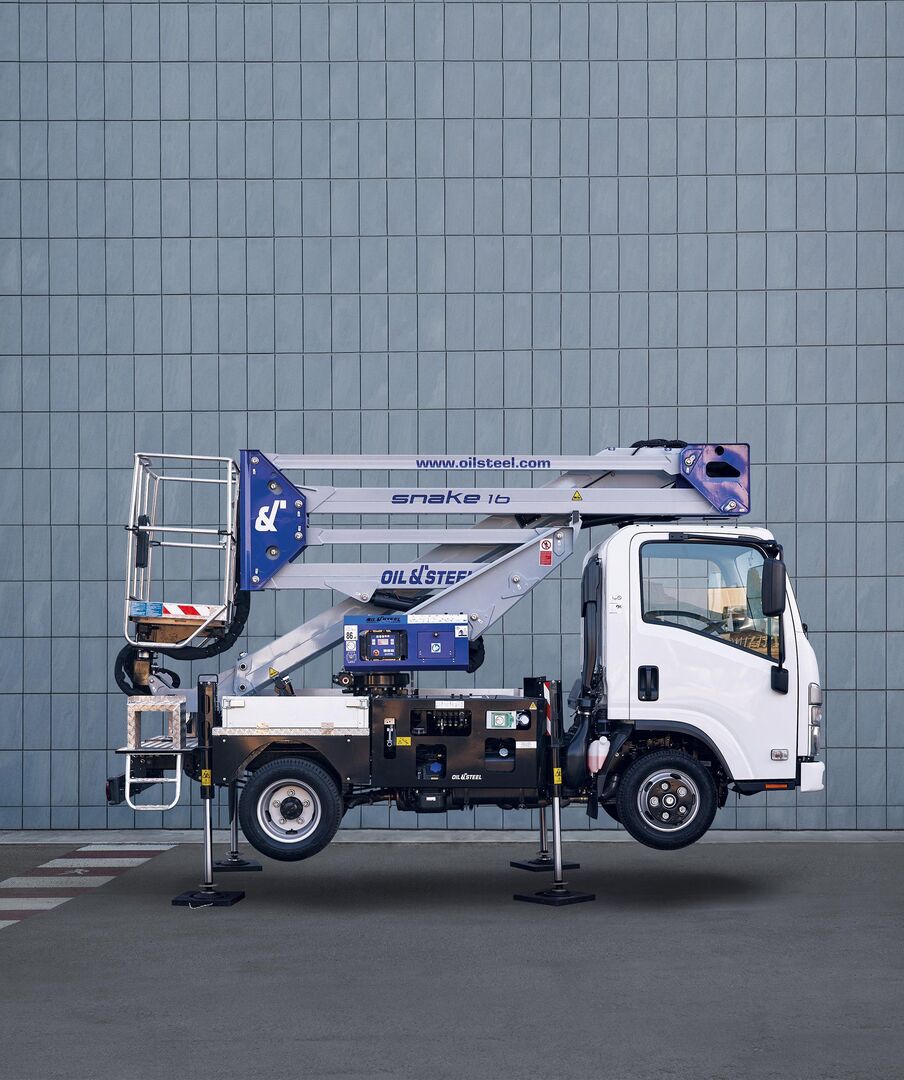

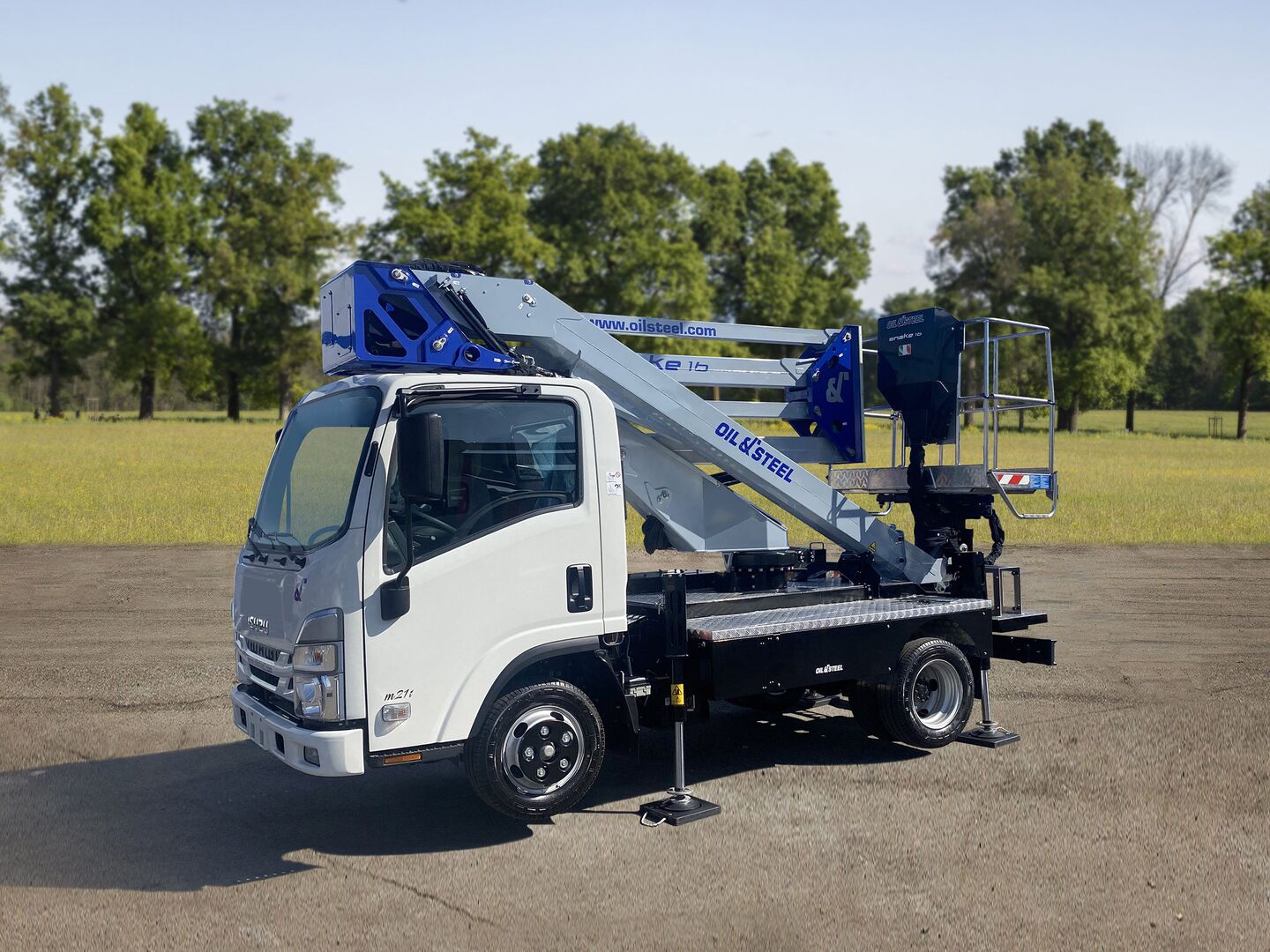

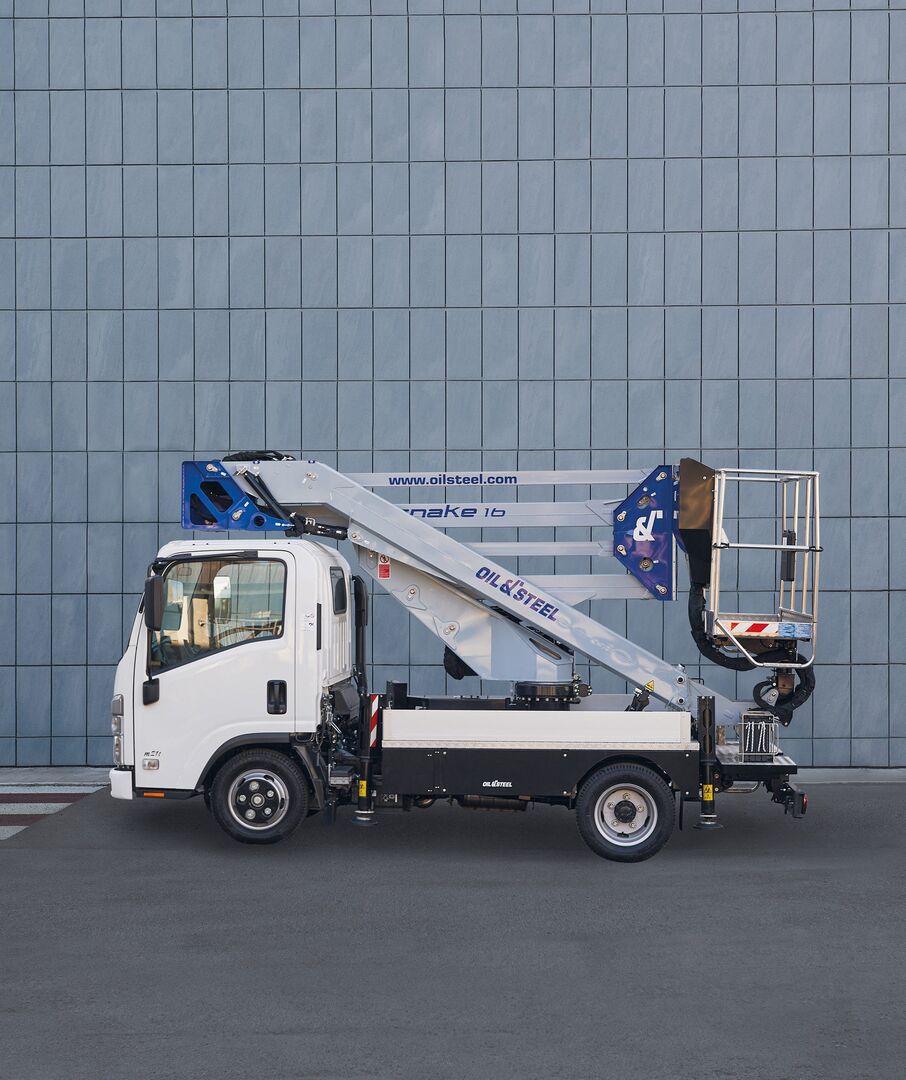

The Snake 16 is a compact articulated aerial platform, offering simple access and precise maneuverability for urban and industrial applications, mounted on the agile Isuzu M21 chassis.

Get in touch

Product description

Agile Access. Reliable Performance.

Mounted on the Isuzu M21T (Euro 6d, 120 HP), the Snake 16 provides a maximum working height of 15.9 meters, a 6.5-meter outreach, and a 220 kg load capacity—ideal for two operators with tools. Its articulated boom and pantograph design enable vertical movement followed by horizontal outreach, making it possible to clear obstacles at height with ease.

The platform is equipped with a 1.4 x 1.1 x 0.7 m aluminum basket, ±90° hydraulic basket rotation, and a 260° turret rotation, offering versatile positioning in tight spaces. Compact transport dimensions—4.85 m length, 1.86 m width, and 2.75 m height—make the Snake 16 perfectly suited for narrow roads and congested city environments.

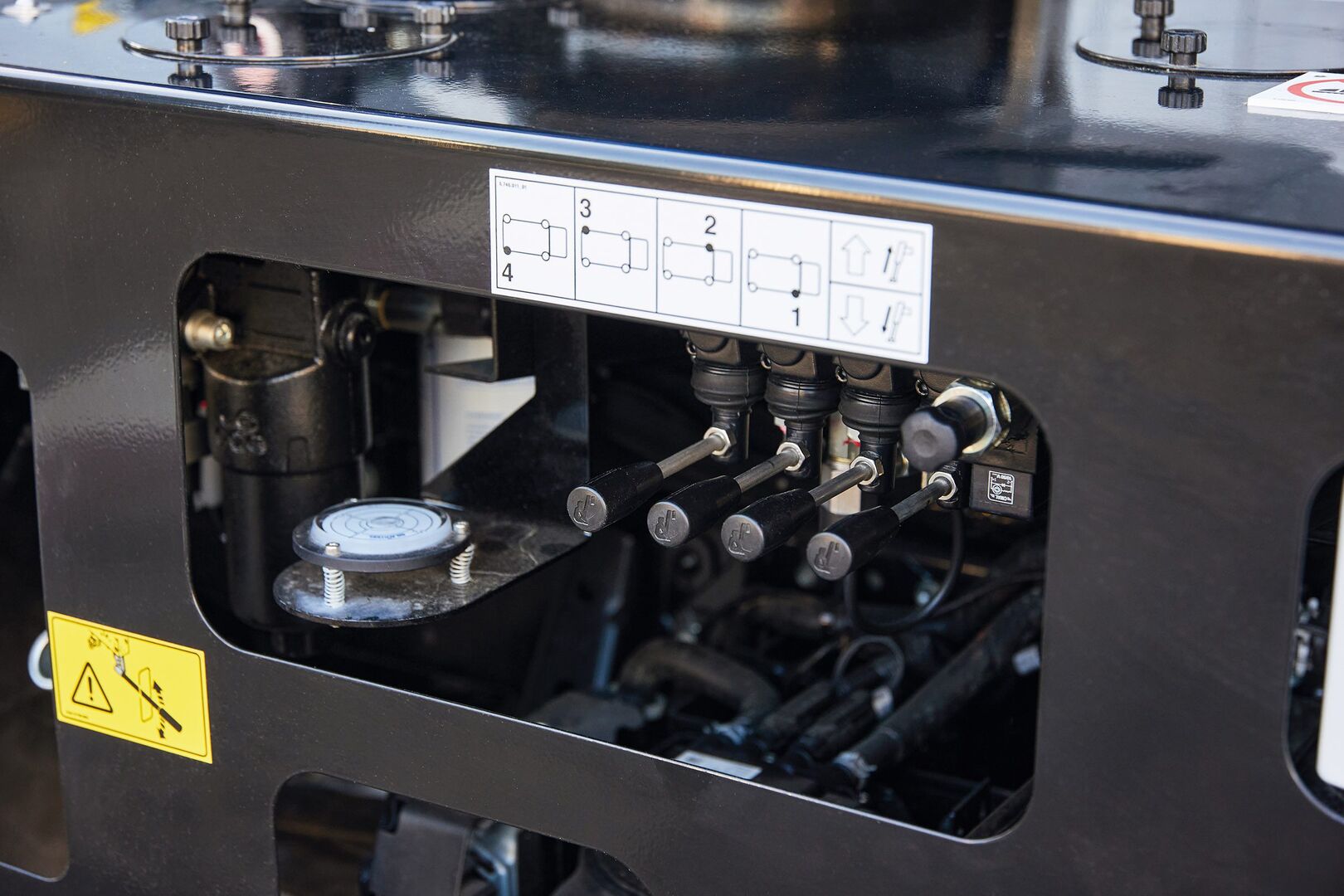

Key safety and support features include hydraulic aerial and outrigger controls, moment detection and limiting system, in-shape stabilization, engine start/stop from basket and column, and manual emergency descent via hand pump. Internal routing of hoses and cables, stainless-steel fasteners, anti-slip decking, and corrosion-resistant paint ensure long-term durability.

Standard features include an electro-hydraulic PTO with automatic release, warning systems for PTO and outrigger deployment, protective casings on control boxes, thermal protections, and non-slip flooring.
Optional extras include fiberglass insulated baskets up to 1 kV, debris protection kits, tilt sensors, auxiliary electric pumps, LED or working lights in basket, toolboxes, remote connectivity kit, custom painting, air conditioning, and all-season tires.

Certified to CE standards, the Snake 16 delivers a compact and dependable aerial access solution, combining agility with professional-grade safety and performance.
