Snake 147

The Snake 147 is a compact articulated platform designed for urban and industrial applications, combining vertical access with the ability to extend over obstacles—all mounted on a lightweight pickup chassis.

Get in touch

Product description

Compact Design. Flexible Reach.

With its articulated boom and pantograph design, the Oil&Steel Snake 147 provides safe and efficient access up to 14.7 meters working height with a maximum outreach of 6.3 meters. The platform supports a 250 kg load capacity, allowing two operators plus tools, making it ideal for maintenance, utilities, and rental fleets.

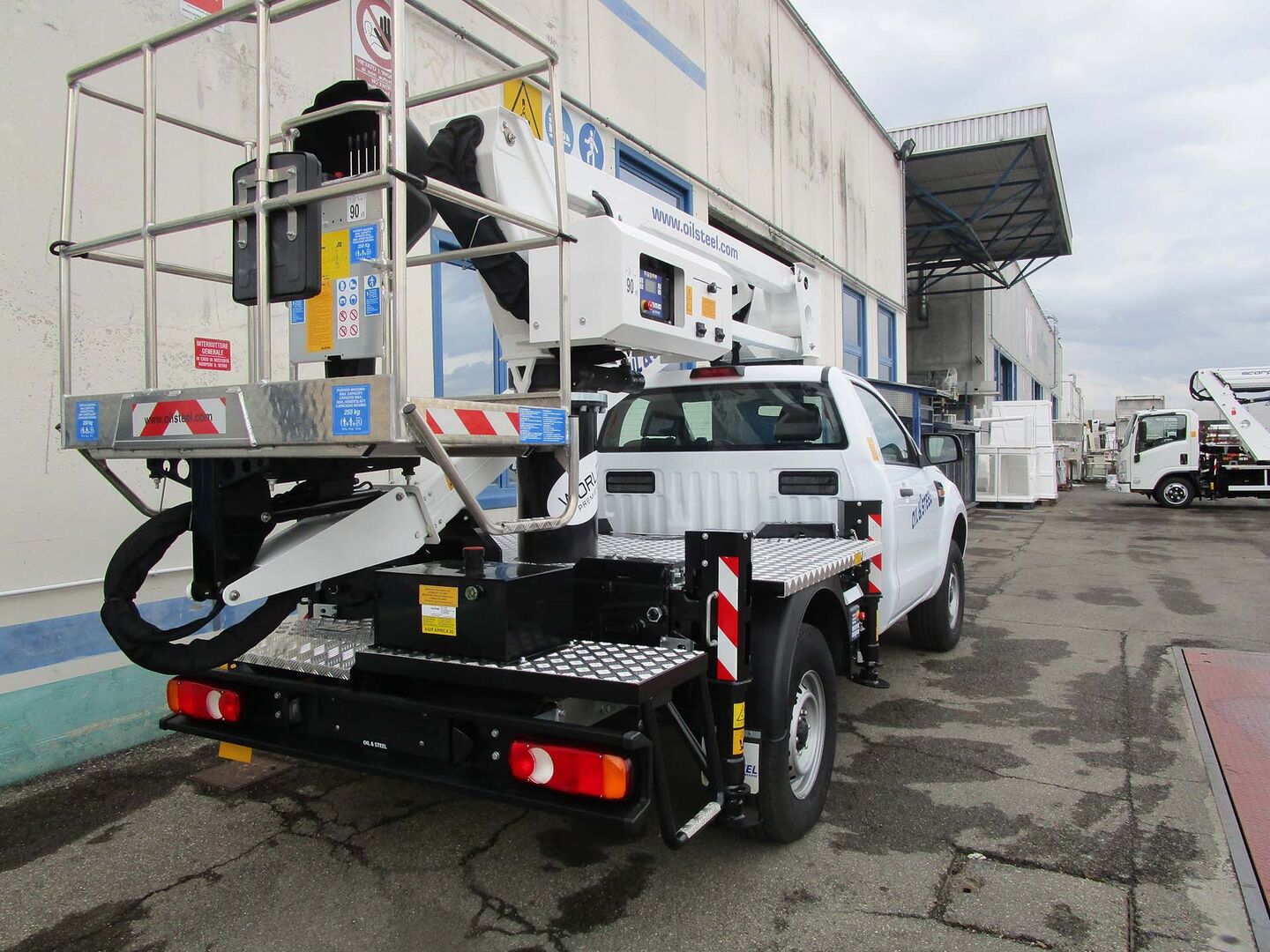

The Snake 147 is mounted on a pickup vehicle with a minimum GVW of 3,200 kg, combining agility with stability. Despite its high performance, the platform remains highly compact, with transport dimensions of 5.65 m length, 1.90 m width, and 2.60 m height, making it perfect for narrow urban roads and confined spaces.

The platform is equipped with a 1.4 x 0.7 x 1.1 m basket, 400° turret rotation, and H-type outriggers for safe and versatile positioning. This design allows operators to move vertically and then extend horizontally over obstacles—ideal for work in built-up environments.

Standard features include hydraulic outrigger stabilization, internal routing for hoses and cables, and stainless-steel fasteners with corrosion-resistant treatment.
Optional extras include fiberglass insulated baskets, LED lighting, toolboxes, automatic stabilization systems, and custom paint or decals.

Certified to CE standards, the Snake 147 is a light, compact, and versatile access solution for operators who need safe performance in restricted environments.
