Scorpion 16

The Scorpion 16 is a compact and versatile truck-mounted aerial platform designed for safe and efficient work at height—ideal for urban environments, utilities, and maintenance operations.

Get in touch

Product description

Compact Access. Full Efficiency.

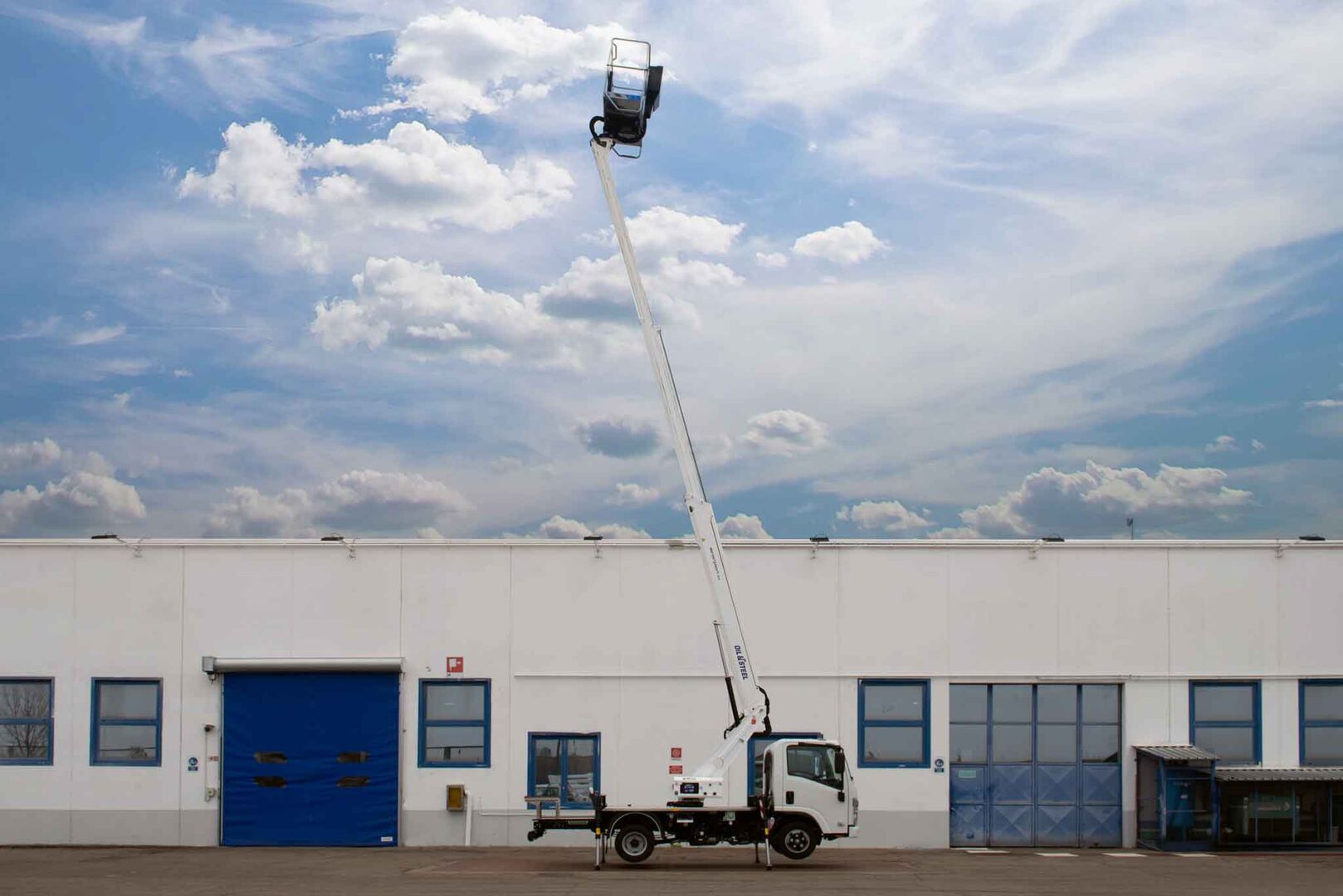

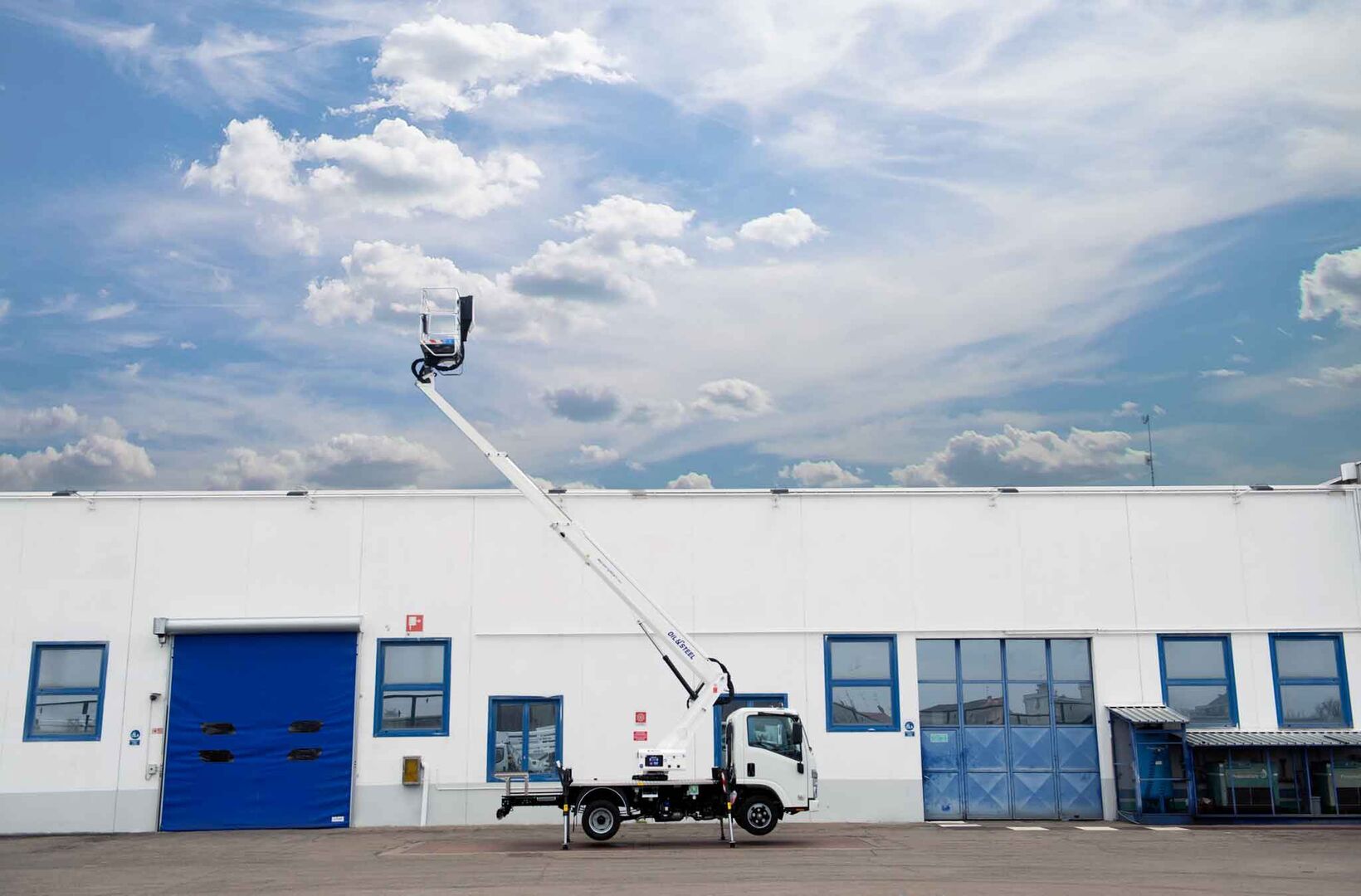

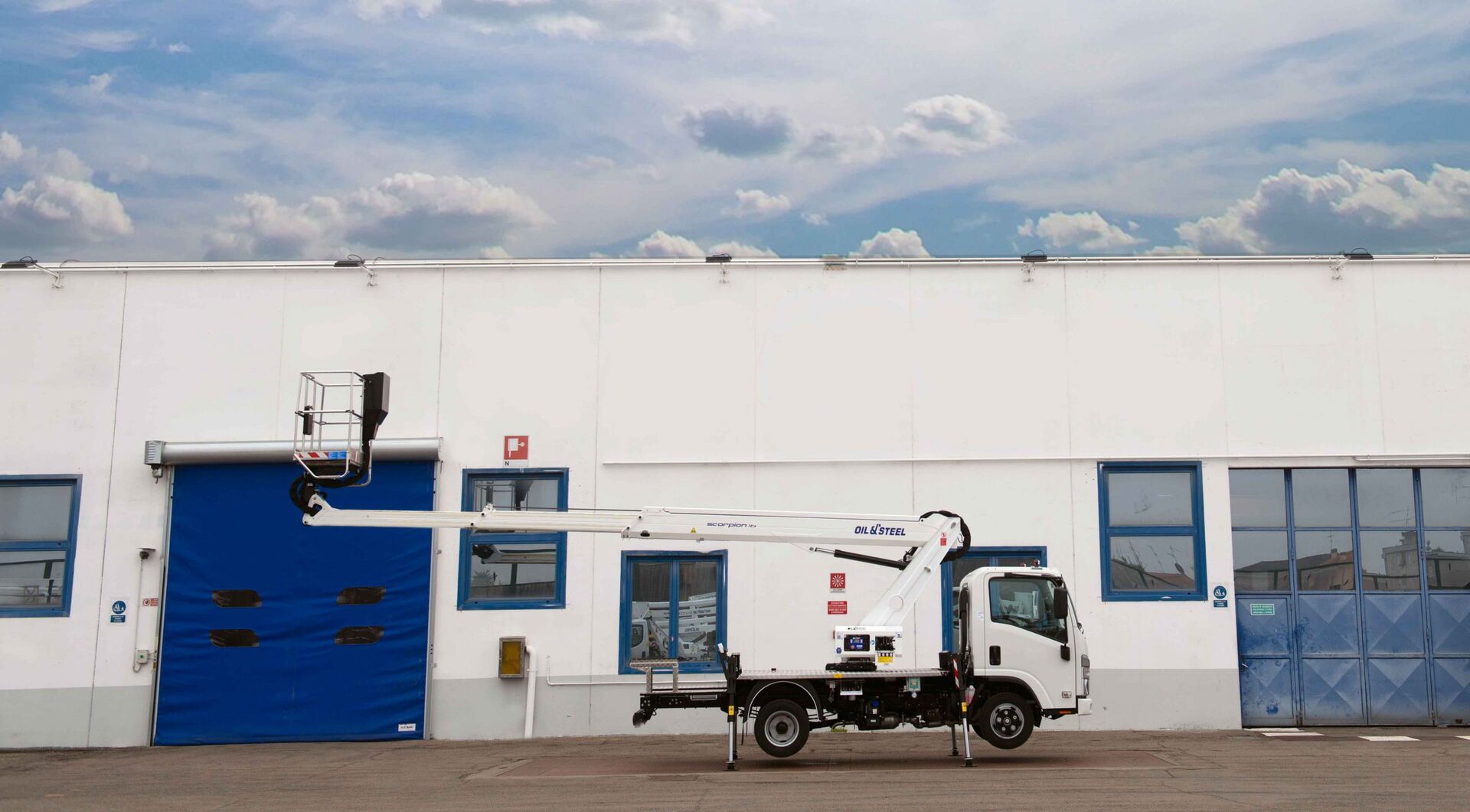

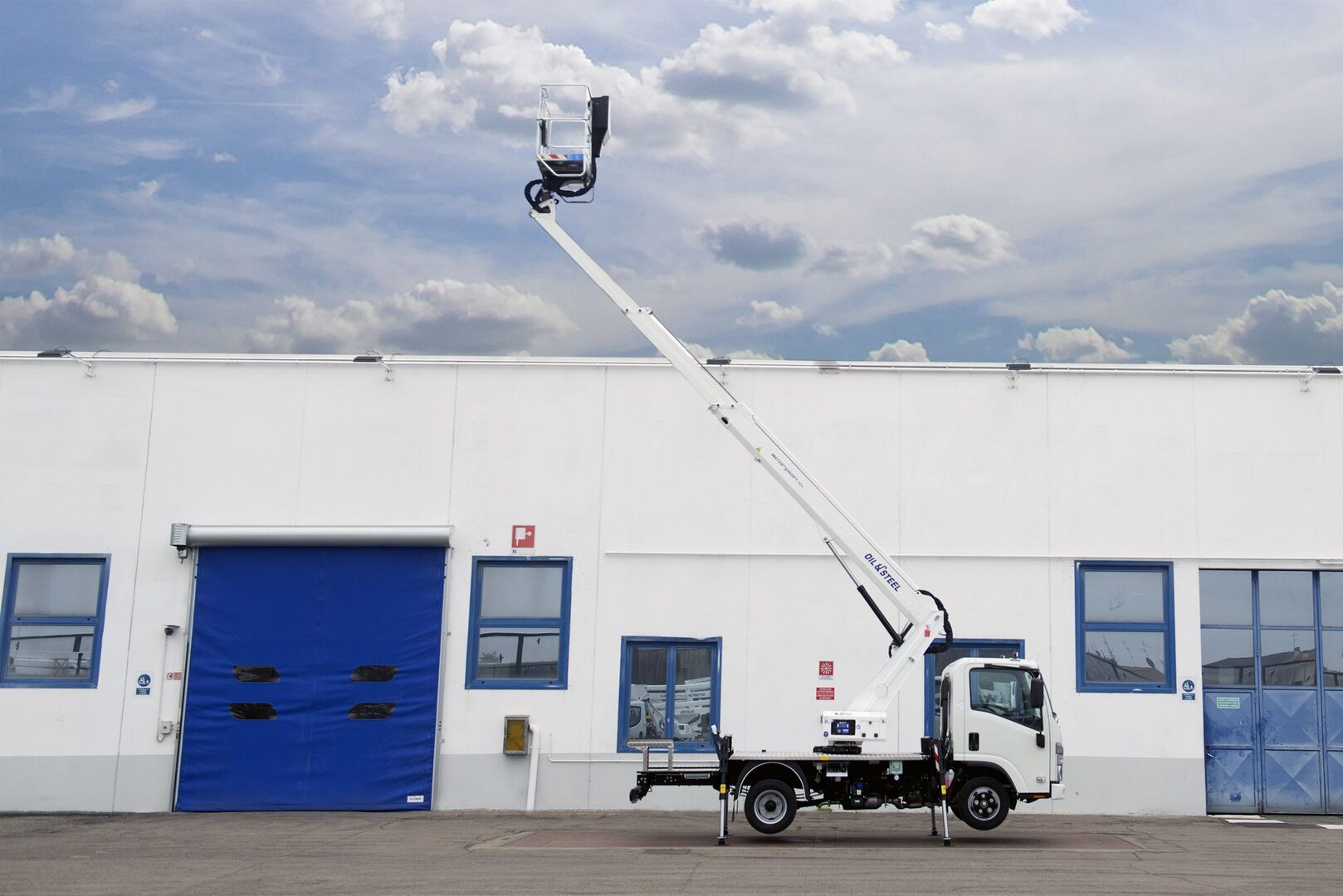

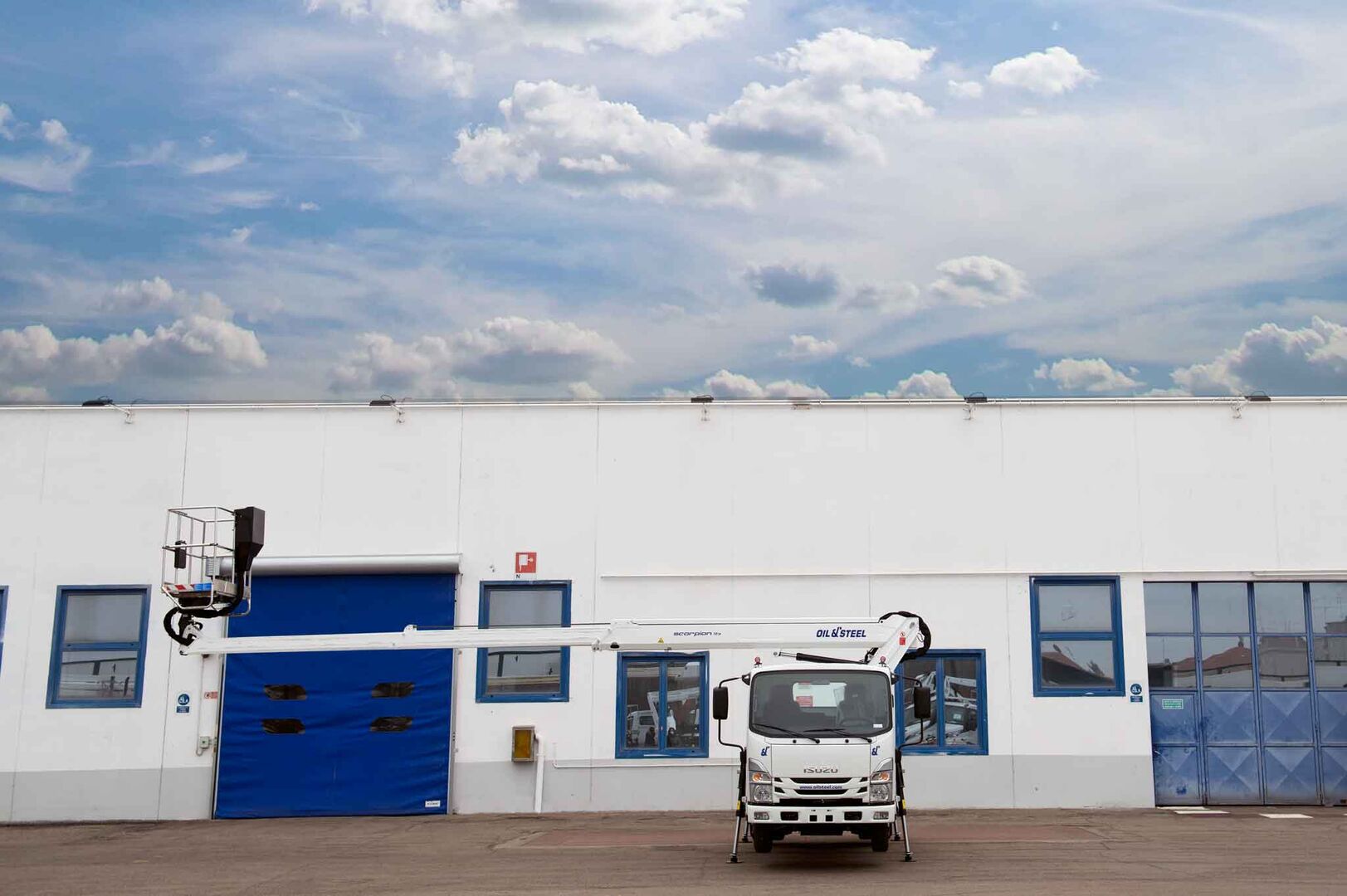

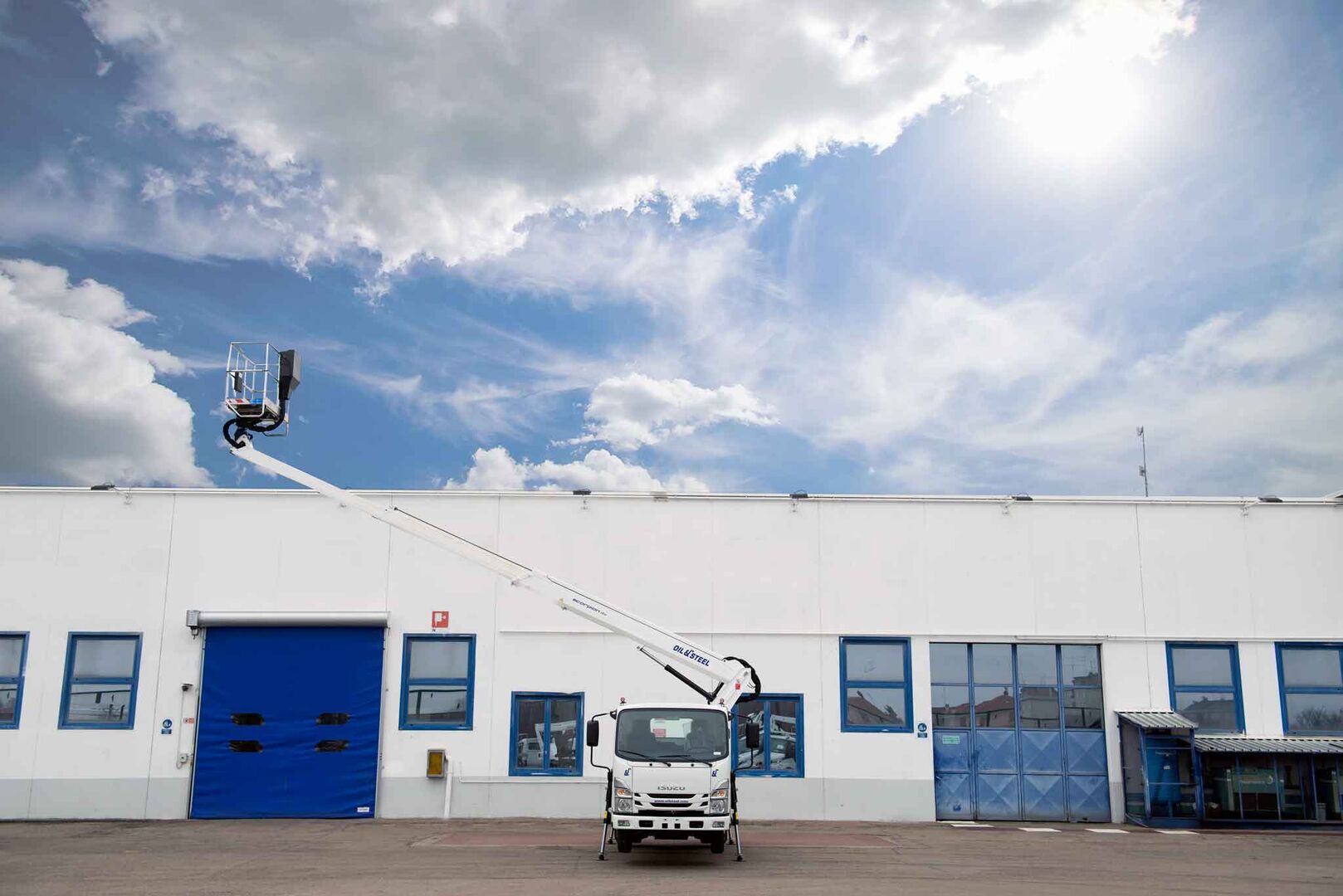

Mounted on the Isuzu M21T chassis, the Oil&Steel Scorpion 16 combines modern truck features with a reliable aerial platform for professional operators. It delivers a maximum working height of 16 meters, a horizontal outreach of 11.3 meters, and a 250 kg basket load capacity.

The platform is fitted with a 1.4 x 1.1 x 0.7 m aluminum basket that accommodates two operators, with ±90° basket rotation for optimal positioning. The 400° turret rotation and H-type outriggers ensure stability and maneuverability even in tight spaces.

In transport, the Scorpion 16 maintains compact dimensions—5.90 m length, 2.195 m width, and 2.84 m height—making it easy to drive and set up in urban and confined areas.

Key safety and reliability features include electro-hydraulic aerial controls, moment detection and limiting systems, stainless steel screws, corrosion-resistant paint, and both manual and powered emergency descent systems. Power take-off with automatic release, lock valves on all cylinders, and hoses and cables routed inside the boom enhance durability and safety.

Standard features include PTO monitoring, anti-slip aluminum decking, stainless steel fasteners, and corrosion-resistant protection.
Optional extras include fiberglass insulated baskets, tilt sensors, automatic stabilization, remote connectivity kits, toolboxes, debris protection kits, under-ride guards, customized paint, and cabin comfort features such as A/C and infotainment.

Certified to CE standards, the Scorpion 16 offers an ideal balance of reach, stability, and compact design—making it the perfect partner for day-to-day access work where mobility and reliability matter.
