Valla 90E

Valla 90E

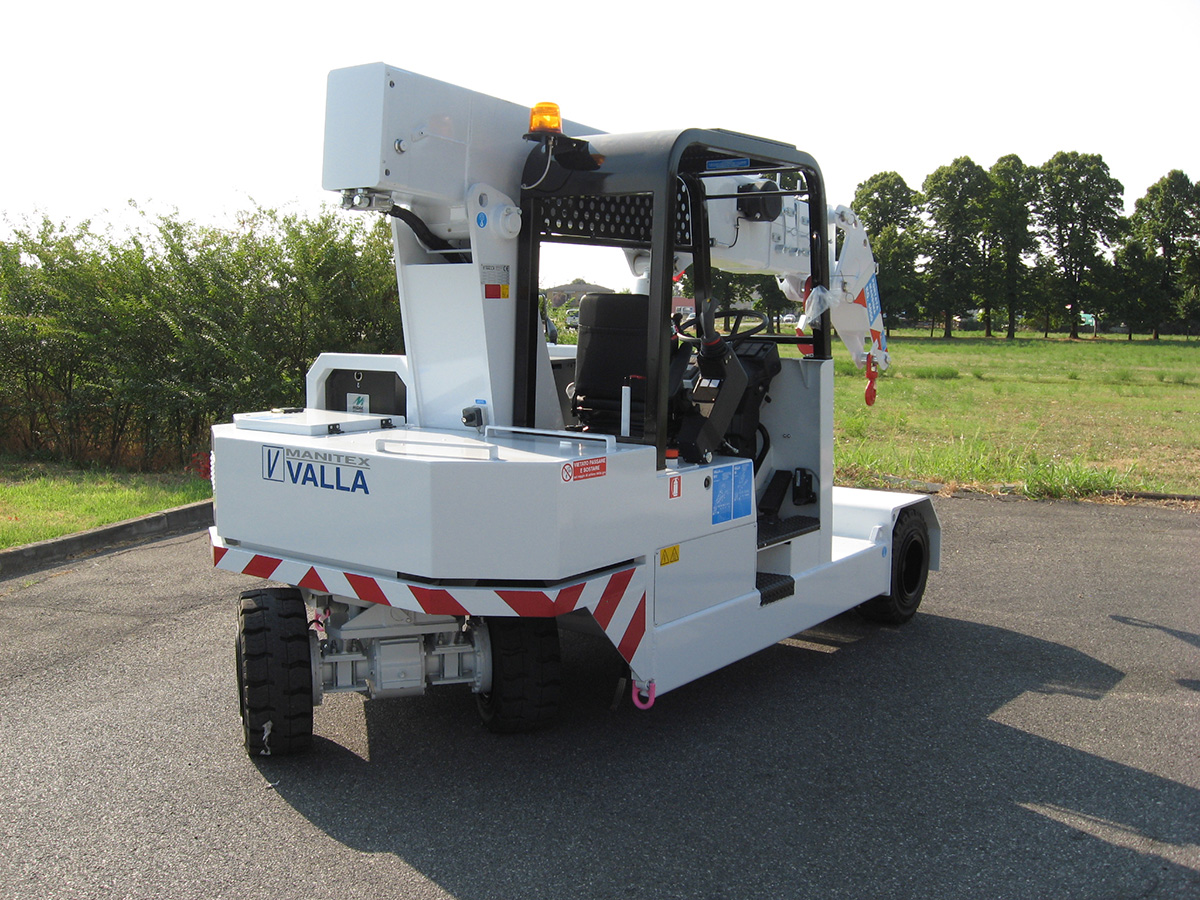

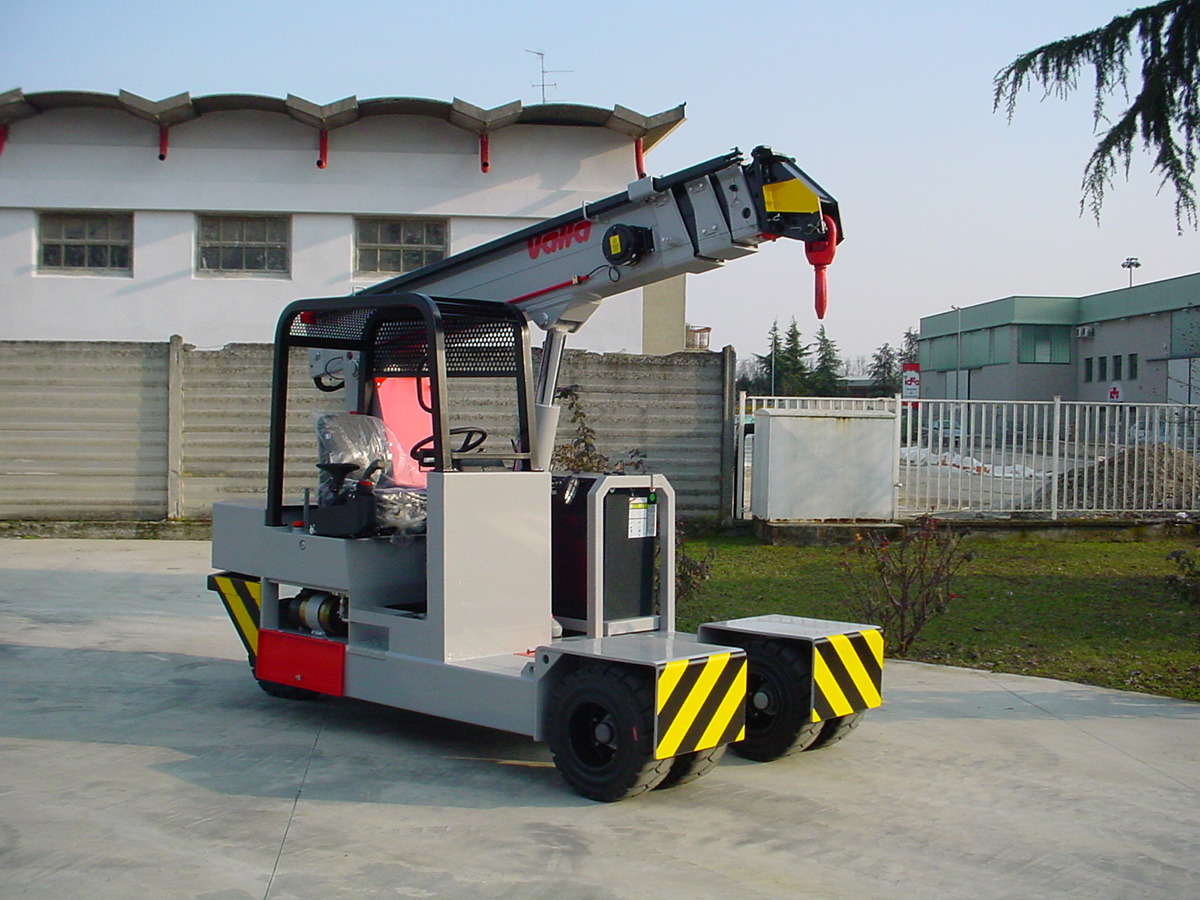

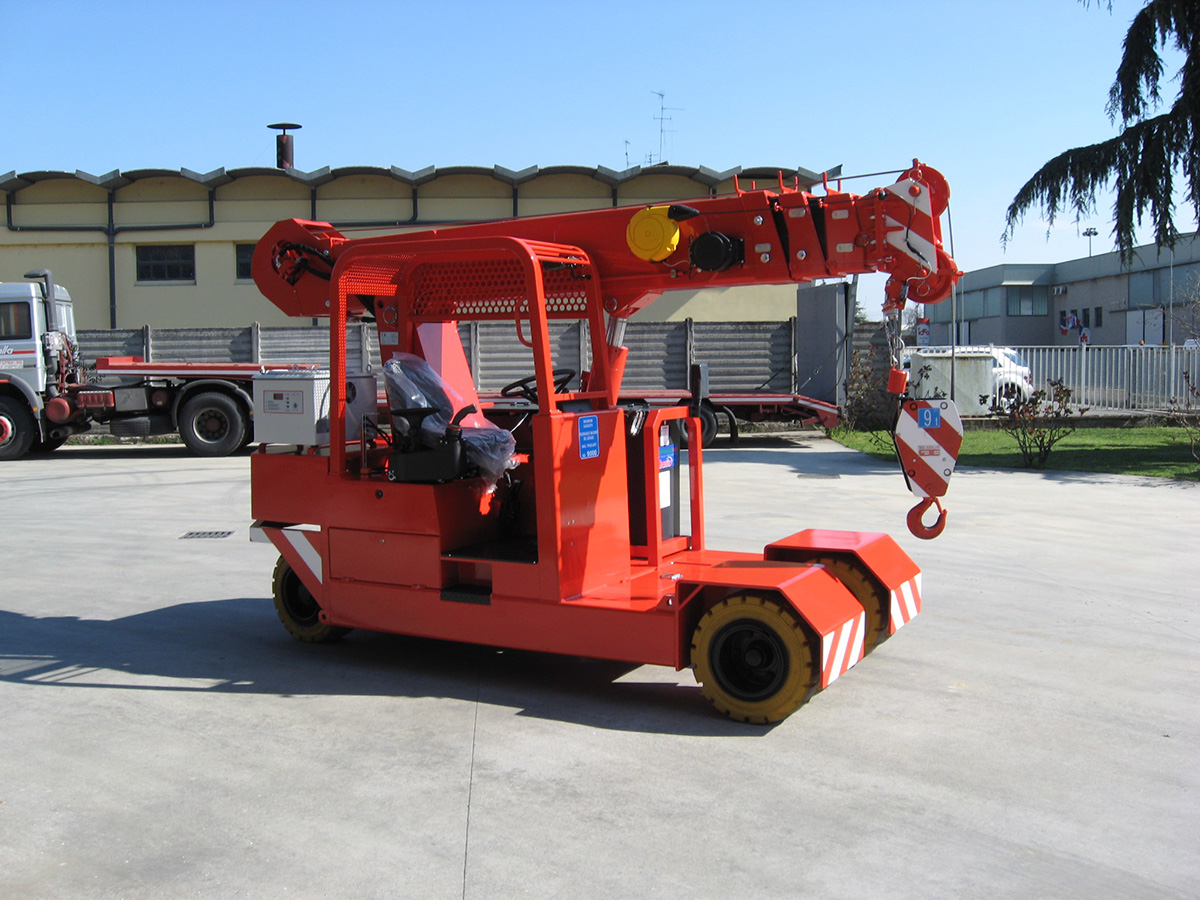

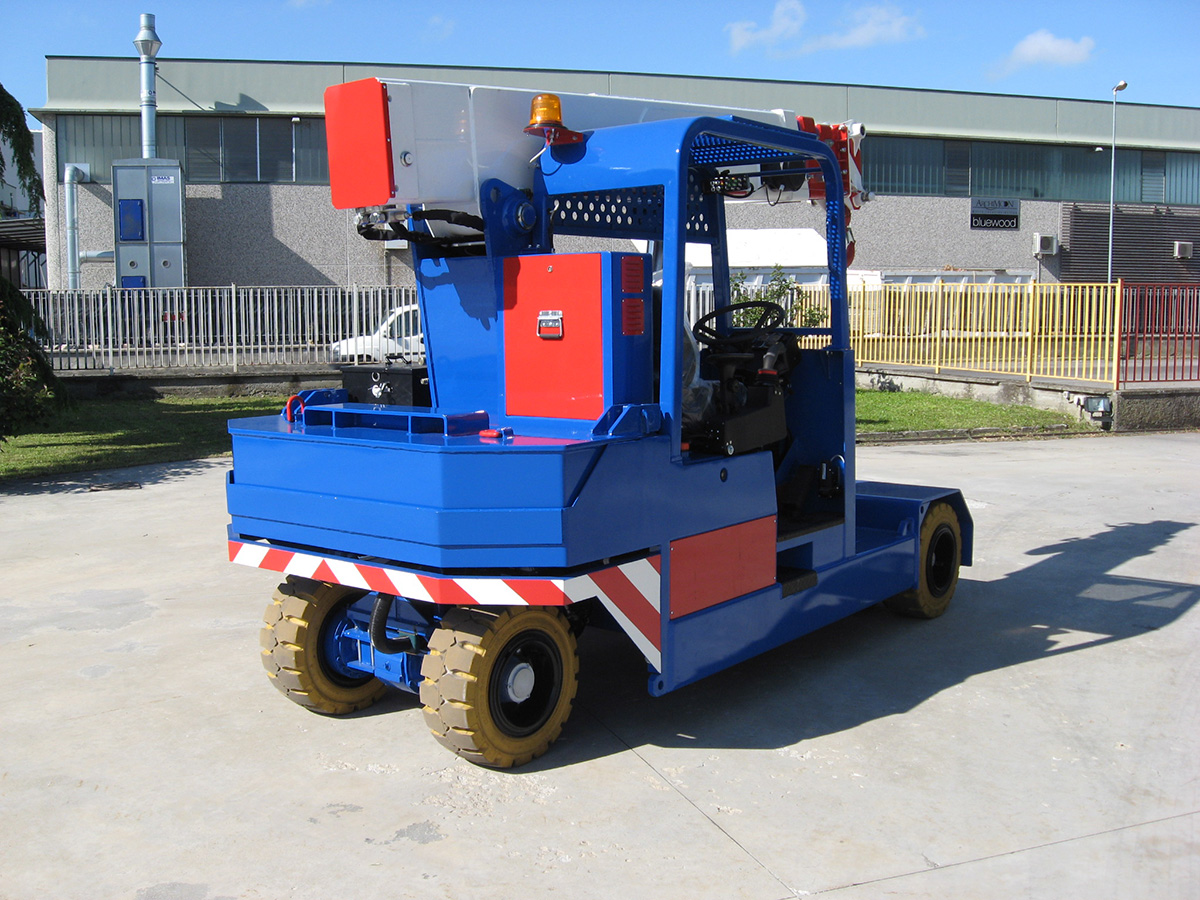

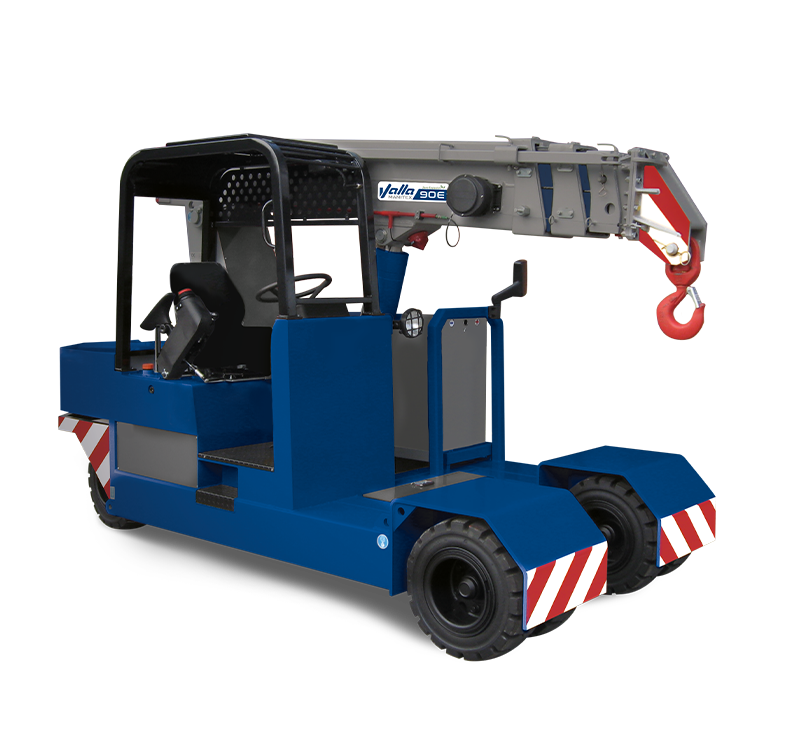

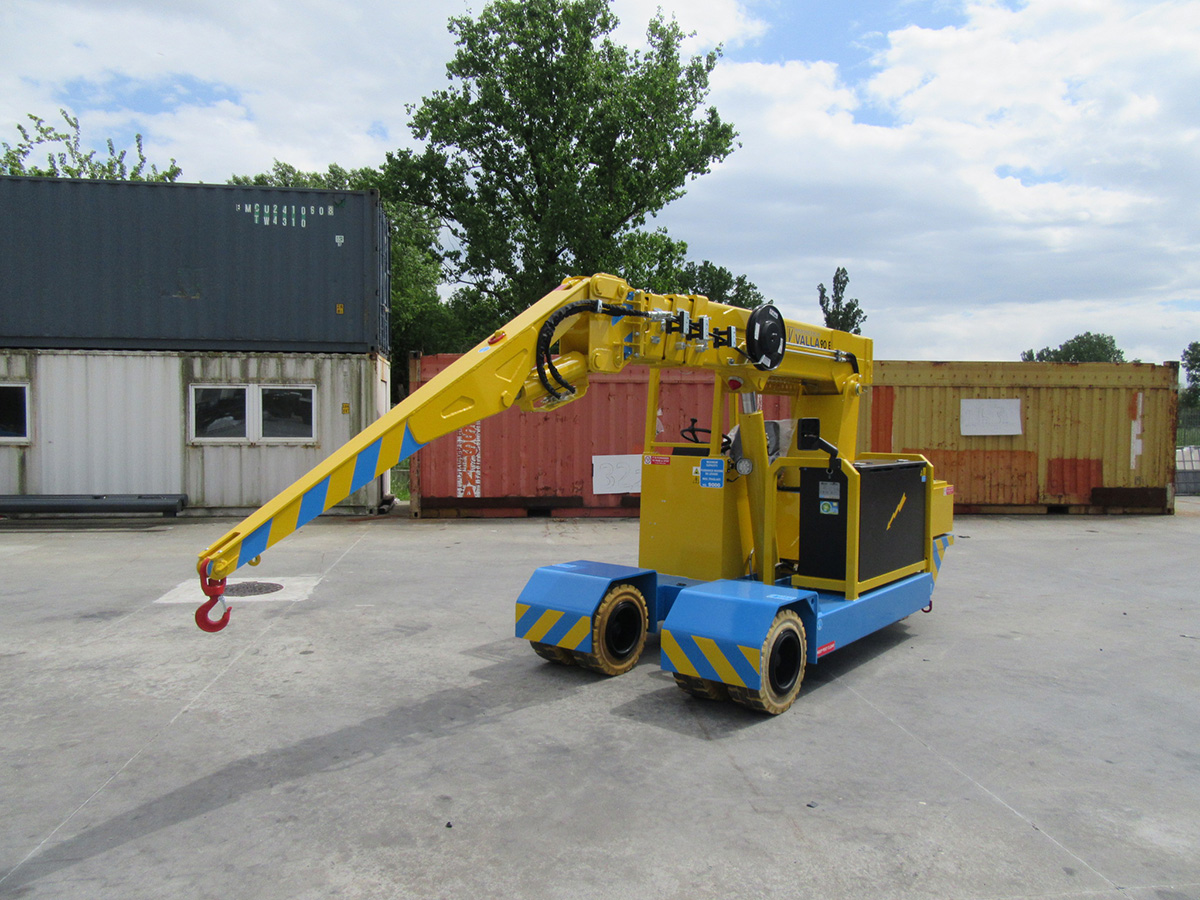

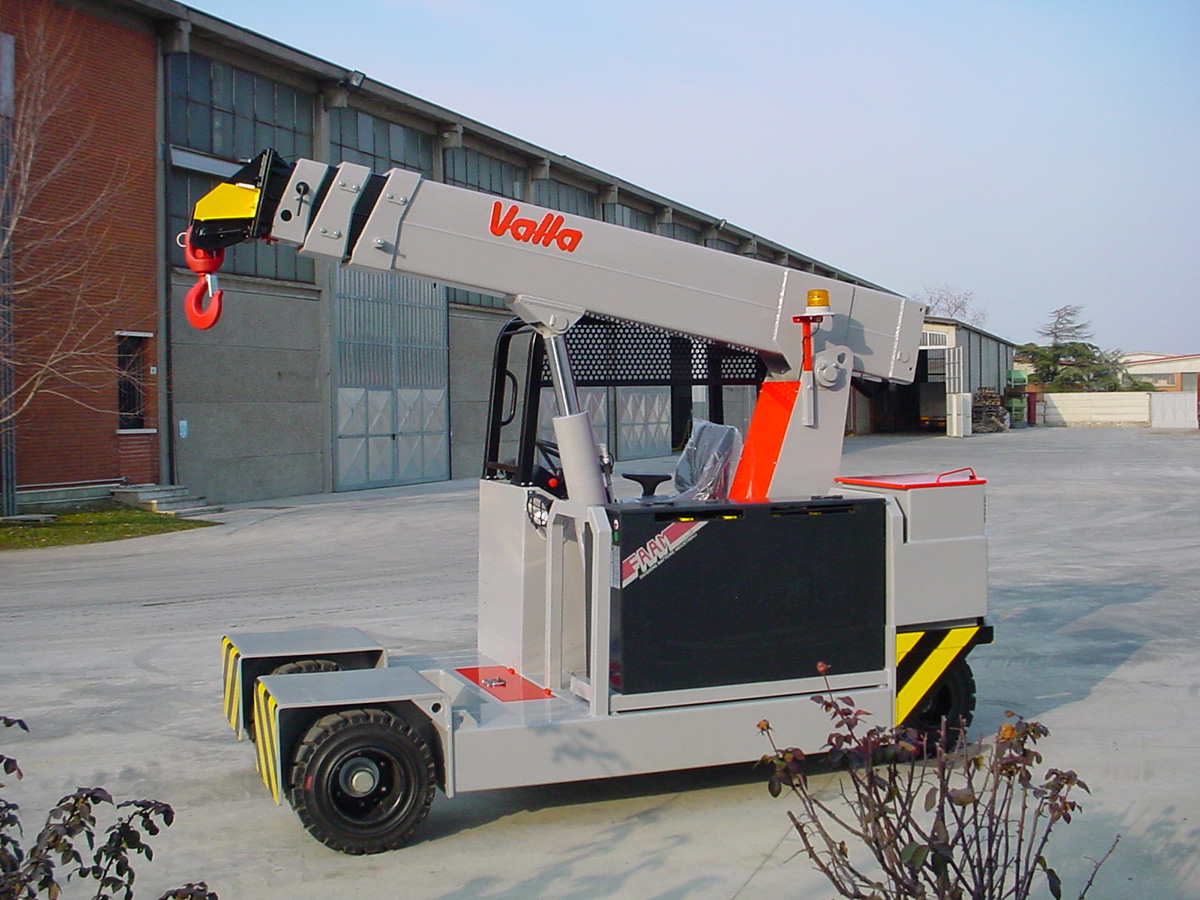

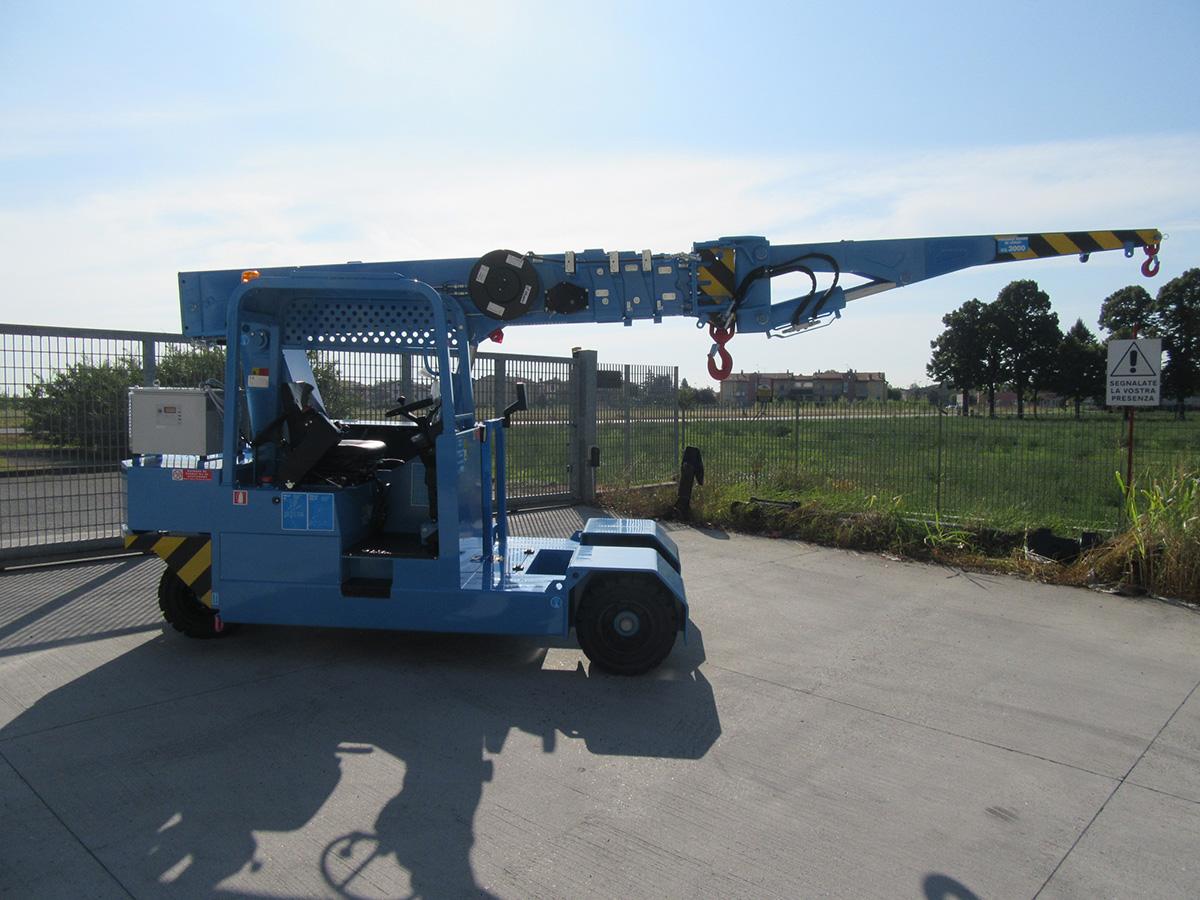

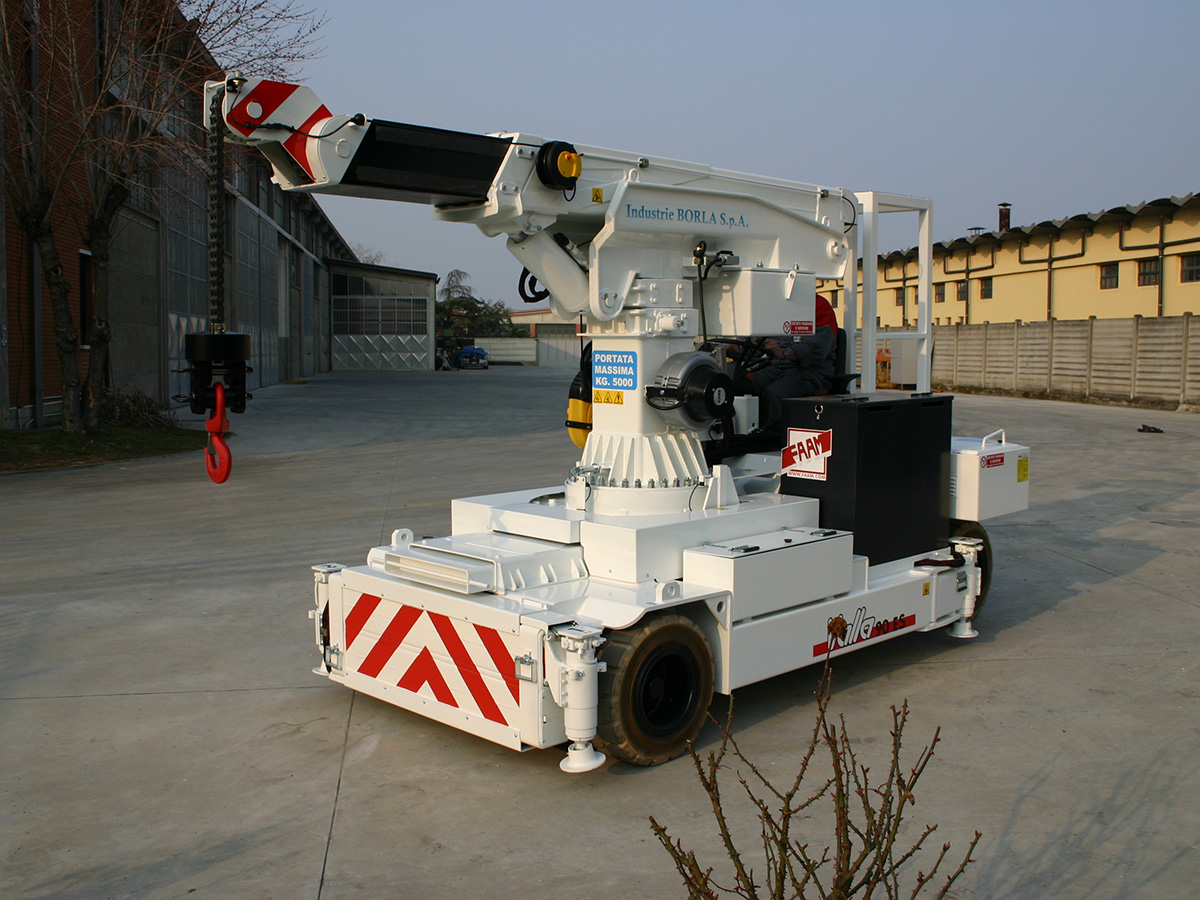

The Valla 90E is a compact, fully electric pick & carry crane built for heavy and emission-free lifting in indoor industrial environments.

Get in touch

Product Specs

Metric Imperial

Battery Capacity 700 Ah
Dimensions 3,420 x 1,735 x 2,355 mm
GVM 9,000 kg
Max. Crane Capacity 9,000 kg
Max. Pressure 220 Bar

Product description

Compact Strength. Clean Performance.

Combining a 9-ton lifting capacity with electric drive and minimal dimensions, the Valla 90E is the ideal solution for clean, efficient lifting in space-restricted areas. Its fully electric drivetrain and onboard protected operator station make it particularly suited for indoor use, where emissions, noise, and floor protection are critical.

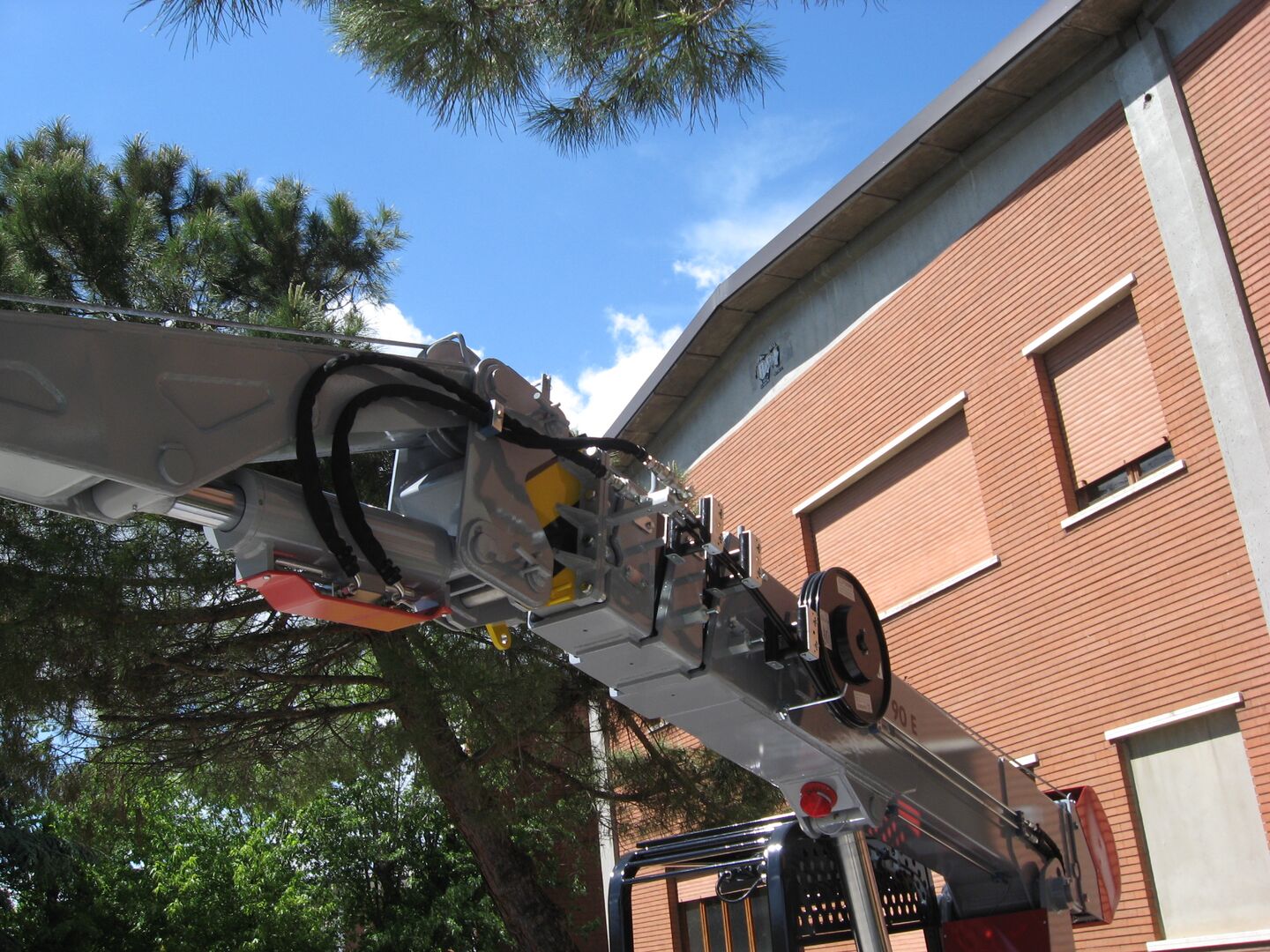

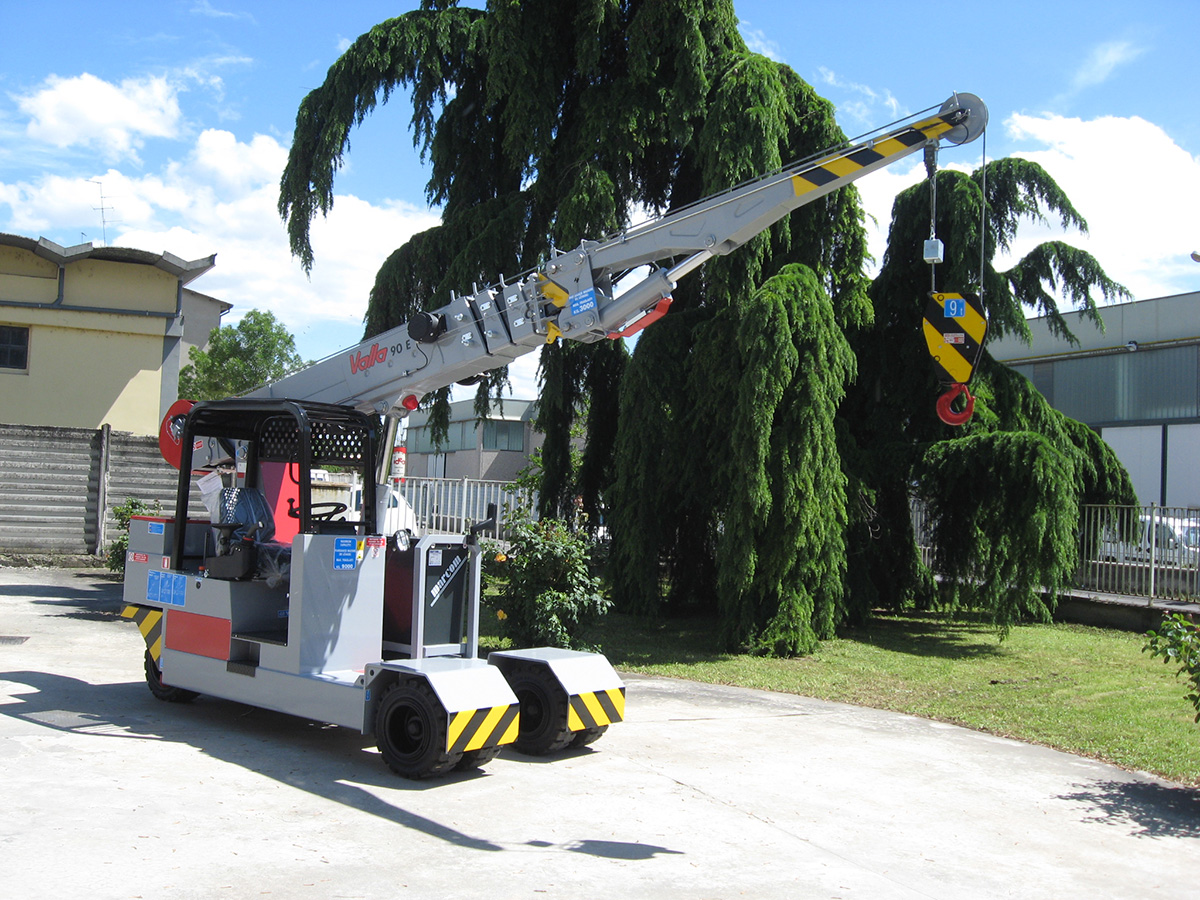

Measuring just 3.42 x 1.74 meters with a height of 2.36 meters, the 90E offers excellent maneuverability. It’s powered by a 48V – 700 Ah battery supporting a 5 kW DC hydraulic system and a 710W AC rear-wheel drive motor. Non-marking tires and drum brakes come standard, providing smooth control across sensitive floor surfaces. With a boom reach of up to 5.35 meters, the crane covers a wide range of lifting applications.

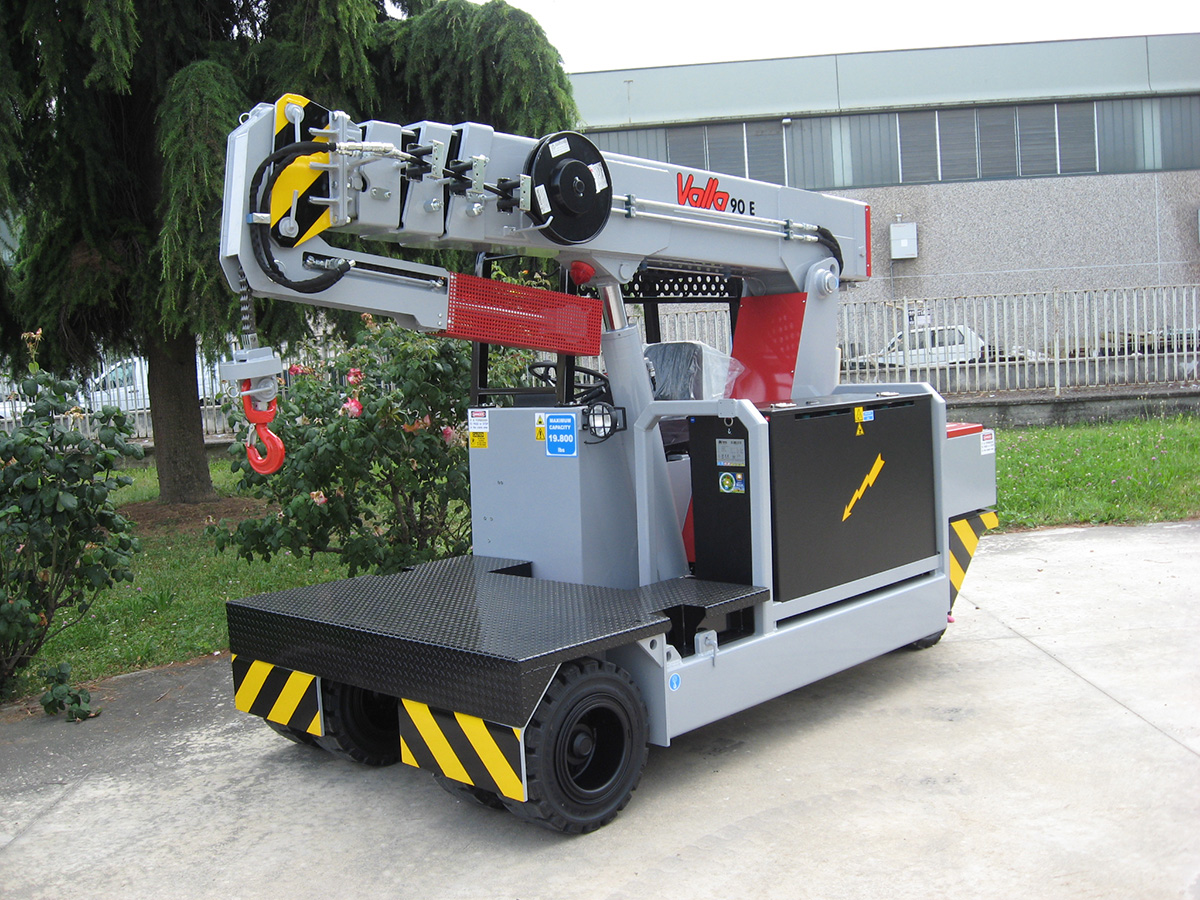

Standard features include a protected onboard operator station, fixed head, and non-marking tires. Optional equipment includes a hydraulic winch, mechanical or hydraulic jib, radio control, lithium batteries, onboard charger, carry deck, closed cabin, and ATEX transformation to operate in potentially explosive atmospheres. Valla Connect is also available for remote fleet monitoring and diagnostics.

Built to CE and EN 13000 standards, the Valla 90E offers reliable and emission-free lifting performance in tight workspaces—making it a smart, sustainable choice for modern lifting industry.
