Valla 22E

Valla 22E

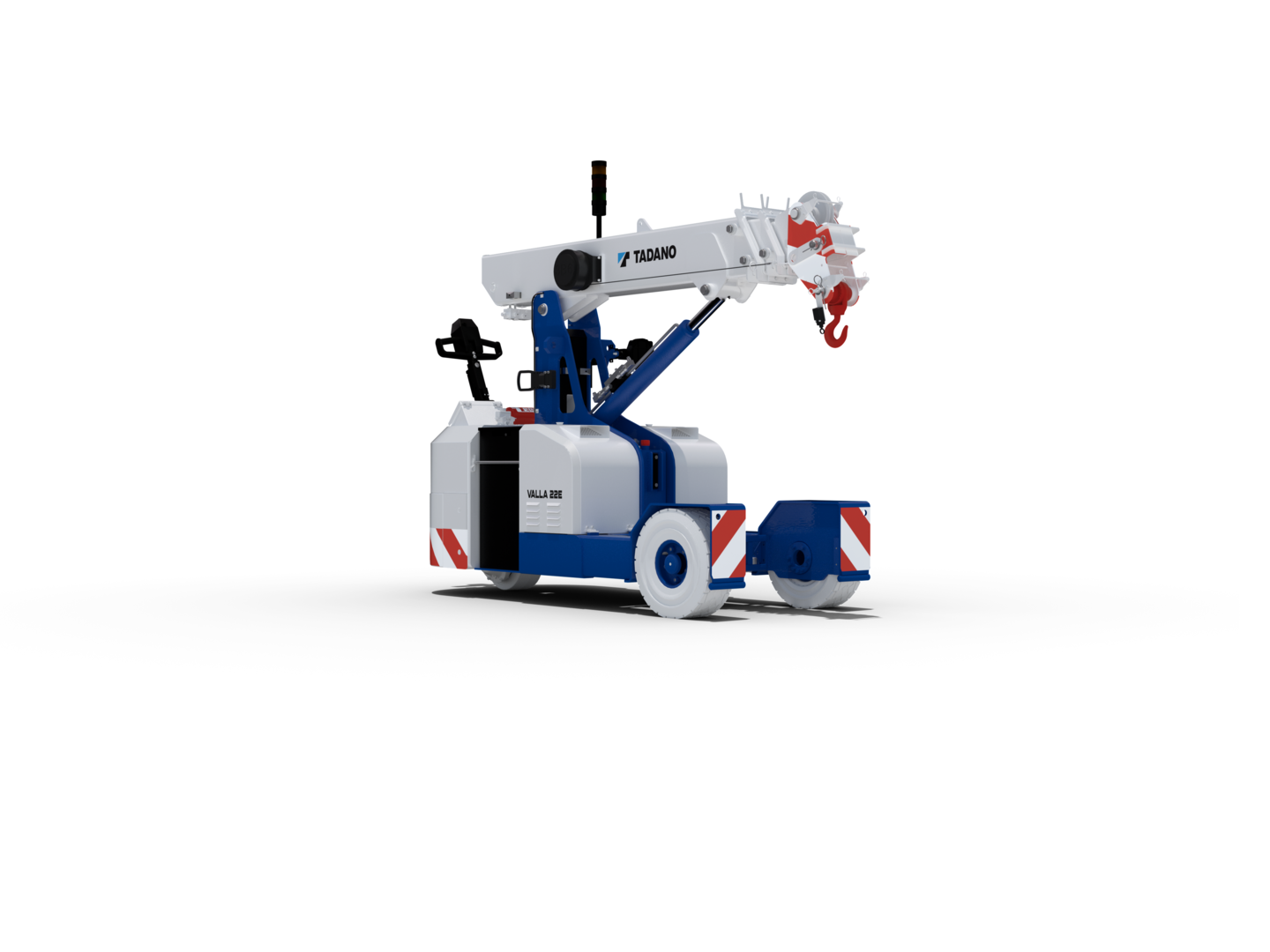

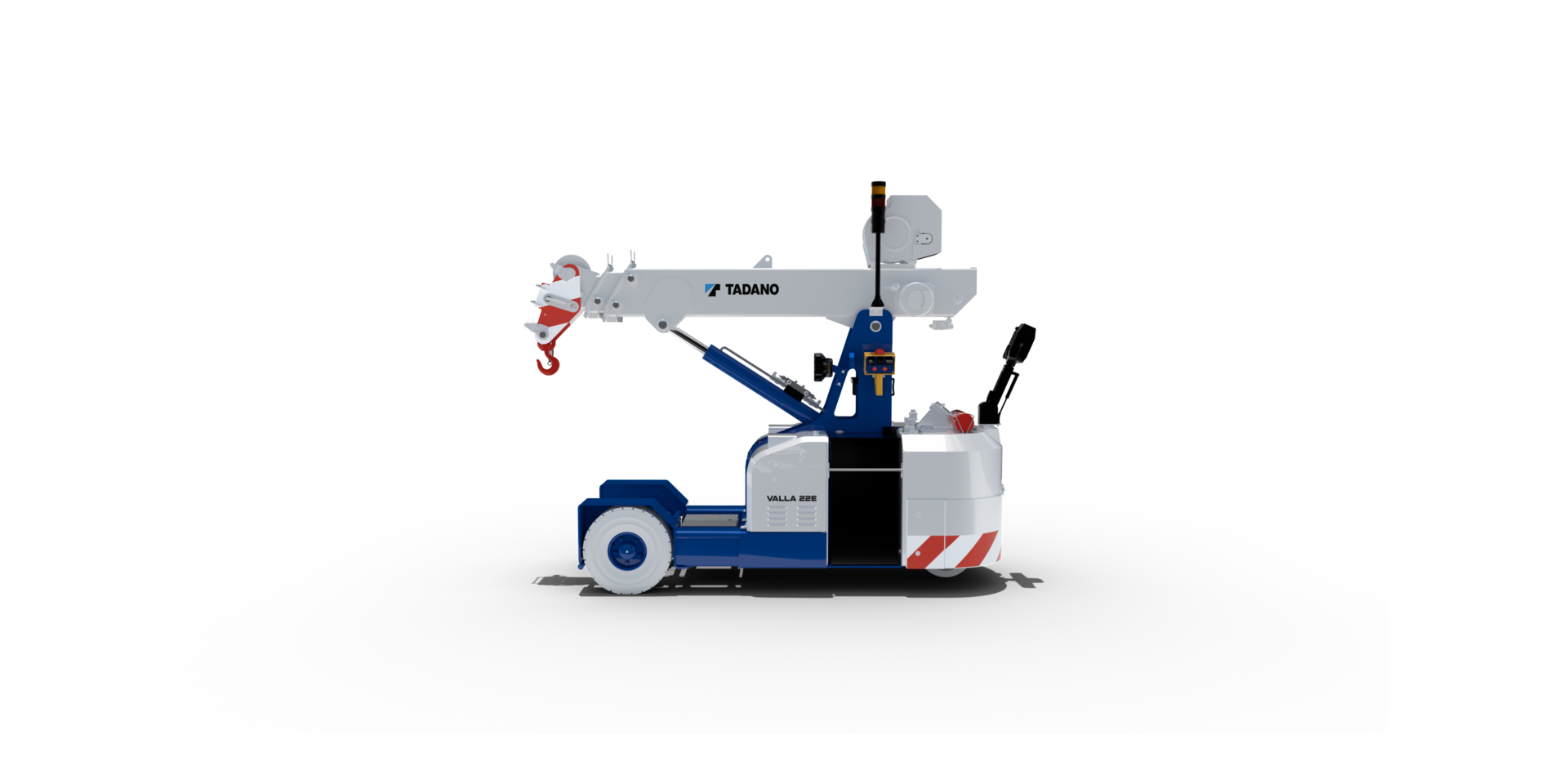

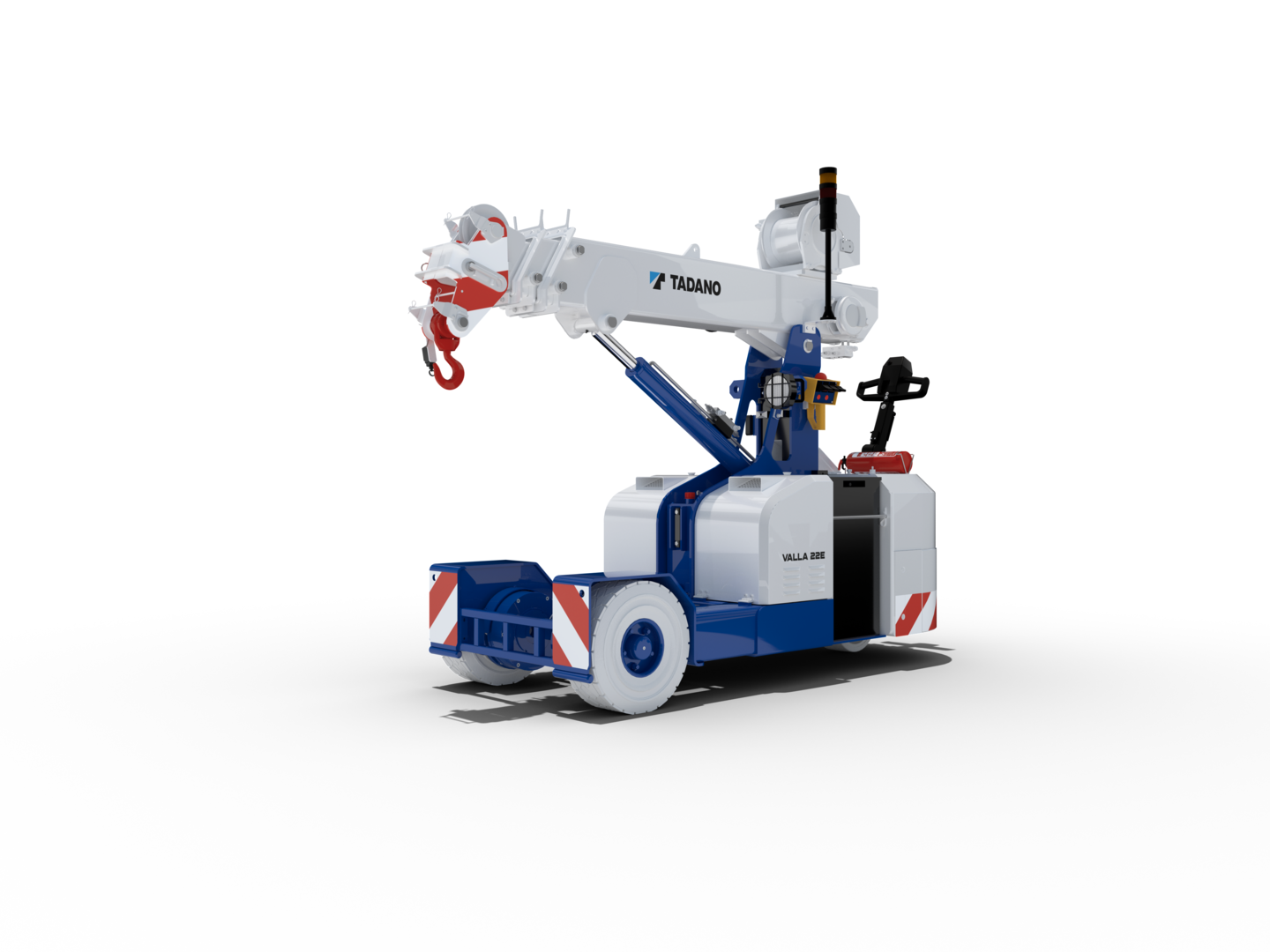

The Valla 22E is a compact, full-electric pick & carry crane—perfect for precise lifting in confined indoor spaces.

Product Specs

Metric Imperial

Battery Capacity 48V – 200 Ah
Dimensions 2,260 x 950 x 1,685 mm
GVM 1,970 kg
Max. Counterweight 270 kg
Max. Crane Capacity 2,250 kg
Max. Pressure 220 Bar

Product description

Agile. Efficient. Emission-Free.

Built to work in tight and zero-emission job sites, the Valla 22E combines compact dimensions with significant lifting power. Designed for precise indoor material handling, such as in industrial maintenance facilities, this electric pick & carry crane offers excellent maneuverability without compromising performance.

Measuring just 2.26 x 0.95 meters with a height of 1.69 meters, the Valla 22E easily fits through narrow passages while offering rear-wheel drive and 180° rear steering for outstanding mobility. Powered by a 48V – 200 Ah battery and an AC hydraulic system with a 4-kW motor and a 220-bar maximum pressure, it ensures clean, quiet, and cost-efficient operation in areas where diesel is not an option.

Standard features include a variable tilting head, non-marking tires, and electric brakes. Optional accessories—such as winch, manual jib, onboard charger, and remote control—allow for customized configurations to meet specific lifting needs. Lithium batteries and ATEX compliance are also available for even greater flexibility and safety.

Compliant with international standards like EN 13000, the Valla 22E offers a powerful solution for environments that demand both precision and environmental responsibility.
