Valla 220SE

Valla 220SE

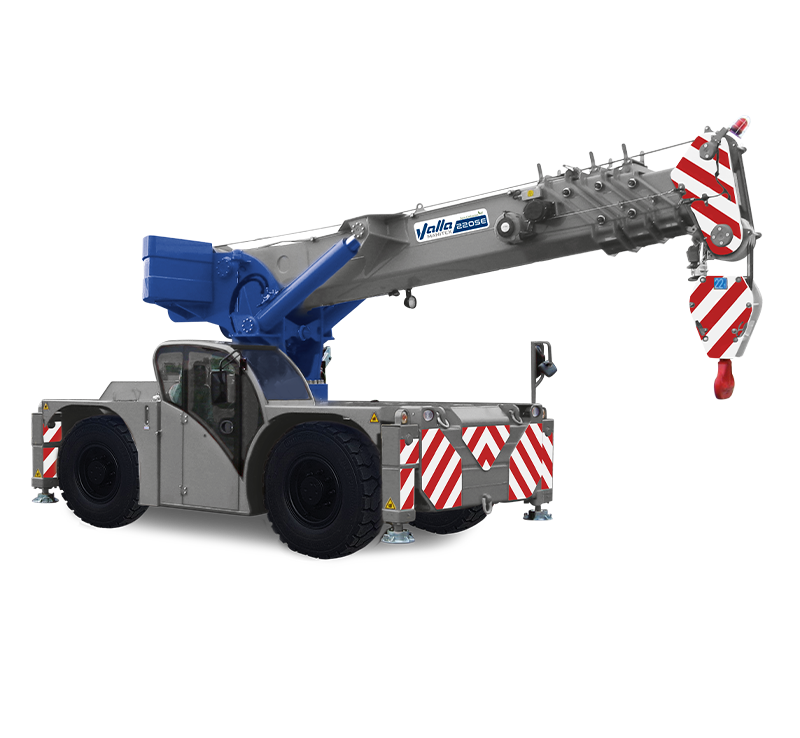

The Valla 220SE is a 100% electric carry-deck crane, designed for safe, quiet, and zero-emission lifting in industrial indoor applications.

Get in touch

Product Specs

Metric Imperial

Battery Capacity 755 Ah
Dimensions 7,265 x 2,995 x 2,450 mm
GVM 23,600 kg
Max. Crane Capacity 22,000 kg
Max. Pressure 220 Bar

Product description

22 Tons of Clean Performance. No Compromise.

With its robust 22-ton lifting capacity and all-electric drivetrain, the Valla 220SE represents the pinnacle of carry-deck excellence. The loading platform and powerful drive system offer great versatility and reliable performance—without the emissions of traditional diesel-powered cranes.

Measuring 7.27 x 2.99 meters and standing just 2.45 meters tall, the 220SE easily navigates confined areas. The crane is powered by a 96V – 755 Ah battery system paired with a 33-kW electric pump motor and dual 30 kW electric motors for full-time all-wheel drive. The front axle is fixed and steerable, while the rear axle is tilting and steerable for agile movement and precision positioning.

The Valla 220SE offers 360° continuous turret rotation and three selectable steering modes: rear, concentric, and crab. Partial stabilization at 0%, 50%, and 100% allows for secure operation even when full extension isn’t possible. Operator protection is a priority, with a fully shielded onboard control station integrated into the chassis.

Standard features include a variable tilting head, non-marking tires, and front and rear oil-immersed disc brakes for maximized stopping power. The crane supports full customization, including ATEX transformation for operation in explosive environments and integration with the Valla Connect system for remote fleet monitoring and diagnostics.

Certified to CE and EN 13000 standards, the Valla 220SE represents the ultimate solution for modern industrial lifting in terms of performance, comfort, and innovation, without sacrificing workplace sustainability.
