PM 9.5 SP
The PM 9.5 SP delivers outstanding performance, advanced control systems, and extended outreach—making it a top choice in its segment.
Compare products
Series Specs
| PM 9521 SP | PM 9522 SP | PM 9522 SP + J312 | PM 9522 SP + J313 | PM 9523 SP | PM 9523 SP + J312 | PM 9523 SP + J313 | PM 9524 SP | PM 9525 SP | |
|---|---|---|---|---|---|---|---|---|---|
| Height | 6′ 7″ | 6′ 7″ | 7′ 7″ | 7′ 7″ | 6′ 7″ | 7′ 7″ | 7′ 7″ | 6′ 8″ | 6′ 10″ |
| Height | 2005 mm | 2005 mm | 2320 mm | 2320 mm | 2005 mm | 2320 mm | 2320 mm | 2025 mm | 2075 mm |
| Hydraulic Horizontal Outreach | 18′ 4″ | 24′ 11″ | 41′ 10″ | 46′ 3″ | 32′ | 48′ 7″ | 53′ | 39′ 1″ | 46′ 1″ |
| Hydraulic Horizontal Outreach | 5,60 m | 7,60 m | 12,75 m | 14,10 | 9,75 m | 14,80 m | 16,15 m | 11,90 m | 14,05 m |
| Hydraulic Vertical Outreach | 28′ 10″ | 35′ 3″ | 51′ 6″ | 56′ 1″ | 42′ | 57′ 11″ | 62′ 8″ | 48′ 9″ | 55′ 7″ |
| Hydraulic Vertical Outreach | 8,80 m | 10,75 m | 15,70 m | 17,10 m | 12,80 m | 17,65 m | 19,10 m | 14,85 m | 16,95 m |
| Length | 7′ 6″ | 7′ 6″ | 7′ 6″ | 7′ 6″ | 7′ 6″ | 7′ 6″ | 7′ 6″ | 7′ 6″ | 7′ 6″ |
| Length | 2275 mm | 2275 mm | 2275 mm | 2275 mm | 2275 mm | 2275 mm | 2275 mm | 2275 mm | 2275 mm |
| Max. Lifting Moment | 56890 ft Ibs | 55130 ft Ibs | 53600 ft Ibs | 51520 ft Ibs | 50860 ft Ibs | ||||
| Max. Lifting Moment | 7,9 TM | 7,6 TM | 7,4 TM | 7,1 TM | 7,0 TM | ||||
| Slewing angle | 400° | 400° | 400° | 400° | 400° | 400° | 400° | 400° | 400° |
| Standard Crane Weight with empty tank | 960 kg | 1065 kg | 1400 kg | 1425 kg | 1160 kg | 1500 kg | 1525 kg | 1250 kg | 1330 kg |
| Width | 2′ 5″ | 2′ 5″ | 3′ | 3′ | 2′ 5″ | 3′ | 3′ | 2′ 7″ | 2′ 7″ |
| Width | 735 mm | 735 mm | 910 mm | 910 mm | 735 mm | 910 mm | 910 mm | 785 mm | 795 mm |
Product description
Power and precision combined.

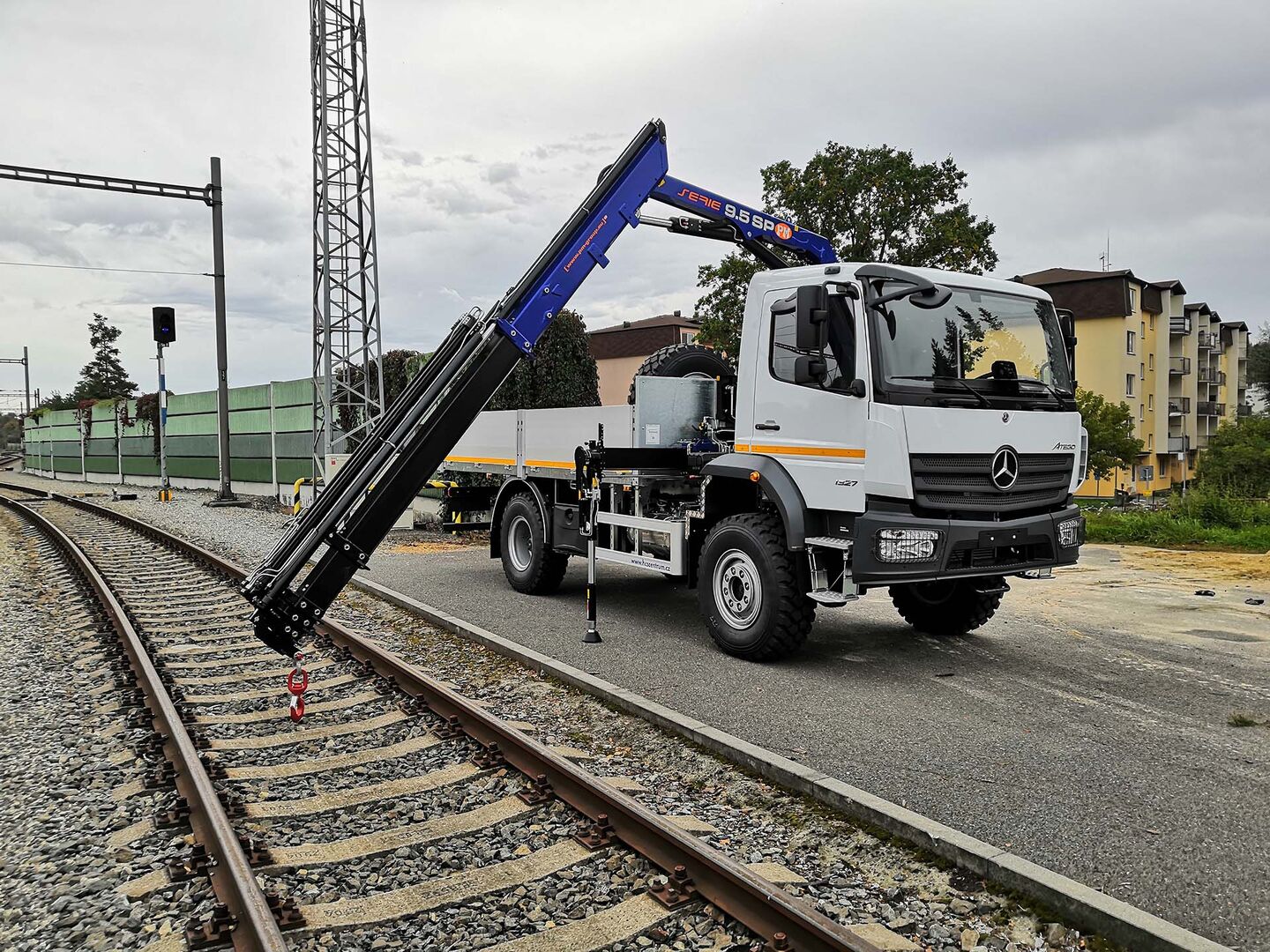

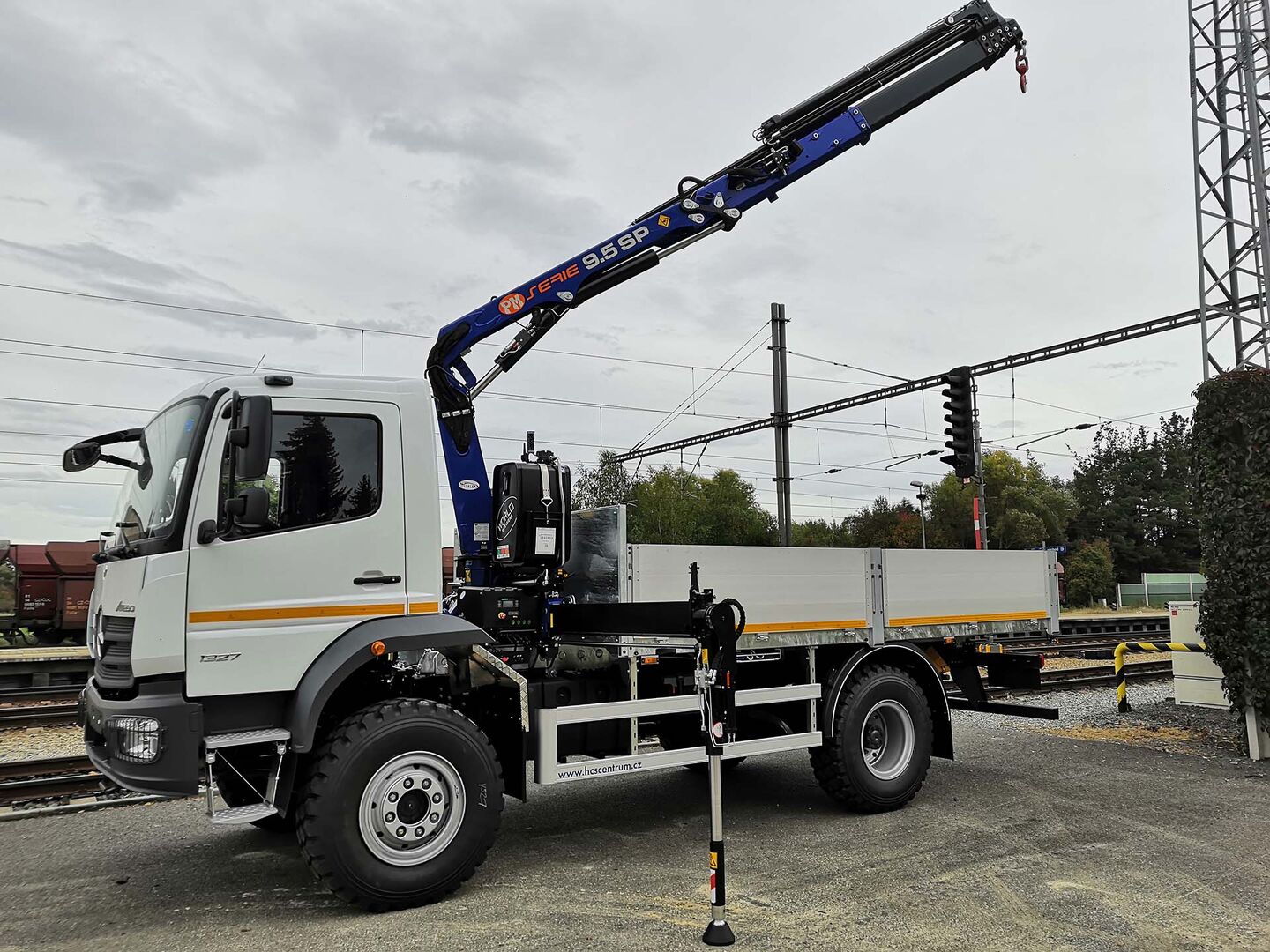

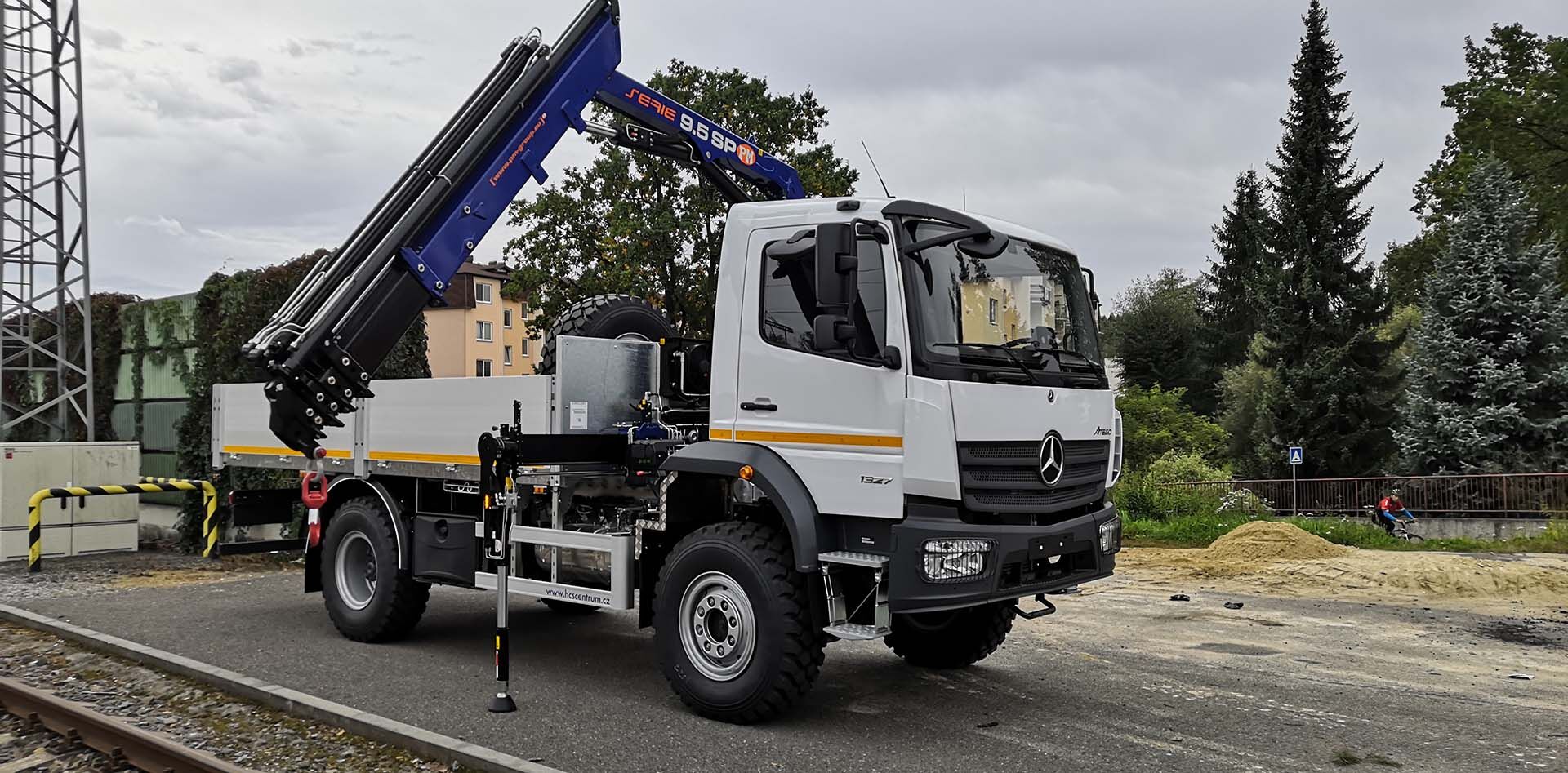

The Tadano PM 9.5 SP Series is an articulating crane designed for lightweight installation and superior efficiency. With lifting moments from 7.0 to 7.9 tonne-meters and vertical outreach up to 17.0 meters, it offers excellent power-to-weight ratio and compact dimensions for versatile use.
Standard features include a multifunction radio remote control with display, giving operators real-time feedback for safe and accurate handling. Configurations range from the 9521 SP to the 9525 SP, with horizontal outreach from 5.65 up to 14.05 meters. For even greater flexibility, a JIB version is available, extending horizontal outreach to 16.0 meters and vertical outreach to 18.85 meters.
As part of the Gold line, the PM 9.5 SP includes premium features such as proportional control valve block, connecting rod articulation, PM Power Tronic electronic management, and a heat exchanger for continuous, reliable performance. Built for high precision, easy maintenance, and operator confidence, the PM 9.5 SP sets the benchmark for modern medium-capacity articulating cranes.
Vehicle Type
-
3.50 ton
771617 lbs
-
5.00 ton
1102310 lbs
-
6.00 ton
1322772 lbs
-
6.50 ton
1433003 lbs
-
7.50 ton
1653465 lbs
-
8.00 ton
1763696 lbs
-
10.00 ton
2204620 lbs
-
12.00 ton
2645544 lbs
-
13.50 ton
2976237 lbs
-
15.00 ton
3306930 lbs
-
18.00 ton
3968316 lbs
-
19.00 ton
4188778 lbs
-
26.00 ton
5732012 lbs
-
32.00 ton
7054784 lbs
-
44.00 ton
9700328 lbs
- 2 Stabilizers STANDARD
- 2 Stabilizers XL
- 4 Stabilizers
