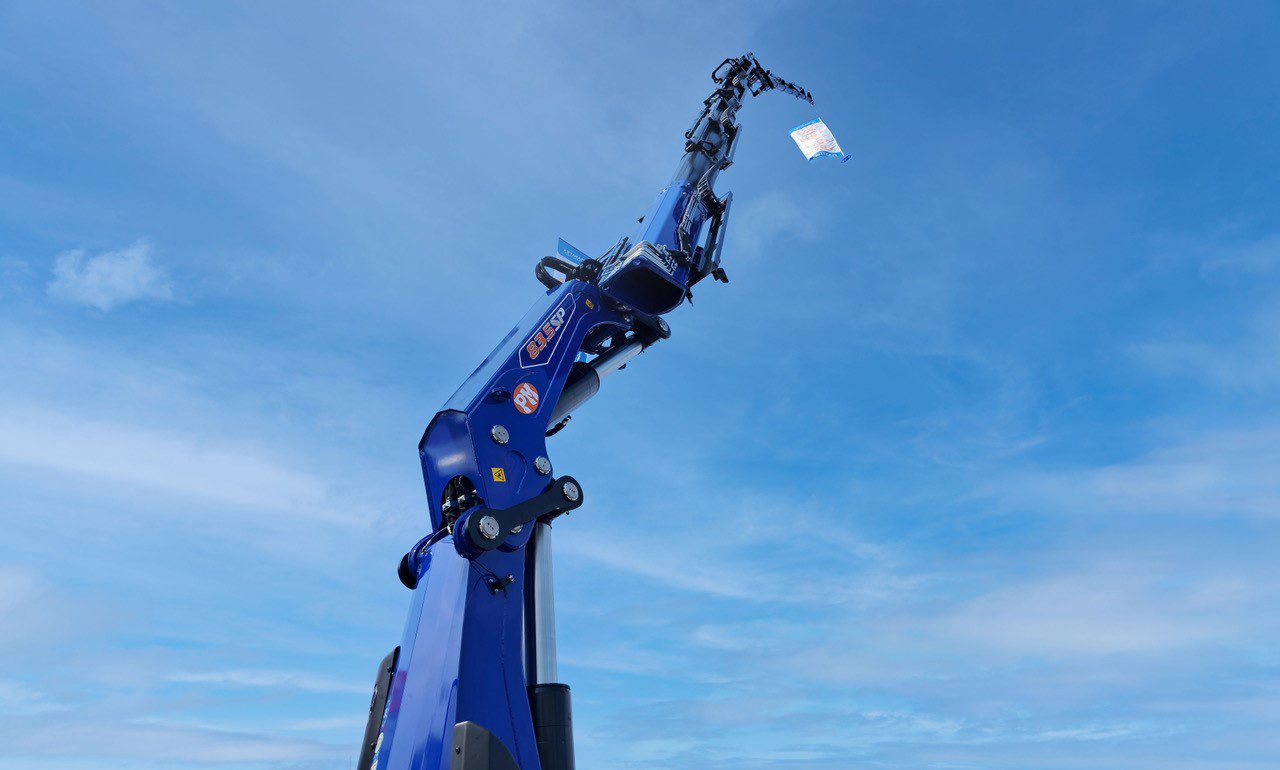

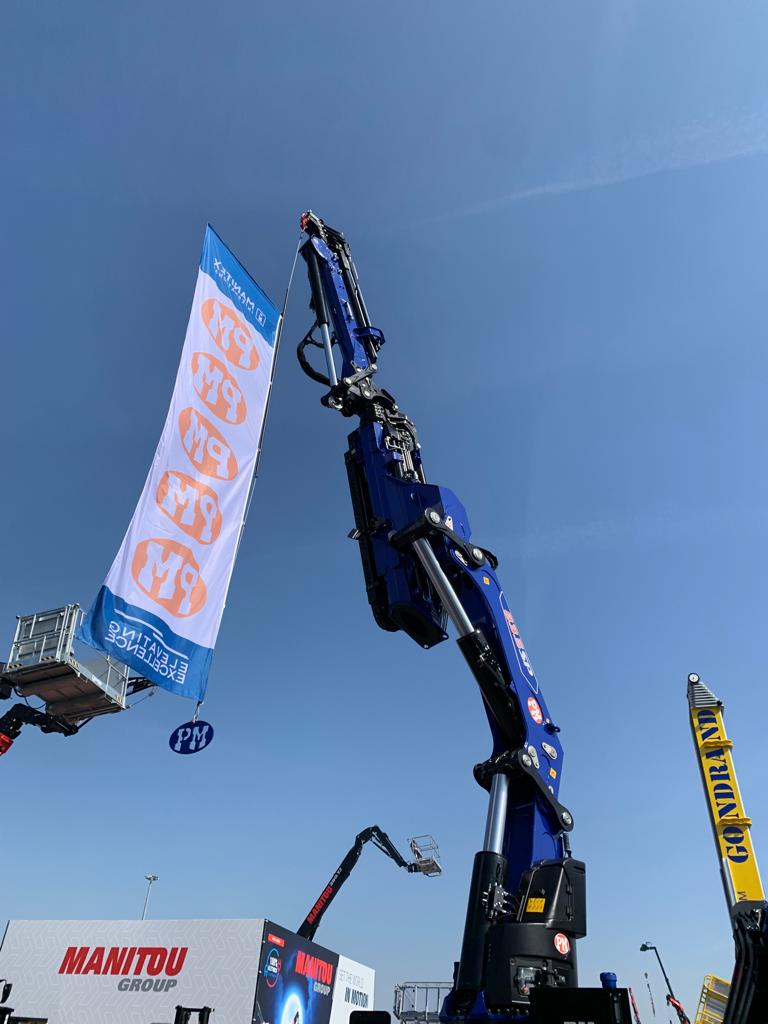

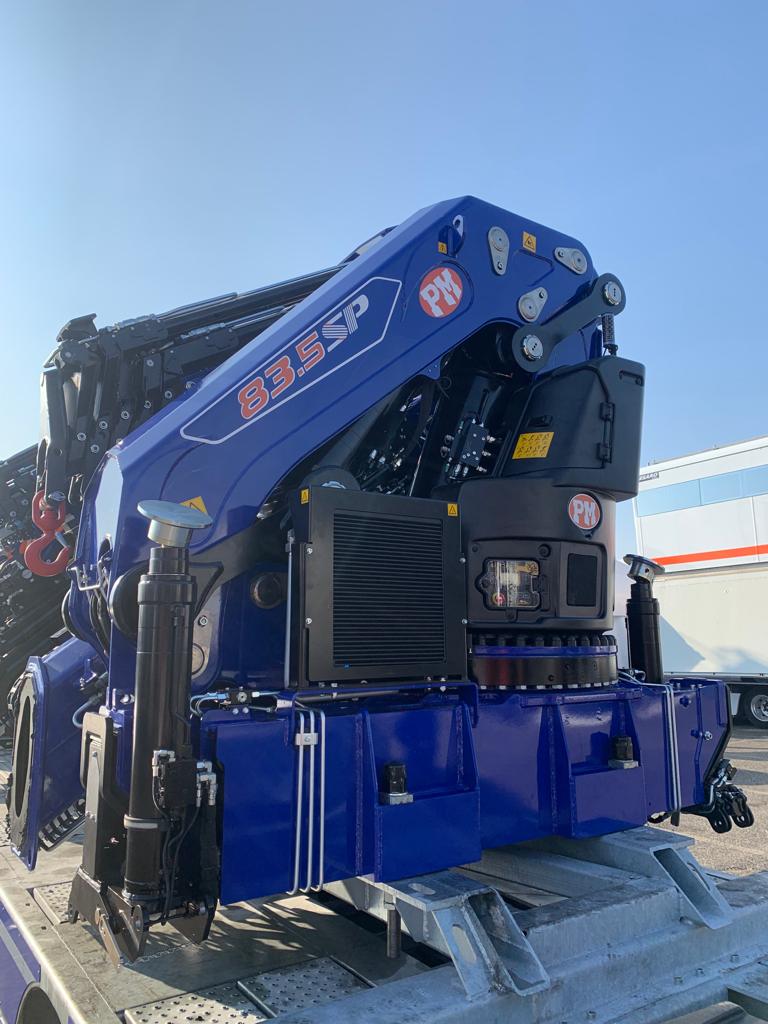

PM 83.5 SP

The PM 83.5 SP combines maximum efficiency, advanced electronics, and robust structure to deliver exceptional lifting performance for the most demanding applications.

Get in touch

Series Specs

Metric Imperial

	PM 83524 SP	PM 83526 SP	PM 83526 SP + J2414.25	PM 83526 SP + J2416.25	PM 83527 SP	PM 83527 SP + J1814.20	PM 83527 SP + J1816.20	PM 83528 SP	PM 83528 SP + J1514.20	PM 83528 SP + J1516.20	PM 83529 SP
Fuel Tank Capacity	270 l	270 l	270 l	270 l	270 l	270 l	270 l	270 l	270 l	270 l	270 l
Height	8′ 2”	8′ 2”	9′ 1″	9′ 1″	8′ 2”	9′ 1″	9′ 1″	8′ 2”	9′ 1″	9′ 1″	8′ 2”
Height	2495 mm	2495 mm	2775 mm	2775 mm	2495 mm	2760 mm	2760 mm	2495 mm	2760 mm	2760 mm	2495 mm
Hydraulic Horizontal Outreach	38′ 1”	52′	83′	94′ 10”	59′ 11”	91′ 2”	103′ 2”	67′ 1”	98′ 1”	110′ 3”	74′ 6”
Hydraulic Horizontal Outreach	11,60 m	15,85 m	25,30 m	28,90 m	18,25 m	27,80 m	31,45 m	20,45 m	29,90 m	33,60 m	22,70 m
Hydraulic Vertical Outreach	49′ 3”	62′ 8”	94′ 6”	105′ 8”	70′ 4”	102′ 8”	114′	77′ 3”	109′ 7”	120′ 11”	84′ 4”
Hydraulic Vertical Outreach	15,00 m	19,10 m	28,80 m	32,20 m	21,45 m	31,30	34,75 m	23,55 m	33,40 m	36,85 m	25,70 m
Length	8′ 4”	8′ 4”	8′ 4”	8′ 4”	8′ 4”	8′ 4”	8′ 4”	8′ 4”	8′ 4”	8′ 4”	8′ 4”
Length	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm
Max. Lifting Moment	528590 ft Ibs	516000 ft Ibs	516000 ft Ibs	516000 ft Ibs	508550 ft Ibs	508550 ft Ibs	508550 ft Ibs	504500 ft Ibs	504500 ft Ibs	504500 ft Ibs	488720 ft Ibs
Max. Lifting Moment	73,1 TM	71,3 TM	71,3 TM	71,3 TM	70,3 TM	70,3 TM	70,3 TM	69,8 TM	69,8 TM	69,8 TM	67,6 TM
Max. Pressure	35 MPa	35 MPa	35 MPa	35 MPa	35 MPa	35 MPa	35 MPa	35 MPa	35 MPa	35 MPa	35 MPa
Recommended oil flow	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min	100 – 120 l/min
Slewing angle	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous
Slewing torque	80 kN m	80 kN m	80 kN m	80 kN m	80 kN m	80 kN m	80 kN m	80 kN m	80 kN m	80 kN m	80 kN m
Stabilizer control Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless
Stabilizer Spread available	8.6 m	8.6 m	8.6 m	8.6 m	8.6 m	8.6 m	8.6 m	8.6 m	8.6 m	8.6 m	8.6 m
Width	5′ 3”	5′ 3”	5′ 9″	5′ 9″	5′ 3”	5′ 9″	5′ 9″	5′ 3”	5′ 9″	5′ 9″	5′ 3”
Width	1590 mm	1590 mm	1755 mm	1755 mm	1590 mm	1755 mm	1755 mm	1590 mm	1755 mm	1755 mm	1590 mm
Spec Sheet

Product description

Elevate to the highest power.

As part of the Platinum line, the PM 83.5 SP Series is designed to ensure high performance, superior efficiency, and a consistently high level of reliability. Its exclusive PM double-link articulation system maintains constant outreach and smooth lifting curves in every vertical configuration, providing operators with the assurance of uniform performance even under challenging conditions.

The crane features 360° continuous rotation on a slewing ring, granting total freedom of movement, while the electronic stabilization management system ensures lifting capacity is always aligned with the truck’s actual stability. These innovations enhance both safety and productivity, giving operators complete control of performance in real time.

Standard configurations include up to nine hydraulic extensions, achieving a maximum horizontal outreach of 22.80 m and a vertical outreach of 26.40 m. With the addition of the new six-extension jibs, outreach increases dramatically to 33.70 m horizontally and 36.80 m vertically, setting new benchmarks in its class. The crane delivers a maximum lifting moment of 67.9 tonne-meters, powered by a hydraulic system with flows up to 120 l/min and maximum working pressure of 35 MPa.

Reliability is further reinforced by a robust slewing unit delivering 80 kNm of torque, while stabilizers extend to 8.6 m and can be operated wirelessly for maximum convenience. With an empty tank, the crane’s standard weight is around 8,330 kg.

By combining strength, advanced electronics, and extended outreach options, the PM 83.5 SP stands out as a high-performance solution, ready to handle heavy-duty applications with precision, efficiency, and safety.
