PM 8.5 P

The PM 8.5 P Series delivers outstanding performance, advanced Plus technology, and excellent load capacity relative to its weight—ideal for medium-duty lifting tasks.

Get in touch

Series Specs

Metric Imperial

	PM 8521 P	PM 8522 P	PM 8523 P	PM 8524 P
Fuel Tank Capacity	64l	64l	64l	64l
Height	6′ 3”	6′ 3”	6′ 3”	6′ 3”
Height	1900 mm	1900 mm	1900 mm	1900 mm
Hydraulic Horizontal Outreach	17′ 3”	23′ 2”	29′ 0”	34′ 11”
Hydraulic Horizontal Outreach	5,25 m	7,05 m	8,85 m	10,65 m
Hydraulic Vertical Outreach	26′ 11”	32′ 10”	38′ 5”	44′ 3”
Hydraulic Vertical Outreach	8,20 m	10,00 m	11,70 m	13,50 m
Length	7′ 6”	7′ 6”	7′ 6”	7′ 8”
Length	2295 mm	2295 mm	2295 mm	2325 mm
Max. Lifting Moment	50910 ft Ibs	49430 ft Ibs	45310 ft Ibs	43220 ft Ibs
Max. Lifting Moment	7,0 TM	6,8 TM	6,3 TM	6,0 TM
Max. Pressure	28 MPa	28 MPa	28 MPa	28 MPa
Recommended oil flow	20 l/min	20 l/min	20 l/min	20 l/min
Slewing angle	400°	400°	400°	400°
Slewing torque	10 kN m	10 kN m	10 kN m	10 kN m
Stabilizer control Radio Wireless	Manual	Manual	Manual	Manual
Stabilizer Spread available	3.2 – 4,2 m	3.2 – 4,2 m	3.2 – 4,2 m	3.2 – 4,2 m
Width	2′ 4”	2′ 4”	2′ 4”	2′ 6”
Width	710 mm	710 mm	710 mm	750 mm
Spec Sheet

Product description

Power with precision.

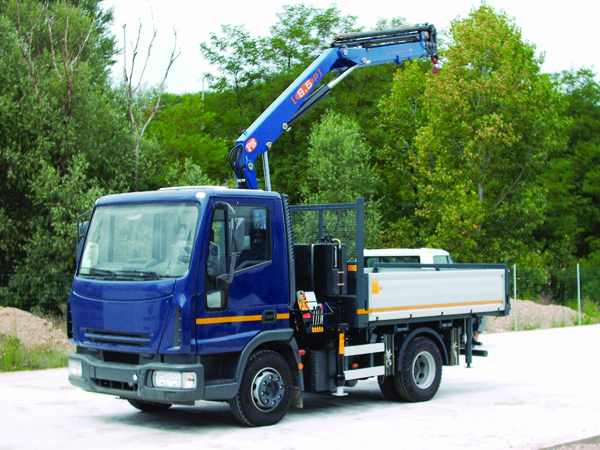

The Tadano PM 8.5P Series is an articulating crane range designed for strength and reliability. Standard equipped with a load-sensing proportional control valve and remote control, all configurations ensure smooth, precise operation. With maximum lifting moments from 6.0 to 7.0 tonne-meters and vertical outreach up to 13.5 meters, the PM 8.5P provides impressive capability while maintaining its lightweight structure.

Compact design and transport-optimized weight (880–1,060 kg depending on configuration) allow installation on medium-size trucks. Operators can choose from models such as the 8521 P, 8522 P, 8523 P, or 8524 P, with horizontal reaches ranging from 5.25 to 10.65 meters. All configurations are fitted with overload protection, with optional Interlock stability systems (Type 1 and 2) for enhanced safety. The LC version, with a hydraulically retractable inner boom, optimizes the handling of bulky loads at close range.

Built for productivity, safety, and reliability, the PM 8.5P Series articulating cranes deliver versatile solutions for everyday lifting operations.
