PM 6

The PM 6 Series combines higher lifting power, extended reach, and dependable operation—ideal for versatile applications across light and medium vehicles.

Get in touch

Series Specs

Metric Imperial

	PM 6021	PM 6022	PM 6023	PM 6024
Fuel Tank Capacity	64 l	64 l	64 l	64 l
Height	6′ 6″	6′ 6″	6′ 6″	6′ 6″
Height	1985 mm	1985 mm	1985 mm	1985 mm
Hydraulic Horizontal Outreach	16′ 9″	22′ 4″	27′ 7″	31′ 8″
Hydraulic Horizontal Outreach	5,10 m	6,80 m	8,40 m	9,65 m
Hydraulic Vertical Outreach	26′ 9″	31′ 10″	37′ 1″	41′ 4″
Hydraulic Vertical Outreach	8,15 m	9,70 m	11,30 m	12,60 m
Length	7′ 6″	7′ 6″	7′ 6″	7′ 6″
Length	2290 mm	2290 mm	2290 mm	2290 mm
Max. Lifting Moment	38410 ft lbs	38180 ft lbs	34680 ft lbs	33460 ft lbs
Max. Lifting Moment	5,3 TM	5,3 TM	4,8 TM	4,6 TM
Max. Pressure	27,5 MPa	27,5 MPa	27,5 MPa	27,5 MPa
Recommended oil flow	20 l/min	20 l/min	20 l/min	20 l/min
Slewing angle	390°	390°	390°	390°
Slewing torque	7,5 kN m	7,5 kN m	7,5 kN m	7,5 kN m
Stabilizer control Radio Wireless	Manual	Manual	Manual	Manual
Stabilizer Spread available	3.3 – 4.0 m	3.3 – 4.0 m	3.3 – 4.0 m	3.3 – 4.0 m
Width	2′ 4″	2′ 4″	2′ 4″	2′ 4″
Width	700 mm	700 mm	700 mm	700 mm
Spec Sheet

Product description

Strength with precision.

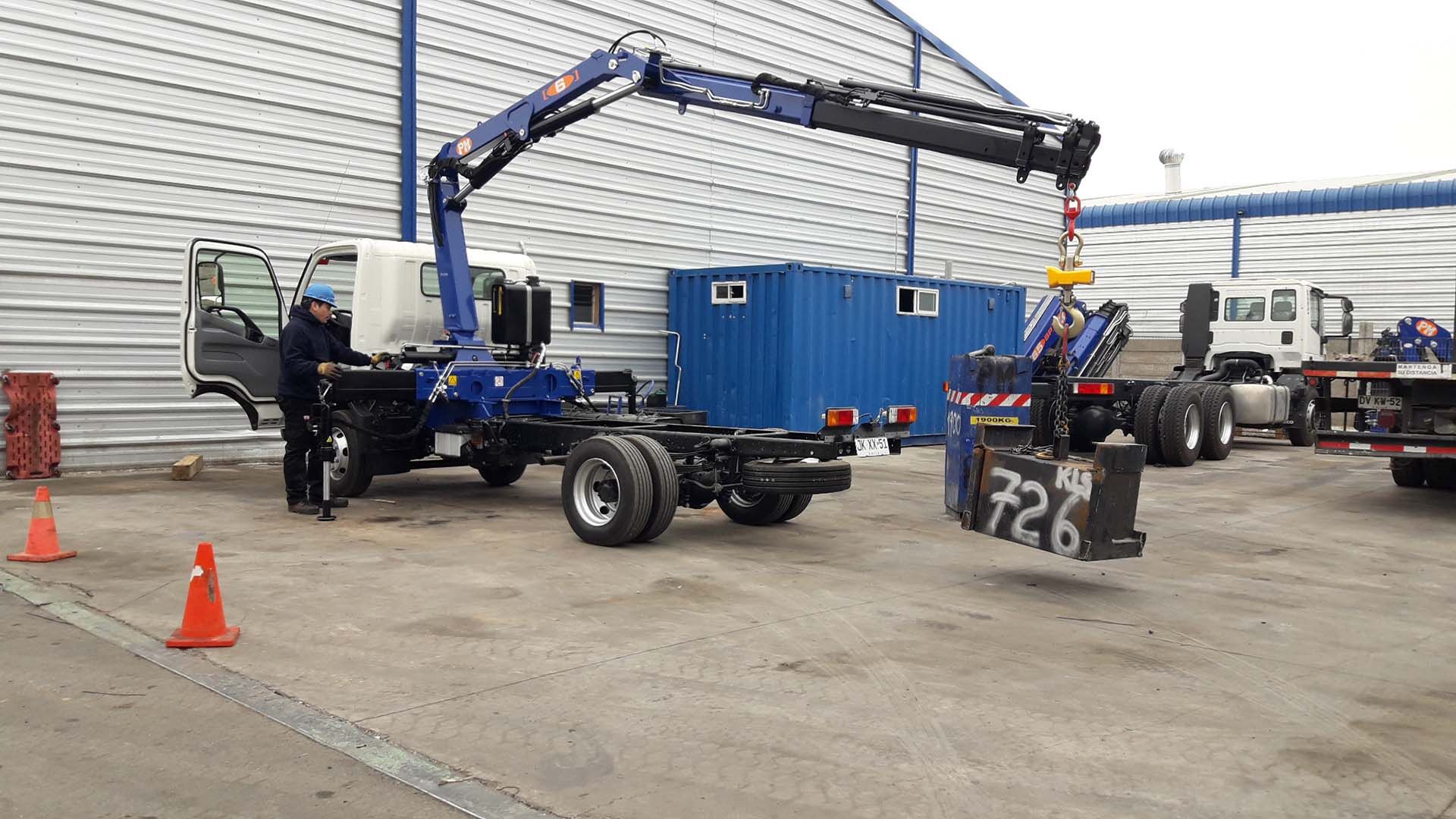

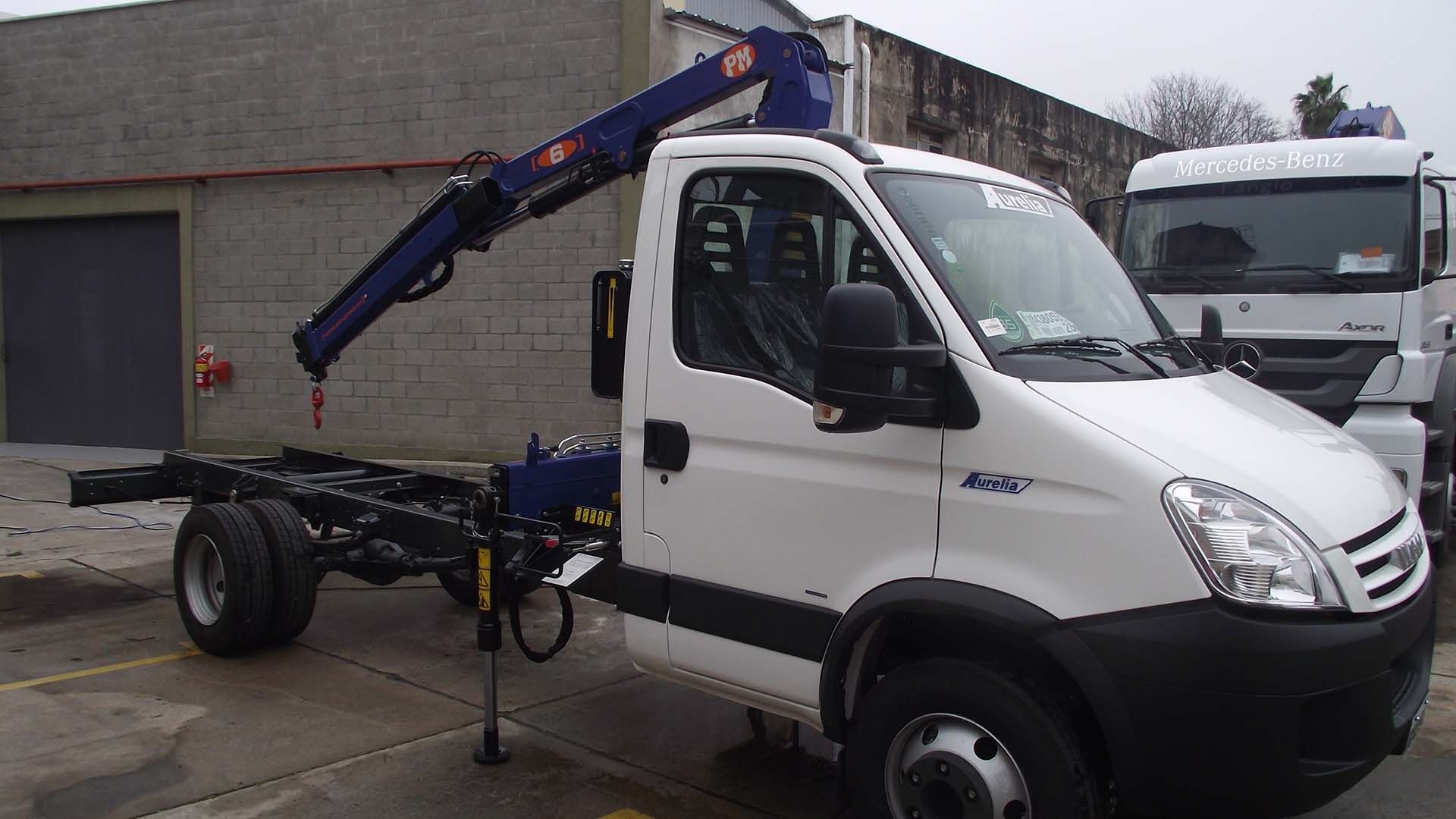

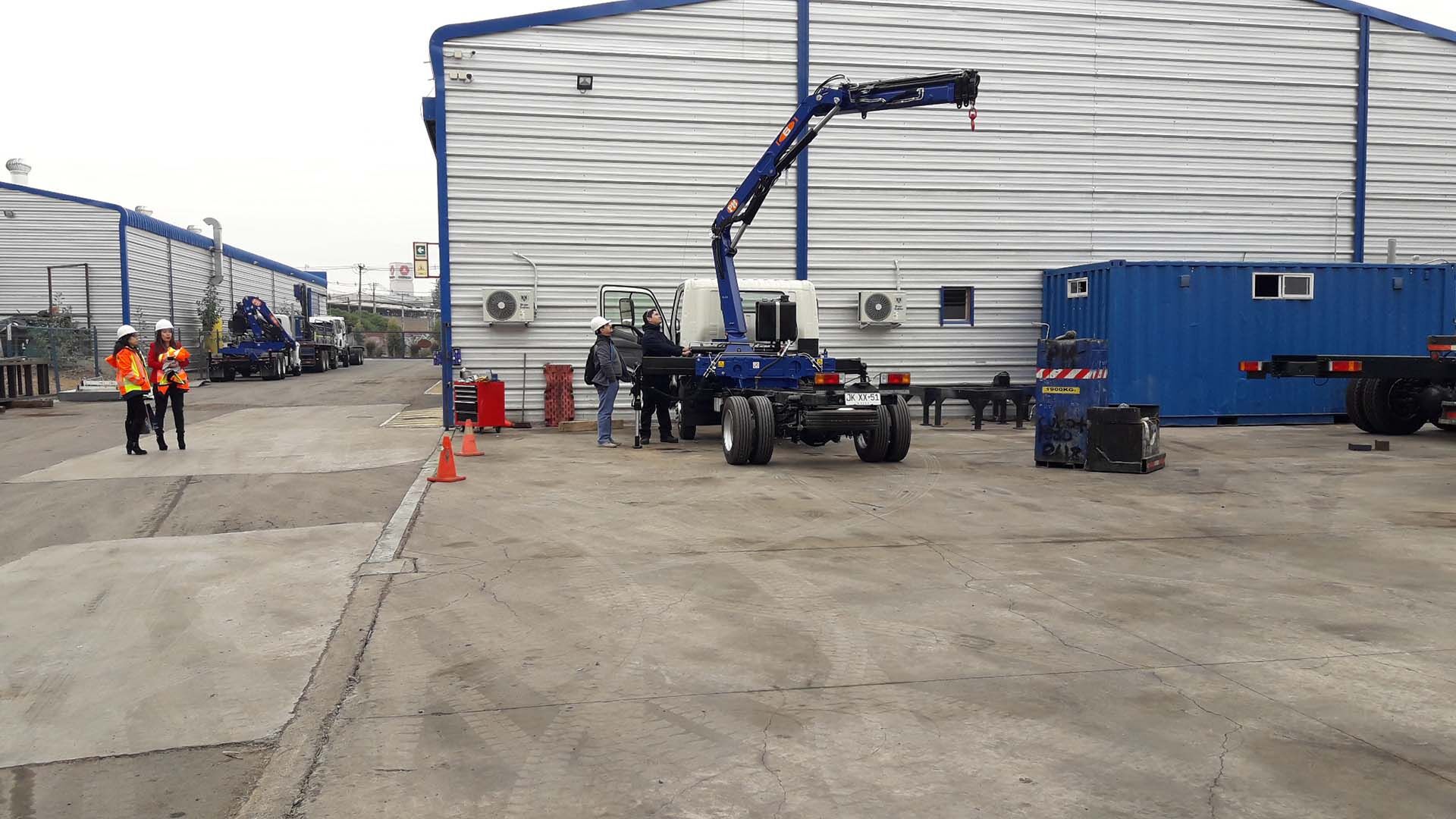

The Tadano PM 6 Series is an articulating crane built for flexibility and accuracy in everyday use. With lifting moments up to 5.3 tonne-meters and vertical outreach up to 12.6 meters, it handles a wide range of materials quickly and precisely. Compact dimensions and transport-optimized weights (740–880 kg depending on configuration) allow easy installation on vehicles from 3.5 tons upward. Operators can choose from configurations such as the 6021, 6022, 6023, or 6024, with horizontal reaches ranging from 5.1 to 9.65 meters. Safety is ensured with stabilizer spreads up to 4.0 meters, a 390° slewing system, and manual stabilizer controls. Built for strength, reach, and precision, the PM 6 Series articulating cranes provide reliable lifting solutions for demanding daily operations.
