PM 57.5 PX / PX C

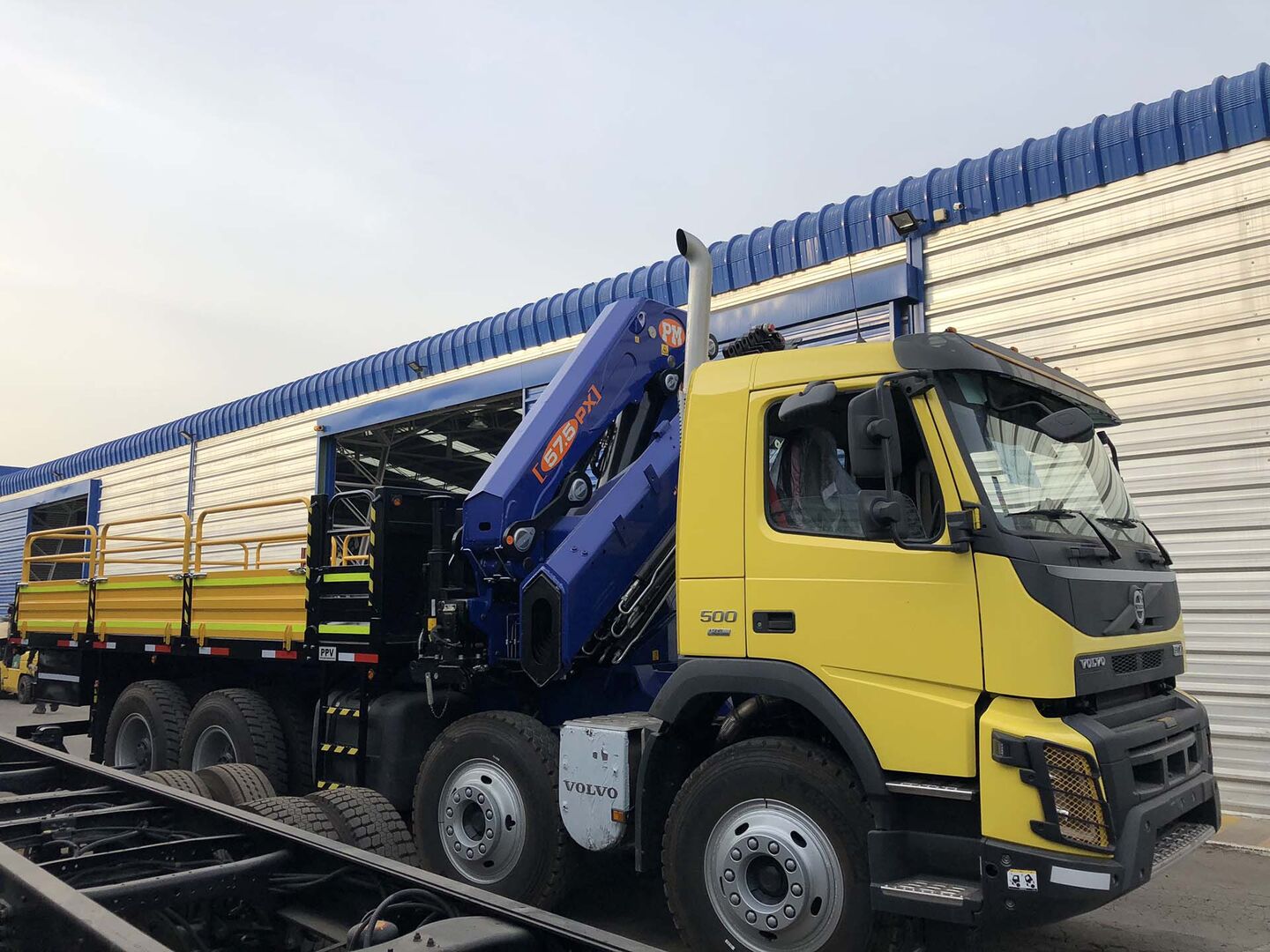

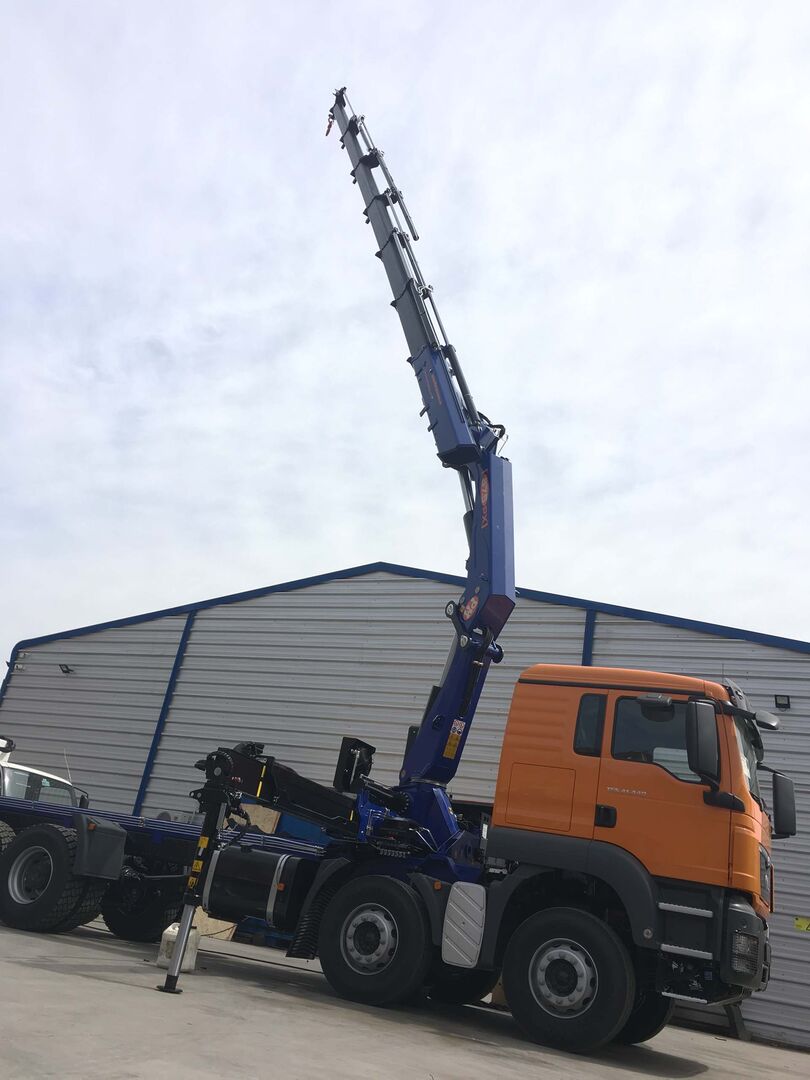

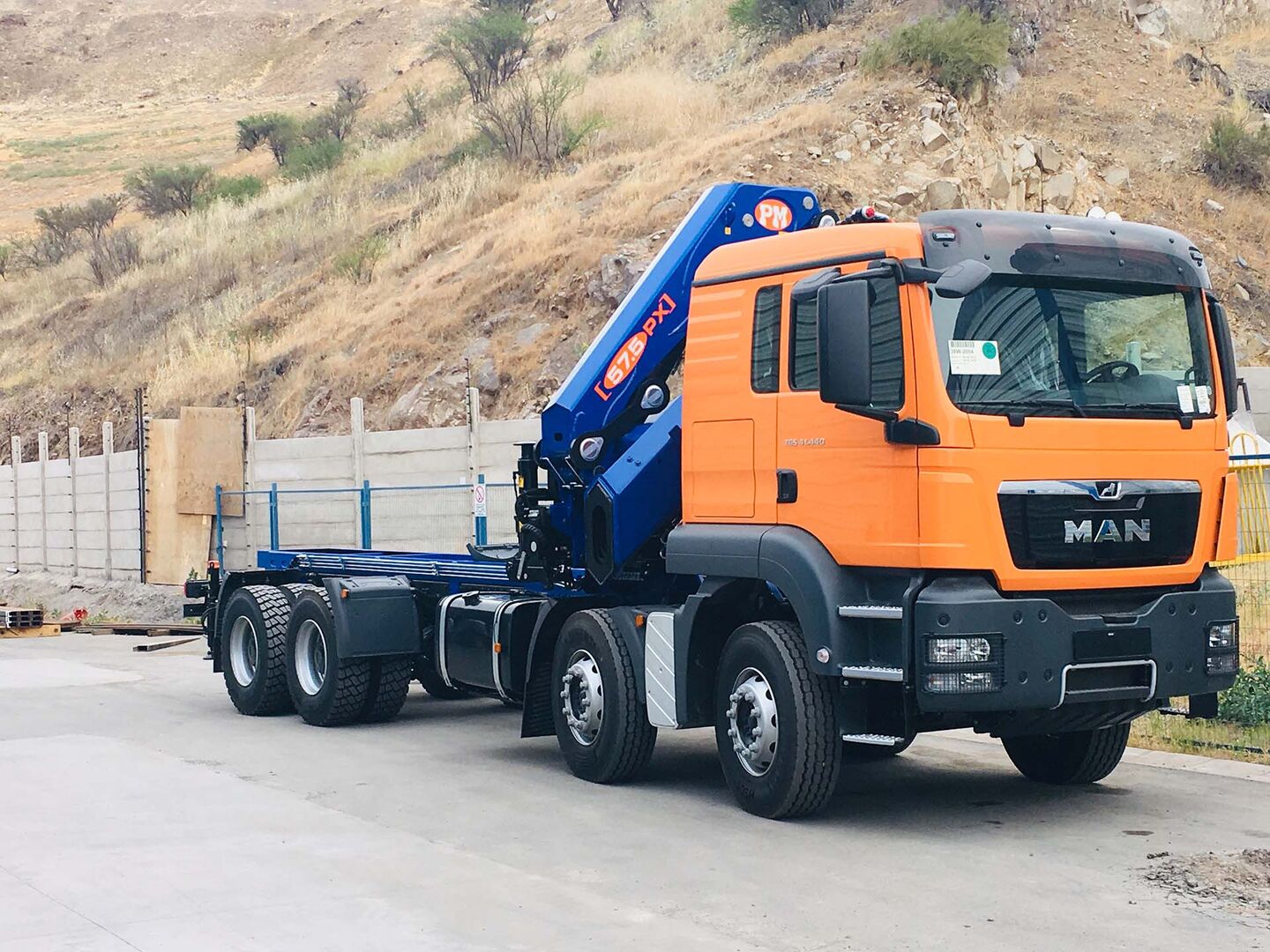

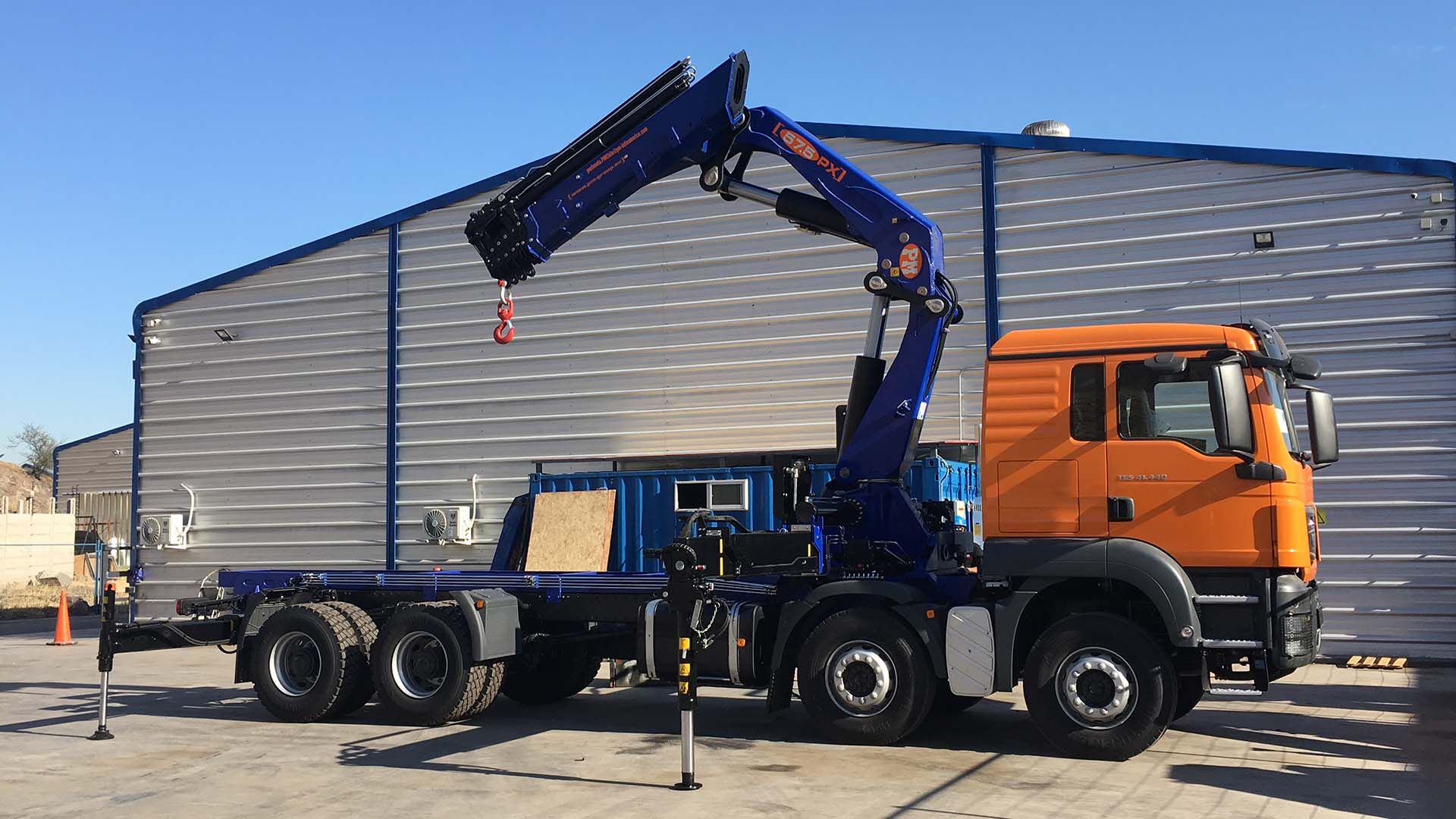

The PM 57.5 PX is a versatile crane that combines strong lifting power, efficient operation, and simple handling for intensive work applications.

Get in touch

Series Specs

Metric Imperial

	PM 57522 PX	PM 57522 PX C	PM 57523 PX	PM 57523 PX C	PM 57524 PX	PM 57524 PX C	PM 57525 PX	PM 57525 PX C	PM 57526 PX	PM 57526 PX C
Fuel Tank Capacity	200 l	200 l	200 l	200 l	200 l	200 l	200 l	200 l	200 l	200 l
Height	8′ 3″	8′ 3″	8′ 3″	8′ 3″	8′ 3″	8′ 3″	8′ 3″	8′ 3″	8′ 3″	8′ 3″
Height	2505 mm	2505 mm	2505 mm	2505 mm	2505 mm	2505 mm	2505 mm	2505 mm	2505 mm	2505 mm
Hydraulic Horizontal Outreach	26′ 1″	23′	31′ 6″	28′ 5″	38′ 7″	35′ 5″	45′ 11″	42′ 10″	53′ 8″	50′ 6″
Hydraulic Horizontal Outreach	7,95 m	7,00 m	9,60 m	8,65 m	11,75 m	10,80 m	14,00 m	13,05 m	16,35 m	15,40 m
Hydraulic Vertical Outreach	41′ 10″	36′ 11″	46′ 11″	42′ 2″	53′ 8″	49′ 3″	60′ 6″	56′ 5″	67′ 11″	64′
Hydraulic Vertical Outreach	12,75 m	11,25 m	14,30 m	12,85 m	16,35 m	15,00 m	18,45 m	17,20 m	20,70 m	19,50 m
Length	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″
Length	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm
Max. Lifting Moment	363240 ft Ibs	349460 ft Ibs	352010 ft Ibs	340600 ft Ibs	346400 ft Ibs	330320 ft Ibs	338110 ft Ibs	323320 ft Ibs	334350 ft Ibs	317240 ft Ibs
Max. Lifting Moment	50,2 TM	48,3 TM	48,7 TM	47,1 TM	47,9 TM	45,7 TM	46,7 TM	44,7 TM	46,2 TM	43,9 TM
Max. Pressure	31,5 MPa	31,5 MPa	31,5 MPa	31,5 MPa	31,5 MPa	31,5 MPa	31,5 MPa	31,5 MPa	31,5 MPa	31,5 MPa
Recommended oil flow	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min
Slewing angle	385°	385°	385°	385°	385°	385°	385°	385°	385°	385°
Slewing torque	62 kN m	62 kN m	62 kN m	62 kN m	62 kN m	62 kN m	62 kN m	62 kN m	62 kN m	62 kN m
Stabilizer control Radio Wireless	Manual	Manual	Manual	Manual	Manual	Manual	Manual	Manual	Manual	Manual
Stabilizer Spread available	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m
Width	4′ 5″	4′ 5″	4′ 5″	4′ 5″	4′ 5″	4′ 5″	4′ 5″	4′ 5″	4′ 8″	4′ 8″
Width	1340 mm	1340 mm	1340 mm	1340 mm	1340 mm	1340 mm	1340 mm	1340 mm	1430 mm	1430 mm
Spec Sheet

Product description

Efficient strength for every job.

The PM 57.5 PX Series belongs to the Silver line and is designed to deliver reliability and durability across a wide range of working environments. Equipped with the exclusive PM double linkage system, it ensures smooth, efficient operation while maintaining high performance in all vertical configurations. Its structural simplicity makes it easy to use, while the robust rack-and-pinion slewing system provides long-term strength even in heavy-duty cycles.

Standard equipment includes a manual control valve block, with the option to add a multi-function radio control for enhanced precision and operator convenience. A “C” version is also available, offering improved handling of heavy or bulky loads at short range and easier loading directly under the column.

Depending on the configuration, the PM 57.5 PX reaches up to 15.4 m horizontally and 19.5 m vertically, with a maximum lifting moment of 43.9 tonne-meters. A slewing angle of 385° and torque of 62 kNm ensure reliable maneuverability, while stabilizer spreads between 6.6 and 8.0 m guarantee stability in all conditions. With a standard crane weight of around 5,515 kg, it is optimized for mounting on a wide range of trucks without compromising payload capacity.

Compact, efficient, and powerful, the PM 57.5 PX Series is a dependable solution for operators seeking a crane capable of handling demanding lifting tasks with ease and safety.
