PM 50.5 PX / PX C

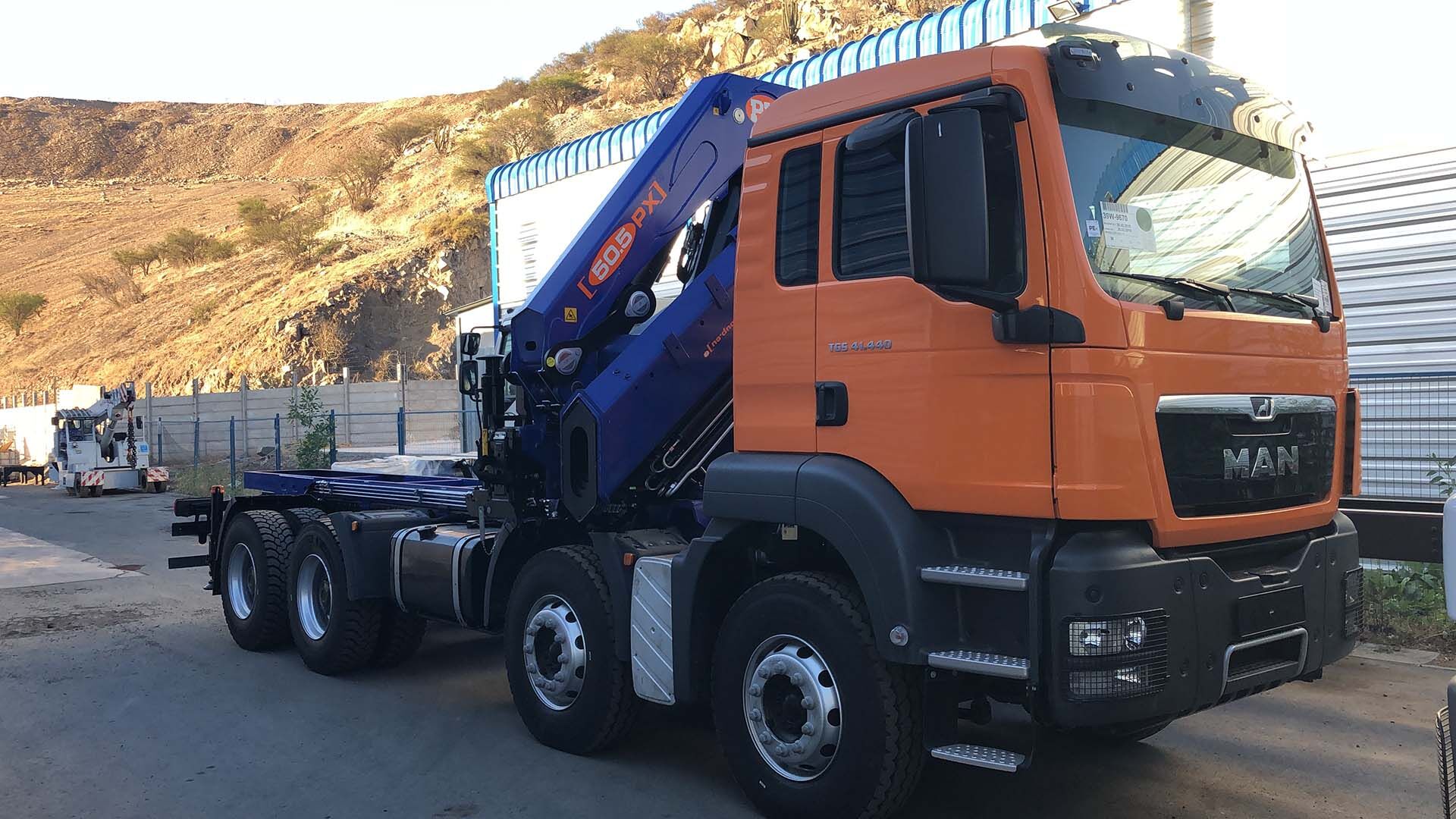

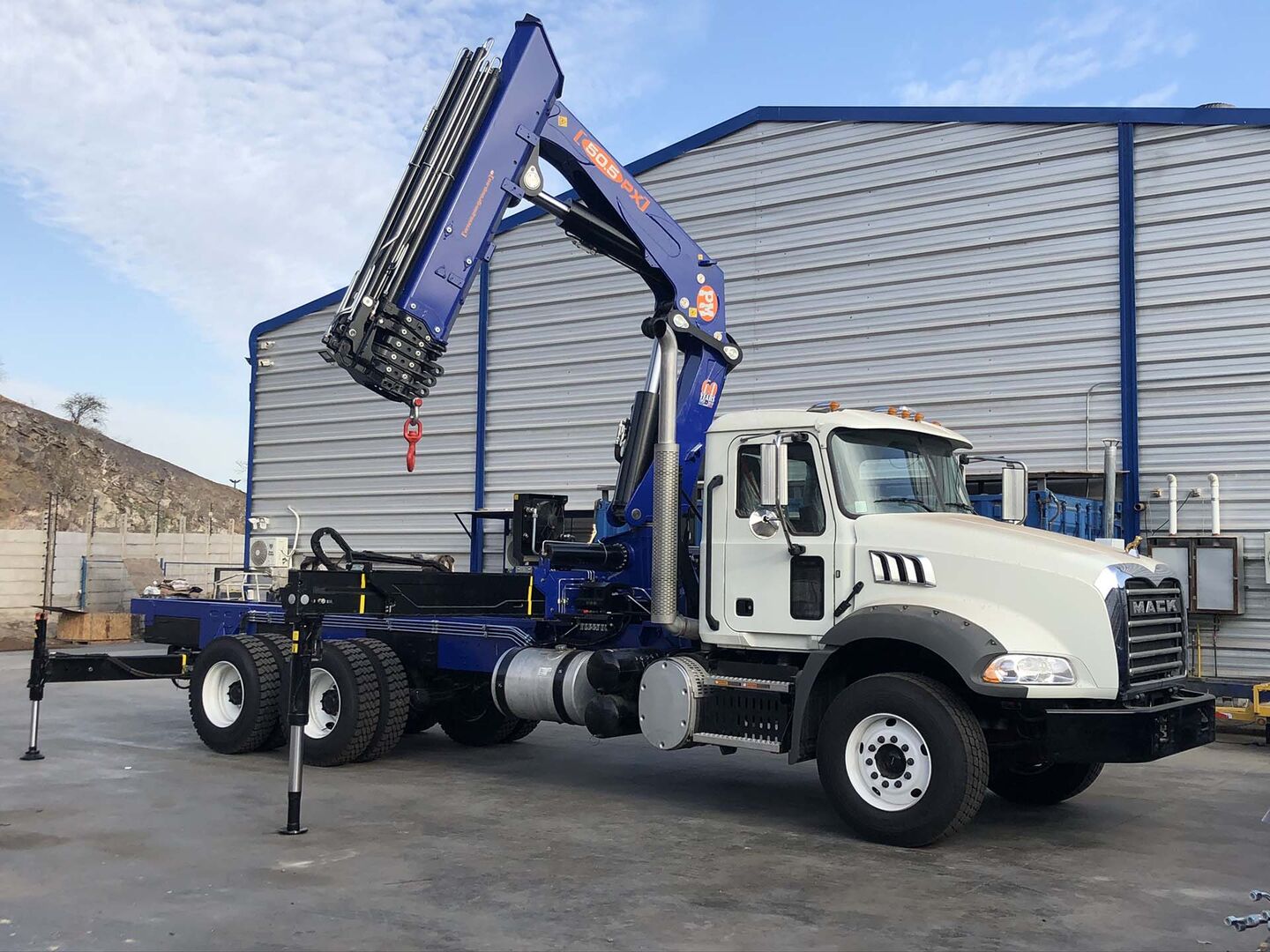

The PM 50.5 PX is a reliable and efficient crane, designed for intensive work with excellent load capacity and versatile application potential.

Get in touch

Series Specs

Metric Imperial

	PM 50522 PX	PM 50522 PX C	PM 50523 PX	PM 50523 PX C	PM 50524 PX	PM 50524 PX C	PM 50525 PX	PM 50525 PX C	PM 50526 PX	PM 50526 PX C
Fuel Tank Capacity	200 l	200 l	200 l	200 l	200 l	200 l	200 l	200 l	200 l	200 l
Height	8′ 2″	8′ 2″	8′ 2″	8′ 2″	8′ 2″	8′ 2″	8′ 2″	8′ 2″	8′ 2″	8′ 2″
Height	2500 mm	2500 mm	2500 mm	2500 mm	2500 mm	2500 mm	2500 mm	2500 mm	2500 mm	2500 mm
Hydraulic Horizontal Outreach	26′ 1″	23′	31′ 6″	28′ 5″	38′ 7″	35′ 5″	45′ 11″	42′ 10″	53′ 8″	50′ 6″
Hydraulic Horizontal Outreach	7,95 m	7 m	9,60 m	8,65 m	11,75 m	10,80 m	14,00 m	13,05 m	16,35 m	15,40 m
Hydraulic Vertical Outreach	41′ 10″	36′ 11″	46′ 11″	42′ 2″	53′ 8″	49′ 3″	60′ 6″	56′ 5″	67′ 11″	64′
Hydraulic Vertical Outreach	12,75 m	11,25 m	14,30 m	12,85 m	16,35 m	15,00 m	18,45 m	17,20 m	20,70 m	19,50 m
Length	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″
Length	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm
Max. Lifting Moment	350350 ft lbs	337900 ft lbs	326720 ft lbs	314780 ft lbs	321780 ft lbs	305510 ft lbs	314420 ft lbs	299450 ft lbs	311020 ft lbs	293260 ft lbs
Max. Lifting Moment	48,4 TM	46, 7 TM	45,2 TM	43,5 TM	44,5 TM	42,2 TM	43,5 TM	41,4 TM	43 TM	40,5 TM
Max. Pressure	34,5 MPa	31,5 MPa	34,5 MPa	31,5 MPa	34,5 MPa	31,5 MPa	34,5 MPa	31,5 MPa	34,5 MPa	31,5 MPa
Recommended oil flow	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min	40 – 80 l/min
Slewing angle	395°	395°	395°	395°	395°	395°	395°	395°	395°	395°
Slewing torque	53 kN m	53 kN m	53 kN m	53 kN m	53 kN m	53 kN m	53 kN m	53 kN m	53 kN m	53 kN m
Stabilizer control Radio Wireless	Manual	Manual	Manual	Manual	Manual	Manual	Manual	Manual	Manual	Manual
Stabilizer Spread available	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m	6,6 – 8.0 m
Width	4′ 4″	4′ 4″	4′ 4″	4′ 4″	4′ 4″	4′ 4″	4′ 4″	4′ 4″	4′ 8″	4′ 8″
Width	1330 mm	1330 mm	1330 mm	1330 mm	1330 mm	1330 mm	1330 mm	1330 mm	1420 mm	1420 mm
Spec Sheet

Product description

Strength and simplicity for every task.

Belonging to the Silver line, the PM 50.5 PX Series combines durability and ease of use with high lifting performance. Its double linkage system ensures efficient movements and stability under heavy-duty use, making it an excellent solution for demanding, repetitive operations.

Equipped as standard with a manual hydraulic control valve block, the PM 50.5 PX can also be fitted with an optional multi-function radio control for enhanced precision. A “C” version is available, optimized for handling heavy loads at short distances and bulky material on truck bodies.

Depending on configuration, the series delivers a maximum lifting moment of up to 43.0 tonne-meters, with horizontal outreaches reaching 16.35 m and vertical reaches of 20.70 m. A robust rack-and-pinion slewing system with 395° rotation and torque exceeding 53 kNm provides reliable maneuverability, while stabilizer spreads between 6.6–8.0 m ensure operational safety.

Compact yet powerful, the PM 50.5 PX Series is engineered for operators who need a versatile crane capable of excelling across a wide range of applications, from logistics to construction, while guaranteeing efficiency and long-term reliability.
