PM 4.5

The PM 4.5 Series combines extended outreach, safety-focused design, and reliable performance—perfect for versatile lifting operations on light and medium vehicles.

Get in touch

Series Specs

Metric Imperial

	PM 4521	PM 4522	PM 4523	PM 4524
Fuel Tank Capacity	38 l	38 l	38 l	38 l
Height	6′	6′	6′	6′
Height	1830 mm	1830 mm	1830 mm	1830 mm
Hydraulic Horizontal Outreach	16′ 5”	20′ 12”	24′ 11”	29′ 0”
Hydraulic Horizontal Outreach	5,00 m	6,40 m	7,60 m	8,85 m
Hydraulic Vertical Outreach	25′ 7”	30′ 0”	34′ 1”	38′ 3”
Hydraulic Vertical Outreach	7,80 m	9,15 m	10,40 m	11,65 m
Length	6′ 8″	6′ 8″	6′ 10″	7′ 1″
Length	2035 mm	2035 mm	2080 mm	2160 mm
Max. Lifting Moment	30070 ft Ibs	29290 ft Ibs	27020 ft Ibs	25510 ft Ibs
Max. Lifting Moment	4,2 TM	4,1 TM	3,7 TM	3,5 TM
Max. Pressure	25,5 MPa	25,5 MPa	25,5 MPa	25,5 MPa
Recommended oil flow	10 l/min	10 l/min	10 l/min	10 l/min
Slewing angle	360°	360°	360°	360°
Slewing torque	4,5 kN m	4,5 kN m	4,5 kN m	4,5 kN m
Stabilizer control Radio Wireless	Manual	Manual	Manual	Manual
Stabilizer Spread available	3.1 – 3.5 m	3.1 – 3.5 m	3.1 – 3.5 m	3.1 – 3.5 m
Width	2′	2′	2′	2′
Width	600 mm	600 mm	600 mm	600 mm
Spec Sheet

Product description

Reach further, lift smarter.

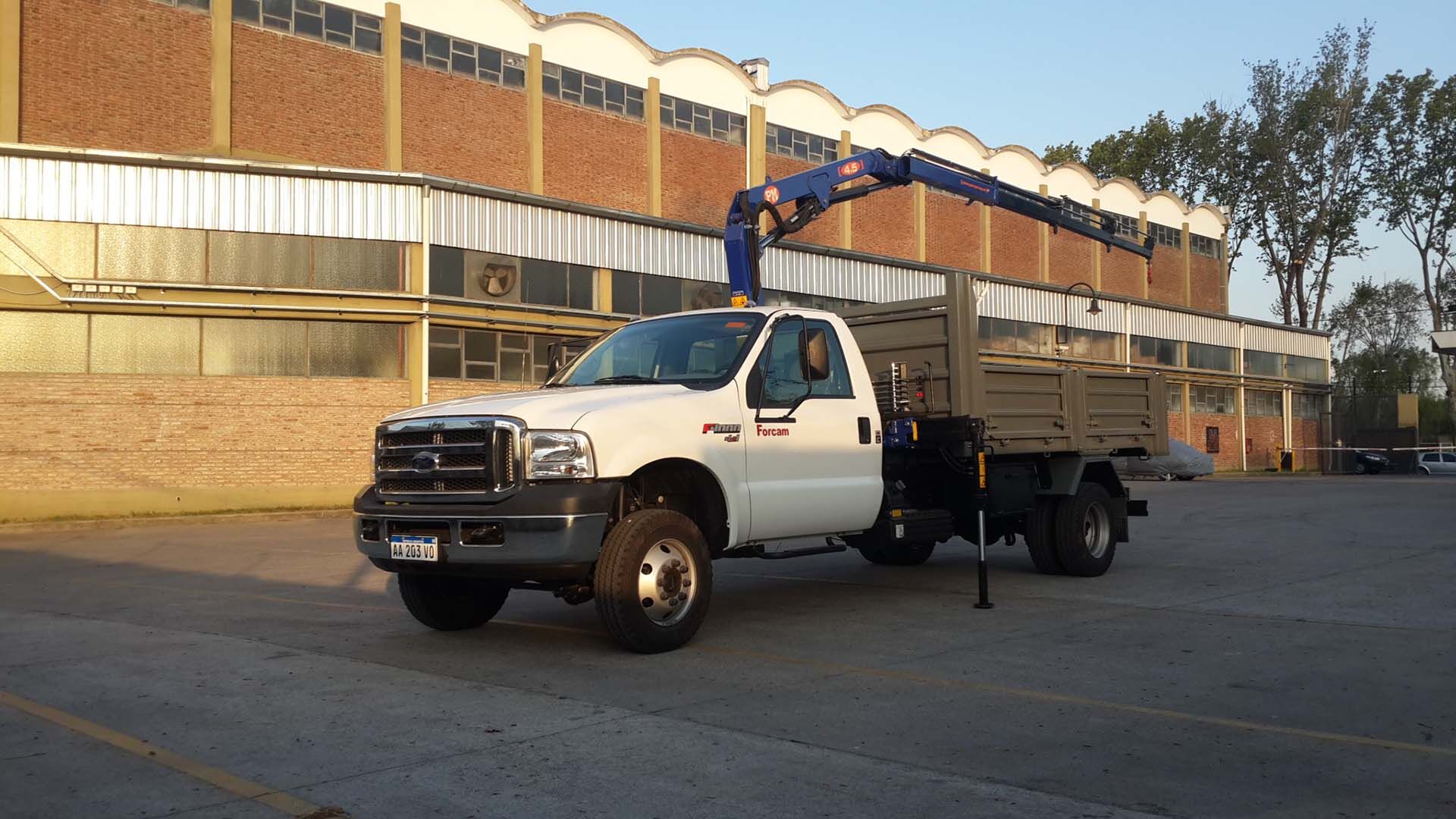

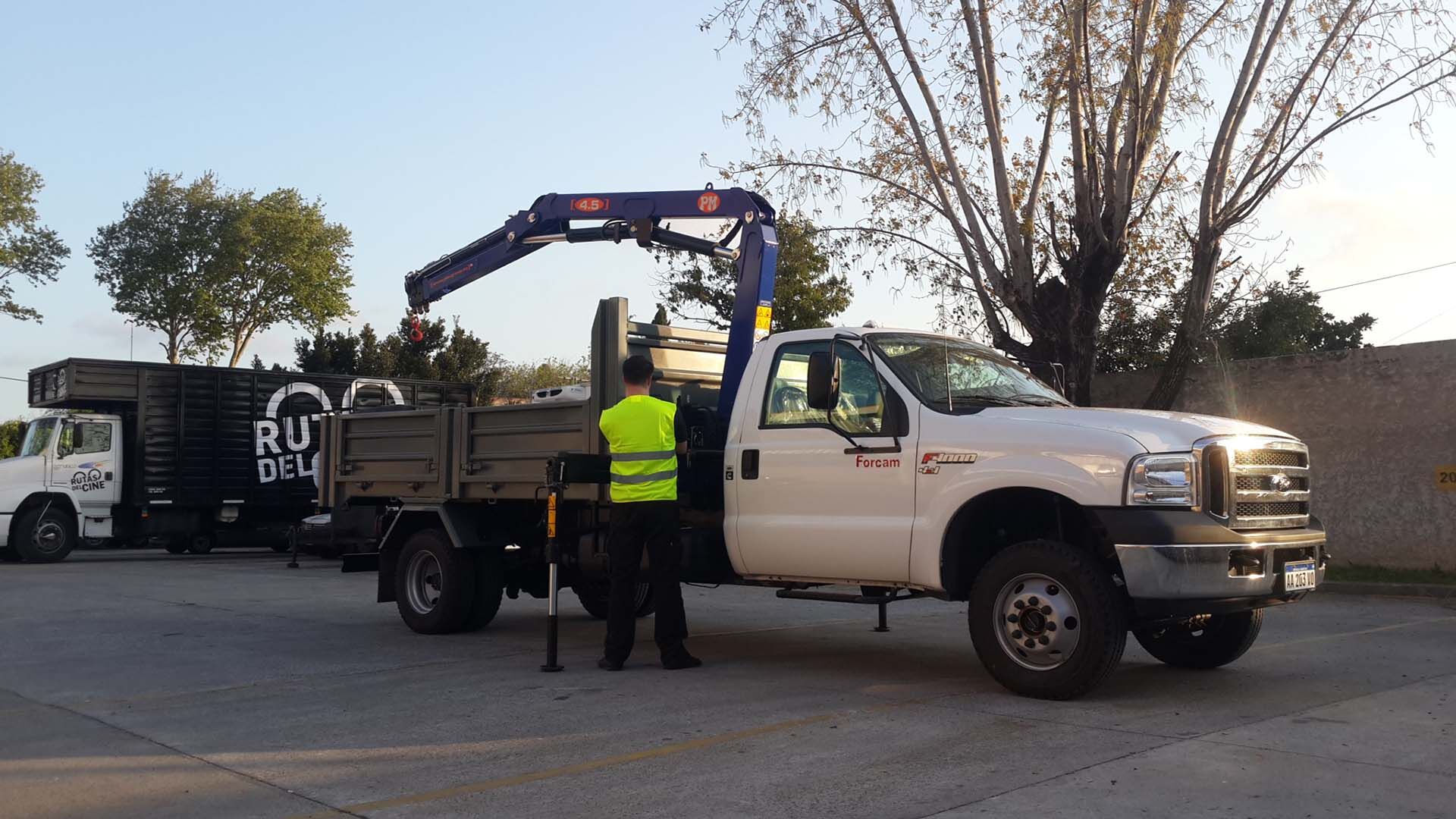

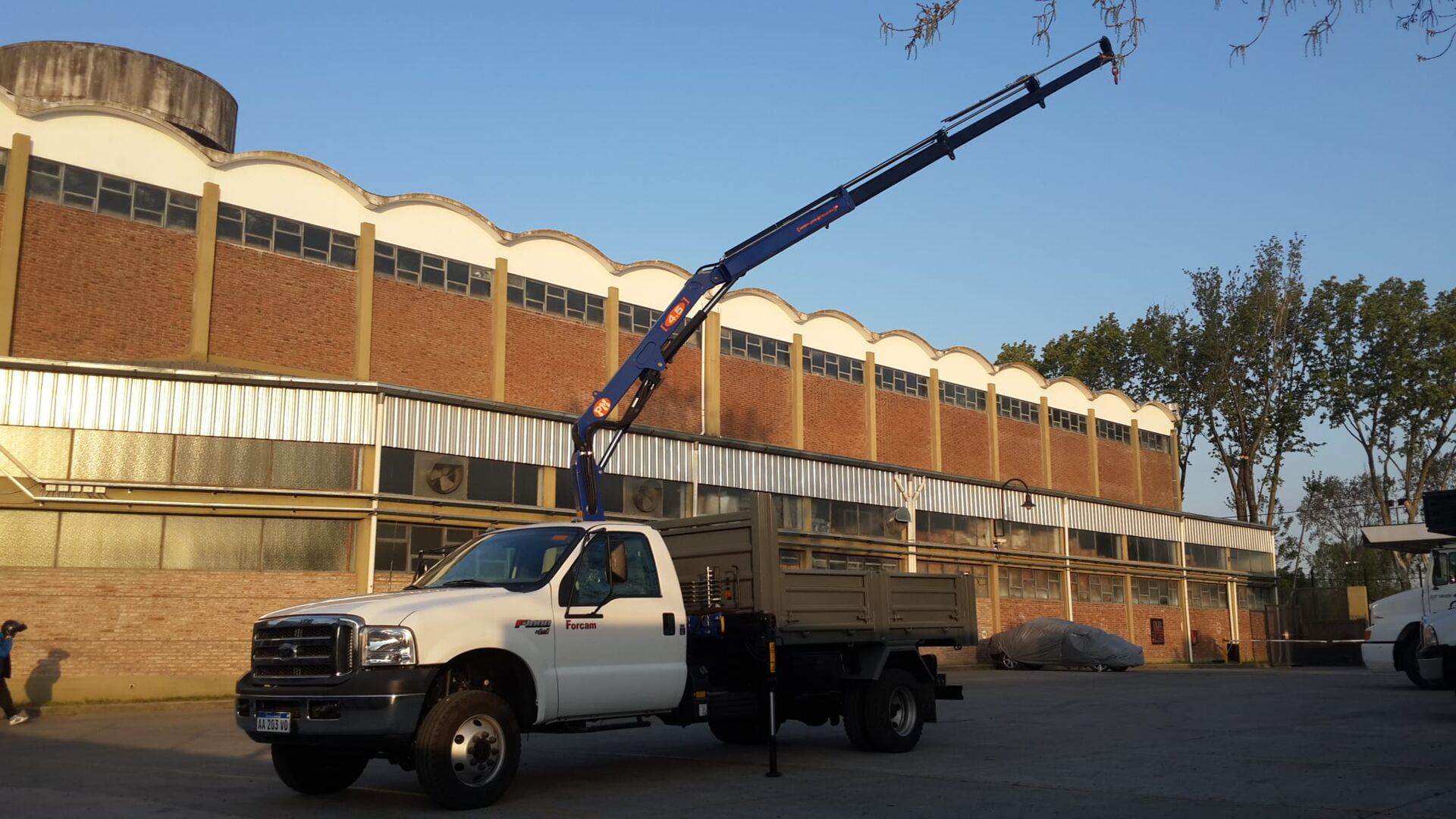

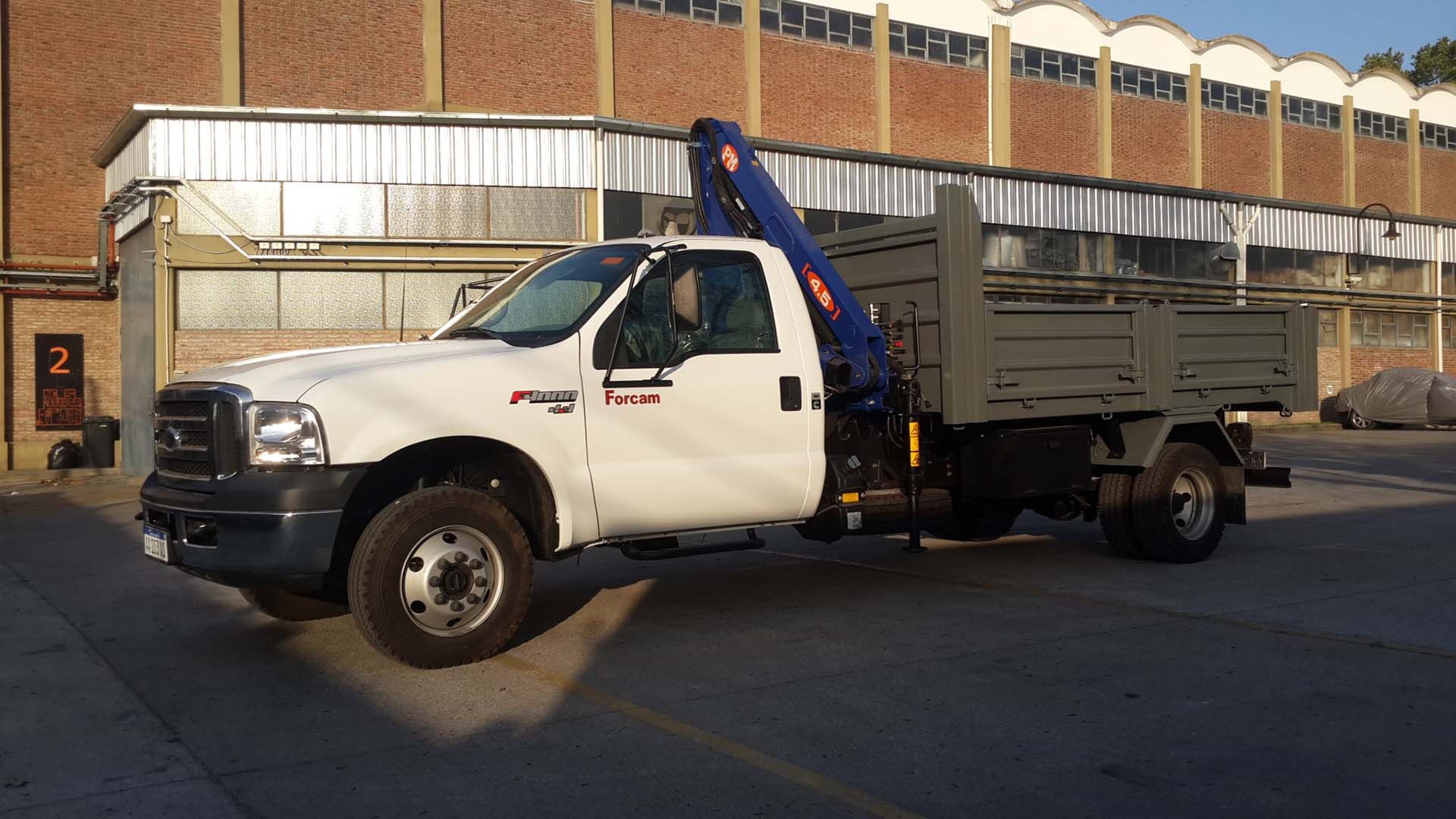

The Tadano PM 4.5 Series is an articulating crane built to cover longer distances safely, equipped as standard with a moment limiting device for maximum protection. With lifting moments up to 4.2 tonne-meters and vertical outreach up to 11.65 meters, it delivers excellent reach and strength across a range of applications. Compact dimensions and transport-optimized weight (530–620 kg depending on configuration) allow easy installation on small and medium vehicles. Operators can choose from configurations such as the 4521, 4522, 4523, or 4524, with horizontal reaches ranging from 5.0 to 8.85 meters. Safety is ensured with manual stabilizers up to 3.5 meters and a robust 360° slewing system. Built for productivity and security, the PM 4.5 Series articulating cranes provide reliable lifting solutions for everyday operations.
