PM 3 P

The PM 3 P delivers enhanced lifting capacity, precise control, and exceptional performance—ideal for demanding everyday applications.

Get in touch

Series Specs

Metric Imperial

	PM 3021 P	PM 3022 P	PM 3023 P
Fuel Tank Capacity	25 l	25 l	25 l
Height	5′ 1”	5′ 1”	5′ 1”
Height	1540 mm	1540 mm	1540 mm
Hydraulic Horizontal Outreach	15′ 5”	20′ 0”	24′ 7”
Hydraulic Horizontal Outreach	4,70 m	6,10 m	7,50 m
Hydraulic Vertical Outreach	24′ 7”	28′ 10”	33′ 2”
Hydraulic Vertical Outreach	7,50 m	8,80 m	10,10 m
Length	5′ 11”	5′ 11”	5′ 11”
Length	1800 mm	1800 mm	1800 mm
Max. Lifting Moment	19200 ft Ibs	18620 ft Ibs	18440 ft Ibs
Max. Lifting Moment	2,7 TM	2,6 TM	2,6 TM
Max. Pressure	24,5 MPa	24,5 MPa	24,5 MPa
Recommended oil flow	12 l/min	12 l/min	12 l/min
Slewing angle	360°	360°	360°
Slewing torque	26 kNm	25 kNm	25 kNm
Stabilizer control Radio Wireless	Manual	Manual	Manual
Stabilizer Spread available	3.5 m	3.5 m	3.5 m
Width	1′ 8”	1′ 8”	1′ 8”
Width	500 mm	500 mm	500 mm
Spec Sheet

Product description

Performance beyond compare.

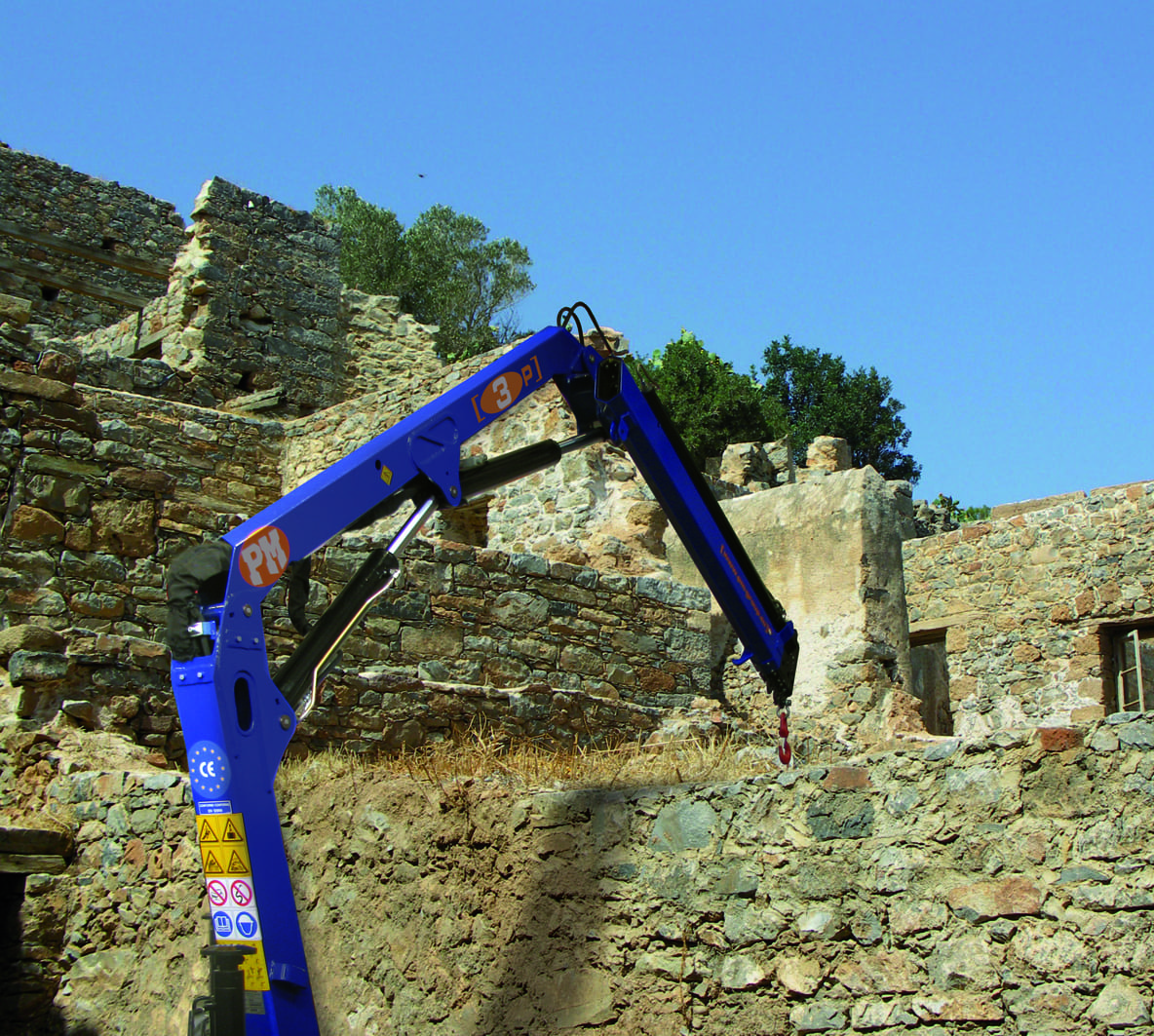

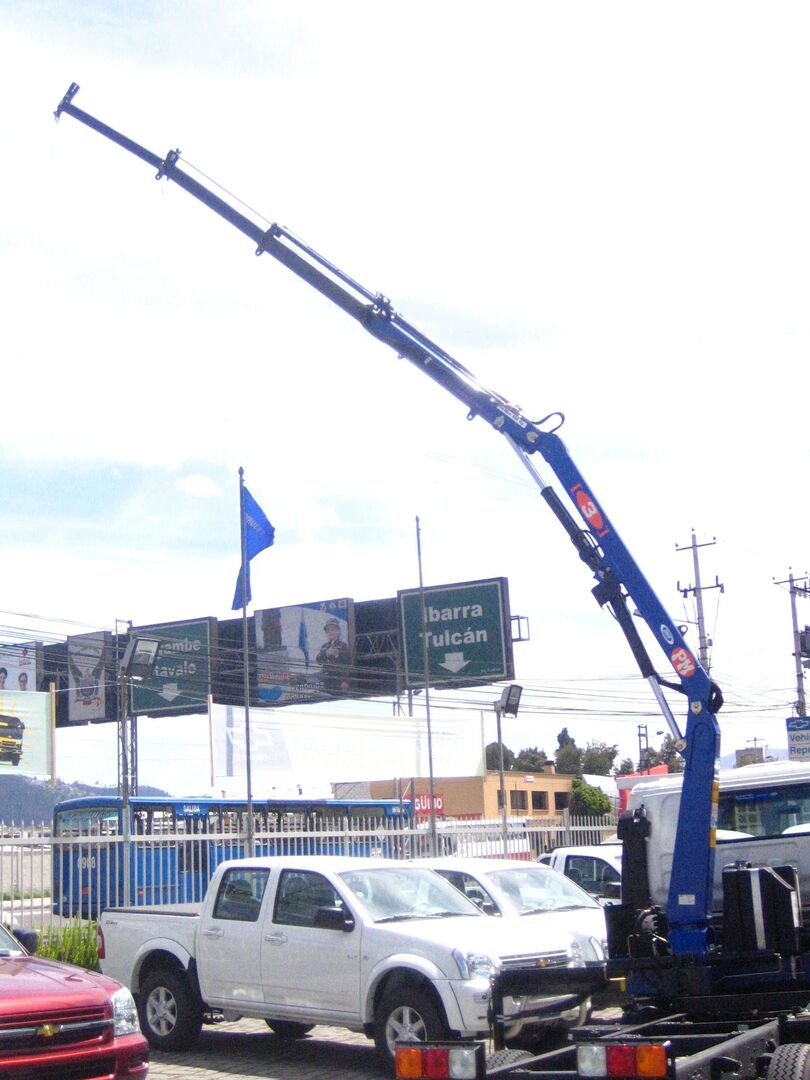

The Tadano PM 3 P is an articulating crane that combines power and precision to outperform its class. With a maximum lifting moment of 2.7 tonne-meters and advanced proportional hydraulic control, it ensures smooth and efficient operation. Compact dimensions and transport-optimized weight (395–450 kg depending on configuration) allow easy installation on light vehicles. Operators can choose from configurations such as the 3021 P, 3022 P, or 3023 P, with horizontal reaches ranging from 4.7 to 7.5 meters. Safety is supported by manual stabilizers with spreads up to 3.5 meters and a robust 360° slewing system. Built for productivity and durability, the PM 3P Classic Plus articulating crane is the trusted choice for versatile lifting tasks.
