PM 3.9 P

The PM 3.9 P delivers stronger lifting capacity, extended outreach, and superior control—ideal for demanding loading and unloading operations.

Get in touch

Series Specs

Metric Imperial

	PM 3921 P	PM 3922 P	PM 3923 P
Fuel Tank Capacity	36 l	36 l	36 l
Height	5′ 3″	5′ 3″	5′ 3″
Height	1605 mm	1605 mm	1605 mm
Hydraulic Horizontal Outreach	16′ 1″	20′ 8″	25′ 1″
Hydraulic Horizontal Outreach	4,90 m	6,30 m	7,65 m
Hydraulic Vertical Outreach	25′ 3″	29′ 6″	33′ 8″
Hydraulic Vertical Outreach	7,70 m	9,00 m	10,25 m
Length	6′ 2″	6′ 2″	6′ 2″
Length	1880 mm	1880 mm	1880 mm
Max. Lifting Moment	22130 ft lbs	21960 ft lbs	21570 ft lbs
Max. Lifting Moment	3,1 TM	3,0 Tm	3,0 TM
Max. Pressure	26,5 MPa	26,5 MPa	26,5 MPa
Recommended oil flow	12 l/min	12 l/min	12 l/min
Slewing angle	360°	360°	360°
Slewing torque	4,5 kN m	4,5 kN m	4,5 kN m
Stabilizer control Radio Wireless	Manual	Manual	Manual
Stabilizer Spread available	3.5 m	3.5 m	3.5 m
Width	1′ 8″	1′ 8″	1′ 8″
Width	500 mm	500 mm	500 mm
Spec Sheet

Product description

Performance beyond compare.

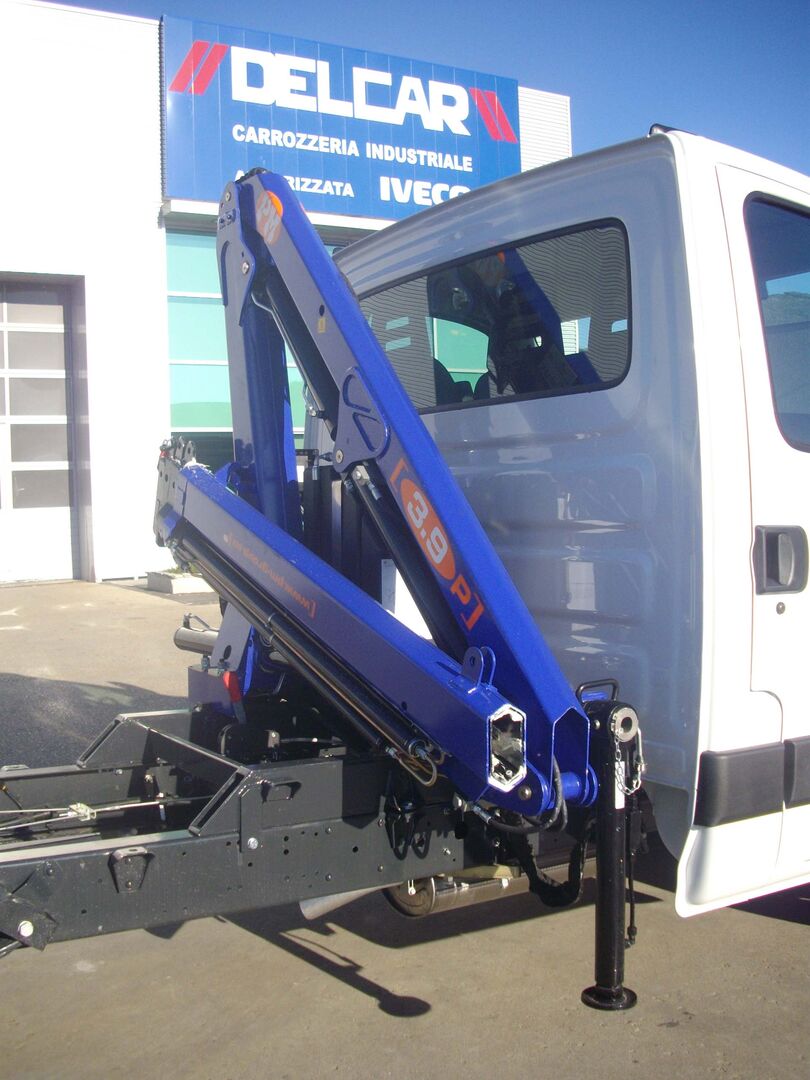

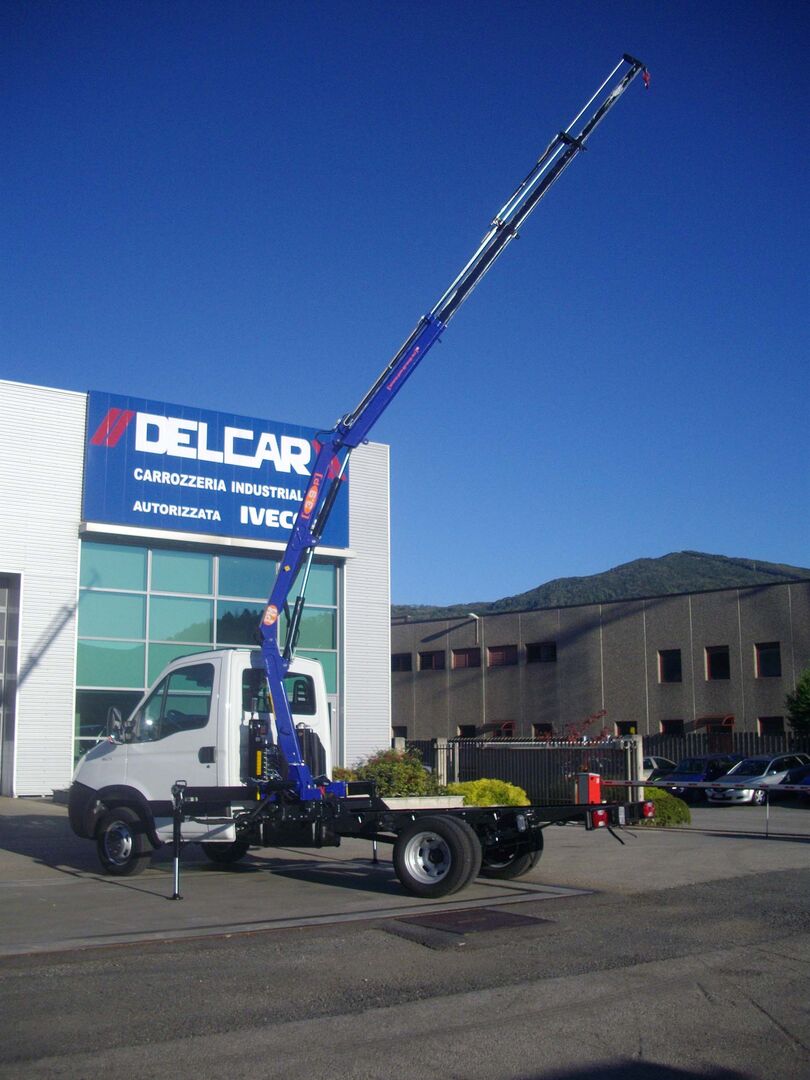

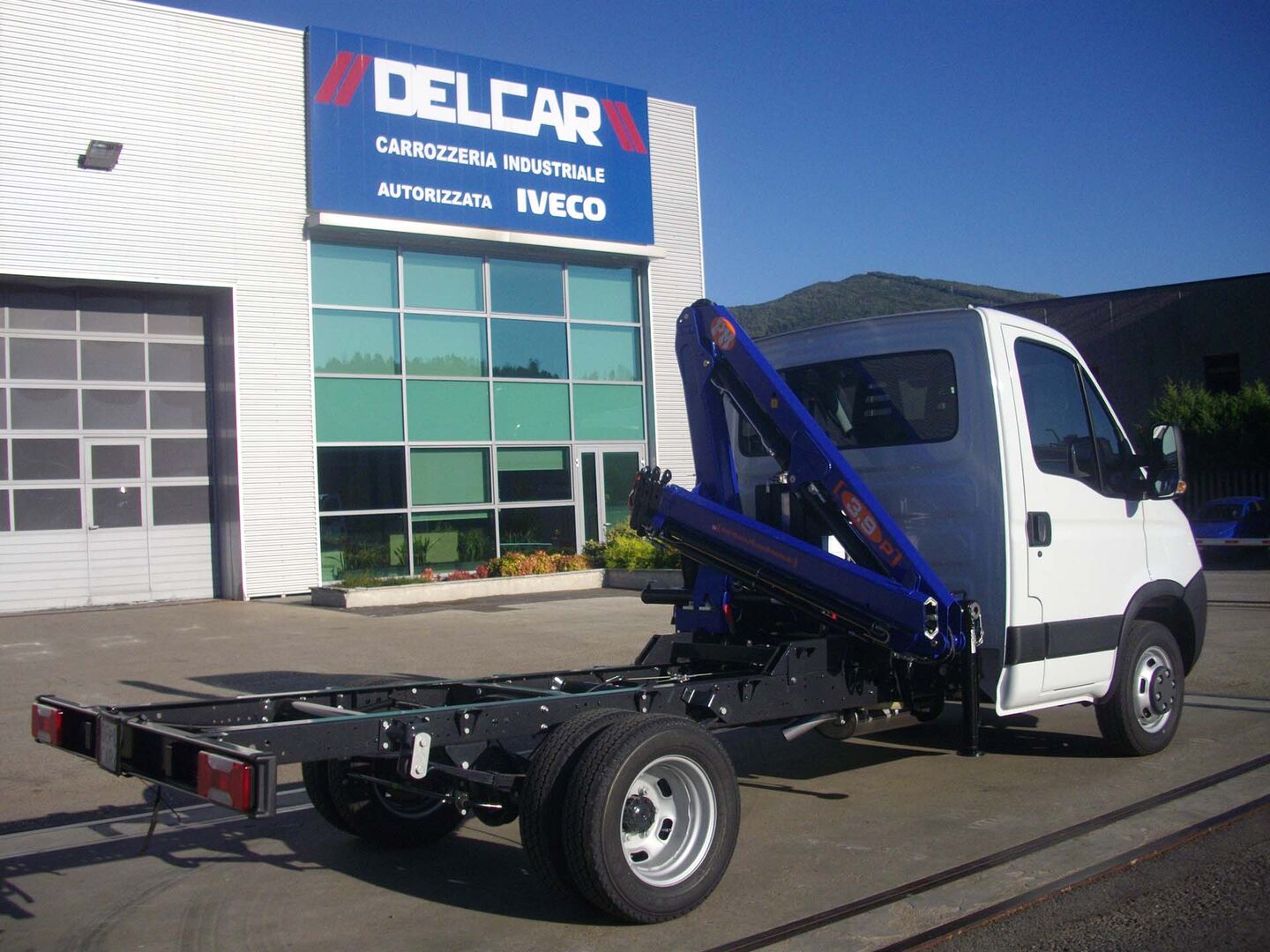

The Tadano PM 3.9 P is an articulating crane designed for high performance and efficiency. With a maximum lifting moment of up to 3.1 tonne-meters and outreach reaching 10.25 meters vertically, it offers excellent versatility for a wide range of lifting tasks. Compact dimensions and transport-optimized weight (425–480 kg depending on configuration) allow easy installation on light vehicles. Operators can choose from configurations such as the 3921 P, 3922 P, or 3923 P, with horizontal reaches ranging from 4.9 to 7.65 meters. Safety is supported by manual stabilizers with spreads up to 3.5 meters and a reliable 360° slewing system. Built to deliver both productivity and durability, the PM 3.9 P articulating crane sets the standard for performance in its class.
