PM 23.5 SP

The PM 23.5 SP delivers maximum outreach, precision, and reliability thanks to advanced hydraulics and electronic control.

Get in touch

Series Specs

Metric Imperial

	PM 23522 SP	PM 23523 SP	PM 23523 SP + J512.20	PM 23523 SP + J513.20	PM 23524 SP	PM 23524 SP + J512.20	PM 23524 SP + J513.20	PM 23524 SP + J514.20	PM 23525 SP	PM 23525 SP + J512.20	PM 23525 SP + J513.20	PM 23525 SP + J514.20	PM 23526 SP	PM 23526 SP + J252	PM 23527 SP
Fuel Tank Capacity	150 l	150 l	150 l	150 l	150 l	150 l	150 l	150 l	150 l	150 l	150 l	150 l	150 l	150 l	150 l
Height	7′ 5″	7′ 5″	8′ 8″	8′ 8″	7′ 5″	8′ 9″	8′ 9″	8′ 9″	7′ 7″	8′ 9″	8′ 9″	8′ 9″	7′ 9″	8′ 7″	7′ 11″
Height	2250 mm	2250 mm	2645 mm	2645 mm	2550 mm	2660 mm	2660 mm	2660 mm	2305 mm	2660 mm	2660 mm	2660 mm	2365 mm	2610 mm	2405 mm
Hydraulic Horizontal Outreach	25′ 5″	32′ 8″	52′ 4″	58′ 3″	40′ 2″	60′ 2″	65′ 9″	71′ 4″	47′ 7″	67′ 9″	73′ 4″	78′ 11″	55′ 1″	73′ 4″	62′ 6″
Hydraulic Horizontal Outreach	7,75 m	9.95 m	15.95 m	17.75 m	12.25 m	18.35 m	20.05 m	21.75 m	14.50 m	20.65 m	22.35 m	24.05 m	16.80 m	22.35 m	19.05 m
Hydraulic Vertical Outreach	38′ 7″	45′ 7″	65′ 9″	71′ 6″	52′ 12″	73′ 2″	79′ 1″	84′ 10″	60′ 6″	80′ 9″	86′ 5″	92′ 4″	67′ 11″	86′ 3″	75′ 4″
Hydraulic Vertical Outreach	11.75 m	13.90 m	20.05 m	21.80 m	16.15 m	22.30 m	24.10 m	25.85 m	18.45 m	24.60 m	26.35 m	28.15 m	20.70 m	26.30 m	22.80 m
Length	8′ 1″	8′ 1″	8′ 2″	8′ 2″	8′ 1″	8′ 2″	8′ 2″	8′ 2″	8′ 1″	8′ 2″	8′ 2″	8′ 2″	8′ 1″	8′ 3″	8′ 1″
Length	2250 mm	2250 mm	2500 mm	2500 mm	2250 mm	2500 mm	2500 mm	2500 mm	2305 mm	2500 mm	2500 mm	2500 mm	2365 mm	2515 mm	2405 mm
Max. Lifting Moment	154060 ft lbs	143210 ft lbs	139600 ft lbs	139600 ft lbs	139600 ft lbs	139600 ft lbs	139600 ft lbs	139600 ft lbs	136700 ft lbs	136700 ft lbs	136700 ft lbs	136700 ft lbs	134530 ft lbs	134530 ft lbs	128020 ft lbs
Max. Lifting Moment	21.3 TM	19.8 TM	19.8 TM	19.8 TM	19.3 TM	19.3 TM	19.3 TM	19.3 TM	18.9 TM	18.9 TM	18.9 TM	18.9 TM	18.6 TM	18.6 TM	17.7 TM
Max. Pressure	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa	30.5 MPa
Recommended oil flow	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min	80 l/min
Slewing angle	400°	400°	400°	400°	400°	400°	400°	400°	400°	400°	400°	400°	400°	400°	400°
Slewing torque	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m	27,3 kN m
Stabilizer control Radio Wireless	Option	Option	Option	Option	Option	Option	Option	Option	Option	Option	Option	Option	Option	Option	Option
Stabilizer Spread available	5,1- 6,6 m	5,1- 6,6 m	5.1 – 6.6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m	5,1- 6,6 m
Width	3′ 3″	3′ 3″	4′	4′	3′ 3″	4′	4′	4′	3′ 5″	4′	4′	4′	3′ 6″	4′	3′ 7″
Width	980 mm	980 mm	1220 mm	1220 mm	980 mm	1220 mm	1220 mm	1220 mm	1040 mm	1220 mm	1220 mm	1220 mm	1060 mm	1220 mm	1100 mm
Spec Sheet

Product description

Elevate to the highest power.

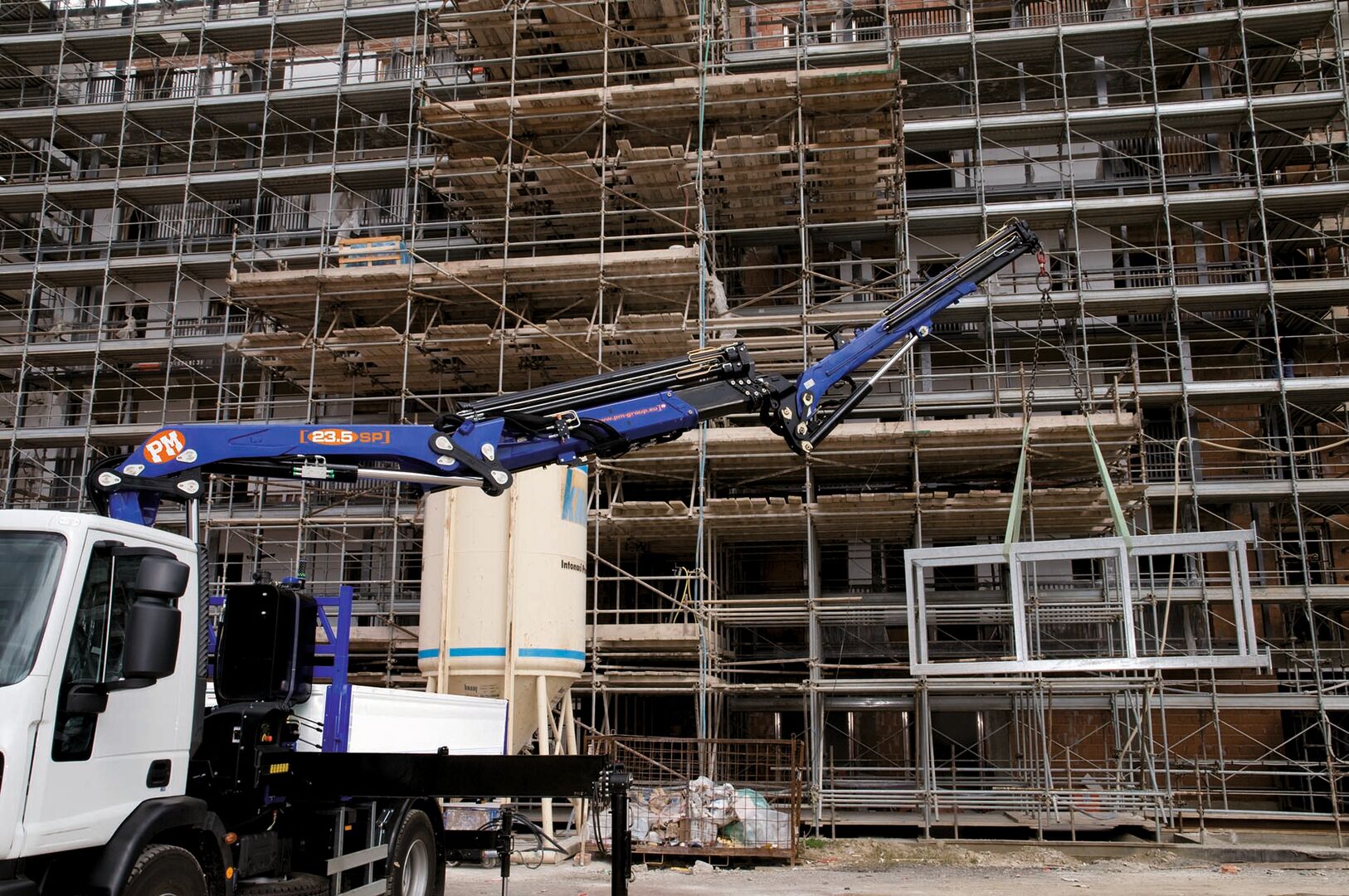

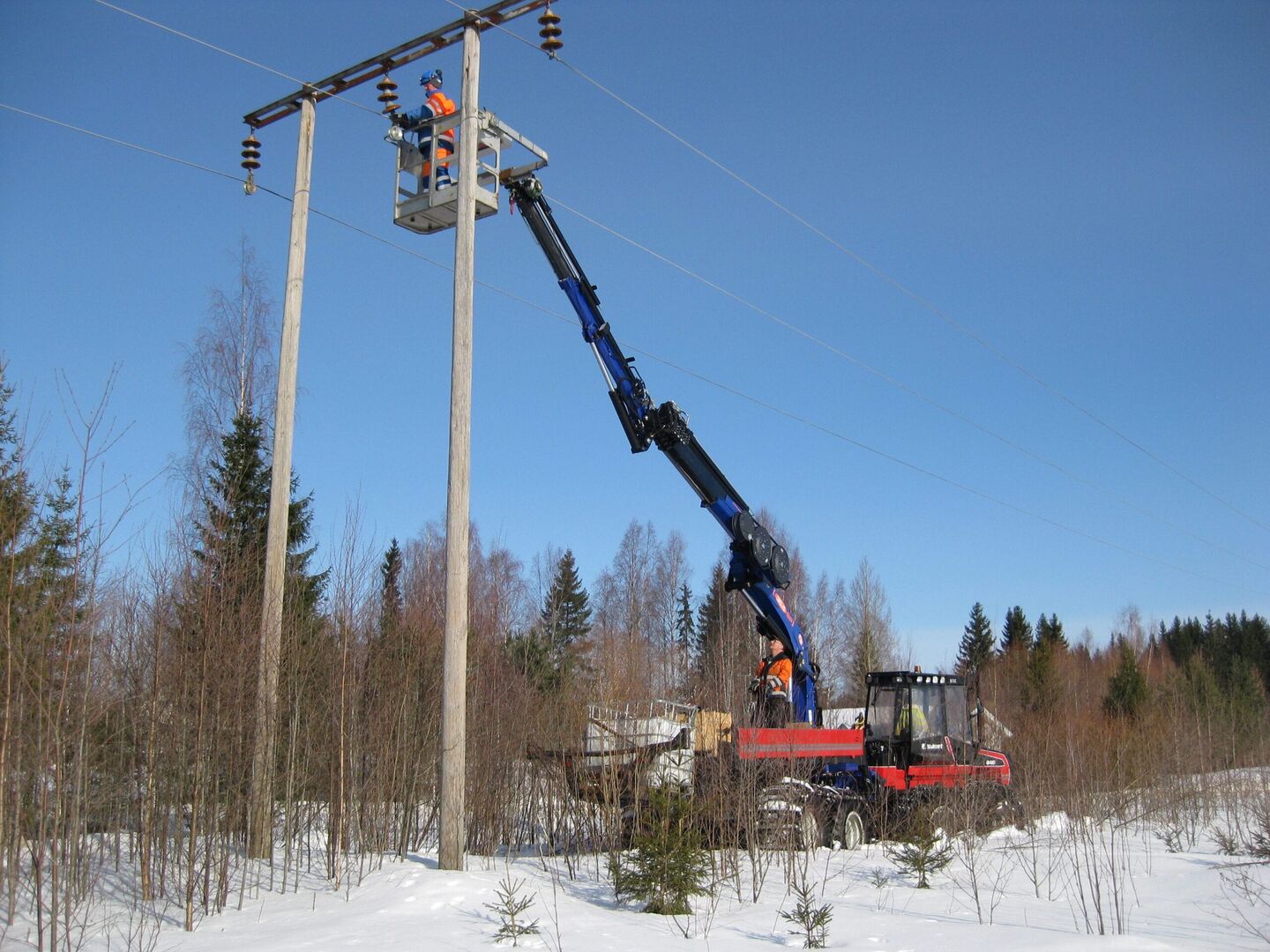

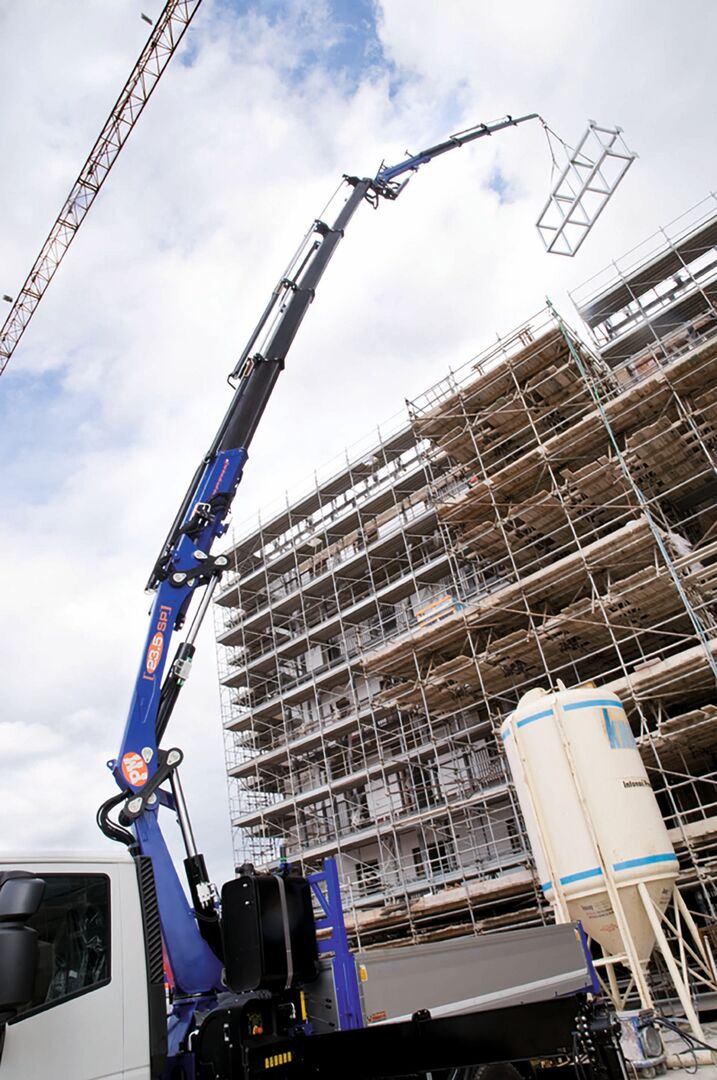

Belonging to the Gold line, the PM 23.5 SP Series combines lightweight design with considerable lifting power and reach. The exclusive linkage system ensures smooth lifting curves and high efficiency across all operating conditions. The Plus system boosts performance, while the PM Power Tronic electronic management system provides real-time crane monitoring. A 15° negative overstroke on the secondary boom allows precise load handling in complex environments.

Operators can select from a wide range of configurations, including LC versions with a hydraulically retractable first boom for optimized short-range handling. With up to seven hydraulic extensions, the crane achieves a maximum outreach of 19.05 m horizontally and 22.95 m vertically. For greater reach, jib-equipped versions extend the working envelope beyond 24 m horizontally and over 28 m vertically, depending on the configuration.

Depending on the setup, maximum lifting moments range from 17.7 to 18.9 tonne-meters. Safety and stability are reinforced with multiple Interlock systems (Types 1, 3, 4, and 5), along with radio-controlled stabilizers.

Balancing outreach, maneuverability, and durability, the PM 23.5 SP is a versatile solution for intensive, high-cycle operations across diverse industries.
