PM 210 SP

The PM 210 SP is the pinnacle of PM’s heavy-duty range, combining cutting-edge technology, unmatched outreach, and advanced safety systems for the most demanding lifting tasks.

Get in touch

Series Specs

Metric Imperial

	PM 210022 SP	PM 210024 SP	PM 210026 + J3114.25	PM 210026 SP	PM 210026 SP + J3116.25	PM 210028 SP	PM 210028 SP + J3114.25	PM 210028 SP + J3116.25
Fuel Tank Capacity	600 l	600 l	600 l	600 l	600 l	600 l	600 l	600 l
Height	9′ 4″	9′ 4″	9′ 4″	9′ 4″	9′ 4″	9′ 4″	9′ 4″	9′ 4″
Height	2840 mm	2840 mm	2840 mm	2840 mm	2840 mm	2840 mm	2840 mm	2840 mm
Hydraulic Horizontal Outreach	38′ 9″	54′ 11″	118′ 5″	71′	132′ 9″	87′ 3″	134′ 8″	148′ 11″
Hydraulic Horizontal Outreach	11,80 m	16,75 m	36,10 m	21,65 m	40,45 m	26,60 m	41,05 m	45,40 m
Hydraulic Vertical Outreach	51′ 10″	67′ 9″	131′ 1″	83′ 8″	145′ 4″	99′ 9	146′ 10″	160′ 11″
Hydraulic Vertical Outreach	15,80 m	20,65 m	39,95 m	25,50 m	44,30 m	30,40 m	44,75 m	49,05 m
Length	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″
Length	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm
Max. Lifting Moment	1086870 ft Ibs	1029140 ft Ibs	999990 ft Ibs	999990 ft Ibs	999990 ft Ibs	970240 ft Ibs	970240 ft Ibs	970240 ft Ibs
Max. Lifting Moment	150,3 TM	142,3 TM	142,3 TM	138,3 TM	138,3 TM	134,1 TM	134,1 TM	134,1 TM
Max. Pressure	38,5 MPa	38,5 MPa	38,5 MPa	38,5 MPa	38,5 MPa	38,5 MPa	38,5 MPa	38,5 MPa
Recommended oil flow	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min
Slewing angle	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous
Slewing torque	124 kN m	124 kN m	124 kN m	124 kN m	124 kN m	124 kN m	124 kN m	124 kN m
Stabilizer control Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless
Stabilizer Spread available	12.4 m + 10′ 1″ m	12.4 m + 10′ 1″ m	12.4 m + 10′ 1″ m	12.4 m + 10′ 1″ m	12.4 m + 10′ 1″ m	12.4 m + 10′ 1″ m	12.4 m + 10′ 1″ m	12.4 m + 10′ 1″ m
Width	22′ 8″	22′ 8″	22′ 8″	22′ 8″	22′ 8″	22′ 8″	22′ 8″	22′ 8″
Width	6910 mm	6910 mm	6910 mm	6910 mm	6910 mm	6910 mm	6910 mm	6910 mm
Spec Sheet

Product description

Power that reaches further.

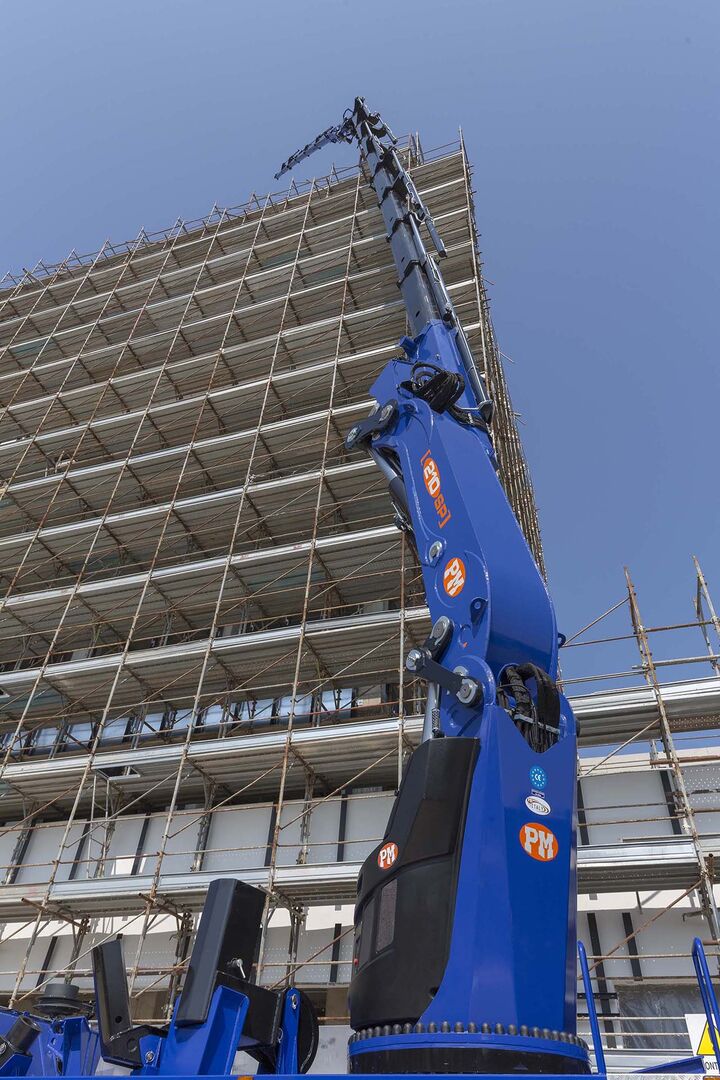

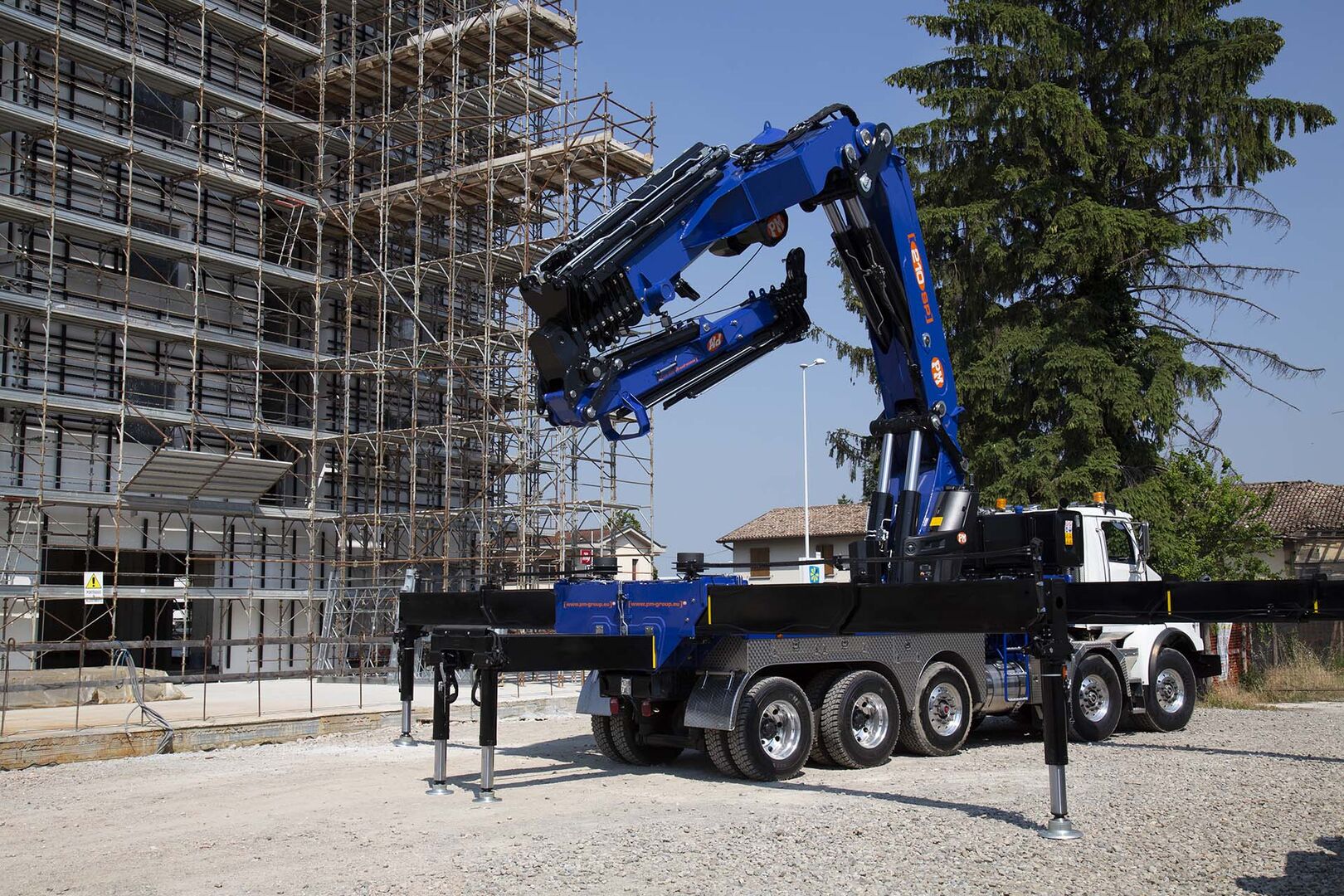

Engineered for extreme applications, the PM 210 SP Series brings together strength, precision, and innovation in one of the most powerful truck-mounted cranes available. Its advanced double-link articulation system ensures smooth and constant lifting performance across all working angles, while the robust design allows intensive, high-cycle use without compromising reliability.

Equipped as standard with the PM Power Tronic electronic management system, compensated proportional control valve block, and multifunction radio control, the 210 SP delivers outstanding control and operator feedback in real time. Safety is further enhanced by the Type 5 Interlock system, which calculates lifting capacity according to the actual stability of the truck. Continuous rotation on a slewing ring provides freedom of movement and eliminates assembly restrictions.

With configurations of up to 9 hydraulic extensions, the PM 210 SP achieves a maximum outreach of 45.40 m horizontally and 49.05 m vertically, while delivering a maximum lifting moment of 134.1 tonne-meters. Optional jib combinations extend this reach beyond 50 m vertically, setting new standards in its class. Despite its immense capacity, the crane maintains compact dimensions, reducing installation constraints even on demanding setups.

Balancing innovation, power, and safety, the PM 210 SP represents the ultimate solution for operators who require uncompromising performance in heavy lifting, even in the toughest working environments.
