PM 150 SP

The PM 150 SP combines compact dimensions, reduced weight, and remarkable lifting power, making it one of the highest-performing Platinum cranes in the heavy PM range.

Get in touch

Series Specs

Metric Imperial

	PM 150024 SP	PM 150026 SP	PM 150028 SP	PM 150028 SP + J2414.25	PM 150028 SP + J2416.25	PM 150029 SP	PM 150029 SP + J2014.25	PM 150029 SP + J2016.25	PM 150029 SP + J2414.25	PM 150029 SP + J2416.25
Fuel Tank Capacity	500 l	500 l	500 l	500 l	500 l	500 l	500 l	500 l	500 l	500 l
Height	8′ 8″	8′ 8″	8′ 8″	9′ 6″	9′ 6″	8′ 8″	9′ 5″	9′ 5″	9′ 6″	9′ 6″
Height	2630 mm	2630 mm	2630 mm	2895 mm	2895 mm	2630 mm	2870 mm	2870 mm	2890 mm	2890 mm
Hydraulic Horizontal Outreach	36′ 7″	50′	64′ 8″	95′ 2″	106′ 9″	71′ 10″	102′ 10″	114′ 10″	102′	113′ 4″
Hydraulic Horizontal Outreach	11,15 m	15,25 m	19,70 m	29,00 m	32,55 m	21,90 m	31,35 m	35,00 m	31,10 m	34,55 m
Hydraulic Vertical Outreach	49′ 6″	62′ 10″	77′ 3″	107′ 7″	119′ 3″	84′ 4″	115′ 6″	127′ 6″	115′ 4″	127′ 4″
Hydraulic Vertical Outreach	15,10 m	19,15 m	23,55 m	32,80 m	36,35 m	25,70 m	35,20 m	38,85 m	35,15 m	38,80 m
Length	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″
Length	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm
Max. Lifting Moment	778550 ft lbs	755130 ft lbs	750700 ft lbs	750700 ft lbs	750700 ft lbs	747910 ft lbs	747910 ft lbs	747910 ft lbs	747910 ft lbs	747910 ft lbs
Max. Lifting Moment	107,6 TM	104,4 TM	103,8 TM	103,8 TM	103,8 TM	103,4 TM	103,4 TM	103,4 TM	103,4 TM	103,4 TM
Max. Pressure	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa
Recommended oil flow	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min	100 + 100 l/min
Slewing angle	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous
Slewing torque	100 kN m	100 kN m	100 kN m	100 kN m	100 kN m	100 kN m	100 kN m	100 kN m	100 kN m	100 kN m
Stabilizer control Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless
Stabilizer Spread available	10.1 m	10.1 m	10.1 m	10.1 m	10.1 m	10.1 m	10.1 m	10.1 m	10.1 m	10.1 m
Width	8′ 8″	8′ 8″	8′ 8″	8′ 11″	8′ 11″	8′ 10″	8′ 11″	8′ 11″	9′ 8″	9′ 8″
Width	2650 mm	2650 mm	2650 mm	2710 mm	2710 mm	2700 mm	2700 mm	2700 mm	2945 mm	2945 mm
Spec Sheet

Product description

Compact strength, maximum precision.

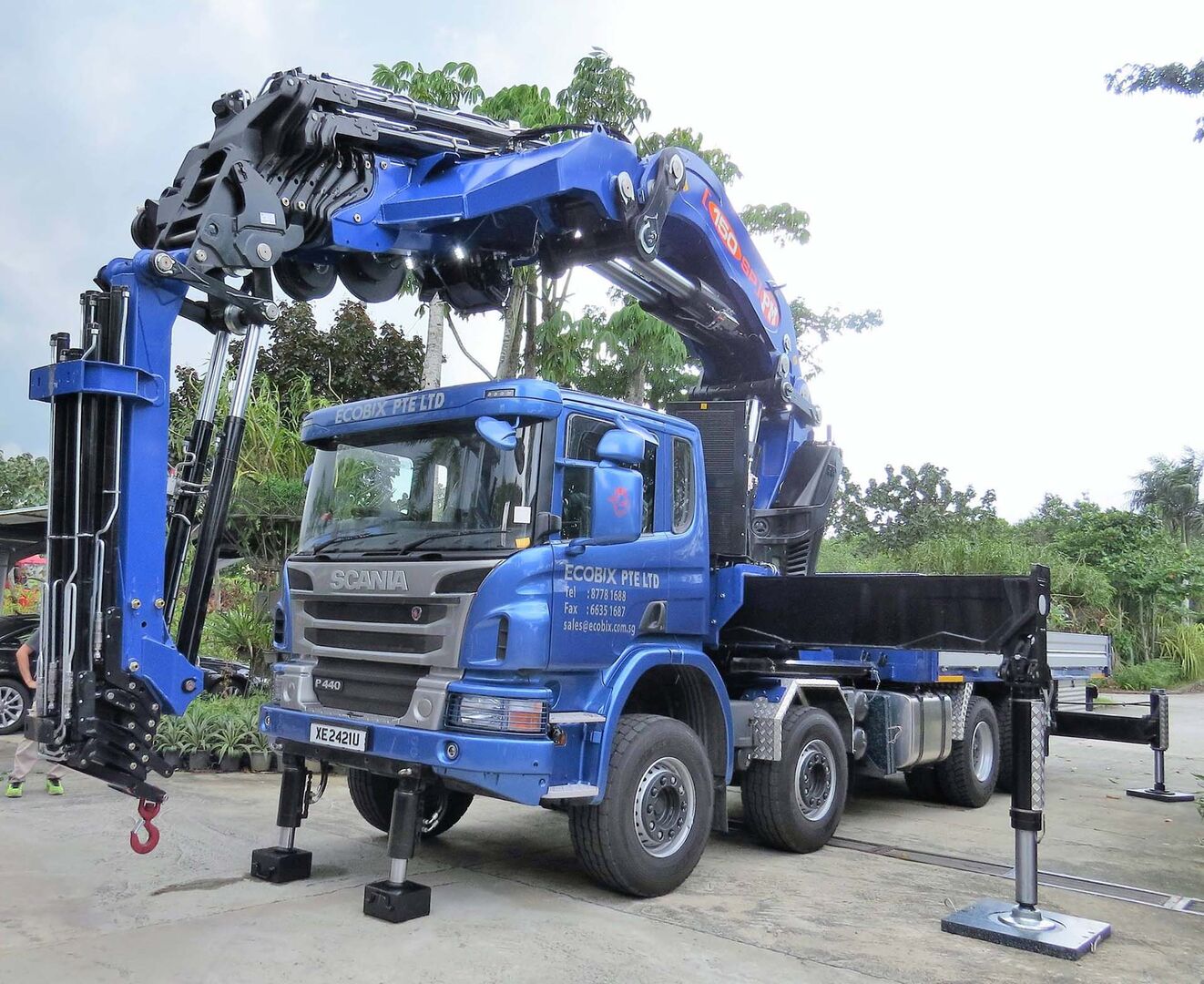

The PM 150 SP Series is engineered for operators who require extreme lifting performance combined with efficiency and reliability. Its hydraulic circuit uses two independent distributor banks, enabling rapid operating speeds and precise, responsive control under any load. Stabilization is optimized with a 10.1-meter span achieved in only two outrigger stages, minimizing clearances and weight impact on the truck structure while ensuring maximum stability.

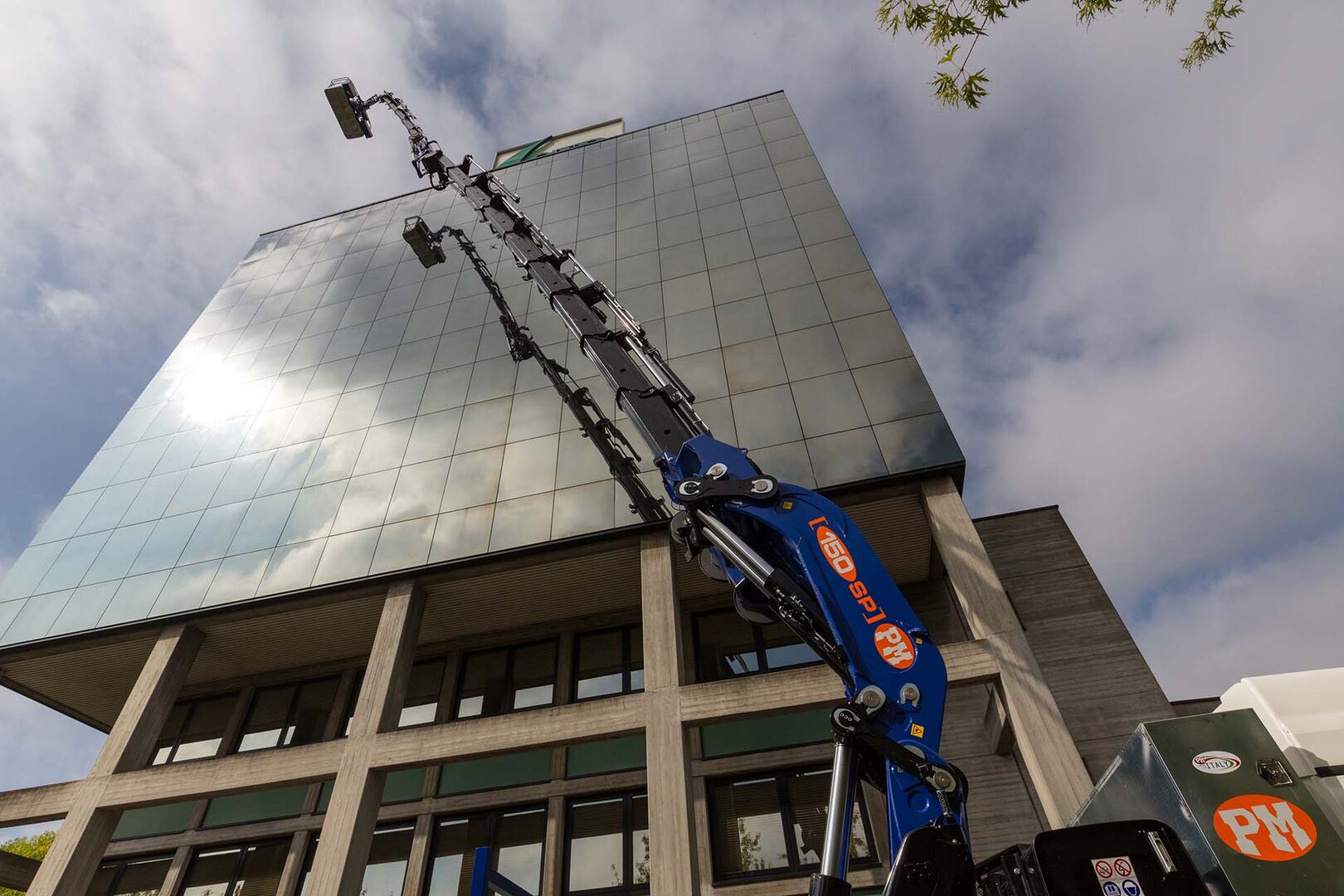

A powerful articulation system with double lifting cylinders delivers strength in a compact format, while the extension booms feature PM’s unique octagonal profile. This design reduces structural weight and increases rigidity, resulting in unmatched stability and excellent lifting capacity even at long outreaches. Continuous slewing on a robust ring further enhances maneuverability, giving operators full freedom of movement on demanding worksites.

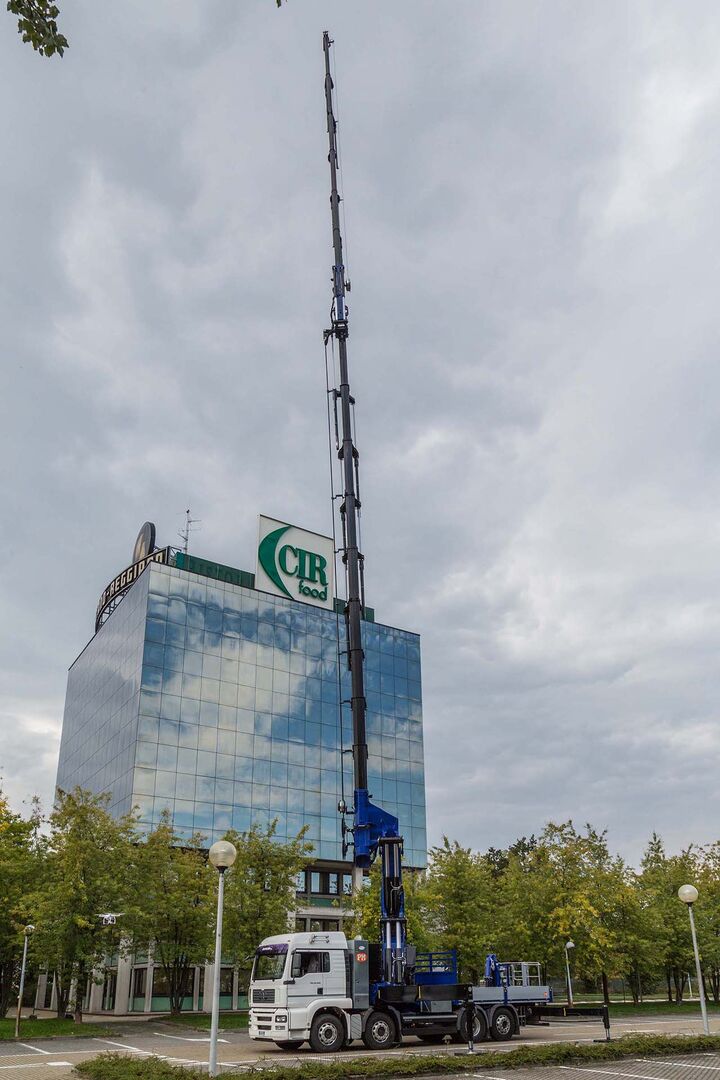

In standard configurations, the crane can be equipped with up to 9 hydraulic extensions, achieving horizontal outreaches beyond 21 meters and vertical reaches of over 25 meters. With jib options, the reach extends significantly further, offering operators the versatility to handle complex lifts with confidence. A negative angle of 15° on the secondary boom and 20° on the jib improves precision and flexibility in tight spaces.

As part of the Platinum line, the PM 150 SP integrates the Power Tronic electronic management system, multifunction radio control, proportional compensated valve block, and a high-capacity heat exchanger. Together, these technologies guarantee consistent performance, optimized safety, and reduced downtime in heavy-duty applications.

Compact yet extremely capable, the PM 150 SP is a heavy-range crane that excels in power, outreach, and reliability — an indispensable choice for operators who demand efficiency and top-tier lifting technology in a versatile package.
