PM 15.5 P

The PM 15.5 P Series combines efficiency, versatility, and ease of use—delivering reliable lifting performance to complete the Tadano light PM crane range.

Get in touch

Series Specs

Metric Imperial

	PM 15521 P	PM 15522 P	PM 15523 P	PM 15524 P	PM 15525 P
Fuel Tank Capacity	80 l	80 l	80 l	80 l	80 l
Height	7′ 3″	7′ 3″	7′ 3″	7′ 3″	7′ 3″
Height	2220 mm	2220 mm	2220 mm	2220 mm	2220 mm
Hydraulic Horizontal Outreach	21′ 4″	27′ 9″	34′ 3″	40′ 8″	47′ 3″
Hydraulic Horizontal Outreach	6,50 m	8,45 m	10,45 m	12,40 m	14,40 m
Hydraulic Vertical Outreach	32′ 2″	38′ 7″	44′ 11″	51′ 2″	58′ 1″
Hydraulic Vertical Outreach	9,80 m	11,75 m	13,70 m	15,60 m	17,70 m
Length	7′ 11″	7′ 11″	7′ 11″	8′ 1″	8′ 2″
Length	2410 mm	2410 mm	2410 mm	2460 mm	2500 mm
Max. Lifting Moment	106230 ft Ibs	103340 ft Ibs	99820 ft Ibs	95190 ft Ibs	93280 ft Ibs
Max. Lifting Moment	14,7 TM	14,3 TM	13,8 TM	13,2 TM	12,9 TM
Max. Pressure	30 MPa	30 MPa	30 MPa	30 MPa	30 MPa
Recommended oil flow	40-80 l/min	40-80 l/min	40-80 l/min	40-80 l/min	40-80 l/min
Slewing angle	400°	400°	400°	400°	400°
Slewing torque	16 kN m	16 kN m	16 kN m	16 kN m	16 kN m
Stabilizer control Radio Wireless	Manual	Manual	Manual	Manual	Manual
Stabilizer Spread available	5,2 – 6 m	5,2 – 6 m	5,2 – 6 m	5,2 – 6 m	5,2 – 6 m
Width	2′ 10”	2′ 10”	2′ 10”	2′ 10”	3′ 3″
Width	860 mm	860 mm	860 mm	860 mm	980 mm
Spec Sheet

Product description

Efficiency meets versatility.

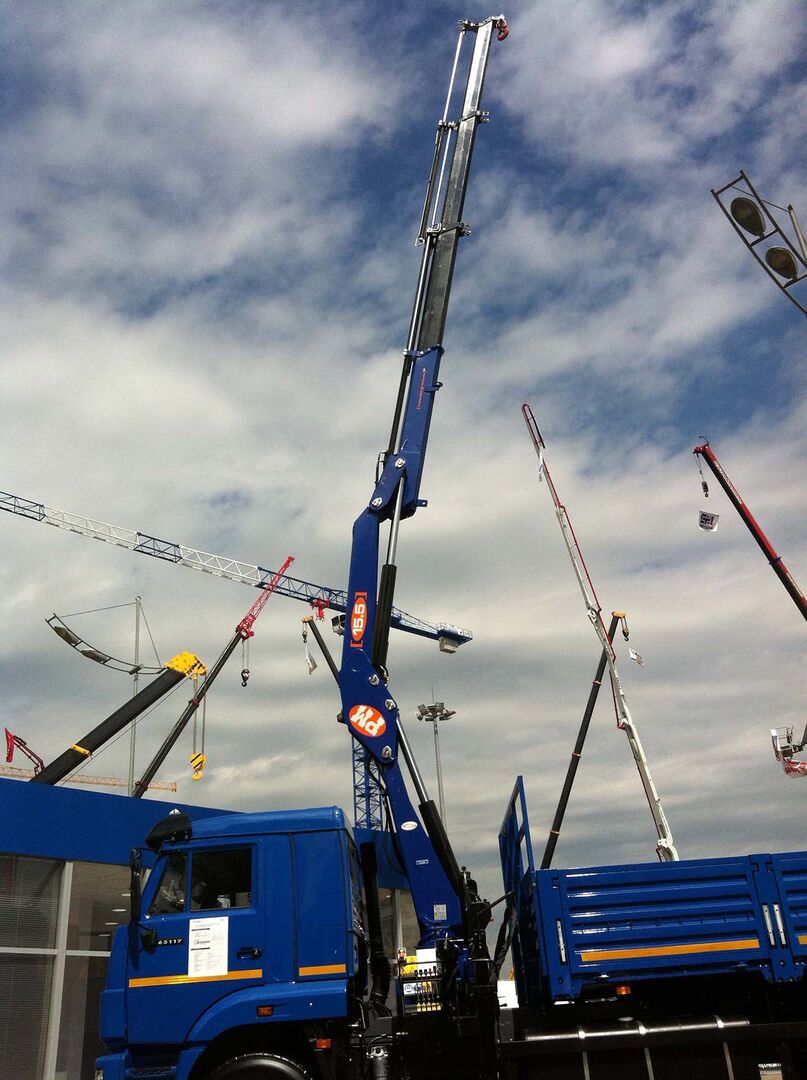

The Tadano PM 15.5 P Series is an articulating crane designed for a wide range of applications. With maximum lifting moments from 13.2 to 14.3 tonne-meters depending on configuration, it delivers powerful performance with compact design.

Operators can select from models including the 15521 through 15525, with horizontal outreach ranging from 8.45 to 12.4 meters and vertical outreach up to 15.6 meters. The LC version, featuring a hydraulically retractable first boom, simplifies handling of heavy or bulky loads at close range and optimizes loading near the column.

As part of the Classic line, the PM 15.5 P Series includes a manual control valve block as standard, with optional accessories for enhanced performance. Stability is supported by manual stabilizers, with spreads up to 6.0 meters, and Interlock Type 1 and 2 systems available on all configurations. Built for efficiency, adaptability, and reliability, the PM 15.5 Series articulating cranes are suited to diverse working environments.
