PM 13.5 SP

High-performing and versatile, the PM 13.5 SP series combines advanced electronics with precision hydraulics to deliver outstanding lifting capacity and smooth, reliable operation.

Get in touch

Series Specs

Metric Imperial

	PM 13521 SP	PM 13522 SP	PM 13523 SP	PM 13523 SP + J252	PM 13524 SP	PM 13524 SP + J252	PM 13525 SP
Fuel Tank Capacity	86 l	86 l	86 l	86 l	86 l	86 l	86 l
Height	7′	7′	7′	8′	7′	8′	7′
Height	2135 mm	2135 mm	2135 mm	2430 mm	2135 mm	2430 mm	2145 mm
Hydraulic Horizontal Outreach	19′ 8″	26′ 7″	33′ 11″	51′ 2″	41′ 4″	58′ 9″	49′ 1″
Hydraulic Horizontal Outreach	6,00 m	8,10 m	10,35	15,60 m	12,60 m	17,90 m	14,95 m
Hydraulic Vertical Outreach	30′ 2″	37′ 9″	44′ 9″	61′ 10″	52′ 4″	68′ 3″	59′ 11″
Hydraulic Vertical Outreach	9,20 m	11,50 m	13,65 m	18,85 m	15,95 m	20,80 m	18,25 m
Length	7′ 11	7′ 11	7′ 11	7′ 11	7′ 11	7′ 11	7′ 11
Length	2420 mm	2420 mm	2420 mm	2420 mm	2420 mm	2420 mm	2420 mm
Max. Lifting Moment	88860 ft Ibs	86150 ft Ibs	82110 ft Ibs	82110 ft Ibs	81950 ft Ibs	81950 ft Ibs	76280 ft Ibs
Max. Lifting Moment	12,3 TM	11,9 TM	11,4 TM	11,4 TM	11,3 TM	11,3 TM	10,5 TM
Max. Pressure	29 MPa	29 MPa	29 MPa	29 MPa	29 MPa	29 MPa	29 MPa
Recommended oil flow	35-50 l/min	35-50 l/min	35-50 l/min	35-50 l/min	35-50 l/min	35-50 l/min	35-50 l/min
Slewing angle	406°	406°	406°	406°	406°	406°	406°
Slewing torque	16 kN m	16 kN m	16 kN m	16 kN m	16 kN m	16 kN m	16 kN m
Stabilizer control Radio Wireless	Manual	Manual	Manual	Manual	Manual	Manual	Manual
Stabilizer Spread available	3.7 – 4,5 – 5,6 m	3.7 – 4,5 – 5,6 m	3.7 – 4,5 – 5,6 m	3.7 – 4,5 – 5,6 m	3.7 – 4,5 – 5,6 m	3.7 – 4,5 – 5,6 m	3.7 – 4,5 – 5,6 m
Width	2′ 6”	2′ 6”	2′ 6”	3′ 2″	2′ 10”	3′ 2″	2′ 10”
Width	770 mm	770 mm	770 mm	970 mm	865 mm	970 mm	865 mm
Spec Sheet

Product description

Compact power, advanced control.

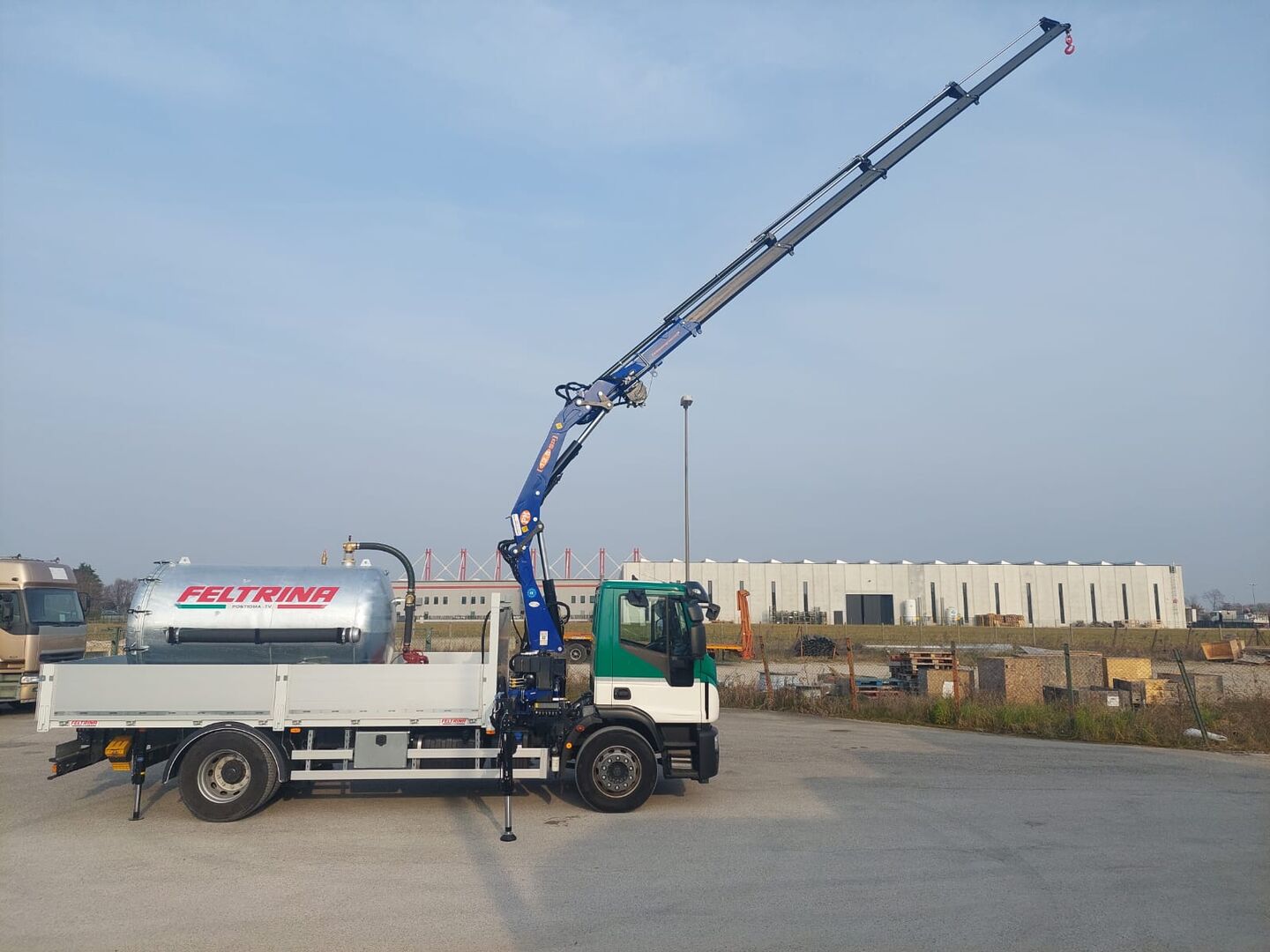

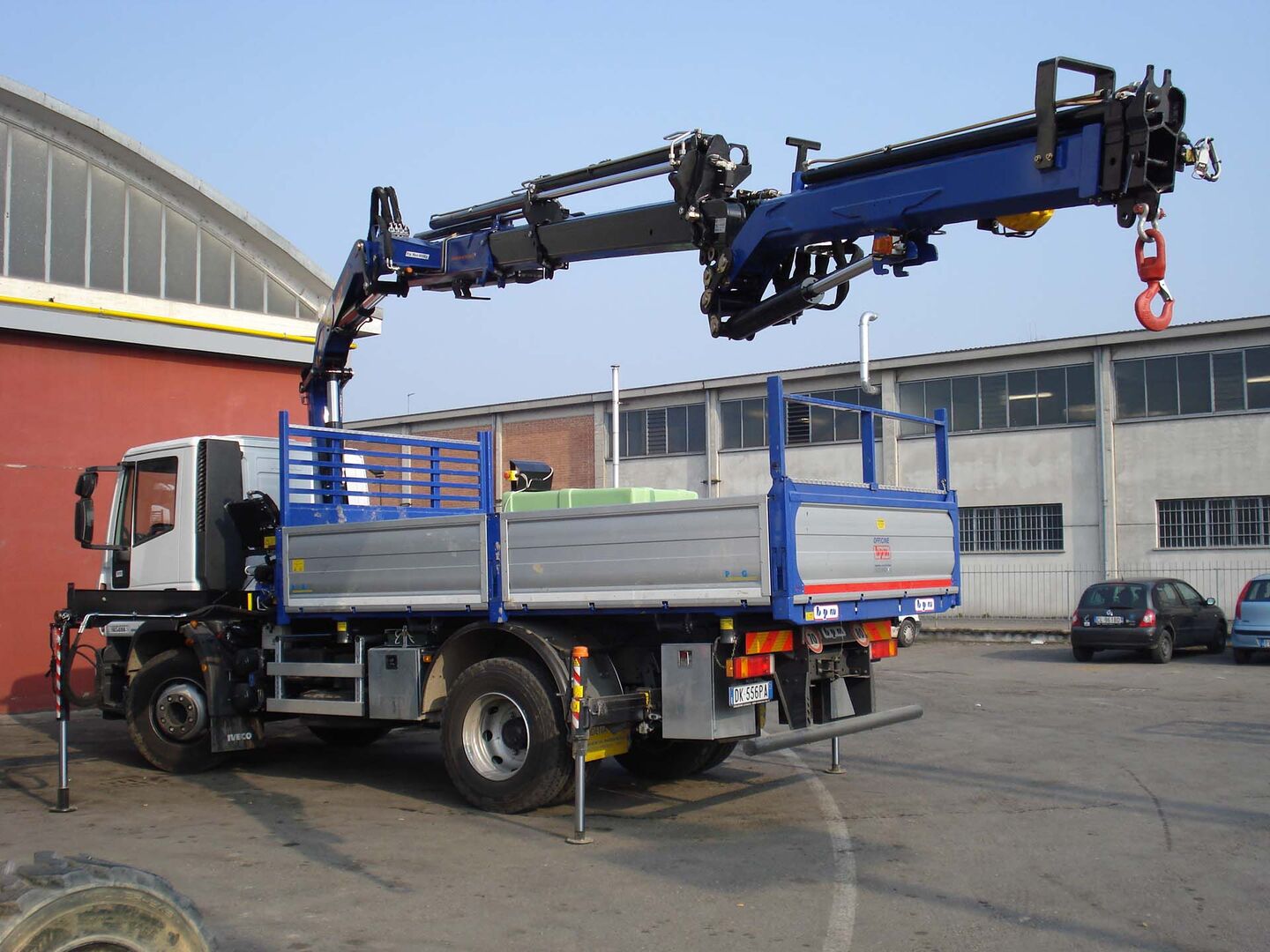

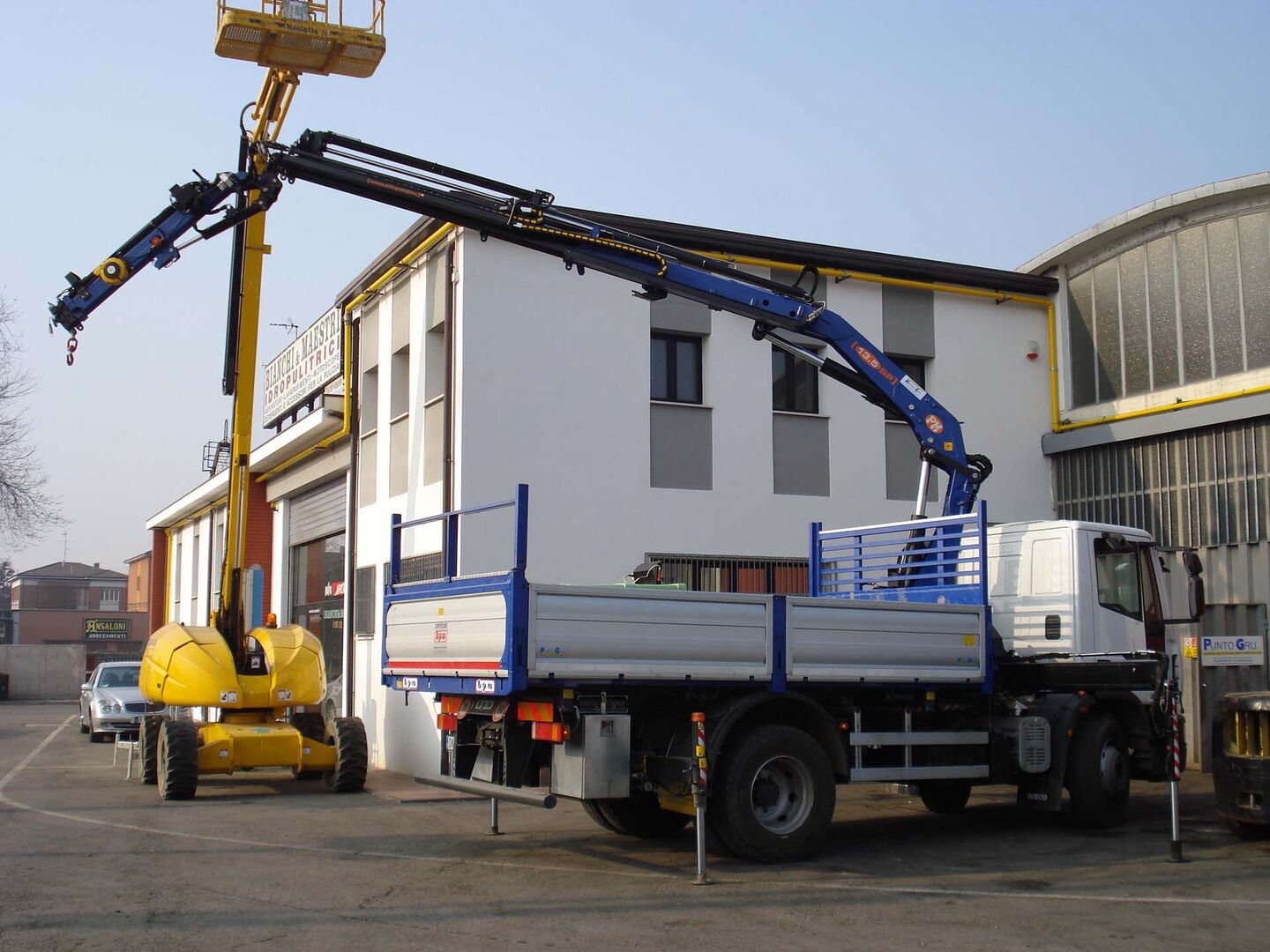

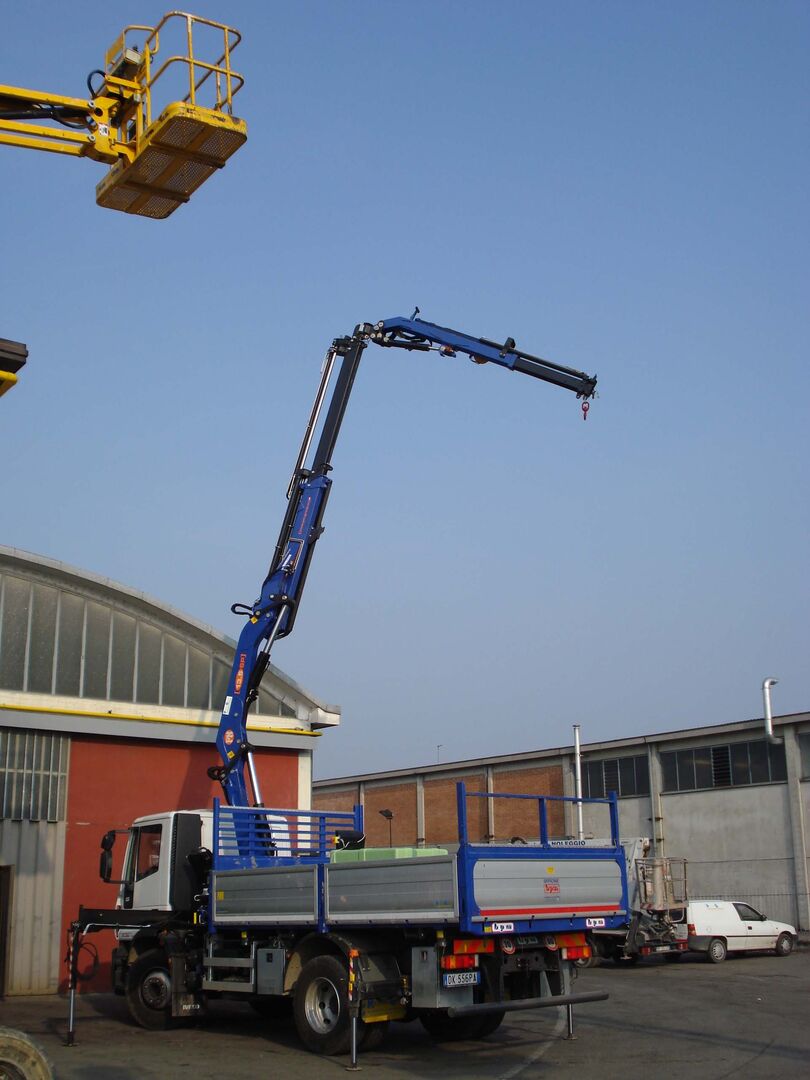

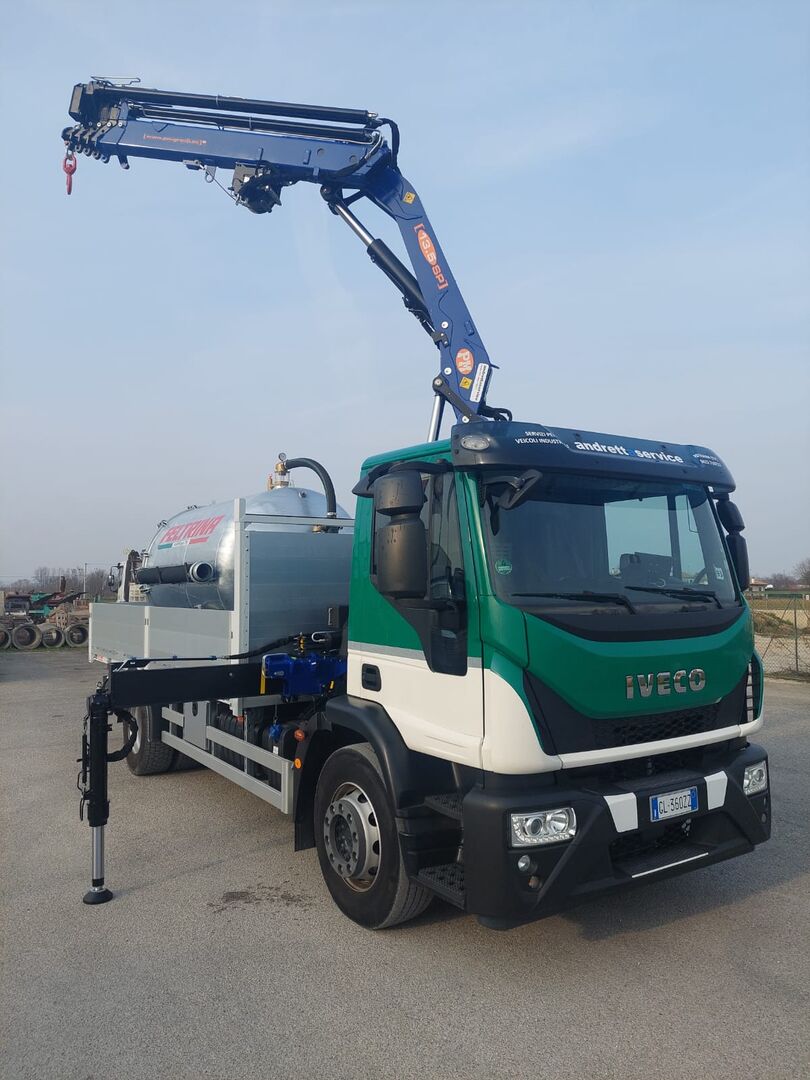

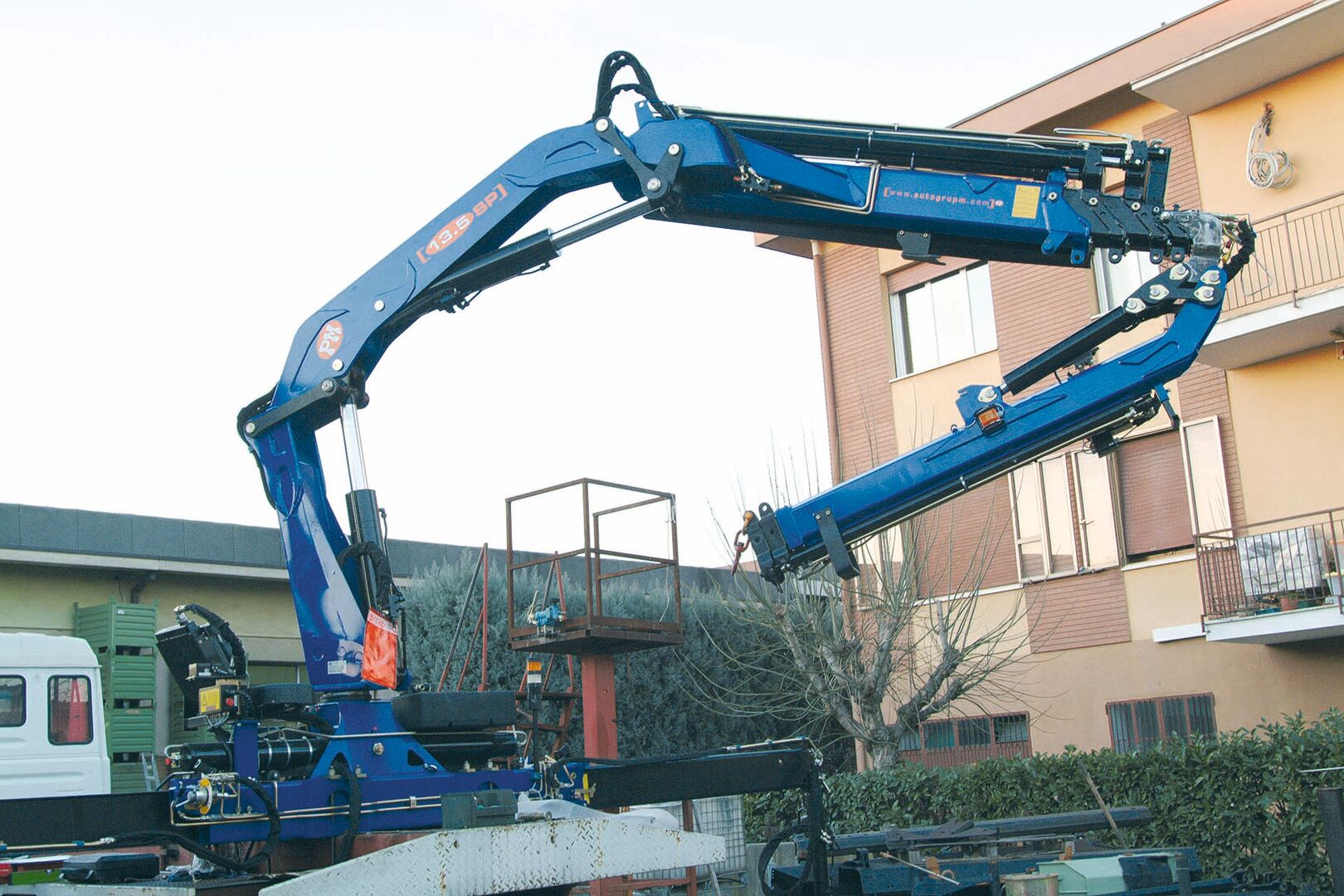

The PM 13.5 SP articulating crane integrates advanced electronics to maximize performance in the small-capacity class. With lifting moments ranging from 10.5 to 11.9 tonne-meters depending on the configuration, it achieves excellent outreach while maintaining a compact weight-to-capacity ratio. Operators can select from models such as the 13521, 13522, 13523, 13524, or 13525, with horizontal outreaches up to 14.95 m and vertical reach up to 18.25 m.

Jib-equipped versions, including the 13523 SP +J252 and 13524 SP +J252, expand the working range to 17.9 m horizontally and 20.8 m vertically. An LC version is also available, with a hydraulically retractable first boom designed for handling heavy or bulky loads close to the column.

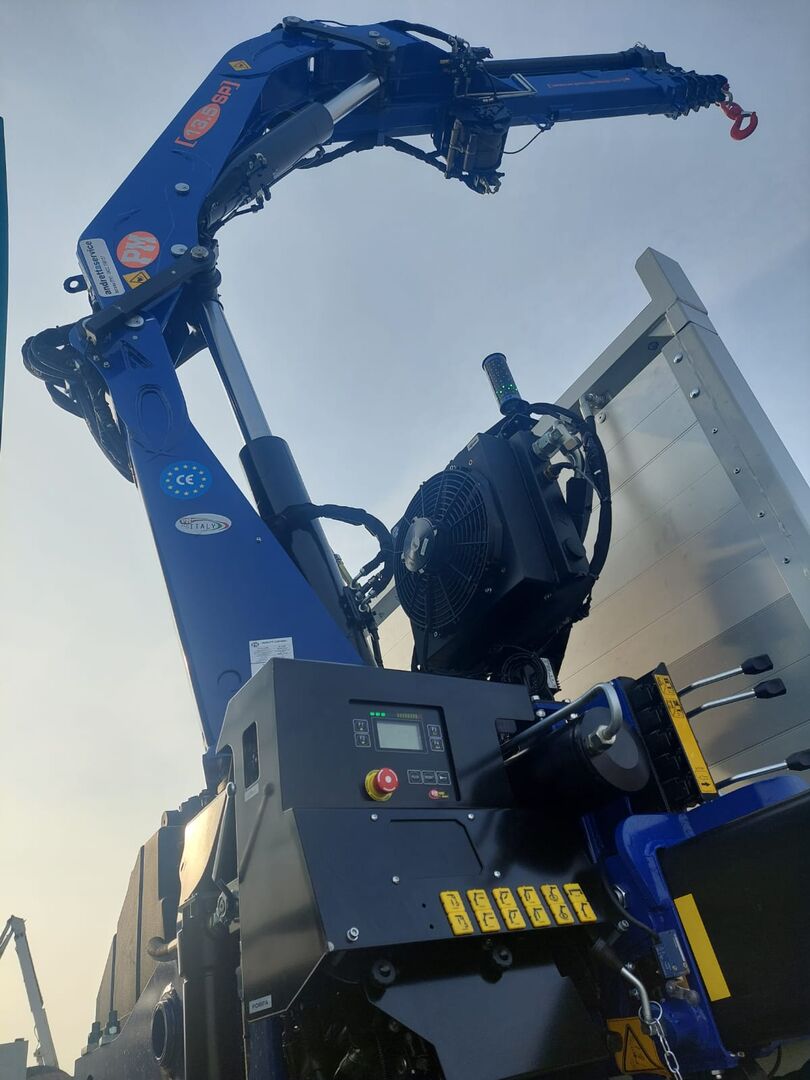

Every model comes standard with a proportional hydraulic control valve block and multifunction radio control, ensuring safe, precise operation. Overload protection and manual stabilizer control add to safety, while optional Interlock systems further enhance stability across working conditions. Combining reliability, flexibility, and advanced control, the PM 13.5 SP series is a top choice for operators seeking consistent productivity in everyday lifting operations.
