PM 11 SP

The PM 11 SP combines advanced control, lightweight design, and superior outreach—delivering precision and reliability in everyday lifting.

Get in touch

Series Specs

Metric Imperial

	PM 11021 SP	PM 11022 SP	PM 11022 SP + J312	PM 11022 SP + J313	PM 11023 SP	PM 11023 SP + J312	PM 11023 SP + J313	PM 11024 SP	PM 11025 SP
Fuel Tank Capacity	80 l	80 l	80 l	80 l	80 l	80 l	80 l	80 l	80 l
Height	6′ 11″	6′ 11″	7′ 10″	7′ 10″	6′ 11″	7′ 10″	7′ 10″	6′ 11″	7′ 1″
Height	2110 mm	2110 mm	2390 mm	2390 mm	2110 mm	2390 mm	2390 mm	2115 mm	2170 mm
Hydraulic Horizontal Outreach	18′ 8″	25′ 3″	42′	46′ 5″	32′ 2″	48′ 9″	53′ 2″	39′ 2″	46′ 3″
Hydraulic Horizontal Outreach	5,70 m	7,70 m	12,80 m	14,15	9,80 m	14,85 m	16,20 m	11,95 m	14,10 m
Hydraulic Vertical Outreach	29′	35′ 5″	48′ 5″	56′ 3″	42′ 2″	58′ 1″	63′	48′ 11″	55′ 9″
Hydraulic Vertical Outreach	8,85 m	10,80 m	14,75 m	17,15	12,85 m	17,70 m	19,20 m	14,90 m	17,00 m
Length	7′ 5″	7′ 5″	7′ 5″	7′ 5″	7′ 5″	7′ 5″	7′ 5″	7′ 5″	7′ 5″
Length	2265 mm	2265 mm	2265 mm	2265 mm	2265 mm	2265 mm	2265 mm	2265 mm	2265 mm
Max. Lifting Moment	74260 ft Ibs	72420 ft Ibs	72420 ft Ibs	72420 ft Ibs	71010 ft Ibs	71010 ft Ibs	71010 ft Ibs	69430 ft Ibs	68550 ft Ibs
Max. Lifting Moment	10,3 TM	10,0 TM	10,0 TM	10,0 TM	9,8 TM	9,8 TM	9,8 TM	9,6 TM	9,5 TM
Max. Pressure	35,5 MPa	35,5 MPa	35,5 MPa	35,5 MPa	35,5 MPa	35,5 MPa	35,5 MPa	35,5 MPa	35,5 MPa
Recommended oil flow	30-40 l/min	30-40 l/min	30-40 l/min	30-40 l/min	30-40 l/min	30-40 l/min	30-40 l/min	30-40 l/min	30-40 l/min
Slewing angle	400°	400°	400°	400°	400°	400°	400°	400°	400°
Slewing torque	12 kN m	12 kN m	12 kN m	12 kN m	12 kN m	12 kN m	12 kN m	12 kN m	12 kN m
Stabilizer control Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless
Stabilizer Spread available	3.4 – 4,5 m	3.4 – 4,5 m	3.4 – 4,5 m	3.4 – 4,5 m	3.4 – 4,5 m	3.4 – 4,5 m	3.4 – 4,5 m	3.4 – 4,5 m	3.4 – 4,5 m
Width	2′ 5″	2′ 5″	3′	3′	2′ 5″	3′	3′	2′ 7″	2′ 7″
Width	730 mm	730 mm	905 mm	905 mm	730 mm	905 mm	905 mm	780 mm	790 mm
Spec Sheet

Product description

Smart power, precise control.

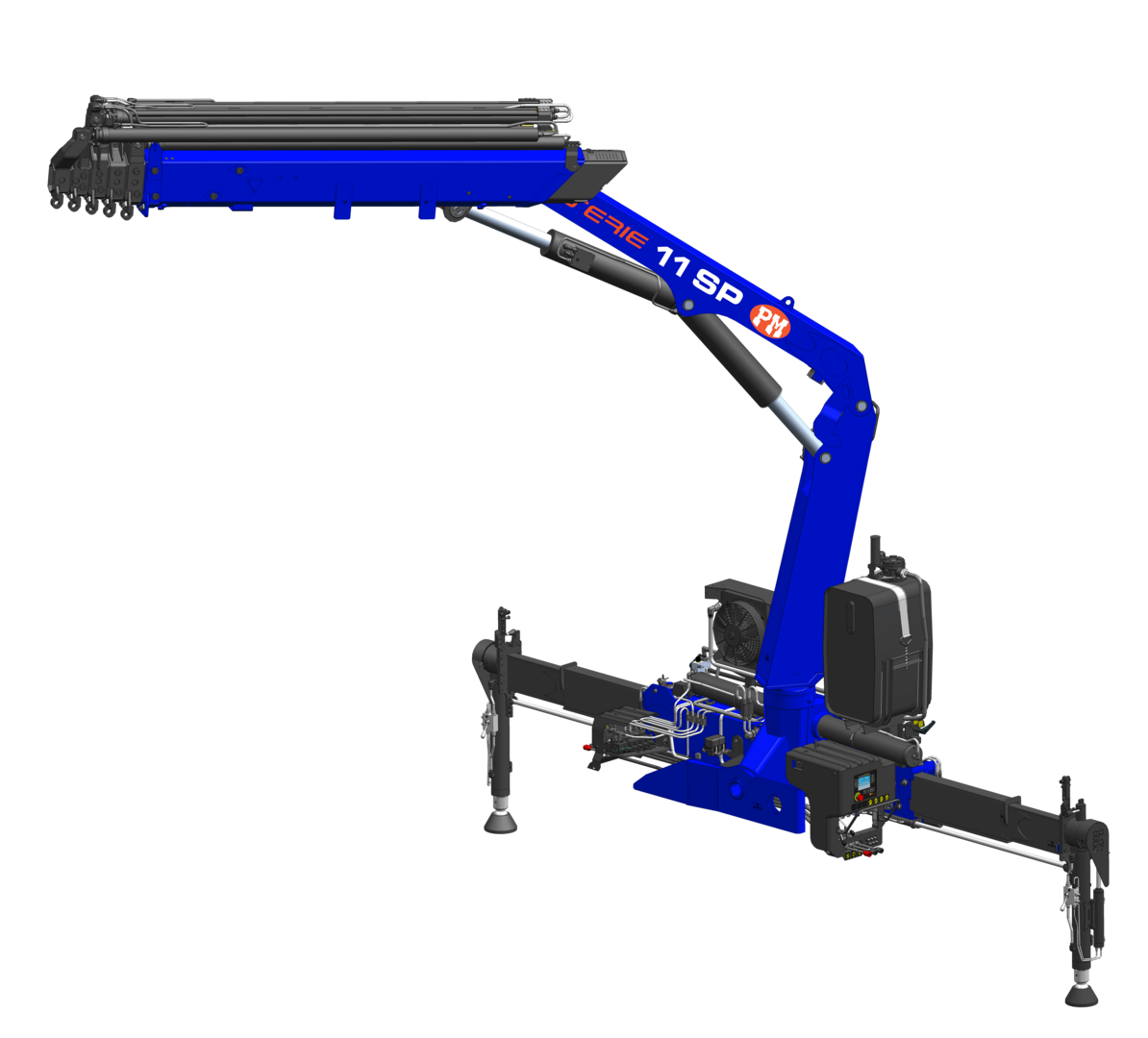

The Tadano PM 11 SP Series is a Gold line articulating crane designed for high performance with compact installation dimensions. Offering lifting moments from 9.5 to 10.3 tonne-meters and vertical outreach up to 17.1 meters, it achieves an excellent power-to-weight ratio.

All configurations are equipped as standard with a multifunction radio remote control and display, giving operators continuous feedback for precise and safe handling. Horizontal outreach ranges from 5.7 to 14.1 meters across the 11021 SP through 11025 SP models, while JIB versions extend capacity further—up to 16.05 meters horizontally and 18.9 meters vertically.

As part of the Gold line, the PM 11 SP Series includes connecting rod articulation, proportional control valve block, Power Tronic electronic management, and a heat exchanger for continuous operation. Lightweight, reliable, and easy to maintain, the PM 11 SP delivers premium performance and versatility for demanding lifting tasks.
