PM 100 SP

The PM 100 SP Series represents the pinnacle of heavy-duty lifting technology. Compact, lightweight, and powerful, it combines advanced engineering with innovative design solutions to deliver unmatched performance in its class.

Get in touch

Series Specs

Metric Imperial

	PM 100024 SP	PM 100026 SP	PM 100026 SP + J2414.25	PM 100026 SP + J2416.25	PM 100027 SP	PM 100027 SP + J2414.25	PM 100027 SP + J2416.25	PM 100028 SP	PM 100028 SP + J1614.25	PM 100028 SP + J1616.25	PM 100029 SP
Fuel Tank Capacity	290 l	290 l	290 l	290 l	290 l	290 l	290 l	290 l	290 l	290 l	290 l
Height	8′ 2”	8′ 2”	8′ 10″	8′ 10″	8′ 2”	8′ 10″	8′ 10″	8′ 2”	8′ 10″	8′ 10″	8′ 2”
Height	2495 mm	2495 mm	2700 mm	2700 mm	2495 mm	2700 mm	2700 mm	2495 mm	2700 mm	2700 mm	2495 mm
Hydraulic Horizontal Outreach	37′ 11″	51′ 10″	83′ 2″	95′ 2″	59′ 3″	90′ 7″	102′ 6″	67′ 3″	98′ 1″	110′ 1″	74′ 6″
Hydraulic Horizontal Outreach	11,55 m	15,80 m	25,35 m	29,00 m	18,05 m	27,60 m	31,25 m	20,50 m	29,90 m	33,55 m	22,70 m
Hydraulic Vertical Outreach	51′ 4″	65′ 12	96′	107′ 9″	72′ 2″	104′	114`’ 4″	80′ 5″	110′ 9″	122′ 6″	87′ 7″
Hydraulic Vertical Outreach	15,65 m	19,85 m	29,25 m	32,85 m	22,00 m	31,70 m	34,85 m	24,50 m	33,75 m	37,35 m	26,70 m
Length	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″	8′ 4″
Length	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm
Max. Lifting Moment	607570 ft lbs	578640 ft lbs	578640 ft lbs	578640 ft lbs	577920 ft lbs	577920 ft lbs	577920 ft lbs	576470 ft lbs	576470 ft lbs	576470 ft lbs	576470 ft lbs
Max. Lifting Moment	84 TM	80 TM	80 TM	80 TM	79,9 TM	79,9 TM	79,9 TM	79,7 TM	79,7 TM	79,7 TM	77,5 TM
Max. Pressure	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa	36 MPa
Recommended oil flow	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min	80 – 100 l/min
Slewing angle	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous	Continuous
Slewing torque	82 kN m	82 kN m	82 kN m	82 kN m	82 kN m	82 kN m	82 kN m	82 kN m	82 kN m	82 kN m	82 kN m
Stabilizer control Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless	Radio Wireless
Stabilizer Spread available	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m
Width	6′	6′	6′ 3″	6′ 3″	6′	6′ 3″	6′ 3″	6′	6′ 3″	6′ 3″	6′
Width	1830 mm	1830 mm	1910 mm	1910 mm	1830 mm	1910 mm	1910 mm	1830 mm	1910 mm	1910 mm	1830 mm
Spec Sheet

Product description

Power at its peak.

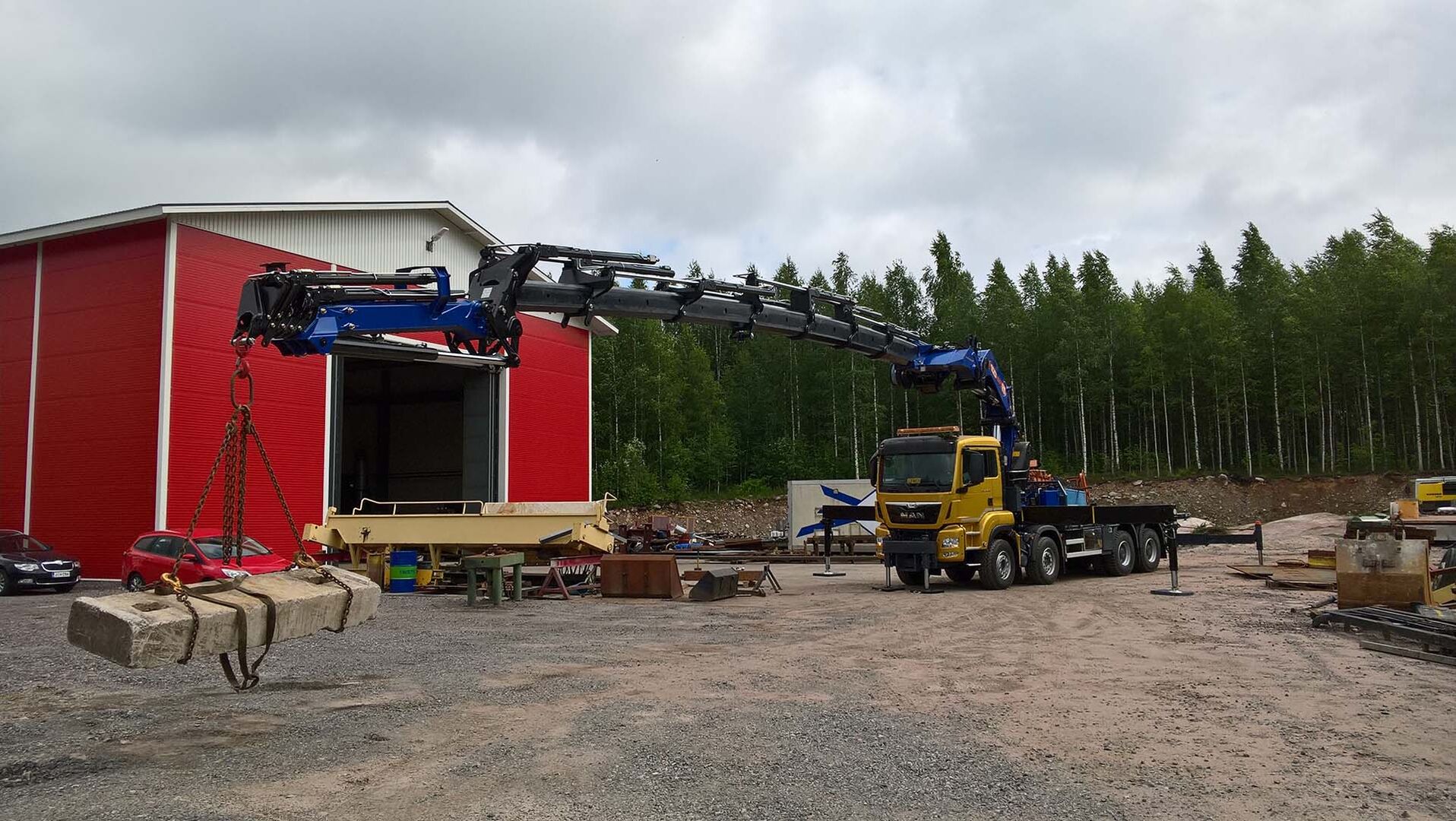

The PM 100 SP is a top-of-the-range heavy crane designed for maximum efficiency in the most demanding lifting applications. Its structure benefits from high-strength materials and a new octagonal boom section, which reduce overall weight while enhancing load capacity. This ensures that operators enjoy increased performance without sacrificing truck payload.

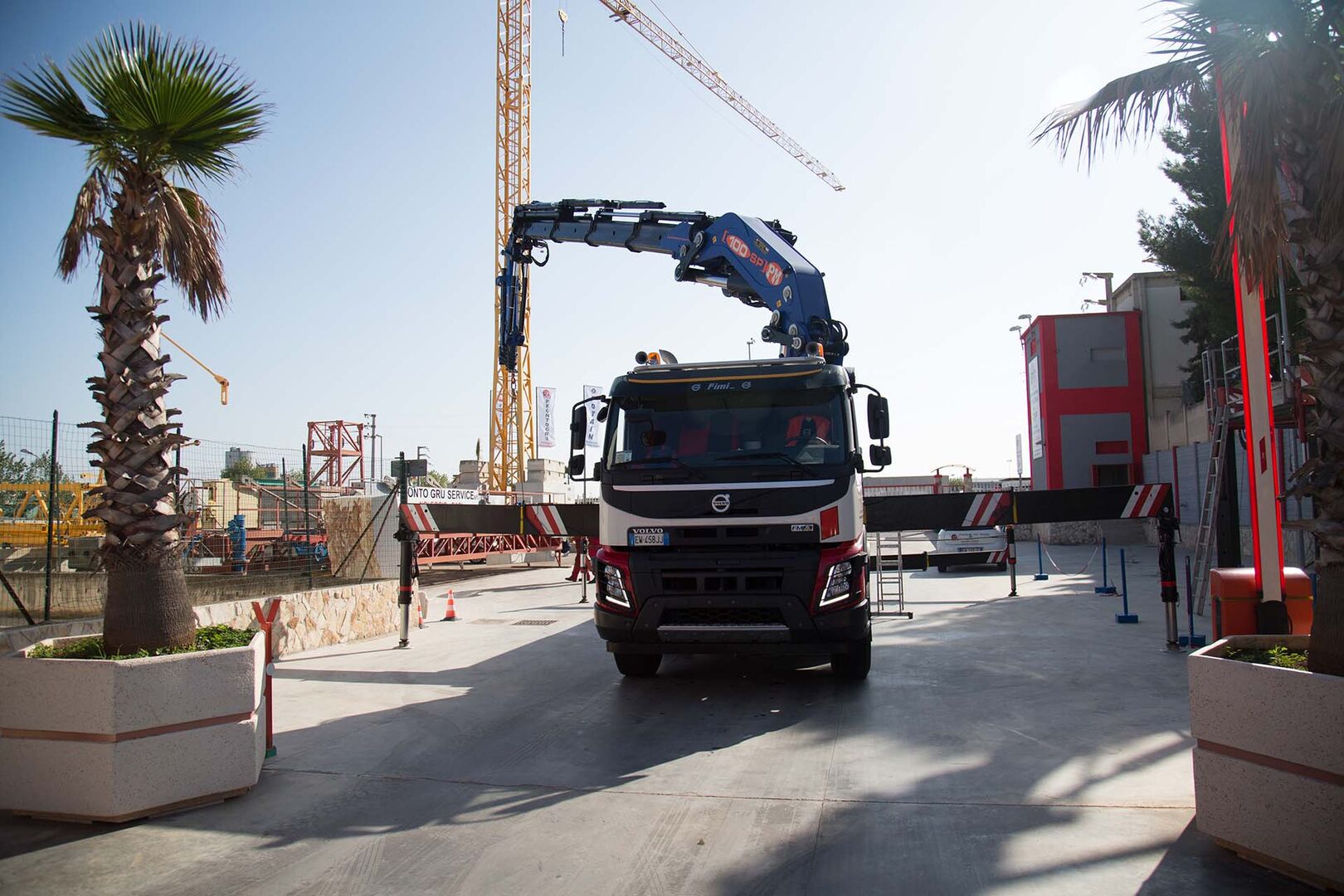

The crane features an unlimited slewing ring rotation system, engineered for intensive use and a high number of cycles. Its radio-controlled outrigger booms extend up to 9.1 meters and incorporate the MCS stabilization system. With Type 5 Interlock, the crane’s load capacity is electronically calculated based on the actual extension of the outriggers, providing maximum safety and efficiency in every configuration.

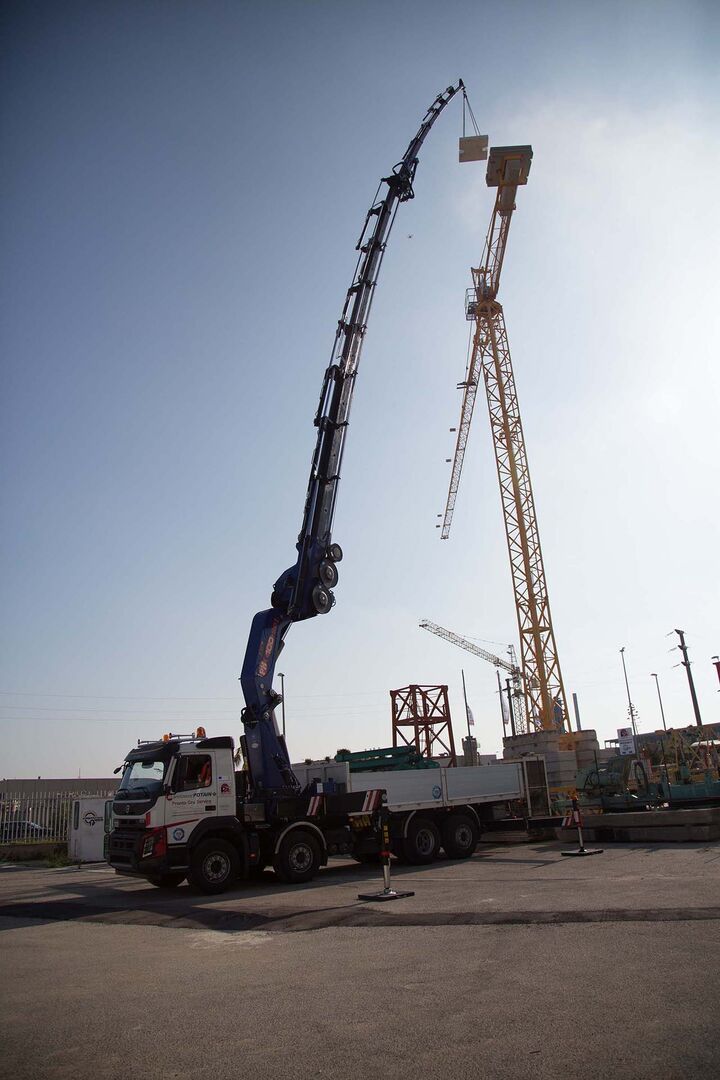

Available in configurations with 4, 6, 8, or 9 hydraulic extensions, the PM 100 SP delivers outstanding reach. When combined with a jib offering 4 or 6 extensions, the crane achieves a maximum horizontal outreach of 33.55 meters and a vertical outreach of 37.35 meters. Greater maneuverability is guaranteed by a 15° negative angle on the secondary boom and 20° on the jib, allowing precise operation even in confined spaces.

As part of the Platinum line, the PM 100 SP comes fully equipped with the most advanced PM technologies: double link articulation on the joints, multifunction radio control, compensated proportional valve block, oil cooler, continuous rotation on slewing ring, and the Power Tronic electronic management system. Together, these innovations ensure precision, reliability, and safety across all operating conditions.

The PM 100 SP Series is a powerful yet compact solution, engineered for operators who require maximum lifting power, outreach, and control in a crane designed to perform without compromise.
