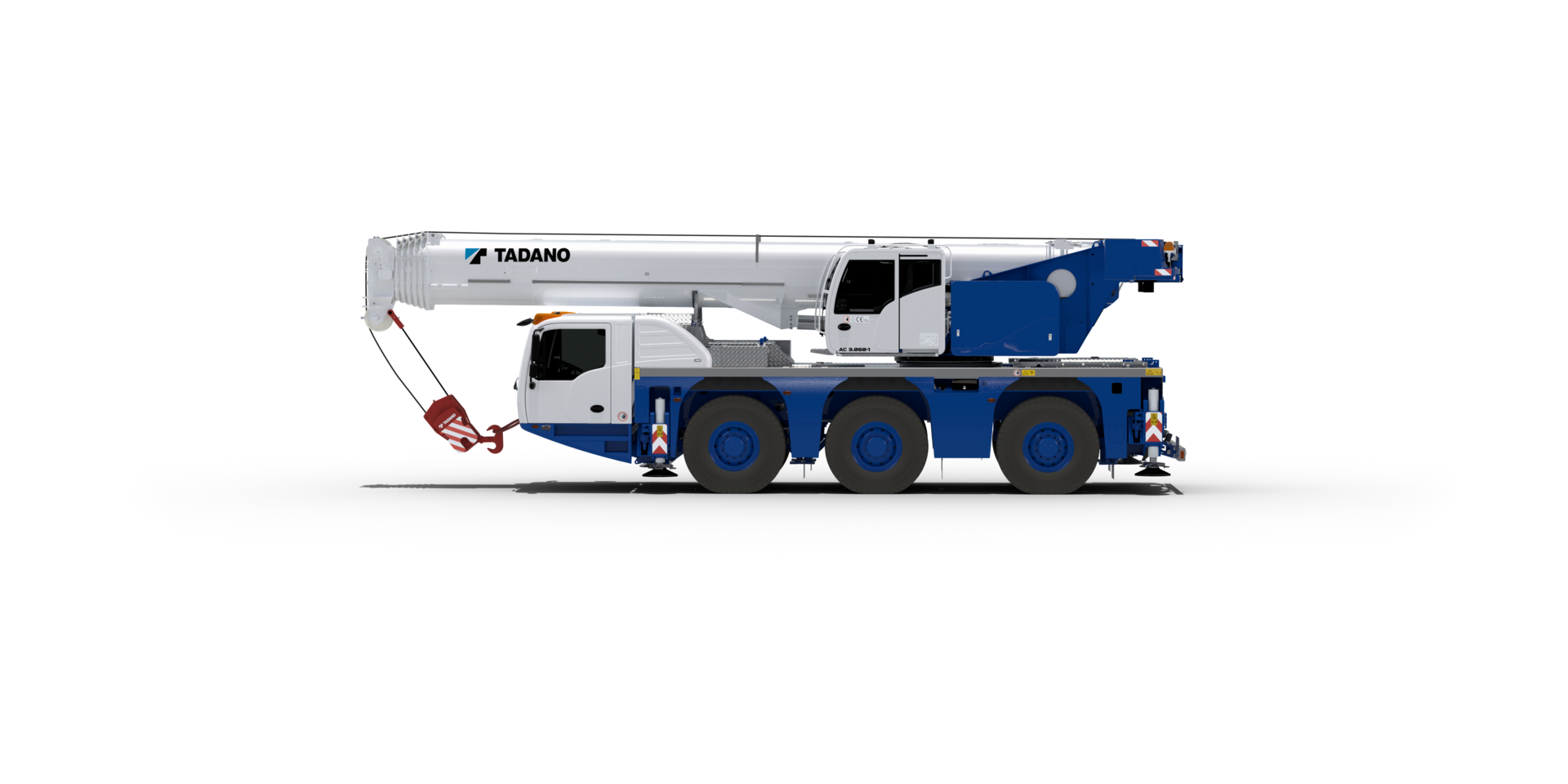

AC 3.060-1

The longest telescopic boom in its class, with an automatic counterweight rigging system for quick, easy setup. Flex Base with stepless outrigger positioning enhances versatility.

Product Specs

  • Max. Crane Capacity 65 USt
  • Main Boom Length 34.1 ft – 164.0 ft
  • Boom Extension 4.9 ft / 29.5 ft – 52.5 ft
  • Max. Tip Height 223.0 ft
  • Max. Counterweight 26,600 lbs
  • Outrigger Bases 22.8 ft x 21.4 ft
  • Hoist Line Pull 15,040 lbs
  • MAX Radius 144.3 ft
  • Dimensions L: 38.2 ft W: 8.3 ft H: 12.0 ft
  • Max. Crane Capacity 60 t
  • Main Boom Length 10.4 m – 50 m
  • Boom Extension 1.5 m / 9 m – 16 m
  • Max. Tip Height 69 m
  • Max. Counterweight 12.1 t
  • Outrigger Bases 6.90 m x 6.50 m
  • Hoist Line Pull 6.8 t
  • Max. Radius 44 m
  • Dimensions L: 11.67 m W: 2.55 m H: 3.61 m
  • Axles 3
  • Engine Mercedes-Benz
  • Drive 6 x 4 x 6 (6 x 6 x 6)

Product description

Reliable Efficiency with a Long Telescopic Boom

The AC 3.060-1 combines compact flexibility, high transportability, and ease-of-use with the world’s longest telescopic boom on a fully roadable, 3-axle all terrain crane. The single cylinder telescoping system reaches 50m with an optional extension increasing that reach to 66m, outperforming all other cranes in its class. The automatic counterweight rigging system enables quick and easy setup, even via remote control outside the superstructure cab. Flex Base with stepless outrigger positioning grants outstanding versatility and performance. The AC 3.060-1 blends Tadano’s noted reliability with efficiency, as everything aboard this machine can be handled by just one person.

The AC 3.060-1 combines compact flexibility, high transportability, and ease-of-use with the world’s longest telescopic boom on a fully roadable, 3-axle all terrain crane. The single cylinder telescoping system reaches 164 ft / 50m with an optional extension increasing that reach to 216.5 ft / 66m, outperforming all other cranes in its class. The automatic counterweight rigging system enables quick and easy setup, even via remote control outside the superstructure cab. Flex Base with stepless outrigger positioning grants outstanding versatility and performance. The AC 3.060-1 blends Tadano’s noted reliability with efficiency, as everything aboard this machine can be handled by just one person.
